Prometheus · 第 24 章（合并）

由原课程小节笔记合并，便于连续阅读。

---

24.1 prometheus-exporter管理

本节重点介绍 :

• exporter 流派

  • 必须和探测对象部署在一起的
  • 1对多的远端探针模式

• exporter管控的难点

  • 1对1 的exporter 需要依托诸如 ansible等节点管理工具 ，所以应该尽量的少

• 1对1的exporter改造成探针型的通用思路

exporter 流派

必须和探测对象部署在一起的

• 可以理解为1对1 的sidecar模式
• 典型的例子如
  • node_exporter
  • process-exporter

1对多的远端探针模式

• 典型的例子如
  • blackbox_exporter
  • redis_exporter
  • snmp_exporter

exporter管控的难点

• exporter的数量应该尽量少

1对1 的exporter 管理上的问题

• 1对1 的exporter的安装和管理是很大的问题
• 需要依托诸如 ansible等节点管理工具

探针型exporter的优点

• 只需要管理有限的探针节点
• 被探测的目标可以通过http参数传递给探针

比如redis-exporter的多实例配置

  - job_name: 'redis_exporter'
    static_configs:
      - targets:
        - redis://redis01:6379
        - redis://redis02:6379
    metrics_path: /scrape
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: redis_exporter01:9121

比如改造后的mysqld-exporter 多实例配置

  - job_name: 'mysql_exporter'
    metrics_path: /probe
    static_configs:
      - targets:
        - user1:pass1@tcp(mysql1:port1)/
        - user2:pass2@tcp(mysql2:port2)/

    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_dsn
      - source_labels: [__param_dsn]
        target_label: instance
        regex: .*tcp\((.*?)\).*
        replacement: $1
        action: replace

      - target_label: __address__
        replacement: localhost:9104 # 修改后的mysqld_exporter地址

将所有 1对1的exporter改造成探针型的收益

• 只要有维护少量的探针进程
• 所有的target都由prometheus通过http传参调用 exporter
• target的更新只需要在prometheus侧变更即可，可以和服务发现联动

1对1的exporter改造成探针型的通用思路

• 在8.3 我们修改mysqld_exporter源码 ，改造成类似blackbox的探针型，实现一对多探测

1. 添加/probe 探针处理handler ProbeHandler

	http.HandleFunc("/probe", func(w http.ResponseWriter, r *http.Request) {

		ProbeHandler(w, r)

	})

2. 编写具体的ProbeHandler

• 解析http 中的target参数
• 用target初始化对应的exporter对象
• 初始化prometheus http Handler

func ProbeHandler(w http.ResponseWriter, r *http.Request) {
	target := r.URL.Query().Get("target")

	mysqlExp := New(r.Context(), dsn, metrics, scrapers, logger)
	registry := prometheus.NewRegistry()
	registry.MustRegister(mysqlExp)
	h := promhttp.HandlerFor(registry, promhttp.HandlerOpts{})
	h.ServeHTTP(w, r)
}

3. 传参时调用对应exporter对象的 collect方法

• 通常是创建一个连接对象
• 然后执行 诸如info命令的采集任务即可

本节重点介绍 :

• exporter 流派

  • 必须和探测对象部署在一起的
  • 1对多的远端探针模式

• exporter管控的难点

  • 1对1 的exporter 需要依托诸如 ansible等节点管理工具 ，所以应该尽量的少

• 1对1的exporter改造成探针型的通用思路

24.2 prometheus target管理

本节重点介绍 :

• target 状态页面字段解析
• target 采集失败常见原因分析
• target 状态接口源码分析
• 脚本获取target存活情况和失败原因

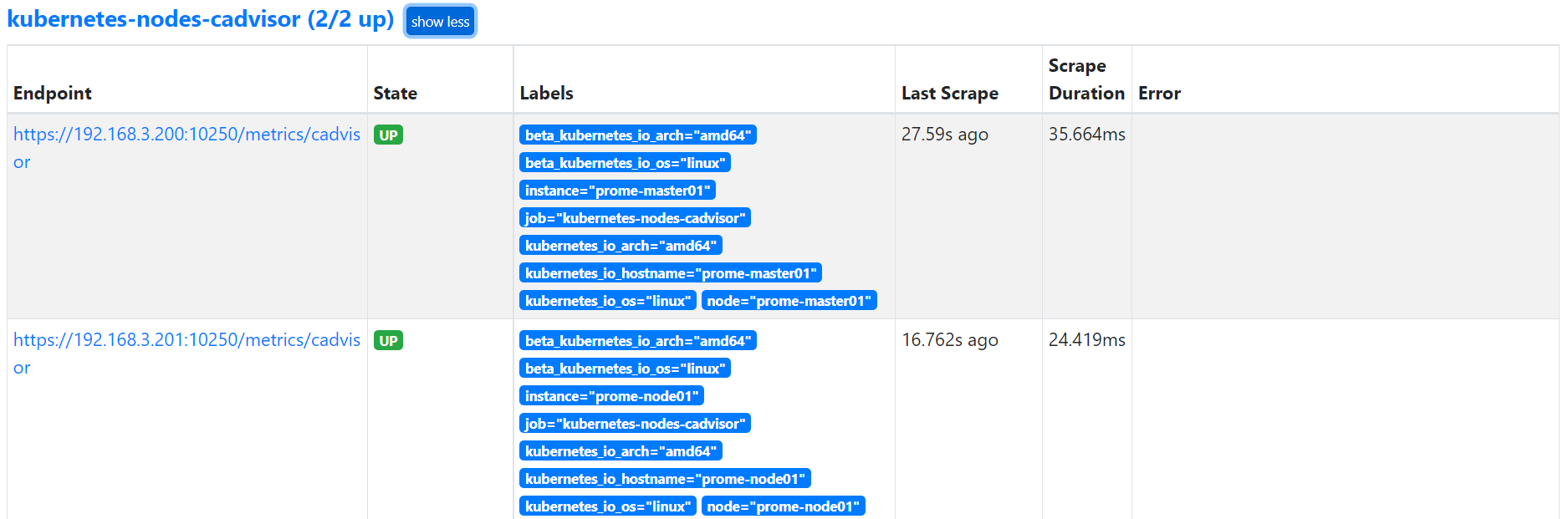

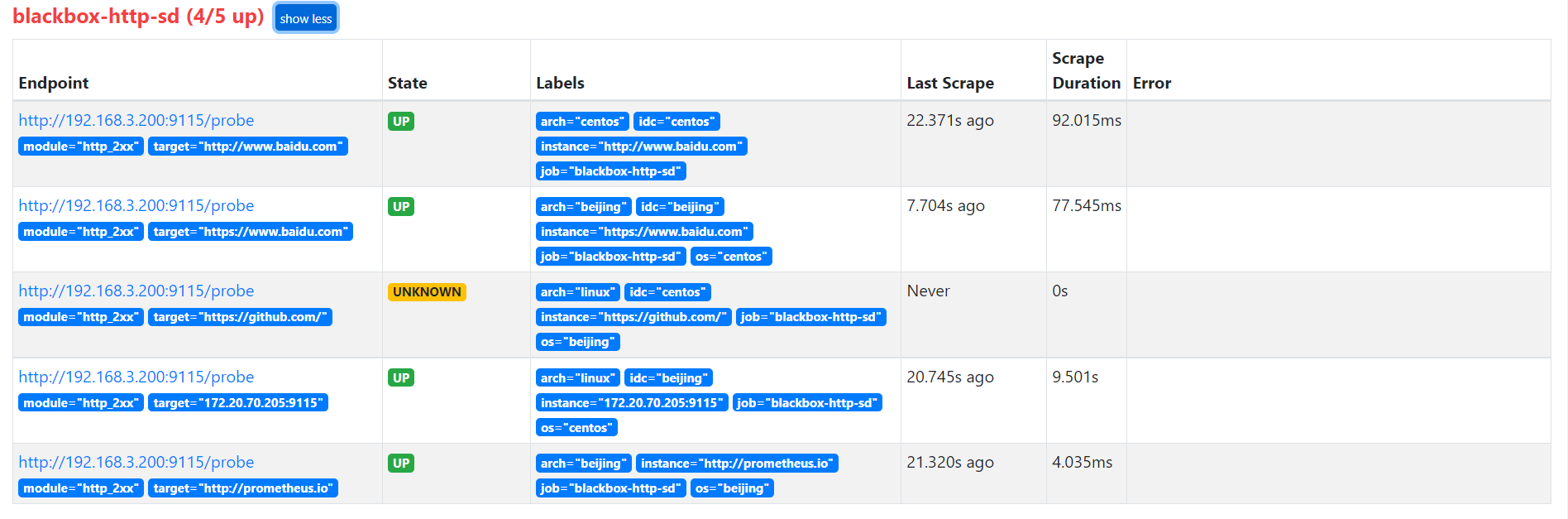

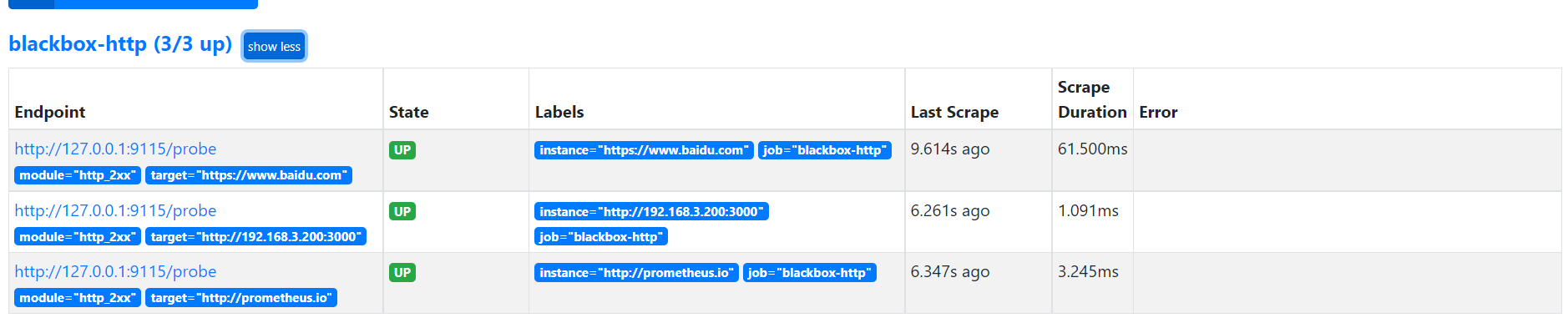

target 状态页面字段解析

endpoint 采集完整的地址

• 有协议
• host
• port
• path
• http参数
•

State 状态

• HealthUnknown TargetHealth = "unknown"
• HealthGood TargetHealth = "up"
• HealthBad TargetHealth = "down"

Labels 标签组

• 举例

Last Scrape 上一次采集的时间

Scrape Duration 上一次采集耗时

Error 错误

常见采集错误分类

• metrics_invalid_utf_8 代表metrics中打点含有非法字符串
• conn_timeout 连接超时
• ctx_deadline 采集超时
• conn_refused 连接拒绝，多见于端口不对
• 403 forbidden service account权限不对
• other

通过接口获取target存活情况和失败原因

• 接口地址 http://${​prometheus_ip}/api/v1/targets

源码解析

• 路由地址 D:\go_path\src\github.com\prometheus\prometheus\web\api\v1\api.go

r.Get("/targets", wrap(api.targets))

• 处理函数，通过 targetRetriever获取采集的target详情

func (api *API) targets(r *http.Request) apiFuncResult {
	sortKeys := func(targets map[string][]*scrape.Target) ([]string, int) {
		var n int
		keys := make([]string, 0, len(targets))
		for k := range targets {
			keys = append(keys, k)
			n += len(targets[k])
		}
		sort.Strings(keys)
		return keys, n
	}

	flatten := func(targets map[string][]*scrape.Target) []*scrape.Target {
		keys, n := sortKeys(targets)
		res := make([]*scrape.Target, 0, n)
		for _, k := range keys {
			res = append(res, targets[k]...)
		}
		return res
	}

	state := strings.ToLower(r.URL.Query().Get("state"))
	showActive := state == "" || state == "any" || state == "active"
	showDropped := state == "" || state == "any" || state == "dropped"
	res := &TargetDiscovery{}

	if showActive {
		targetsActive := api.targetRetriever(r.Context()).TargetsActive()
		activeKeys, numTargets := sortKeys(targetsActive)
		res.ActiveTargets = make([]*Target, 0, numTargets)

		for _, key := range activeKeys {
			for _, target := range targetsActive[key] {
				lastErrStr := ""
				lastErr := target.LastError()
				if lastErr != nil {
					lastErrStr = lastErr.Error()
				}

				globalURL, err := getGlobalURL(target.URL(), api.globalURLOptions)

				res.ActiveTargets = append(res.ActiveTargets, &Target{
					DiscoveredLabels: target.DiscoveredLabels().Map(),
					Labels:           target.Labels().Map(),
					ScrapePool:       key,
					ScrapeURL:        target.URL().String(),
					GlobalURL:        globalURL.String(),
					LastError: func() string {
						if err == nil && lastErrStr == "" {
							return ""
						} else if err != nil {
							return errors.Wrapf(err, lastErrStr).Error()
						}
						return lastErrStr
					}(),
					LastScrape:         target.LastScrape(),
					LastScrapeDuration: target.LastScrapeDuration().Seconds(),
					Health:             target.Health(),
				})
			}
		}
	} else {
		res.ActiveTargets = []*Target{}
	}
	if showDropped {
		tDropped := flatten(api.targetRetriever(r.Context()).TargetsDropped())
		res.DroppedTargets = make([]*DroppedTarget, 0, len(tDropped))
		for _, t := range tDropped {
			res.DroppedTargets = append(res.DroppedTargets, &DroppedTarget{
				DiscoveredLabels: t.DiscoveredLabels().Map(),
			})
		}
	} else {
		res.DroppedTargets = []*DroppedTarget{}
	}
	return apiFuncResult{res, nil, nil, nil}
}

做up_rate

• 效果图
•

python 代码分析target

import requests

def print_targets(targets):
    index = 1
    all_num = len(targets)
    up_num = 0
    err_map = {}
    for i in targets:
        scrapeUrl = i.get("scrapeUrl")
        state = i.get("health")
        labels = i.get("labels")
        lastScrape = i.get("lastScrape")
        lastScrapeDuration = i.get("lastScrapeDuration")
        lastError = i.get("lastError")
        if state == "up":
            up_type = "正常"
            up_num += 1
        else:
            up_type = "异常"

            msg = "状态:{} num:{}/{} endpoint:{} state:{} labels:{} lastScrape:{} lastScrapeDuration:{} lastError:{}".format(

                up_type,
                index,
                all_num,
                scrapeUrl,
                state,
                str(labels),
                lastScrape,
                lastScrapeDuration,
                lastError,

            )
            print(msg)
        if lastError != "":
            lastErrorEnds = err_map.get(lastError)
            if not lastErrorEnds:
                lastErrorEnds = []
            lastErrorEnds.append(scrapeUrl)
            err_map[lastError] = lastErrorEnds
        index += 1
    return all_num, up_num, err_map

def get_targets(t):
    try:
        uri = 'http://{}/api/v1/targets'.format(t)
        res = requests.get(uri)

        data = res.json().get("data")
        activeTargets = data.get("activeTargets")
        droppedTargets = data.get("droppedTargets")

        all_num, up_num, err_map = print_targets(activeTargets)
        msg = "[采集器地址:{}][{}/{}][up_rate:{}%][err_detail:{}]".format(
            uri,
            up_num,
            all_num,
            round((up_num / all_num) * 100, 2),
            err_map
        )
        print(msg)

    except Exception as e:
        print(e)

if __name__ == '__main__':
    scrapes = [
        "172.20.70.215:8091",
        "172.20.70.215:9090",
        "172.20.70.205:9090",
    ]
    for i in scrapes:
        get_targets(i)

• 打印的成功率日志

状态:异常 num:6/12 endpoint:https://172.20.70.205:10250/metrics/cadvisor state:down labels:{'beta_kubernetes_io_arch': 'amd64', 'beta_kubernetes_io_os': 'linux', 'instance': 'k8s-master01', 'job': 'kubernetes-nodes-cadvisor',
'kubernetes_io_arch': 'amd64', 'kubernetes_io_hostname': 'k8s-master01', 'kubernetes_io_os': 'linux', 'node': 'k8s-master01'} lastScrape:2021-08-25T03:38:21.869158652Z lastScrapeDuration:0.005617395 lastError:server returned H
TTP status 403 Forbidden
状态:异常 num:7/12 endpoint:https://172.20.70.215:10250/metrics/cadvisor state:down labels:{'beta_kubernetes_io_arch': 'amd64', 'beta_kubernetes_io_os': 'linux', 'instance': 'k8s-node01', 'job': 'kubernetes-nodes-cadvisor', 'k
ubernetes_io_arch': 'amd64', 'kubernetes_io_hostname': 'k8s-node01', 'kubernetes_io_os': 'linux', 'node': 'k8s-node01'} lastScrape:2021-08-25T03:38:04.540106744Z lastScrapeDuration:0.001006507 lastError:server returned HTTP st
atus 403 Forbidden
状态:异常 num:8/12 endpoint:https://172.20.70.215:10250/metrics state:down labels:{'beta_kubernetes_io_arch': 'amd64', 'beta_kubernetes_io_os': 'linux', 'instance': 'k8s-node01', 'job': 'kubernetes-nodes-kubelet', 'kubernetes_
io_arch': 'amd64', 'kubernetes_io_hostname': 'k8s-node01', 'kubernetes_io_os': 'linux'} lastScrape:2021-08-25T03:38:31.86533147Z lastScrapeDuration:0.004654096 lastError:server returned HTTP status 403 Forbidden
状态:异常 num:9/12 endpoint:https://172.20.70.205:10250/metrics state:down labels:{'beta_kubernetes_io_arch': 'amd64', 'beta_kubernetes_io_os': 'linux', 'instance': 'k8s-master01', 'job': 'kubernetes-nodes-kubelet', 'kubernete
s_io_arch': 'amd64', 'kubernetes_io_hostname': 'k8s-master01', 'kubernetes_io_os': 'linux'} lastScrape:2021-08-25T03:38:12.808065193Z lastScrapeDuration:0.001706876 lastError:server returned HTTP status 403 Forbidden

[采集器地址:http://172.20.70.215:8091/api/v1/targets][8/12][up_rate:66.67%][err_detail:{'server returned HTTP status 403 Forbidden': ['https://172.20.70.205:10250/metrics/cadvisor', 'https://172.20.70.215:10250/metrics/cadviso
r', 'https://172.20.70.215:10250/metrics', 'https://172.20.70.205:10250/metrics']}]

[采集器地址:http://172.20.70.215:9090/api/v1/targets][2/2][up_rate:100.0%][err_detail:{}]
状态:异常 num:10/12 endpoint:http://172.20.70.205:9308/metrics state:down labels:{'instance': '172.20.70.205:9308', 'job': 'kafka_exporter'} lastScrape:2021-08-25T11:38:30.871907605+08:00 lastScrapeDuration:0.000469941 lastErr
or:Get "http://172.20.70.205:9308/metrics": dial tcp 172.20.70.205:9308: connect: connection refused

[采集器地址:http://172.20.70.205:9090/api/v1/targets][11/12][up_rate:91.67%][err_detail:{'Get "http://172.20.70.205:9308/metrics": dial tcp 172.20.70.205:9308: connect: connection refused': ['http://172.20.70.205:9308/metrics'
]}]

本节重点总结 :

• target 状态页面字段解析
• target 采集失败常见原因分析
• target 状态接口源码分析
• 脚本获取target存活情况和失败原因

24.3 基于文件的服务发现模式

本节重点介绍 :

• 基于文件的服务发现提供了一种配置静态目标的更通用的方法
• 可以摆脱对特定服务发现源的依赖
• 通常的做法是调用内部CMDB的接口获取target数据，打上标签，生成json文件发给prometheus采集

基于文件的服务发现模式

解决的问题

• 之前手动配置了很多个traget
  • redis
  • mysql
  • blackbox
  • pushgateway
• 手动配置维护成本高，还容易出错

基于文件的服务发现配置

• 文档地址

特点

• 基于文件的服务发现提供了一种配置静态目标的更通用的方法
• 并充当了插入自定义服务发现机制的接口。
• 摆脱对特定服务发现源的依赖
• 只要能正确给出 json/yaml文件即可
• 和服务树的最好匹配方案

yaml文件类型

• yaml

YAML yaml - targets: [ - '<host>' ] labels: [ <labelname>: <labelvalue> ... ]

• 举例

- targets:
  - 172.20.70.205:9100
  - 172.20.70.215:9100
  labels:
    account: "aliyun-01"
    region: "ap-south-1"

json文件类型

json [ { "targets": [ "<host>", ... ], "labels": { "<labelname>": "<labelvalue>", ... } }, ... ]

• 举例

[
  {
    "targets": [
      "172.20.70.205:9100"
    ],
    "labels": {
      "account": "aliyun-01",
      "region": "ap-south-1",
      "env": "prod",
      "group": "inf",
      "project": "monitor",
      "stree_gpa": "inf.monitor.prometheus"
    }
  },
  {
    "targets": [
      "172.20.70.215:9100"
    ],
    "labels": {
      "account": "aliyun-02",
      "region": "ap-south-2",
      "env": "prod",
      "group": "inf",
      "project": "middleware",
      "stree_gpa": "inf.middleware.kafka"
    }
  }
]

下面来解读一下

• targets 是一组实例地址的列表
• labels 是这组实例的标签，应用到列表中所有实例
• 如果想每个实例不同的标签，可以将targets列表保留一个实例即可
• 标签可以自定义，下面举几个例子
  • account 代表公有云账户，多账户情况
  • region 代表区域
  • env 代表所属环境 prod代表生产，pre代表预发，test代表测试
  • group代表业务大组
  • project 代表项目
  • stree_gpa 代表服务树三级标签

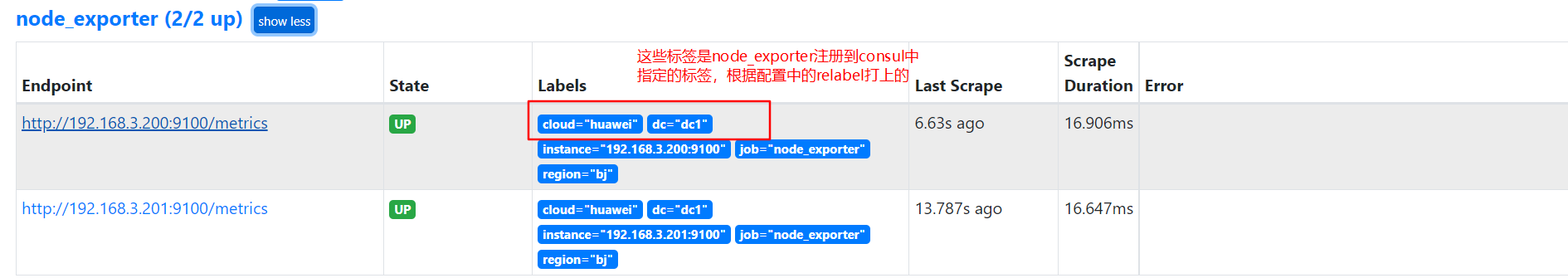

• 那么prometheus在采集对应target时就会将对应标签打入其metrics中
• 为后续我们按照标签过滤提供方便

配置举例

• files 代表 文件路径 支持通配符
• refresh_interval 代表 文件刷新间隔

  - job_name: 'node_exporter'
    scrape_interval: 30s
    scrape_timeout: 10s
    metrics_path: /metrics
    scheme: http
    honor_timestamps: false
    file_sd_configs:
    - files:
      - /opt/app/prometheus/sd/node_exporter.json
      refresh_interval: 5m

改造为服务发现类型

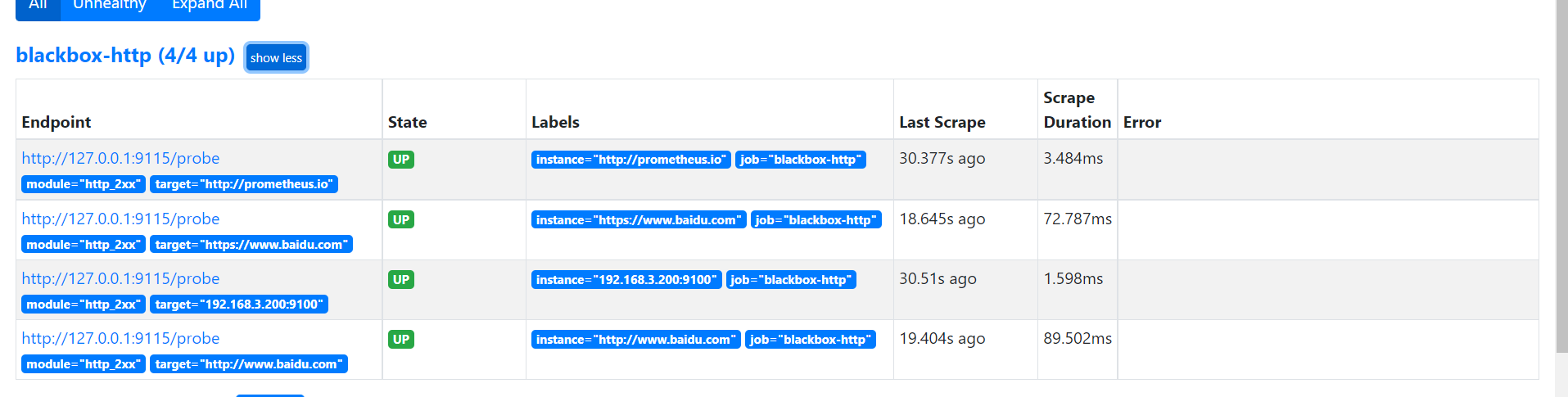

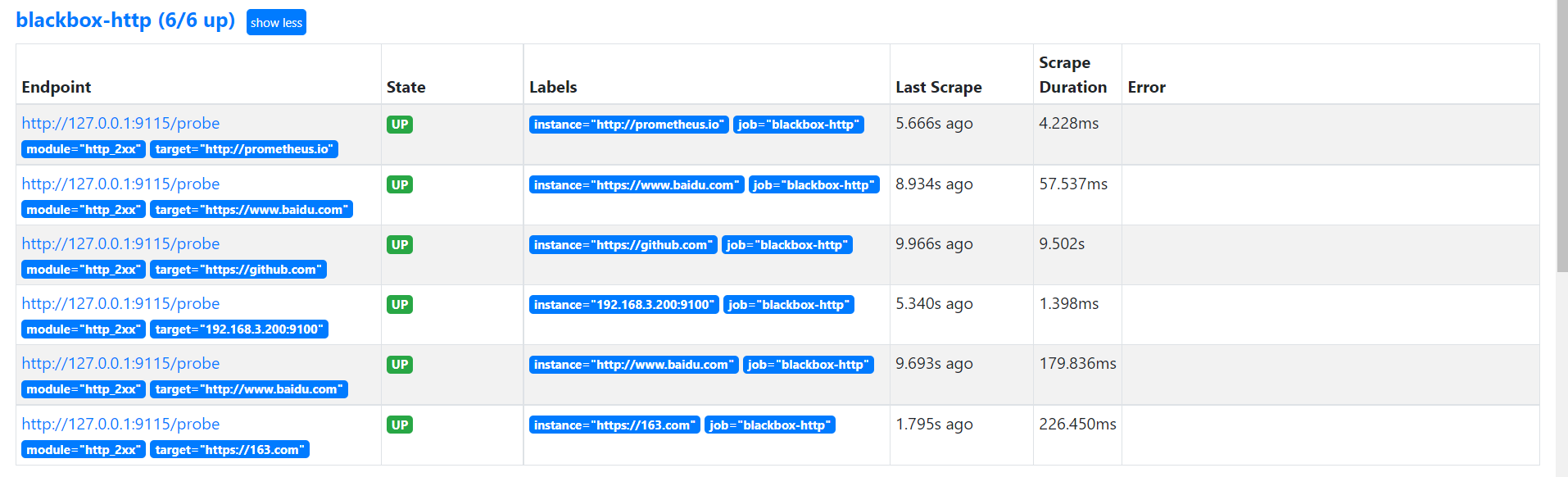

• 将 blackbox-http 和 node_exporter 改为文件发现
• prometheus 配置

  - job_name: 'blackbox-http'
    metrics_path: /probe
    # 传入的参数
    params:
      module: [http_2xx]  # Look for a HTTP 200 response.
    scrape_interval: 15s
    scrape_timeout: 10s
    scheme: http
    honor_timestamps: false
    file_sd_configs:
    - files:
      - /opt/app/prometheus/sd/blackbox_http.json
      refresh_interval: 2m
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 172.20.70.205:9115

  - job_name: 'node_exporter'
    # metrics的path 注意不都是/metrics
    # 传入的参数
    scrape_interval: 30s
    scrape_timeout: 10s
    scheme: http
    honor_timestamps: false
    file_sd_configs:
    - files:
      - /opt/app/prometheus/sd/node_exporter.json
      refresh_interval: 2m

• 创建sd目录

mkdir -pv /opt/app/prometheus/sd/

• 写入json文件

cat <<EOF > /opt/app/prometheus/sd/node_exporter.json
[
  {
    "targets": [
      "172.20.70.205:9100"
    ],
    "labels": {
      "name": "prome-master01",
      "account": "aliyun-01",
      "region": "ap-south-1",
      "env": "prod",
      "group": "inf",
      "project": "monitor",
      "stree_gpa": "inf.monitor.prometheus"
    }
  },
  {
    "targets": [
      "172.20.70.215:9100"
    ],
    "labels": {
      "name": "prome-node01",
      "account": "aliyun-02",
      "region": "ap-south-2",
      "env": "prod",
      "group": "inf",
      "project": "middleware",
      "stree_gpa": "inf.middleware.kafka"
    }
  }
]
EOF

cat <<EOF > /opt/app/prometheus/sd/blackbox_http.json
[
  {
    "targets": [
      "172.20.70.205:9115",
      "http://prometheus.io",
      "http://www.baidu.com",
      "https://www.baidu.com"
    ]
  }
]
EOF

• reload prometheus
• 观察target页面 和 sd结果页面
•
• 修改文件 blackbox_http.json 新增 https://github.com/ 的探测
•

cat <<EOF > /opt/app/prometheus/sd/blackbox_http.json
[
  {
    "targets": [
      "172.20.70.205:9115",
      "http://prometheus.io",
      "http://www.baidu.com",
      "https://www.baidu.com",
      "https://github.com/"
    ]
  }
]
EOF

curl -X POST http://localhost:9090/-/reload

本节重点总结 :

• 基于文件的服务发现提供了一种配置静态目标的更通用的方法
• 可以摆脱对特定服务发现源的依赖
• 通常的做法是调用内部CMDB的接口获取target数据，打上标签，生成json文件发给prometheus采集

24.4 基于consul服务发现模式

本节重点介绍 :

• consul 安装
• consul go代码注册服务，注销服务，获取服务
• node_exporter改造为consul服务发现
• 在数量比较大时，在注册服务的时候，关闭check，可以降低consul的压力

consul 安装

准备工作

# 下载consul
wget -O /opt/tgzs/consul_1.9.4_linux_amd64.zip  https://releases.hashicorp.com/consul/1.9.4/consul_1.9.4_linux_amd64.zip

cd /opt/tgzs/
unzip consul_1.9.4_linux_amd64.zip

/bin/cp -f consul /usr/bin/

启动单机版consul

#
mkdir  /opt/app/consul

# 准备配置文件
cat <<EOF > /opt/app/consul/single_server.json
{
    "datacenter": "dc1",
    "node_name": "consul-svr-01",
    "server": true,
    "bootstrap_expect": 1,
    "data_dir": "/opt/app/consul/",
    "log_level": "INFO",
    "log_file": "/opt/logs/",
    "ui": true,
    "bind_addr": "0.0.0.0",
    "client_addr": "0.0.0.0",
    "retry_interval": "10s",
    "raft_protocol": 3,
    "enable_debug": false,
    "rejoin_after_leave": true,
    "enable_syslog": false
}
EOF

# 多个ip地址时，将bind_addr 改为一个内网的ip

# 写入service文件
cat <<EOF > /etc/systemd/system/consul.service
[Unit]
Description=consul server
Wants=network-online.target
After=network-online.target

[Service]
ExecStart=/usr/bin/consul agent  -config-file=/opt/app/consul/single_server.json
StandardOutput=syslog
StandardError=syslog
SyslogIdentifier=consul
[Install]
WantedBy=default.target
EOF

# 启动服务
systemctl daemon-reload && systemctl start consul

systemctl status consul

验证访问

• http://localhost:8500/

node_exporter的job改造为consul的服务发现

编写go代码注册服务到consul

初始化consul

• 使用包 github.com/hashicorp/consul/api

import (
	"fmt"
	consul "github.com/hashicorp/consul/api"
	"log"
)

type client struct {
	consul *consul.Client
}

func NewConsulClient(addr string) (*client, error) {
	config := consul.DefaultConfig()
	config.Address = addr
	c, err := consul.NewClient(config)
	if err != nil {
		return nil, err
	}
	return &client{consul: c}, nil
}

编写注册服务方法

• 需要指定参数为
  • 服务的名称
  • 实例地址
  • 实例端口
  • 实例探活path
  • 实例标签map
• check.HTTP 代表使用http类型的check
• 调用 consul.Agent().ServiceRegister(reg)注册服务

// 注册服务
func (c *client) ServiceRegister(srvName, srvHost string, srvPort int, healthyCheckPath string, metaMap map[string]string) error {

	reg := new(consul.AgentServiceRegistration)
	reg.Name = srvName

	thisId := fmt.Sprintf("%s_%d", srvHost, srvPort)
	reg.ID = thisId
	reg.Port = srvPort
	reg.Address = srvHost
	reg.Meta = metaMap
	log.Printf("ServiceRegisterStart :%v", thisId)
	//增加check
	check := new(consul.AgentServiceCheck)
	check.HTTP = fmt.Sprintf("http://%s:%d%s", reg.Address, reg.Port, healthyCheckPath)
	//设置超时 5s。
	check.Timeout = "2s"
	check.DeregisterCriticalServiceAfter = "5s"
	//设置间隔 5s。
	check.Interval = "5s"
	//注册check服务。
	reg.Check = check

	return c.consul.Agent().ServiceRegister(reg)
}

编写获取服务信息的方法

• 使用consul.Health().Service获取 passing的服务

// Service return a service
func (c *client) GetService(service, tag string) ([]*consul.ServiceEntry, error) {
	passingOnly := true
	ss, _, err := c.consul.Health().Service(service, tag, passingOnly, nil)
	if len(ss) == 0 && err == nil {
		return nil, fmt.Errorf("service ( %s ) was not found", service)
	}

	return ss, err
}

编写根据服务id注销服务的方法

// 根据server id注销服务
func (c *client) DeRegister(id string) error {
	return c.consul.Agent().ServiceDeregister(id)
}

注册node_exporter服务

func main() {
	c, err := NewConsulClient("http://172.20.70.205:8500")
	if err != nil {
		log.Printf("NewConsulClient.err:%v", err)
		return
	}

	nodes := []string{
		"172.20.70.205",
		"172.20.70.215",
	}

	nodeExporterSrv := "node_exporter"
	for _, h := range nodes {
		m := map[string]string{"region": "bj", "cloud": "huawei"}
		err = c.ServiceRegister(nodeExporterSrv, h, 9100, "/", m)
		if err != nil {
			log.Printf("[ServiceRegister.err][srv:%v][host:%v][err:%v]", nodeExporterSrv, h, err)
		} else {
			log.Printf("[ServiceRegister.success][srv:%v][host:%v]", nodeExporterSrv, h)
		}
	}

	ss, err := c.GetService(nodeExporterSrv, "")
	for _, s := range ss {
		log.Printf("[c.GetService][service_id:%v][err:%v]", s.Service.ID, err)
		//c.DeRegister(s.Service.ID)
	}

}

完整的go代码

package main

import (
	"fmt"
	consul "github.com/hashicorp/consul/api"
	"log"
)

type client struct {
	consul *consul.Client
}

func NewConsulClient(addr string) (*client, error) {
	config := consul.DefaultConfig()
	config.Address = addr
	c, err := consul.NewClient(config)
	if err != nil {
		return nil, err
	}
	return &client{consul: c}, nil
}

// 注册服务
func (c *client) ServiceRegister(srvName, srvHost string, srvPort int, healthyCheckPath string, metaMap map[string]string) error {

	reg := new(consul.AgentServiceRegistration)
	reg.Name = srvName

	thisId := fmt.Sprintf("%s_%d", srvHost, srvPort)
	reg.ID = thisId
	reg.Port = srvPort
	reg.Address = srvHost
	reg.Meta = metaMap
	log.Printf("ServiceRegisterStart :%v", thisId)
	//增加check
	check := new(consul.AgentServiceCheck)
	check.HTTP = fmt.Sprintf("http://%s:%d%s", reg.Address, reg.Port, healthyCheckPath)
	//设置超时 5s。
	check.Timeout = "2s"
	check.DeregisterCriticalServiceAfter = "5s"
	//设置间隔 5s。
	check.Interval = "5s"
	//注册check服务。
	reg.Check = check

	return c.consul.Agent().ServiceRegister(reg)
}

// 根据server id注销服务
func (c *client) DeRegister(id string) error {
	return c.consul.Agent().ServiceDeregister(id)
}

// Service return a service
func (c *client) GetService(service, tag string) ([]*consul.ServiceEntry, error) {
	passingOnly := true
	ss, _, err := c.consul.Health().Service(service, tag, passingOnly, nil)
	if len(ss) == 0 && err == nil {
		return nil, fmt.Errorf("service ( %s ) was not found", service)
	}

	return ss, err
}

func main() {
	c, err := NewConsulClient("http://172.20.70.205:8500")
	if err != nil {
		log.Printf("NewConsulClient.err:%v", err)
		return
	}

	nodes := []string{
		"172.20.70.205",
		"172.20.70.215",
	}

	nodeExporterSrv := "node_exporter"
	for _, h := range nodes {
		m := map[string]string{"region": "bj", "cloud": "huawei"}
		err = c.ServiceRegister(nodeExporterSrv, h, 9100, "/", m)
		if err != nil {
			log.Printf("[ServiceRegister.err][srv:%v][host:%v][err:%v]", nodeExporterSrv, h, err)
		} else {
			log.Printf("[ServiceRegister.success][srv:%v][host:%v]", nodeExporterSrv, h)
		}
	}

	ss, err := c.GetService(nodeExporterSrv, "")
	for _, s := range ss {
		log.Printf("[c.GetService][service_id:%v][err:%v]", s.Service.ID, err)
		//c.DeRegister(s.Service.ID)
	}

}

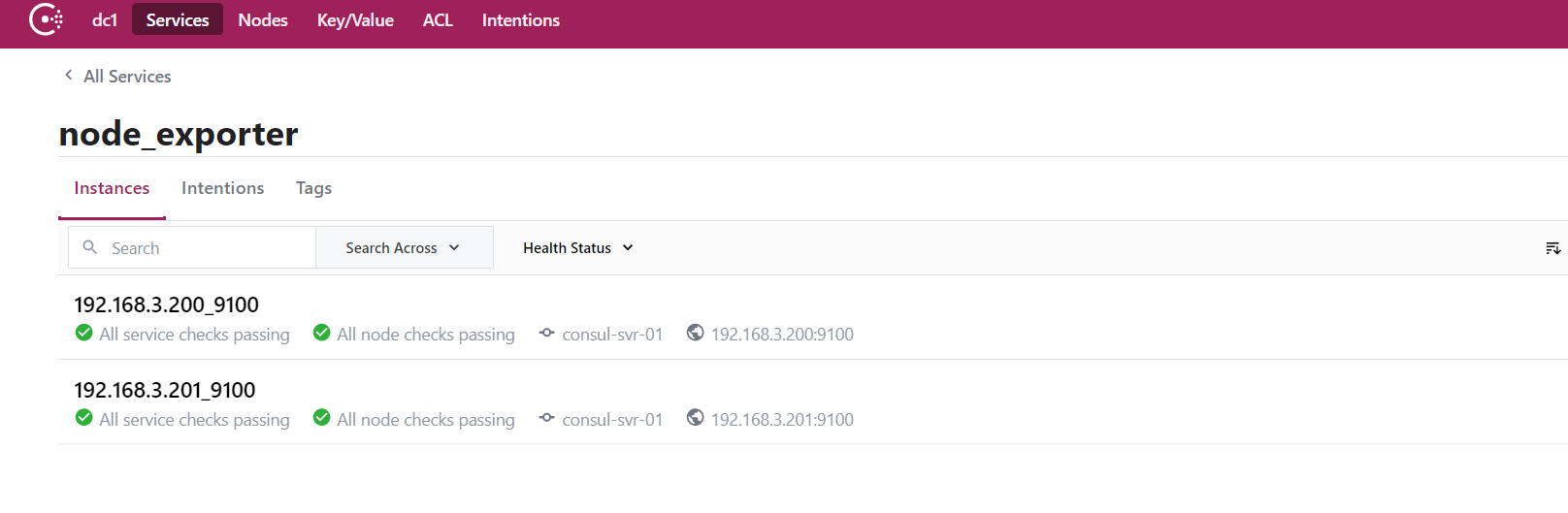

注册服务的结果

注册service

注销服务

配置 node_exporter的job为consul服务发现模式

• 配置文档
• 配置文件

  - job_name: 'node_exporter'
    honor_timestamps: true
    scrape_interval: 15s
    scrape_timeout: 10s
    metrics_path: /metrics
    scheme: http
    consul_sd_configs:
      - server: 172.20.70.205:8500
        services:
          - node_exporter
    relabel_configs:
      - source_labels:  ["__meta_consul_dc"]
        target_label: "dc"
      - separator: ;
        regex: __meta_consul_service_metadata_(.+)
        replacement: $1
        action: labelmap

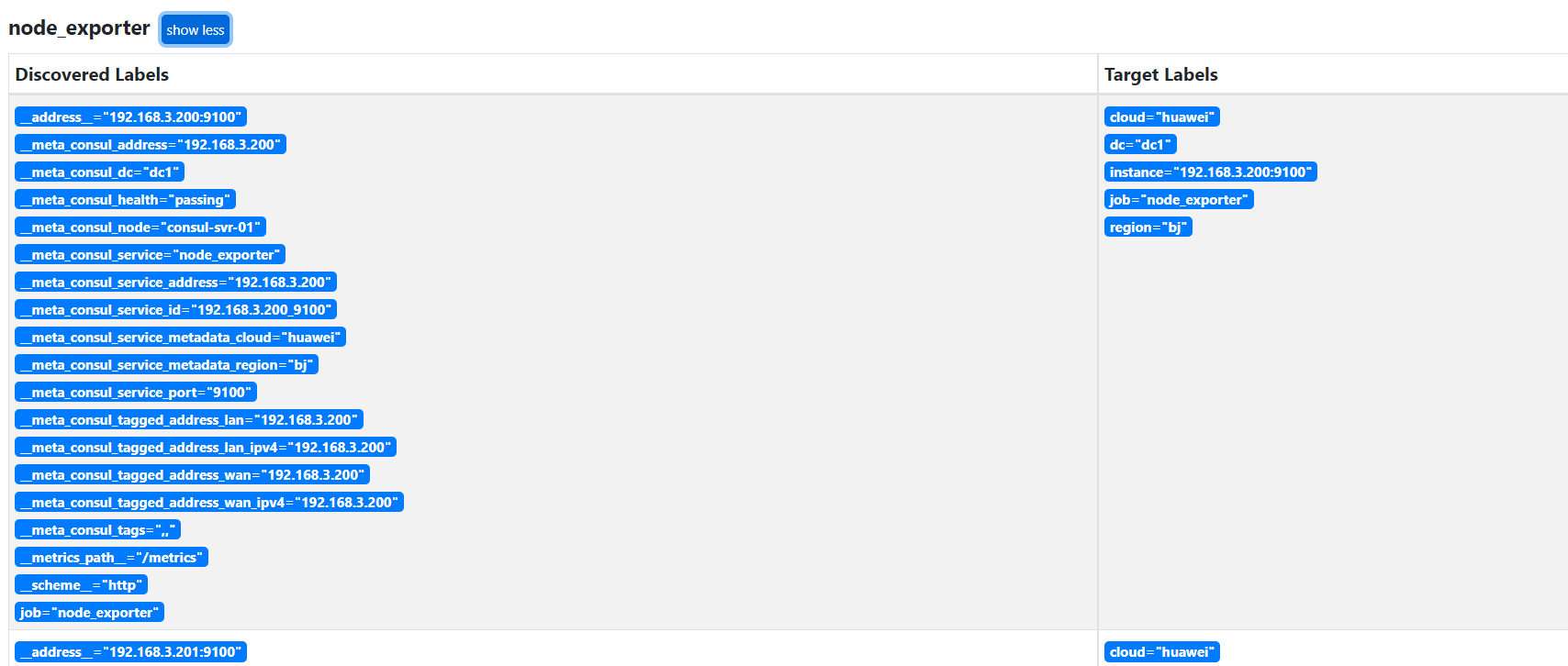

• target页面和service discovery 页面观察服务发现结果
•
•

本节重点总结 :

• consul 安装
• consul go代码注册服务，注销服务，获取服务
• node_exporter改造为consul服务发现
• 在数量比较大时，在注册服务的时候，关闭check，可以降低consul的压力

24.5 基于http服务发现模式

本节重点介绍 :

• http型的服务发现的优点
• 使用go语言编写 http服务发现源
• 将blackbox-http job改造为 http服务发现类型

说明

对比file_sd的优点

• 不再依赖文件做传输。不需要confd或者ansible copy file的机制
• 直接在服务发现源(CMDB)启动一个接口
• 返回 json的target数据

[
  {
    "targets": [ "<host>", ... ],
    "labels": {
      "<labelname>": "<labelvalue>", ...
    }
  },
  ...
]

文档地址

• http_sd_configs配置文档

编写go的http发现源

使用gin启动web

package main

import (
	"flag"
	"github.com/gin-gonic/gin"
	"math/rand"
)

func main() {

	listenAddress := flag.String("addr", ":8001",
		"Address on which to expose metrics and web interface.")
	flag.Parse()
	r := gin.Default()

	r.GET("/prome_http_sd", httpSd)
	r.Run(*listenAddress) // listen and serve on 0.0.0.0:8080 (for windows "localhost:8080")
}

编写target数据结构

type target struct {
	Targets []string          `json:"targets"`
	Labels  map[string]string `json:"labels"`
}

编写 httpSd 处理函数

• frn返回一个最大值为n的随机整数
• randMapKeys 作为随机标签的key
• randMapValues 作为随机标签的value
• 遍历nodes切片mock target数据
• 返回targets json数据

func httpSd(c *gin.Context) {

	nodes := []string{
		"172.20.70.205:9115",
		"http://prometheus.io",
		"http://www.baidu.com",
		"https://www.baidu.com",
		"https://github.com/",
	}
	randMapKeys := []string{"arch", "idc", "os", "job"}
	randMapValues := []string{"linux", "beijing", "centos", "arm64"}
	frn := func(n int) int {
		return rand.Intn(n)
	}

	targets := make([]target, 0)
	for _, n := range nodes {
		num := len(randMapKeys)
		m := make(map[string]string, num)
		for i := 0; i < num; i++ {
			m[randMapKeys[frn(len(randMapKeys)-1)]] = randMapValues[frn(len(randMapValues)-1)]
		}
		t := target{
			Targets: []string{n},
			Labels:  m,
		}
		targets = append(targets, t)
	}

	c.JSON(200, targets)
}

完整go代码

package main

import (
	"flag"
	"github.com/gin-gonic/gin"
	"math/rand"
)

func main() {

	listenAddress := flag.String("addr", ":8001",
		"Address on which to expose metrics and web interface.")
	flag.Parse()
	r := gin.Default()

	r.GET("/prome_http_sd", httpSd)
	r.Run(*listenAddress) // listen and serve on 0.0.0.0:8080 (for windows "localhost:8080")
}

type target struct {
	Targets []string          `json:"targets"`
	Labels  map[string]string `json:"labels"`
}

func httpSd(c *gin.Context) {

	nodes := []string{
		"172.20.70.205:9115",
		"http://prometheus.io",
		"http://www.baidu.com",
		"https://www.baidu.com",
		"https://github.com/",
	}
	randMapKeys := []string{"arch", "idc", "os", "job"}
	randMapValues := []string{"linux", "beijing", "centos", "arm64"}
	frn := func(n int) int {
		return rand.Intn(n)
	}

	targets := make([]target, 0)
	for _, n := range nodes {
		num := len(randMapKeys)
		m := make(map[string]string, num)
		for i := 0; i < num; i++ {
			m[randMapKeys[frn(len(randMapKeys)-1)]] = randMapValues[frn(len(randMapValues)-1)]
		}
		t := target{
			Targets: []string{n},
			Labels:  m,
		}
		targets = append(targets, t)
	}

	c.JSON(200, targets)
}

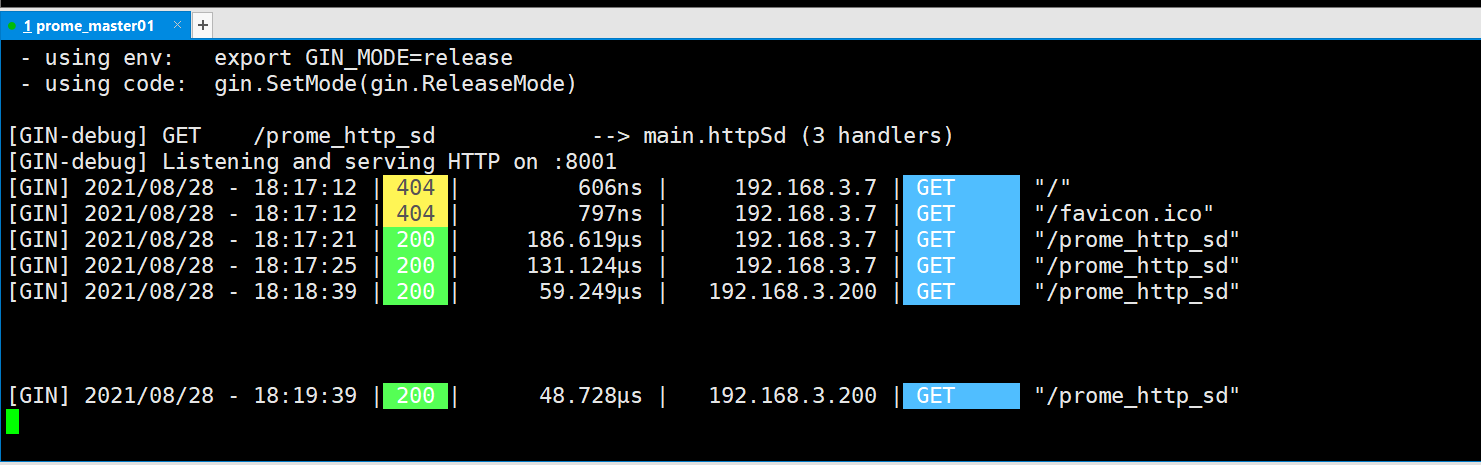

请求接口看返回

[root@k8s-master01 ~]#  curl -s http://localhost:8001/prome_http_sd |python -m json.tool
[
    {
        "labels": {
            "arch": "linux",
            "idc": "centos",
            "os": "centos"
        },
        "targets": [
            "172.20.70.205:9115"
        ]
    },
    {
        "labels": {
            "arch": "beijing",
            "os": "beijing"
        },
        "targets": [
            "http://prometheus.io"
        ]
    },
    {
        "labels": {
            "arch": "centos",
            "os": "centos"
        },
        "targets": [
            "http://www.baidu.com"
        ]
    },
    {
        "labels": {
            "arch": "beijing",
            "idc": "beijing",
            "os": "linux"
        },
        "targets": [
            "https://www.baidu.com"
        ]
    },
    {
        "labels": {
            "arch": "beijing",
            "idc": "linux"
        },
        "targets": [
            "https://github.com/"
        ]
    }
]

将blackbox-http job改造为 http服务发现类型

修改prometheus配置文件

• 传入http_sd_configs 的url
• 其余relabel配置不变

  - job_name: 'blackbox-http-sd'
    metrics_path: /probe
    # 传入的参数
    params:
      module: [http_2xx]  # Look for a HTTP 200 response.
    scrape_interval: 15s
    scrape_timeout: 10s
    scheme: http
    honor_timestamps: false
    http_sd_configs:
    - url: http://172.20.70.205:8001/prome_http_sd
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 172.20.70.205:9115

页面观察结果

• target页面
•
• discovery页面
•
• http发现源侧看到的prometheus请求
•

本节重点总结 :

• http型的服务发现的优点
• 使用go语言编写 http服务发现源
• 将blackbox-http job改造为 http服务发现类型

24.6 监控系统在采集侧对接运维平台

本节重点介绍 :

• 监控系统在采集侧对接运维平台
  • 服务树充当监控系统的上游数据提供者
  • 在运维平台上 可以配置采集任务
    • exporter改造成探针型
    • 将给exporter传参和修改prometheus scrape配置等操作页面化

监控系统在采集侧对接运维平台

1. 服务树充当监控系统的上游数据提供者
2. 在运维平台上 可以配置采集任务

服务树充当监控系统的上游数据提供者

• 服务树提供数据接口，供监控系统查询资源信息
• 通过http/file/consul等服务发现机制将查询到的信息配置到prometheus中
• prometheus采集即可
• 这样所有的资源会打上相关的标签在监控系统中存储

运维平台配置采集任务

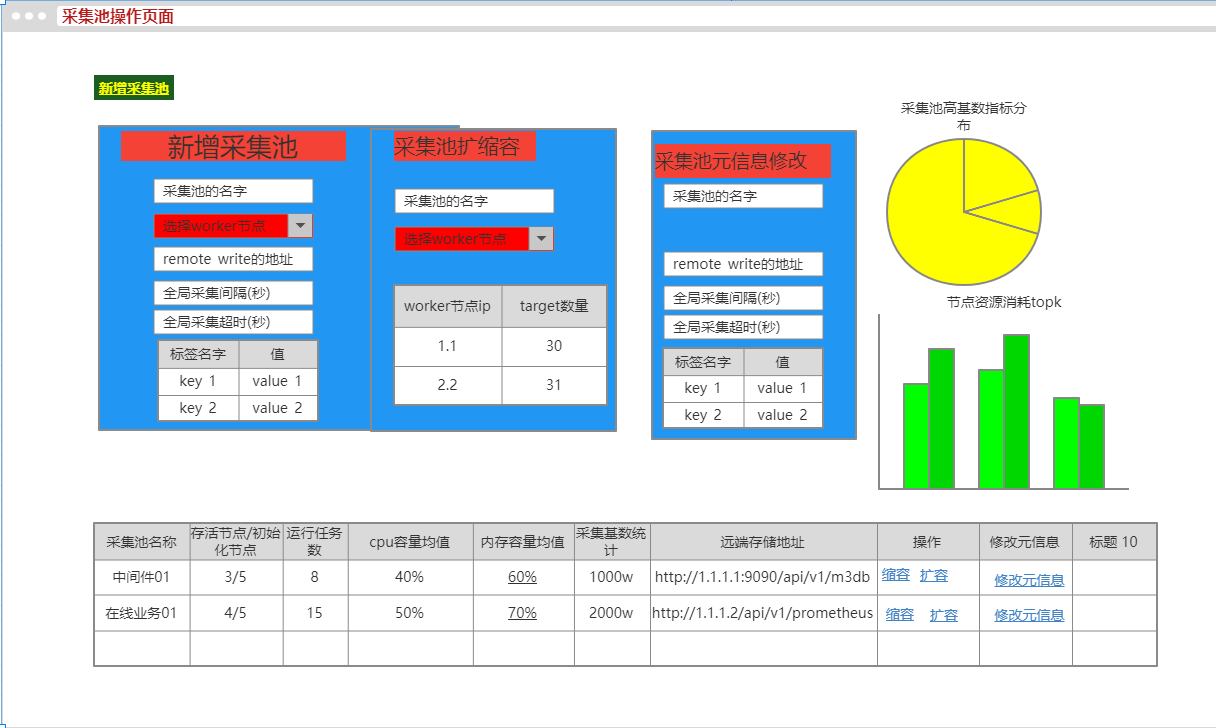

首先应该将prometheus采集器管理成采集池

创建采集池

用户在页面上填写信息

• 采集池的名字
• 池中节点选择
  • 池节点 一对多
  • 一个节点只能属于一个池
• remote_write的地址
• external_label

采集任务自助操作

• 所有的exporter应该改造为探针型

新增采集任务 (以redis为例)

用户在采集app页面上点击 redis图标

• 如果之前没拉起这个类型的探针，就拉起redis_exporter进程
• 选择采集池
• 填写采集任务的名称job_name
• 填写采集间隔
• 选择是服务发现类型还是静态类型
  • 配置target目标列表
  • 服务发现配置

本节重点总结 :

• 监控系统在采集侧对接运维平台
  • 服务树充当监控系统的上游数据提供者
  • 在运维平台上 可以配置采集任务
    • exporter改造成探针型
    • 将给exporter传参和修改prometheus scrape配置等操作页面化
