18.1 k8s服务组件之4大黄金指标讲解
本节重点介绍 :
- 监控4大黄金指标
- Latency：延时
- Utilization：使用率
- Saturation：饱和度
- Errors：错误数或错误率
- apiserver指标
- 400、500错误qps
- 访问延迟
- 队列深度
- etcd指标
- kube-scheduler和kube-controller-manager
监控4大黄金指标
Google的Google SRE Books一书中提出了系统监控的四个黄金指标
- Latency：延时
- Utilization：使用率
- Saturation：饱和度
- Errors：错误数或错误率
为什么是这4个
- 这个四个黄金指标在在任何系统中都是很好的性能状态指标
- 他们之所以被称为”黄金“指标，很大一个因素是因为他们反映了终端用户的感知
- 因此任何监控系统都会提供被监控对象的这些指标或其变形，并在此基础上辅助
两种系统分类
- 资源提供系统 ： 对外提供简单的资源，比如CPU（计算资源），存储，网络带宽
- 服务提供系统 ： 对外提供更高层次与业务相关的任务处理能力，比如订票，购物等等
站在资源角度分析
- Utilization ：往往体现为资源使用的百分比
- Saturation ： 资源使用的饱和度或过载程度，过载的系统往往意味着系统需要辅助的排队系统完成相关任务
- 以CPU为例，Utilization往往是CPU的使用百分比
- Saturation则是当前等待调度CPU的线程或进程队列长度
- Errors : 这个可能是使用资源的出错率或出错数量，比如网络的丢包率或误码率等等
站在服务角度分析
- Rate ： 单位时间内完成服务请求的能力
- Errors ： 错误率或错误数量：单位时间内服务出错的比列或数量
- Duration ： 平均单次服务的持续时长（或用户得到服务响应的时延）
k8s服务组件服务组件指标
站在k8s集群管理员的角度，服务组件的健康状况需要额外的关注。
apiserver指标
apiserver作为k8s中消息总线
成功率和qps

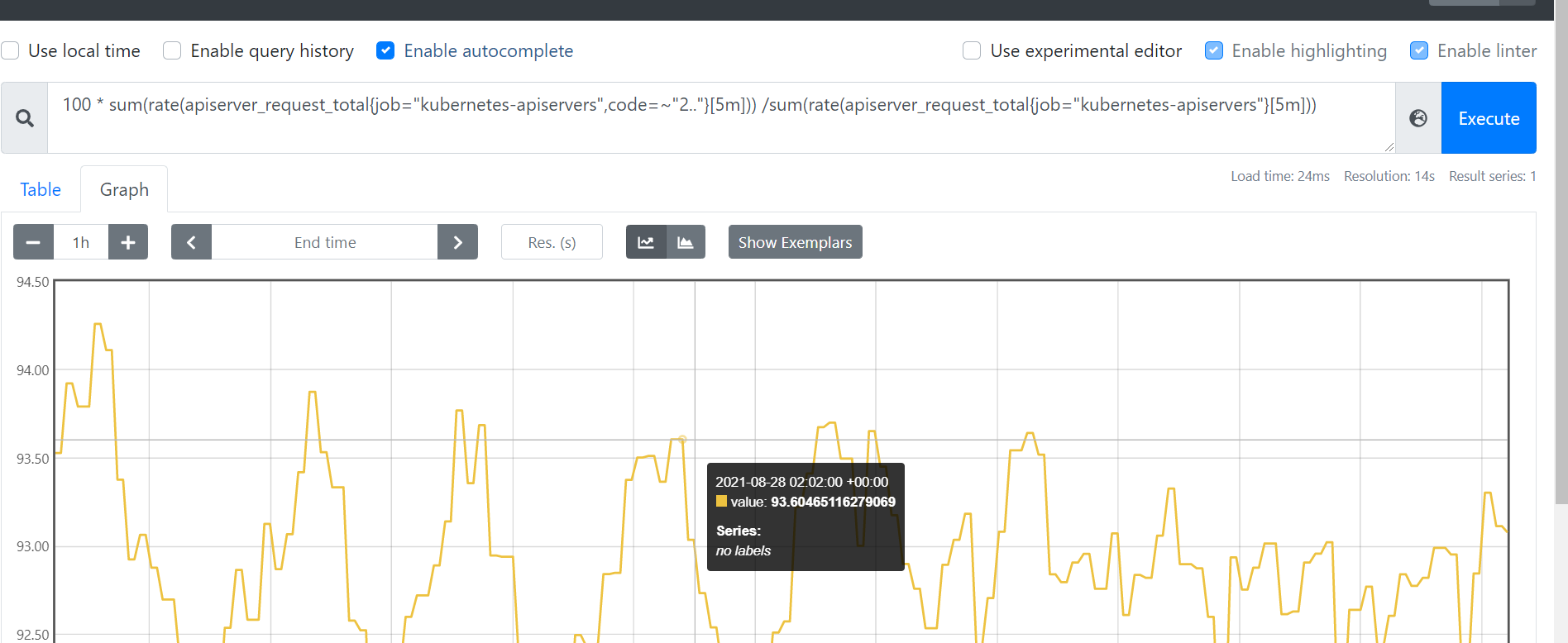

- 请求成功率 ：
apiserver_request_total代表apiserver的请求计数器，所以我们可以使用下面promql来计算apiserver请求成功的qps。
sum(rate(apiserver_request_total{job="kubernetes-apiservers",code=~"2.."}[5m]))- 成功率低于95%的告警 ： 响应=2xx的qps除以总的qps就是apiserver的请求成功率
100 * sum(rate(apiserver_request_total{job="kubernetes-apiservers",code=~"2.."}[5m])) /sum(rate(apiserver_request_total{job="kubernetes-apiservers"}[5m]))- 同理也可以关注4xx和5xx的错误qps，表达式如下
sum(rate(apiserver_request_total{job="kubernetes-apiservers",code=~"[45].."}[5m]))- 错误的qps过高，可能是服务组件有问题，需要尽快排查。
延迟

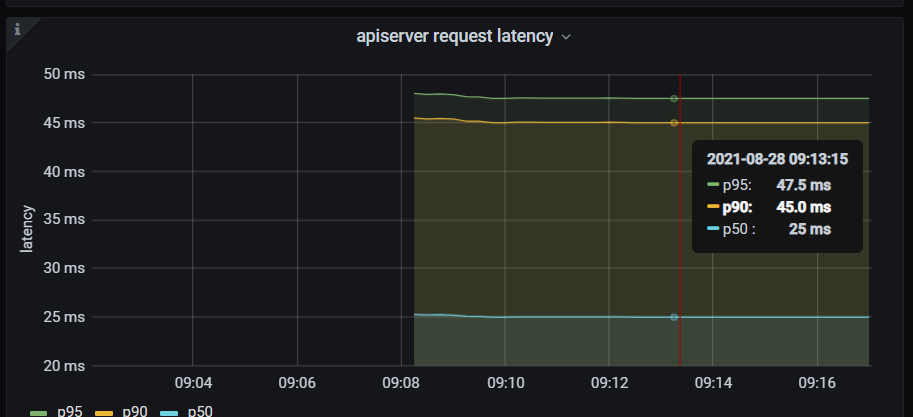

- 对于延迟，可以使用下面的表达式计算。

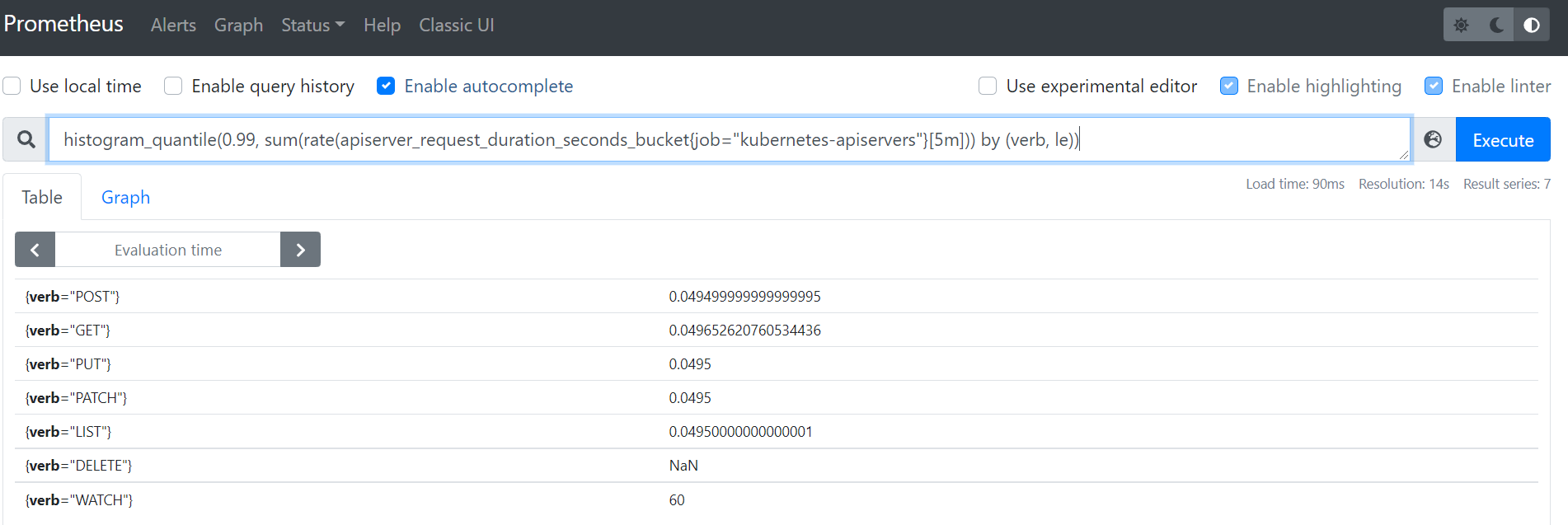

histogram_quantile(0.99, sum(rate(apiserver_request_duration_seconds_bucket{job="kubernetes-apiservers"}[5m])) by (verb, le))- 可以得到各个http的请求方法的99分位延迟值。
{verb="WATCH"} 60
{verb="DELETE"} NaN
{verb="PATCH"} 0.0495
{verb="PUT"} 0.08797499999999975
{verb="GET"} 0.06524999999999985
{verb="LIST"} 0.09421428571428572
{verb="POST"} 0.0495- 如果99分位延迟值很高，可能是apiserver处理能力达到上限，可以考虑扩容一下。
饱和度

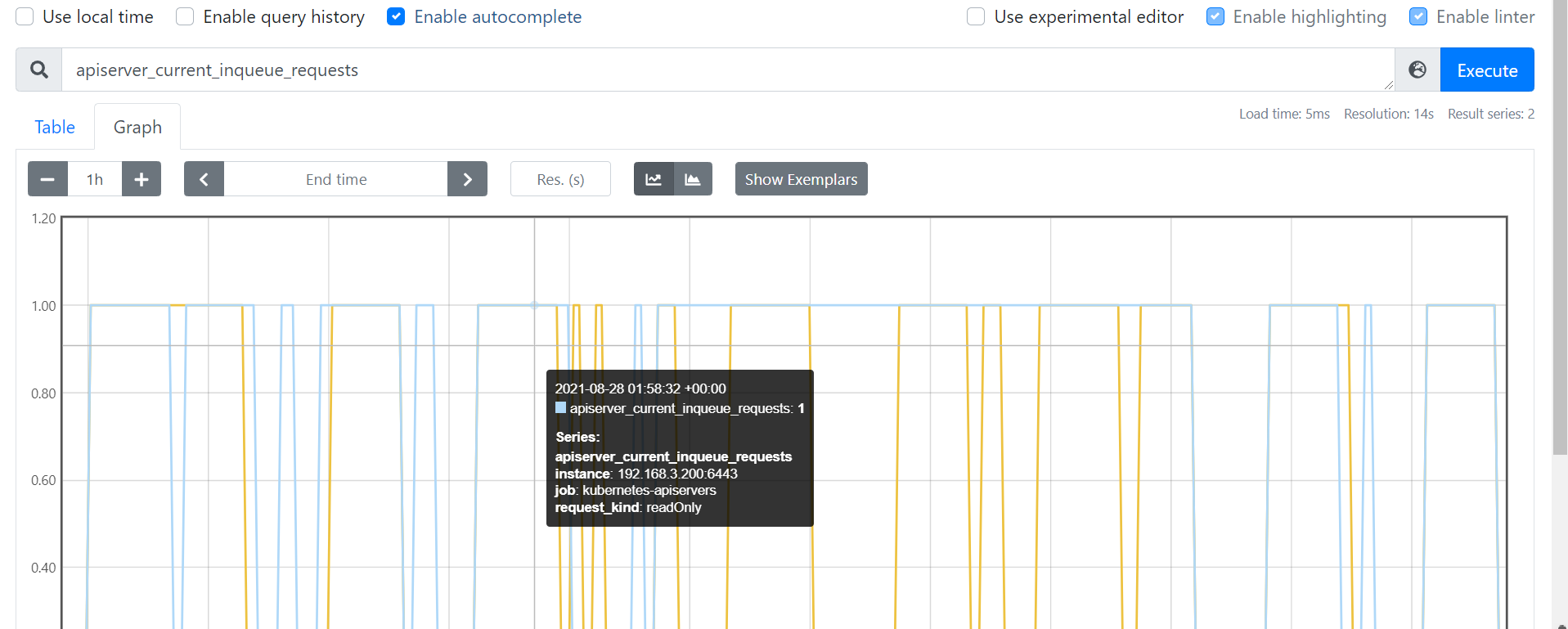

- 对于饱和度可以查看apiserver请求队列的情况，如
apiserver_current_inqueue_requests很大的话，说明排队严重。
etcd指标
etcd作为k8s中元信息存储的数据库也需要额外关注下
- etcd存储文件大小相关指标，比如
etcd_db_total_size_in_bytes表征db物理文件大小。 - 使用下面表达式可以得到etcd存储空间使用率： 当前使用量/配额。如果使用率大于80%需要扩容
(etcd_mvcc_db_total_size_in_bytes / etcd_server_quota_backend_bytes)*100- 关于etcd的网络流量可以使用下面两个指标表示。
# 代表client调etcd的流量。
etcd_network_client_grpc_received_bytes_total
# 代表etcd发送的流量。
etcd_network_client_grpc_sent_bytes_total- etcd中存储key和相关key操作的qps指标，如
etcd_debugging_mvcc_keys_total代表etcd中存储的key总数，数量太多也会影响性能。 - 同时关于etcd key的操作的qps，
rate(etcd_debugging_mvcc_put_total[1m])代表put的qps，同理rate(etcd_debugging_mvcc_delete_total[1m])代表删除的qps。 - 存储的fsync刷盘99分位延迟可以使用下面的分位值计算得到

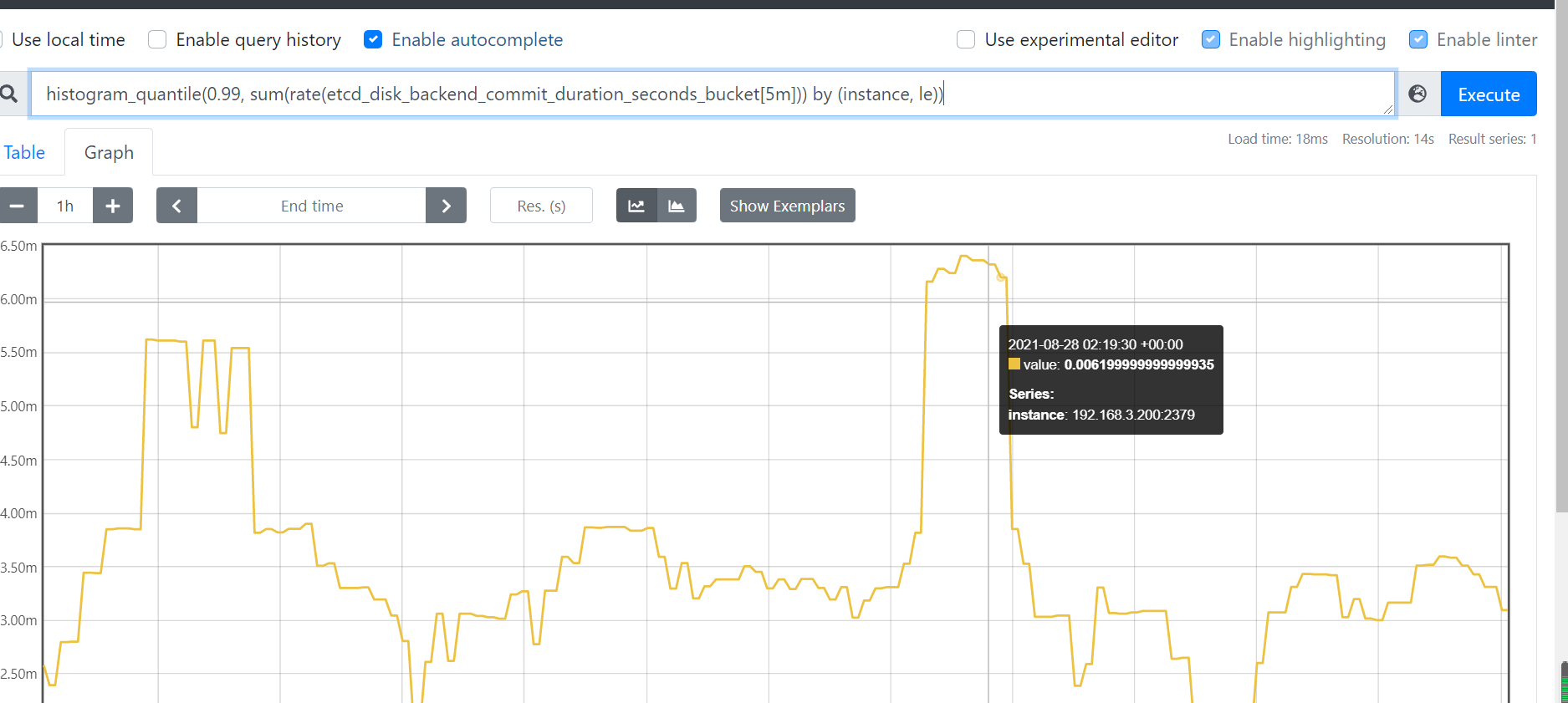

histogram_quantile(0.99, sum(rate(etcd_disk_backend_commit_duration_seconds_bucket[5m])) by (instance, le))kube-scheduler和kube-controller-manager
kube-scheduler是调度器，所以有关调度成功统计的指标都应被关注。
- 如
scheduler_pod_scheduling_attempts_sum/scheduler_pod_scheduling_attempts_count代表成功调度一个pod 的平均尝试次数。如果尝试次数过高，可能当前node剩余量不多，或者集群出错，建议排查下。 - 如
histogram_quantile(0.99, sum(rate(scheduler_pod_scheduling_duration_seconds_bucket[5m])) by ( le))代码pod调度的99分位延迟，如果过高，考虑schduler压力大或者其他原因。
在kube-controller-manager负责集群内的 Node、Pod 等所有资源的管理。
- 如
rate(workqueue_adds_total[2m])表征工作队列新增的qps，其实就是请求的qps，太高考虑压力大。 - 如
histogram_quantile(0.99, sum(rate(rest_client_request_latency_seconds_bucket{job="kube-controller-manager"}[5m])) by (verb, url, le))"，可以查看和apiserver通信的延迟99分位值，太高考虑扩容下apiserver。
本节重点总结 :
- 监控4大黄金指标
- Latency：延时
- Utilization：使用率
- Saturation：饱和度
- Errors：错误数或错误率
- apiserver指标
- 400、500错误qps
- 访问延迟
- 队列深度
- etcd指标
- kube-scheduler和kube-controller-manager
18.2 k8s-apiserver监控源码解读
本节重点介绍 :
k8s代码库和模块地址
- 下载 apiserver源码
apiserver中监控源码阅读
k8s源码地址分布
k8s代码库
- 访问github上k8s仓库，readme中给出了k8s 模块的代码地址

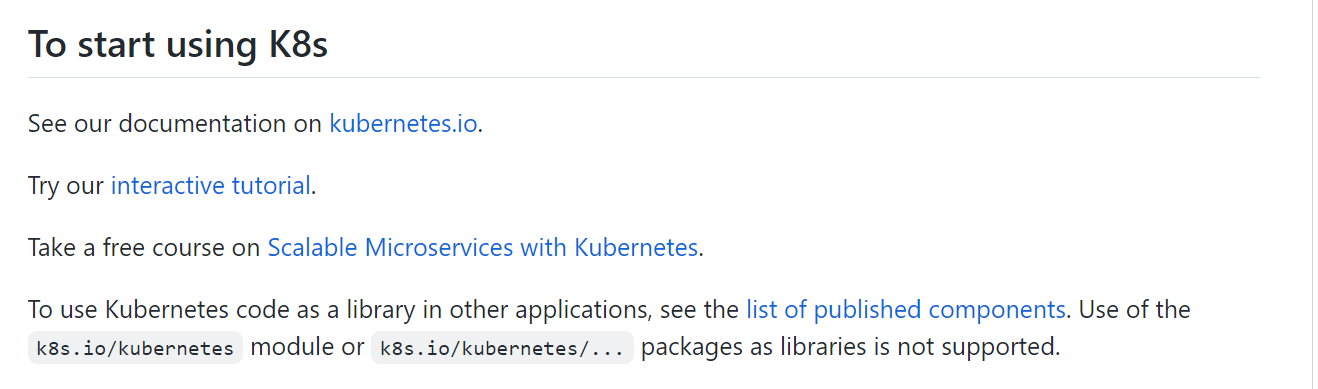

- 举例图片
组件仓库列表 地址
Repositories currently staged here:
k8s.io/apik8s.io/apiextensions-apiserverk8s.io/apimachineryk8s.io/apiserverk8s.io/cli-runtimek8s.io/client-gok8s.io/cloud-providerk8s.io/cluster-bootstrapk8s.io/code-generatork8s.io/component-basek8s.io/controller-managerk8s.io/cri-apik8s.io/csi-apik8s.io/csi-translation-libk8s.io/kube-aggregatork8s.io/kube-controller-managerk8s.io/kube-proxyk8s.io/kube-schedulerk8s.io/kubectlk8s.io/kubeletk8s.io/legacy-cloud-providersk8s.io/metricsk8s.io/mount-utilsk8s.io/pod-security-admissionk8s.io/sample-apiserverk8s.io/sample-cli-plugink8s.io/sample-controller
下载 apiserver 源码
go get -d k8s.io/apiserver分析apiserver 监控源码
以qps指标 apiserver_request_total为例
定位源码位置
- 在源码目录全文搜索
apiserver_request_total，选择.go文件 - 举例图片
- 发现位于 D:\go_path\pkg\mod\k8s.io\apiserver@v0.22.1\pkg\endpoints\metrics\metrics.go
requestCounter = compbasemetrics.NewCounterVec(
&compbasemetrics.CounterOpts{
Name: "apiserver_request_total",
Help: "Counter of apiserver requests broken out for each verb, dry run value, group, version, resource, scope, component, and HTTP response code.",
StabilityLevel: compbasemetrics.STABLE,
},
[]string{"verb", "dry_run", "group", "version", "resource", "subresource", "scope", "component", "code"},
)- 分析，在这里定义了指标，并且指定了相关的标签，可以和我们在prometheus中查询到的结果匹配上
apiserver_request_total{code="0", component="apiserver", contentType="application/json", group="apiregistration.k8s.io", instance="172.20.70.205:6443", job="kubernetes-apiservers", resource="apiservices", scope="cluster", verb="WATCH", version="v1beta1"}
9014
apiserver_request_total{code="0", component="apiserver", contentType="application/json", group="apps", instance="172.20.70.205:6443", job="kubernetes-apiservers", resource="daemonsets", scope="cluster", verb="WATCH", version="v1"}
8863
apiserver_request_total{code="0", component="apiserver", contentType="application/json", group="apps", instance="172.20.70.205:6443", job="kubernetes-apiservers", resource="deployments", scope="cluster", verb="WATCH", version="v1"}
8830
apiserver_request_total{code="0", component="apiserver", contentType="application/json", group="crd.projectcalico.org", instance="172.20.70.205:6443", job="kubernetes-apiservers", resource="bgpconfigurations", scope="cluster", verb="WATCH", version="v1"}
5575
apiserver_request_total{code="0", component="apiserver", contentType="application/json", group="crd.projectcalico.org", instance="172.20.70.205:6443", job="kubernetes-apiservers", resource="bgppeers", scope="cluster", verb="WATCH", version="v1"}
2791
apiserver_request_total{code="0", component="apiserver", contentType="application/json", group="crd.projectcalico.org", instance="172.20.70.205:6443", job="kubernetes-apiservers", resource="blockaffinities", scope="cluster", verb="WATCH", version="v1"}
2942
apiserver_request_total{code="0", component="apiserver", contentType="application/json", group="crd.projectcalico.org", instance="172.20.70.205:6443", job="kubernetes-apiservers", resource="clusterinformations", scope="cluster", verb="WATCH", version="v1"}
2770处理请求的metric 函数 MonitorRequest
- 代码位置 D:\go_path\pkg\mod\k8s.io\apiserver@v0.22.1\pkg\endpoints\metrics\metrics.go
- 源码如下
// MonitorRequest handles standard transformations for client and the reported verb and then invokes Monitor to record
// a request. verb must be uppercase to be backwards compatible with existing monitoring tooling.
func MonitorRequest(req *http.Request, verb, group, version, resource, subresource, scope, component string, deprecated bool, removedRelease string, httpCode, respSize int, elapsed time.Duration) {
// We don't use verb from <requestInfo>, as this may be propagated from
// InstrumentRouteFunc which is registered in installer.go with predefined
// list of verbs (different than those translated to RequestInfo).
// However, we need to tweak it e.g. to differentiate GET from LIST.
reportedVerb := cleanVerb(CanonicalVerb(strings.ToUpper(req.Method), scope), verb, req)
dryRun := cleanDryRun(req.URL)
elapsedSeconds := elapsed.Seconds()
requestCounter.WithContext(req.Context()).WithLabelValues(reportedVerb, dryRun, group, version, resource, subresource, scope, component, codeToString(httpCode)).Inc()
// MonitorRequest happens after authentication, so we can trust the username given by the request
info, ok := request.UserFrom(req.Context())
if ok && info.GetName() == user.APIServerUser {
apiSelfRequestCounter.WithContext(req.Context()).WithLabelValues(reportedVerb, resource, subresource).Inc()
}
if deprecated {
deprecatedRequestGauge.WithContext(req.Context()).WithLabelValues(group, version, resource, subresource, removedRelease).Set(1)
audit.AddAuditAnnotation(req.Context(), deprecatedAnnotationKey, "true")
if len(removedRelease) > 0 {
audit.AddAuditAnnotation(req.Context(), removedReleaseAnnotationKey, removedRelease)
}
}
requestLatencies.WithContext(req.Context()).WithLabelValues(reportedVerb, dryRun, group, version, resource, subresource, scope, component).Observe(elapsedSeconds)
// We are only interested in response sizes of read requests.
if verb == "GET" || verb == "LIST" {
responseSizes.WithContext(req.Context()).WithLabelValues(reportedVerb, group, version, resource, subresource, scope, component).Observe(float64(respSize))
}
}- 其中 WithLabelValues设置metric的值 ，Inc()代表counter +1
requestCounter.WithContext(req.Context()).WithLabelValues(reportedVerb, dryRun, group, version, resource, subresource, scope, component, codeToString(httpCode)).Inc()- 这个是k8s在prometheus sdk上做的封装，位置 D:\go_path\pkg\mod\k8s.io\component-base@v0.22.1\metrics\counter.go
func (v *CounterVec) WithLabelValues(lvs ...string) CounterMetric {
if !v.IsCreated() {
return noop // return no-op counter
}
if v.LabelValueAllowLists != nil {
v.LabelValueAllowLists.ConstrainToAllowedList(v.originalLabels, lvs)
}
return v.CounterVec.WithLabelValues(lvs...)
}自己请求的计数
- 如果userName是 system:apiserver ，那么把代表自身请求的metric apiserver_selfrequest_total +1
info, ok := request.UserFrom(req.Context())
if ok && info.GetName() == user.APIServerUser {
apiSelfRequestCounter.WithContext(req.Context()).WithLabelValues(reportedVerb, resource, subresource).Inc()
}要被废弃的api被请求
- metric丢弃的设置，apiserver_requested_deprecated_apis代表要被废弃的api被请求了，打印信息
if deprecated {
deprecatedRequestGauge.WithContext(req.Context()).WithLabelValues(group, version, resource, subresource, removedRelease).Set(1)
audit.AddAuditAnnotation(req.Context(), deprecatedAnnotationKey, "true")
if len(removedRelease) > 0 {
audit.AddAuditAnnotation(req.Context(), removedReleaseAnnotationKey, removedRelease)
}
}- prometheus查询结果
apiserver_requested_deprecated_apis{group="apiregistration.k8s.io", instance="172.20.70.205:6443", job="kubernetes-apiservers", removed_release="1.22", resource="apiservices", version="v1beta1"}
1
apiserver_requested_deprecated_apis{group="authorization.k8s.io", instance="172.20.70.205:6443", job="kubernetes-apiservers", removed_release="1.22", resource="subjectaccessreviews", version="v1beta1"}
1
apiserver_requested_deprecated_apis{group="certificates.k8s.io", instance="172.20.70.205:6443", job="kubernetes-apiservers", removed_release="1.22", resource="certificatesigningrequests", version="v1beta1"}
1
apiserver_requested_deprecated_apis{group="extensions", instance="172.20.70.205:6443", job="kubernetes-apiservers", removed_release="1.22", resource="ingresses", version="v1beta1"}
1
apiserver_requested_deprecated_apis{group="networking.k8s.io", instance="172.20.70.205:6443", job="kubernetes-apiservers", removed_release="1.22", resource="ingressclasses", version="v1beta1"}
1
apiserver_requested_deprecated_apis{group="networking.k8s.io", instance="172.20.70.205:6443", job="kubernetes-apiservers", removed_release="1.22", resource="ingresses", version="v1beta1"}
1
apiserver_requested_deprecated_apis{group="scheduling.k8s.io", instance="172.20.70.205:6443", job="kubernetes-apiservers", removed_release="1.22", resource="priorityclasses", version="v1beta1"}
1设置请求延迟值
- 代码如下
requestLatencies.WithContext(req.Context()).WithLabelValues(reportedVerb, dryRun, group, version, resource, subresource, scope, component).Observe(elapsedSeconds)- requestLatencies定义了从0.05到60秒的bucket
requestLatencies = compbasemetrics.NewHistogramVec(
&compbasemetrics.HistogramOpts{
Name: "apiserver_request_duration_seconds",
Help: "Response latency distribution in seconds for each verb, dry run value, group, version, resource, subresource, scope and component.",
// This metric is used for verifying api call latencies SLO,
// as well as tracking regressions in this aspects.
// Thus we customize buckets significantly, to empower both usecases.
Buckets: []float64{0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0,
1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30, 40, 50, 60},
StabilityLevel: compbasemetrics.STABLE,
},
[]string{"verb", "dry_run", "group", "version", "resource", "subresource", "scope", "component"},
)- 分位值查询
histogram_quantile(0.99, sum(rate(apiserver_request_duration_seconds_bucket{job="kubernetes-apiservers"}[5m])) by (verb, le))- 结果图片
设置 http响应的大小histogram
- 设置代码
if verb == "GET" || verb == "LIST" {
responseSizes.WithContext(req.Context()).WithLabelValues(reportedVerb, group, version, resource, subresource, scope, component).Observe(float64(respSize))
}- responseSizes定义了 1KB 到1GB的大小的bucket
responseSizes = compbasemetrics.NewHistogramVec(
&compbasemetrics.HistogramOpts{
Name: "apiserver_response_sizes",
Help: "Response size distribution in bytes for each group, version, verb, resource, subresource, scope and component.",
// Use buckets ranging from 1000 bytes (1KB) to 10^9 bytes (1GB).
Buckets: compbasemetrics.ExponentialBuckets(1000, 10.0, 7),
StabilityLevel: compbasemetrics.ALPHA,
},
[]string{"verb", "group", "version", "resource", "subresource", "scope", "component"},
)追踪MonitorRequest调用链
InstrumentRouteFunc在prometheus的HandlerFunc基础上封装了k8s的go-restful
// InstrumentRouteFunc works like Prometheus' InstrumentHandlerFunc but wraps
// the go-restful RouteFunction instead of a HandlerFunc plus some Kubernetes endpoint specific information.
func InstrumentRouteFunc(verb, group, version, resource, subresource, scope, component string, deprecated bool, removedRelease string, routeFunc restful.RouteFunction) restful.RouteFunction {
return restful.RouteFunction(func(req *restful.Request, response *restful.Response) {
requestReceivedTimestamp, ok := request.ReceivedTimestampFrom(req.Request.Context())
if !ok {
requestReceivedTimestamp = time.Now()
}
delegate := &ResponseWriterDelegator{ResponseWriter: response.ResponseWriter}
//lint:file-ignore SA1019 Keep supporting deprecated http.CloseNotifier
_, cn := response.ResponseWriter.(http.CloseNotifier)
_, fl := response.ResponseWriter.(http.Flusher)
_, hj := response.ResponseWriter.(http.Hijacker)
var rw http.ResponseWriter
if cn && fl && hj {
rw = &fancyResponseWriterDelegator{delegate}
} else {
rw = delegate
}
response.ResponseWriter = rw
routeFunc(req, response)
MonitorRequest(req.Request, verb, group, version, resource, subresource, scope, component, deprecated, removedRelease, delegate.Status(), delegate.ContentLength(), time.Since(requestReceivedTimestamp))
})
}registerResourceHandlers 中根据不同的verb处理
- 位置 D:\go_path\pkg\mod\k8s.io\apiserver@v0.22.1\pkg\endpoints\installer.go
- LIST的verb代码如下
case "LIST": // List all resources of a kind.
doc := "list objects of kind " + kind
if isSubresource {
doc = "list " + subresource + " of objects of kind " + kind
}
handler := metrics.InstrumentRouteFunc(action.Verb, group, version, resource, subresource, requestScope, metrics.APIServerComponent, deprecated, removedRelease, restfulListResource(lister, watcher, reqScope, false, a.minRequestTimeout))
handler = utilwarning.AddWarningsHandler(handler, warnings)
route := ws.GET(action.Path).To(handler).
Doc(doc).
Param(ws.QueryParameter("pretty", "If 'true', then the output is pretty printed.")).
Operation("list"+namespaced+kind+strings.Title(subresource)+operationSuffix).
Produces(append(storageMeta.ProducesMIMETypes(action.Verb), allMediaTypes...)...).
Returns(http.StatusOK, "OK", versionedList).
Writes(versionedList)- 上层被APIInstaller调用
// Install handlers for API resources.
func (a *APIInstaller) Install() ([]metav1.APIResource, []*storageversion.ResourceInfo, *restful.WebService, []error) {
var apiResources []metav1.APIResource
var resourceInfos []*storageversion.ResourceInfo
var errors []error
ws := a.newWebService()
// Register the paths in a deterministic (sorted) order to get a deterministic swagger spec.
paths := make([]string, len(a.group.Storage))
var i int = 0
for path := range a.group.Storage {
paths[i] = path
i++
}
sort.Strings(paths)
for _, path := range paths {
apiResource, resourceInfo, err := a.registerResourceHandlers(path, a.group.Storage[path], ws)
if err != nil {
errors = append(errors, fmt.Errorf("error in registering resource: %s, %v", path, err))
}
if apiResource != nil {
apiResources = append(apiResources, *apiResource)
}
if resourceInfo != nil {
resourceInfos = append(resourceInfos, resourceInfo)
}
}
return apiResources, resourceInfos, ws, errors
}本节重点总结 :
k8s代码库和模块地址
- 下载 apiserver源码
apiserver中监控源码阅读
