Knative 日志收集方案 EFK
一、后端存储动态供给
1.1 准备硬盘
查看准备的磁盘
[root@nfsserver ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
sda 8:0 0 100G 0 disk
├─sda1 8:1 0 1G 0 part /boot
└─sda2 8:2 0 99G 0 part
├─centos-root 253:0 0 50G 0 lvm /
├─centos-swap 253:1 0 2G 0 lvm [SWAP]
└─centos-home 253:2 0 47G 0 lvm /home
sdb 8:16 0 100G 0 disk1.2 安装NFS软件
安装NFS软件，即是客户端也是服务器端
# yum -y install nfs-utils1.3 NFS配置
创建挂载点
# mkdir /netshare格式化硬盘
# mkfs.xfs /dev/sdb编辑文件系统配置文件
# vim /etc/fstab
在文件最后添加此行内容
/dev/sdb /netshare xfs defaults 0 0手动挂载全部分区
# mount -a在本地查看文件系统挂载情况
# df -h
文件系统 容量 已用 可用 已用% 挂载点
/dev/sdb 100G 33M 100G 1% /netshare添加共享目录到配置文件
# vim /etc/exports
# cat /etc/exports
/netshare *(rw,sync,no_root_squash)启动服务及设置开机自启动
# systemctl enable nfs-server
# systemctl start nfs-server1.4 验证
本地验证目录是否共享
# showmount -e
Export list for nfsserver:
/netshare *在k8s master节点验证目录是否共享
# showmount -e nfsserver.kubemsb.com
Export list for nfsserver.kubemsb.com:
/netshare *在k8s worker01节点验证目录是否共享
# showmount -e nfsserver.kubemsb.com
Export list for nfsserver.kubemsb.com:
/netshare *在k8s worker02节点验证目录是否共享
# showmount -e nfsserver.kubemsb.com
Export list for nfsserver.kubemsb.com:
/netshare *1.5 部署存储动态供给
1.5.1 获取资源清单文件
在k8s master节点获取NFS后端存储动态供给配置资源清单文件
# for file in class.yaml deployment.yaml rbac.yaml ; do wget https://raw.githubusercontent.com/kubernetes-incubator/external-storage/master/nfs-client/deploy/$file ; done查看是否下载
# ls
class.yaml deployment.yaml rbac.yaml1.5.2 应用资源清单文件
应用rbac资源清单文件
# kubectl apply -f rbac.yaml应用class（存储类）资源清单文件
# kubectl apply -f class.yaml
storageclass.storage.k8s.io/managed-nfs-storage created应用deployment资源清单文件之前修改其配置，主要配置NFS服务器及其共享的目录
# vim deployment.yaml
注意修改处内容
env:
- name: PROVISIONER_NAME
value: fuseim.pri/ifs
- name: NFS_SERVER
value: nfsserver.kubemsb.com 远程NFS服务器地址
- name: NFS_PATH
value: /netshare 共享出来的目录
volumes:
- name: nfs-client-root
nfs:
server: nfsserver.kubemsb.com 远程NFS服务器地址
path: /netshare 共享出来的目录应用资源清单文件
# kubectl apply -f deployment.yaml查看pod运行情况
# kubectl get pods
出现以下表示成功运行
NAME READY STATUS RESTARTS AGE
nfs-client-provisioner-f66d6fbdb-mcrpk 1/1 Running 0 73s1.5.3 测试用例验证动态供给是否可用
使用测试用例测试NFS后端存储是否可用
测试用例：
# cat nginx.yaml
---
apiVersion: v1
kind: Service
metadata:
name: nginx
labels:
app: nginx
spec:
ports:
- port: 80
name: web
clusterIP: None
selector:
app: nginx
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: web
spec:
selector:
matchLabels:
app: nginx
serviceName: "nginx"
replicas: 2
template:
metadata:
labels:
app: nginx
spec:
imagePullSecrets:
- name: huoban-harbor
terminationGracePeriodSeconds: 10
containers:
- name: nginx
image: nginx:latest
ports:
- containerPort: 80
name: web
volumeMounts:
- name: www
mountPath: /usr/share/nginx/html
volumeClaimTemplates:
- metadata:
name: www
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: "managed-nfs-storage"
resources:
requests:
storage: 1Gi以下为特别注意事项。
k8s 1.21版本存在问题：无法创建PV，修改api文件，此文件被自动监视，修改后会自动关闭原有Pod，拉起拉的Pod
# cat /etc/kubernetes/manifests/kube-apiserver.yaml
apiVersion: v1
kind: Pod
metadata:
annotations:
kubeadm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 192.168.10.10:6443
creationTimestamp: null
labels:
component: kube-apiserver
tier: control-plane
name: kube-apiserver
namespace: kube-system
spec:
containers:
- command:
- kube-apiserver
- --feature-gates=RemoveSelfLink=false 添加此行内容
- --advertise-address=192.168.10.10
- --allow-privileged=true
- --authorization-mode=Node,RBAC使用新的不基于 SelfLink 功能的 provisioner 镜像，重新创建 provisioner 容器。镜像：registry.cn-beijing.aliyuncs.com/pylixm/nfs-subdir-external-provisioner:v4.0.0
设置默认存储类
# kubectl patch storageclass managed-nfs-storage -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'二、部署EFK
2.1 获取EFK部署资源清单文件
把EFK部署资源清单文件复制到本地主机，本次本地主机主要指k8s master节点
# git clone https://github.com/kubernetes/kubernetes.git进入目录并查看目录内容
# cd kubernetes/
# ls
api cluster docs LICENSE Makefile.generated_files plugin SUPPORT.md
build cmd go.mod LICENSES OWNERS README.md test
CHANGELOG code-of-conduct.md go.sum logo OWNERS_ALIASES SECURITY_CONTACTS third_party
CHANGELOG.md CONTRIBUTING.md hack Makefile pkg staging vendor进入目录并查看目录内容
# cd cluster/addons/fluentd-elasticsearch
# ls
create-logging-namespace.yaml es-statefulset.yaml fluentd-es-image OWNERS
es-image fluentd-es-configmap.yaml kibana-deployment.yaml podsecuritypolicies
es-service.yaml fluentd-es-ds.yaml kibana-service.yaml README.md2.2 安装ES
2.2.1 创建命名空间
应用资源清单文件创建命名空间
# kubectl apply -f create-logging-namespace.yaml2.2.2 部署ES
部署ES，注意部署前的配置
# kubectl apply -f es-statefulset.yaml应用前，请注释此文件中ClusterIP:None，并修改type类型为:NodePort，再执行
# kubectl apply -f es-service.yaml2.2.3 查看安装情况
查看ES部署的pod是否运行
# kubectl get pods -n logging
NAME READY STATUS RESTARTS AGE
elasticsearch-logging-0 1/1 Running 0 8m
elasticsearch-logging-1 1/1 Running 1 5m50s查看ES部署后的SVC，验证其访问的方法
# kubectl get svc -n logging
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
elasticsearch-logging NodePort 10.107.97.124 <none> 9200:31885/TCP,9300:32214/TCP 68s2.2.4 验证集群是否健康
查看ES集群是否健康，下面状态为健康。
# curl 10.107.97.124:9200/_cat/health?pretty
1640939218 08:26:58 kubernetes-logging green 2 2 6 3 0 0 0 0 - 100.0%2.3 部署fluentd
2.3.1 部署fluentd
部署前对fluentd configmap进行配置，主要修改其连接ES的地址及对应的端口，此两项根据使用环境的不同，配置也不相同。
# vim fluentd-es-configmap.yaml
456 output.conf: |-
457 <match **>
458 @id elasticsearch
459 @type elasticsearch
460 @log_level info
461 type_name _doc
462 include_tag_key true
463 host elasticsearch-logging 修改此处为es主机地址
464 port 9200 使用NodePort时，此处也需要修改对应映射端口
465 logstash_format true
466 <buffer>应用资源清单文件
# kubectl apply -f fluentd-es-configmap.yaml修改资源清单文件
# vim fluentd-es-ds.yaml
55 selector:
56 matchLabels:
57 k8s-app: fluentd-es
58 version: v3.1.1
59 template:
60 metadata:
61 labels:
62 k8s-app: fluentd-es
63 version: v3.1.1
64 spec:
65 #securityContext:
66 # seccompProfile:
67 # type: RuntimeDefault应用资源清单文件
# kubectl apply -f fluentd-es-ds.yaml2.3.2 查看部署状态
查看已部署的组件pod运行情况
# kubectl get pods -n logging输出结果：
NAME READY STATUS RESTARTS AGE
elasticsearch-logging-0 1/1 Running 0 20m
elasticsearch-logging-1 1/1 Running 1 18m
fluentd-es-v3.1.1-2chjb 1/1 Running 0 64s
fluentd-es-v3.1.1-5gpmd 1/1 Running 0 64s2.4 部署Kibana
2.4.1 部署Kibana
修改资源清单文件
# vim kibana-deployment.yaml
18 spec:
以下三行注释掉
19 # securityContext:
20 # seccompProfile:
21 # type: RuntimeDefault
22 containers:
23 - name: kibana-logging
24 image: docker.elastic.co/kibana/kibana-oss:7.10.2
25 resources:
26 # need more cpu upon initialization, therefore burstable class
27 limits:
28 cpu: 1000m
29 requests:
30 cpu: 100m
31 env:
32 - name: ELASTICSEARCH_HOSTS
33 value: http://elasticsearch-logging:9200
34 - name: SERVER_NAME
35 value: kibana-logging
以下两行注释掉
36 #- name: SERVER_BASEPATH
37 # value: /api/v1/namespaces/logging/services/kibana-logging/proxy应用资源清单文件
# kubectl apply -f kibana-deployment.yaml修改kibana service资源清单文件，以NodePort类型暴露服务，供K8S集群外用户访问
# vim kibana-service.yaml
spec:
ports:
- port: 5601
protocol: TCP
targetPort: ui
selector:
k8s-app: kibana-logging
type: NodePort 添加此行内容应用资源清单文件
# kubectl apply -f kibana-service.yaml2.4.2 查看Kibana部署状态
查看已部署组件pod运行状态
# kubectl get pods -n logging
NAME READY STATUS RESTARTS AGE
elasticsearch-logging-0 1/1 Running 0 25m
elasticsearch-logging-1 1/1 Running 1 22m
fluentd-es-v3.1.1-2chjb 1/1 Running 0 5m45s
fluentd-es-v3.1.1-5gpmd 1/1 Running 0 5m45s
kibana-logging-c46f6b9c5-g9fsl 1/1 Running 0 11s获取kibana对外提供的主机地址及对应的端口
# kubectl get svc -n logging
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
elasticsearch-logging NodePort 10.107.97.124 <none> 9200:31885/TCP,9300:32214/TCP 15m
kibana-logging NodePort 10.99.171.38 <none> 5601:31739/TCP 7s在K8S集群任意主机查看是否打开kibana对外的端口（服务类型为NodePort）
# ss -anput | grep "31739"

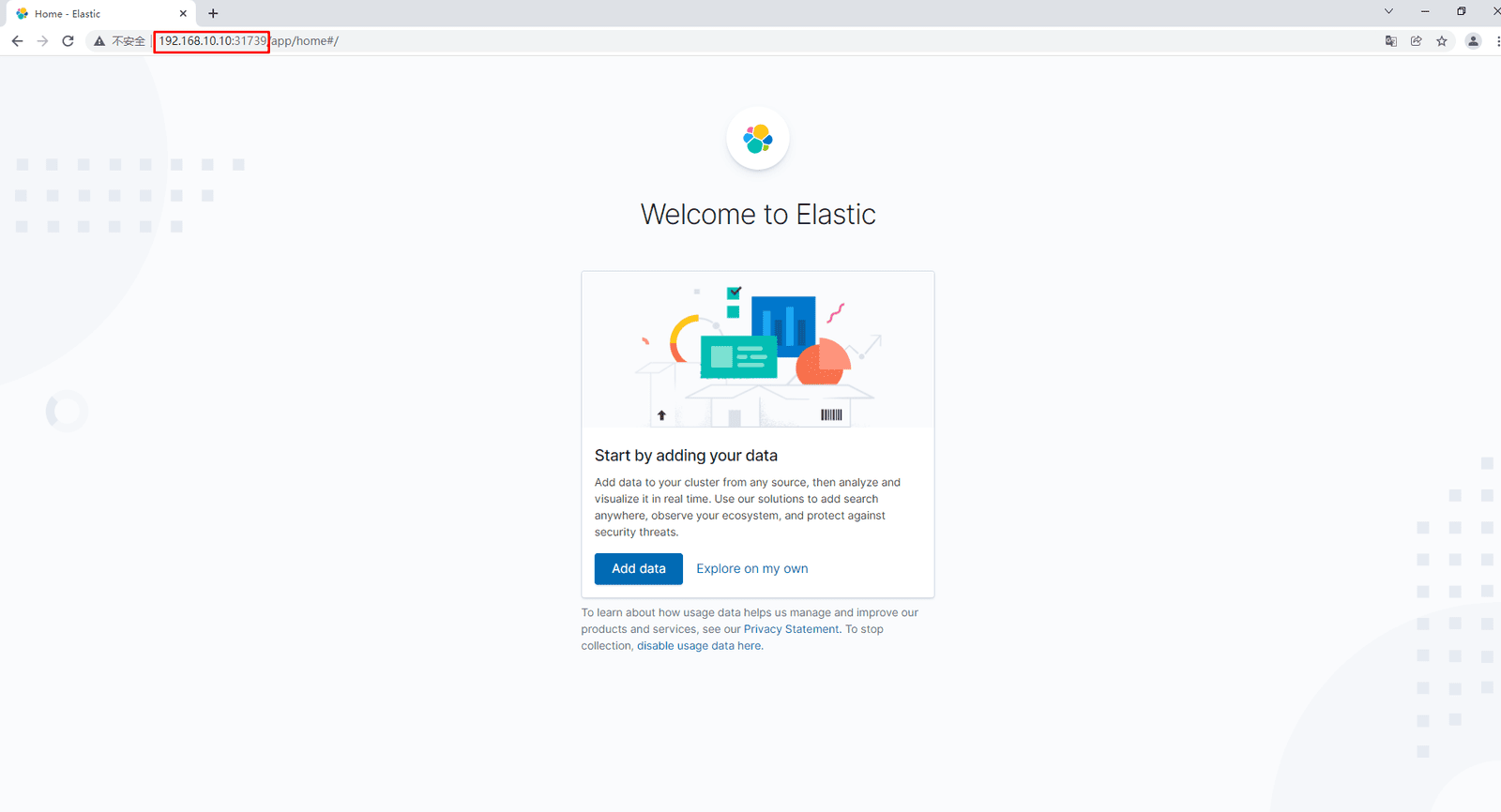

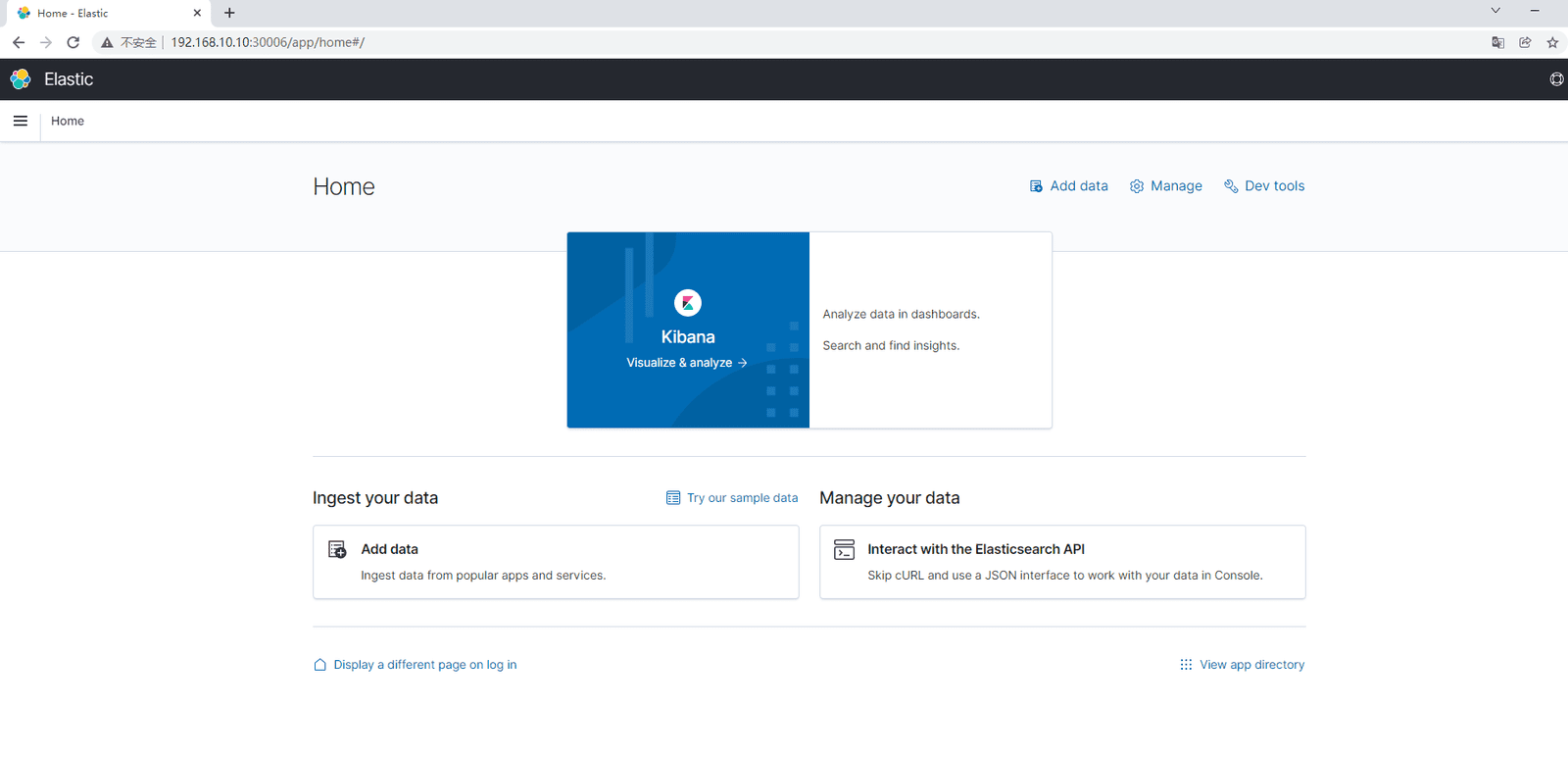

tcp LISTEN 0 4096 *:31739 *:* users:(("kube-proxy",pid=4569,fd=23))通过浏览器访问kibana web界面。

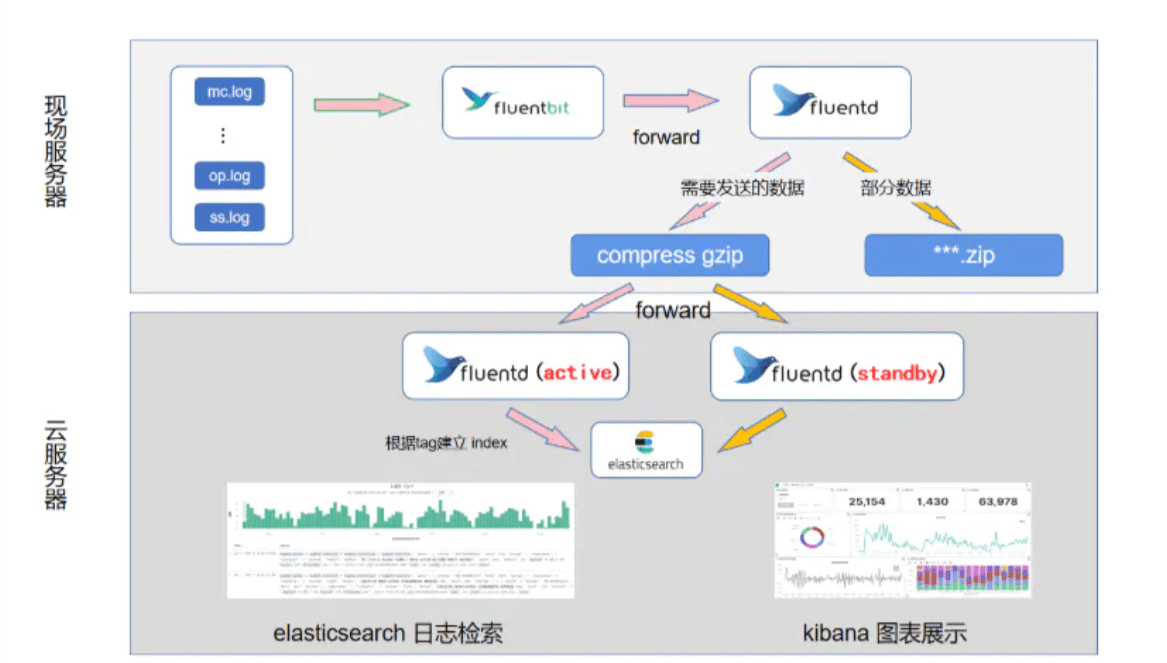

三、Knative 日志收集
3.1 部署收集器（collector）
由于转发器(forward)需要使用到收集器(collector)地址，所以先部署。
3.1.1 获取收集器部署文件
由于涉及到本地K8S集群应用的问题，所以建议下载修改后再应用此文件。
# kubectl apply -f https://github.com/knative/docs/raw/main/docs/serving/observability/logging/fluent-bit-collector.yaml# wget https://github.com/knative/docs/raw/main/docs/serving/observability/logging/fluent-bit-collector.yaml3.1.2 修改收集器文件
本次直接使用fluent bit输出到ES
---
apiVersion: v1
kind: ConfigMap
metadata:
name: log-collector-config
namespace: logging
labels:
k8s-app: log-collector
data:
# Configuration files: server, input, filters and output
# ======================================================
fluent-bit.conf: |
[SERVICE]
Flush 1
Log_Level info
Daemon off
HTTP_Server On
HTTP_Listen 0.0.0.0
HTTP_Port 2020
@INCLUDE input-forward.conf
@INCLUDE filter-simplify.conf
@INCLUDE output-elasticsearch.conf 添加此行内容data:
......
input-forward.conf: |
.......
添加如下内容
output-elasticsearch.conf: |
[OUTPUT]
Name es
Match *
Host 192.168.10.10
Port 31213
Logstash_Format On
Replace_Dots On
Retry_Limit False 添加storageClassName部分
volumeClaimTemplates:
- metadata:
name: logs
spec:
storageClassName: managed-nfs-storage 添加此行内容
accessModes: [ "ReadWriteOnce" ]
resources:
requests:
storage: 40Gi应用资源清单文件
# kubectl apply -f fluent-bit-collector.yaml查看collector pod运行情况
# kubectl get pods -n logging
NAME READY STATUS RESTARTS AGE
log-collector-0 2/2 Running 0 14m3.2 部署转发器(forward)
部署参考网址：https://docs.fluentbit.io/manual/installation/kubernetes
3.2.1 在k8s集群中安装fluent bit准备
根据集群版本的不同，部署文件也不相同。
K8S 1.21及以下版本
如果默认已添加，可以不添加
# kubectl create namespace logging# kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-service-account.yaml# kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-role.yaml# kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-role-binding.yamlK8S 1.22版本
如果默认已添加，可以不添加
# kubectl create namespace logging# kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-service-account.yaml# kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-role-1.22.yaml# kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/fluent-bit-role-binding-1.22.yaml下面命令可直接在k8s集群版本上部署，不区分版本。
create a ConfigMap that will be used by our Fluent Bit DaemonSet
建议直接使用knative官方提供的链接地址下载资源清单文件：https://knative.dev/docs/serving/observability/logging/fluent-bit-configmap.yaml
应用configmap资源清单文件
# vim fluent-bit-configmap.yaml
# cat fluent-bit-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: fluent-bit-config
namespace: logging
labels:
k8s-app: fluent-bit
data:
# Configuration files: server, input, filters and output
# ======================================================
fluent-bit.conf: |
[SERVICE]
Flush 1
Log_Level info
Daemon off
Parsers_File parsers.conf
HTTP_Server On
HTTP_Listen 0.0.0.0
HTTP_Port 2020
@INCLUDE input-kubernetes.conf
@INCLUDE filter-kubernetes.conf
@INCLUDE output-forward.conf 注意此行内容，这是官方配置好的，可不用修改
input-kubernetes.conf: |
[INPUT]
Name tail
Tag kube.*
Path /var/log/containers/*.log
Parser docker
DB /var/log/flb_kube.db
Mem_Buf_Limit 5MB
Skip_Long_Lines On
Refresh_Interval 10
filter-kubernetes.conf: |
[FILTER]
Name kubernetes
Match kube.*
Kube_URL https://kubernetes.default.svc:443
Kube_CA_File /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
Kube_Token_File /var/run/secrets/kubernetes.io/serviceaccount/token
Kube_Tag_Prefix kube.var.log.containers.
Merge_Log On
Merge_Log_Key log_processed
K8S-Logging.Parser On
K8S-Logging.Exclude Off
output-null.conf: |
[OUTPUT]
Name null
Match *
output-forward.conf: | 注意这个配置文件，这是官方配置好的，不用修改，注意即可。
[OUTPUT]
Name forward
Host log-collector.logging
Port 24224
Require_ack_response True
parsers.conf: |
[PARSER]
Name apache
Format regex
Regex ^(?<host>[^ ]*) [^ ]* (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)?" (?<code>[^ ]*) (?<size>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<agent>[^\"]*)")?$
Time_Key time
Time_Format %d/%b/%Y:%H:%M:%S %z
[PARSER]
Name apache2
Format regex
Regex ^(?<host>[^ ]*) [^ ]* (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^ ]*) +\S*)?" (?<code>[^ ]*) (?<size>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<agent>[^\"]*)")?$
Time_Key time
Time_Format %d/%b/%Y:%H:%M:%S %z
[PARSER]
Name apache_error
Format regex
Regex ^\[[^ ]* (?<time>[^\]]*)\] \[(?<level>[^\]]*)\](?: \[pid (?<pid>[^\]]*)\])?( \[client (?<client>[^\]]*)\])? (?<message>.*)$
[PARSER]
Name nginx
Format regex
Regex ^(?<remote>[^ ]*) (?<host>[^ ]*) (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)?" (?<code>[^ ]*) (?<size>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<agent>[^\"]*)")?$
Time_Key time
Time_Format %d/%b/%Y:%H:%M:%S %z
[PARSER]
Name json
Format json
Time_Key time
Time_Format %d/%b/%Y:%H:%M:%S %z
[PARSER]
Name docker
Format json
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%L
Time_Keep On
[PARSER]
Name syslog
Format regex
Regex ^\<(?<pri>[0-9]+)\>(?<time>[^ ]* {1,2}[^ ]* [^ ]*) (?<host>[^ ]*) (?<ident>[a-zA-Z0-9_\/\.\-]*)(?:\[(?<pid>[0-9]+)\])?(?:[^\:]*\:)? *(?<message>.*)$
Time_Key time
Time_Format %b %d %H:%M:%S3.2.2 部署fluent bit
Fluent Bit DaemonSet ready to be used with Elasticsearch on a normal Kubernetes Cluster
应用部署fluent bit资源清单文件
# kubectl create -f https://raw.githubusercontent.com/fluent/fluent-bit-kubernetes-logging/master/output/elasticsearch/fluent-bit-ds.yaml3.2.3 验证是否启动
# kubectl get pods -n logging
NAME READY STATUS RESTARTS AGE
elasticsearch-logging-0 1/1 Running 1 7h25m
elasticsearch-logging-1 1/1 Running 0 7h22m
fluent-bit-82cv6 1/1 Running 0 20m
fluent-bit-q55c5 1/1 Running 0 20m
fluent-bit-r7l9b 1/1 Running 0 20m
fluentd-es-v3.1.1-7fv8j 1/1 Running 6 3h54m
fluentd-es-v3.1.1-pjcjs 1/1 Running 6 3h54m
kibana-logging-c46f6b9c5-xjnv7 1/1 Running 0 7h8m

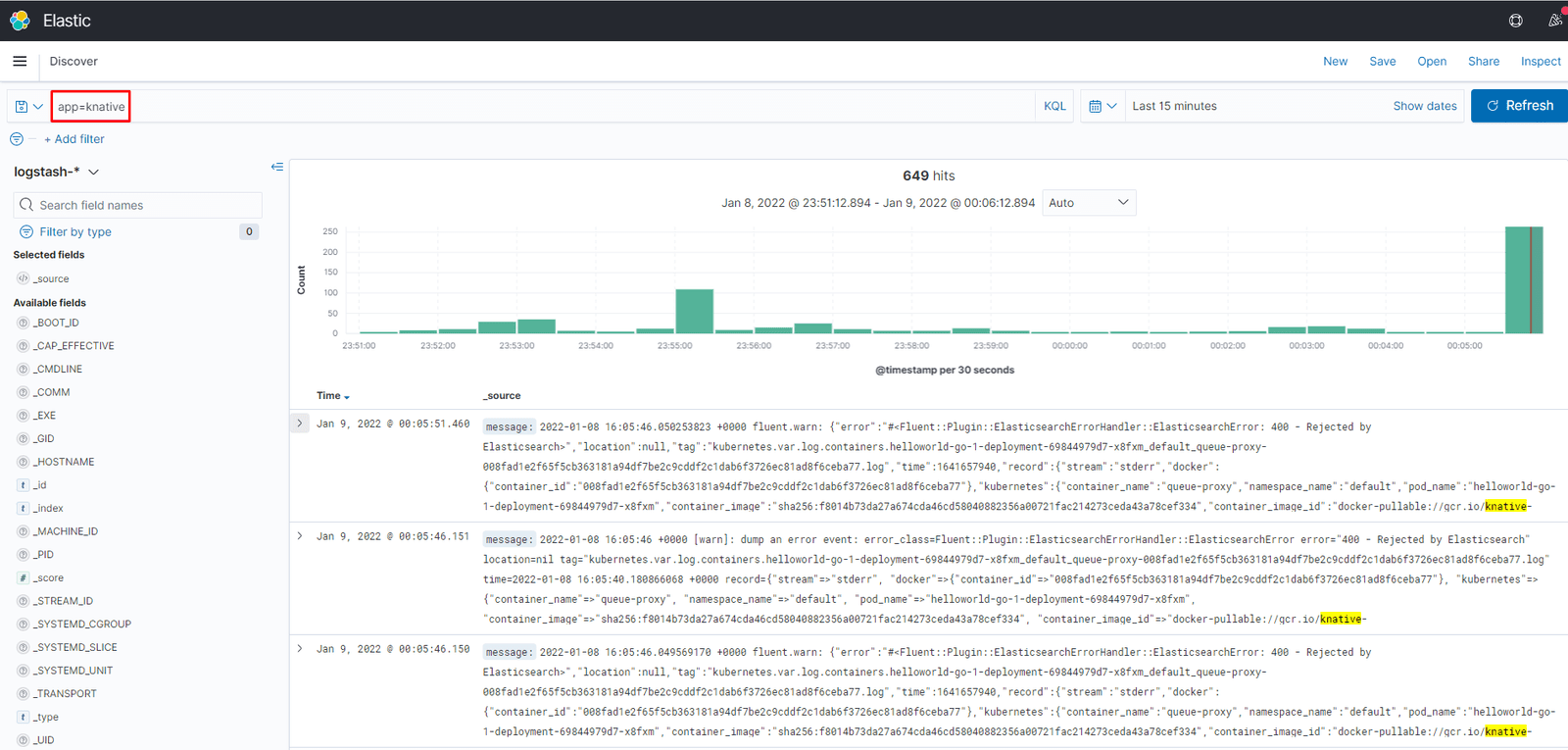

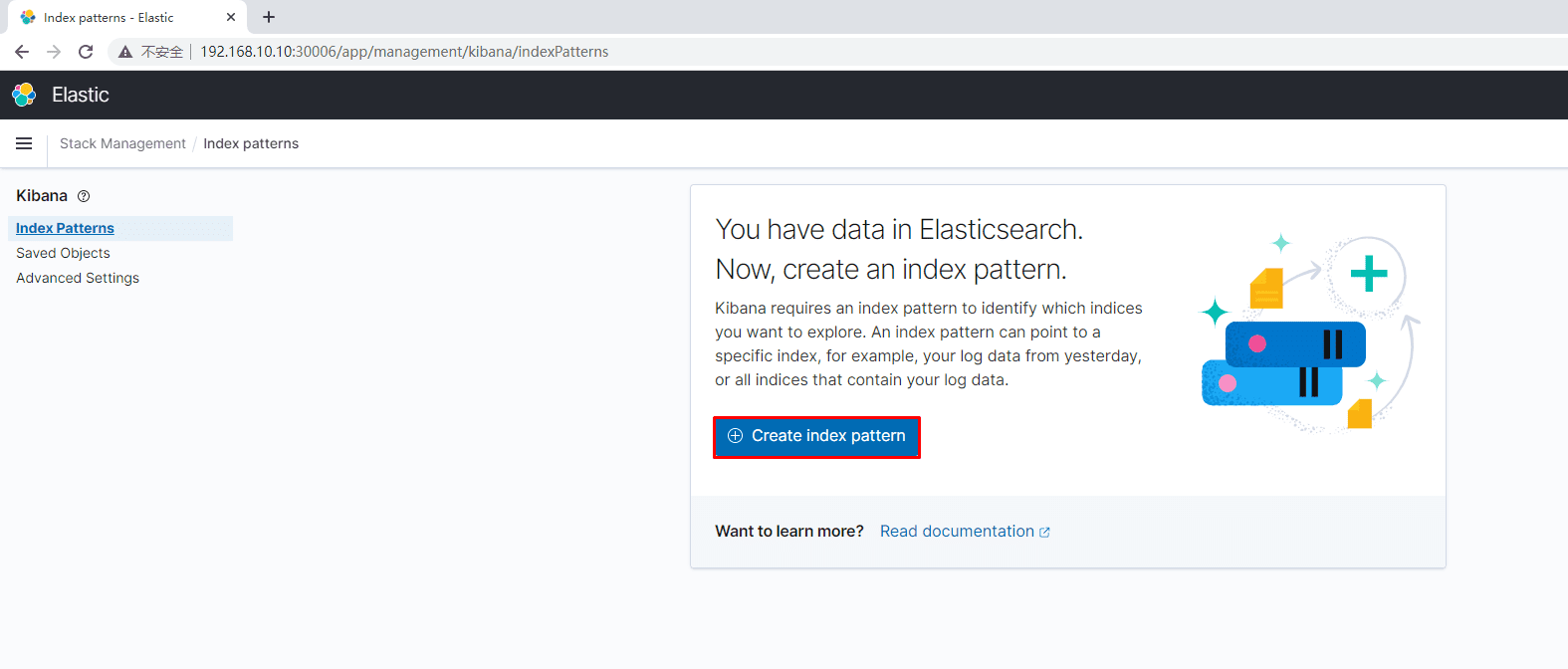

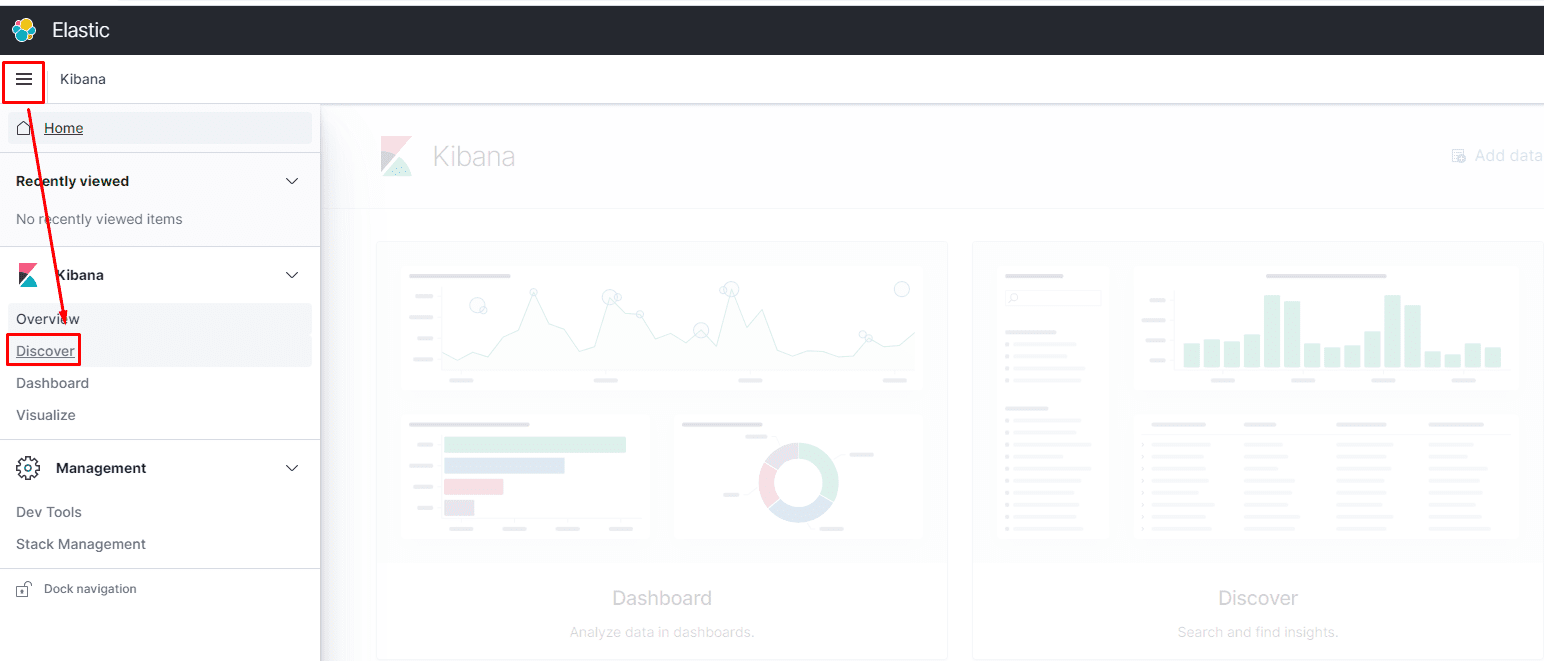

log-collector-0 2/2 Running 0 132m四、Knative日志可视化
五、关于EFK的补充
5.1 原有Fluentd
查看原有的
# kubectl get pods -n logging
NAME READY STATUS RESTARTS AGE
elasticsearch-logging-0 1/1 Running 0 4h14m
elasticsearch-logging-1 1/1 Running 0 4h12m
fluent-bit-6g42d 1/1 Running 0 15m
fluent-bit-dgwnv 1/1 Running 0 13m
fluent-bit-nvfwf 1/1 Running 0 14m
fluentd-es-v3.1.1-6nvz4 1/1 Running 0 5m47s
fluentd-es-v3.1.1-xwpz4 1/1 Running 0 5m47s
kibana-logging-c58b4fffc-ctqvj 1/1 Running 0 3h27m
log-collector-0 2/2 Running 0 17m删除
# kubectl delete -f fluentd-es-configmap.yaml
# kubectl delete -f fluentd-es-ds.yaml查看现有的
# kubectl get pods -n logging
NAME READY STATUS RESTARTS AGE
elasticsearch-logging-0 1/1 Running 0 4h16m
elasticsearch-logging-1 1/1 Running 0 4h14m
fluent-bit-6g42d 1/1 Running 0 17m
fluent-bit-dgwnv 1/1 Running 0 16m
fluent-bit-nvfwf 1/1 Running 0 16m
kibana-logging-c58b4fffc-ctqvj 1/1 Running 0 3h29m
log-collector-0 2/2 Running 0 20m5.2 关于fluent bit报错处理
无法找到收集器，创建或启动即
[error] [io] connection #54 failed to: log-collector.logging:24224可以调整内存中的缓存大小来解决
[error] [output:forward:forward.0] cannot get ack
[ warn] [engine] failed to flush chunk '1-1641710896.577811610.flb', retry in 8 seconds: task_id=1, input=tail.0 > output=forward.0转发器配置文件
# vim fluent-bit-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: fluent-bit-config
namespace: logging
labels:
k8s-app: fluent-bit
data:
# Configuration files: server, input, filters and output
# ======================================================
fluent-bit.conf: |
[SERVICE]
Flush 1
Log_Level info
Daemon off
Parsers_File parsers.conf
HTTP_Server On
HTTP_Listen 0.0.0.0
HTTP_Port 2020
@INCLUDE input-kubernetes.conf
@INCLUDE filter-kubernetes.conf
@INCLUDE output-forward.conf
input-kubernetes.conf: |
[INPUT]
Name tail
Tag kube.*
Path /var/log/containers/*.log
Parser docker
DB /var/log/flb_kube.db
Mem_Buf_Limit 512MB
Skip_Long_Lines Off
Refresh_Interval 10
增加了以下内容
Buffer_Chunk_Size 2MB
Buffer_MAX_Size 4MB收集器配置文件
# vim fluent-bit-collector.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: log-collector-config
namespace: logging
labels:
k8s-app: log-collector
data:
# Configuration files: server, input, filters and output
# ======================================================
fluent-bit.conf: |
[SERVICE]
Flush 1
Log_Level info
Daemon off
HTTP_Server On
HTTP_Listen 0.0.0.0
HTTP_Port 2020
@INCLUDE input-forward.conf
@INCLUDE filter-simplify.conf
@INCLUDE output-elasticsearch.conf
input-forward.conf: |
[INPUT]
Name forward
Port ${FLUENT_PORT}
Listen 0.0.0.0
Buffer_Chunk_Size 4MB
Buffer_Max_Size 8MB# kubectl get pods -n logging
NAME READY STATUS RESTARTS AGE
elasticsearch-logging-0 1/1 Running 0 4h25m
elasticsearch-logging-1 1/1 Running 0 4h23m
fluent-bit-6g42d 1/1 Running 0 26m 转发器
fluent-bit-dgwnv 1/1 Running 0 24m 转发器
fluent-bit-nvfwf 1/1 Running 0 25m 转发器
kibana-logging-c58b4fffc-ctqvj 1/1 Running 0 3h38m
log-collector-0 2/2 Running 0 29m 收集器查看转发器日志
# kubectl logs fluent-bit-nvfwf -n logging
Fluent Bit v1.5.7
* Copyright (C) 2019-2020 The Fluent Bit Authors
* Copyright (C) 2015-2018 Treasure Data
* Fluent Bit is a CNCF sub-project under the umbrella of Fluentd
* https://fluentbit.io
[2022/01/09 06:59:56] [ info] [engine] started (pid=1)
[2022/01/09 06:59:56] [ info] [storage] version=1.0.5, initializing...
[2022/01/09 06:59:56] [ info] [storage] in-memory
[2022/01/09 06:59:56] [ info] [storage] normal synchronization mode, checksum disabled, max_chunks_up=128
[2022/01/09 06:59:56] [ info] [filter:kubernetes:kubernetes.0] https=1 host=kubernetes.default.svc port=443
[2022/01/09 06:59:56] [ info] [filter:kubernetes:kubernetes.0] local POD info OK
[2022/01/09 06:59:56] [ info] [filter:kubernetes:kubernetes.0] testing connectivity with API server...
[2022/01/09 06:59:56] [ info] [filter:kubernetes:kubernetes.0] API server connectivity OK
[2022/01/09 06:59:56] [ info] [http_server] listen iface=0.0.0.0 tcp_port=2020
[2022/01/09 06:59:56] [ info] [sp] stream processor started
[2022/01/09 06:59:56] [ info] inotify_fs_add(): inode=68227572 watch_fd=1 name=/var/log/containers/alertmanager-stable-kube-prometheus-sta-alertmanager-0_default_alertmanager-01be702786e7d76bcb28b06806b3f28871af6ab199732578fb42978f5020cd28.log
[2022/01/09 06:59:56] [ info] inotify_fs_add(): inode=4329146 watch_fd=2 name=/var/log/containers/alertmanager-stable-kube-prometheus-sta-alertmanager-0_default_alertmanager-44ee526fe765afbd7819bf0b76dbc16ef7f2af79217099642aa28cca4a119d6c.log
[2022/01/09 06:59:56] [ info] inotify_fs_add(): inode=34915529 watch_fd=3 name=/var/log/containers/alertmanager-stable-kube-prometheus-sta-alertmanager-0_default_config-reloader-0b898d313769a1768cca506296e6fb03ab0deb633a7711778e884a153a16a51e.log
[2022/01/09 06:59:56] [ info] inotify_fs_add(): inode=68458464 watch_fd=4 name=/var/log/containers/alertmanager-stable-kube-prometheus-sta-alertmanager-0_default_config-reloader-50d4cef09b4b5c74ea1bdc0c94acfeb2686bda11c0d78b5c96a0fe1236afe87f.log
[2022/01/09 06:59:56] [ info] inotify_fs_add(): inode=103929790 watch_fd=5 name=/var/log/containers/bash_default_bash-5bfde879974dd5669fa6eea9b176e8ab6ee9a431066dd318e6e87311797336b4.log查看收集器日志
# kubectl logs log-collector-0 -n logging -c fluent-bit
Fluent Bit v1.5.7
* Copyright (C) 2019-2020 The Fluent Bit Authors
* Copyright (C) 2015-2018 Treasure Data
* Fluent Bit is a CNCF sub-project under the umbrella of Fluentd
* https://fluentbit.io
[2022/01/09 06:56:03] [ info] [engine] started (pid=1)
[2022/01/09 06:56:03] [ info] [storage] version=1.0.5, initializing...
[2022/01/09 06:56:03] [ info] [storage] in-memory
[2022/01/09 06:56:03] [ info] [storage] normal synchronization mode, checksum disabled, max_chunks_up=128
[2022/01/09 06:56:03] [ info] [input:forward:forward.0] listening on 0.0.0.0:24224
[2022/01/09 06:56:03] [ info] [http_server] listen iface=0.0.0.0 tcp_port=2020
[2022/01/09 06:56:03] [ info] [sp] stream processor started
