使用 Tekton 实现自动化流水线
一、思路介绍及资源准备
1.1 实现思路
使用tekton pipelines发布项目，需要把要整个工作流划分成不同的任务来执行，工作流的阶段可划分为以下几个阶段：Clone 代码 -> 单元测试 -> 编译打包 -> Docker镜像构建/推送 -> Kubectl 部署服务及回滚。
在 Tekton 中我们就可以将这些阶段直接转换成 Task 任务，接下来我们就将上面的工作流一步一步来转换成 Tekton 流水线

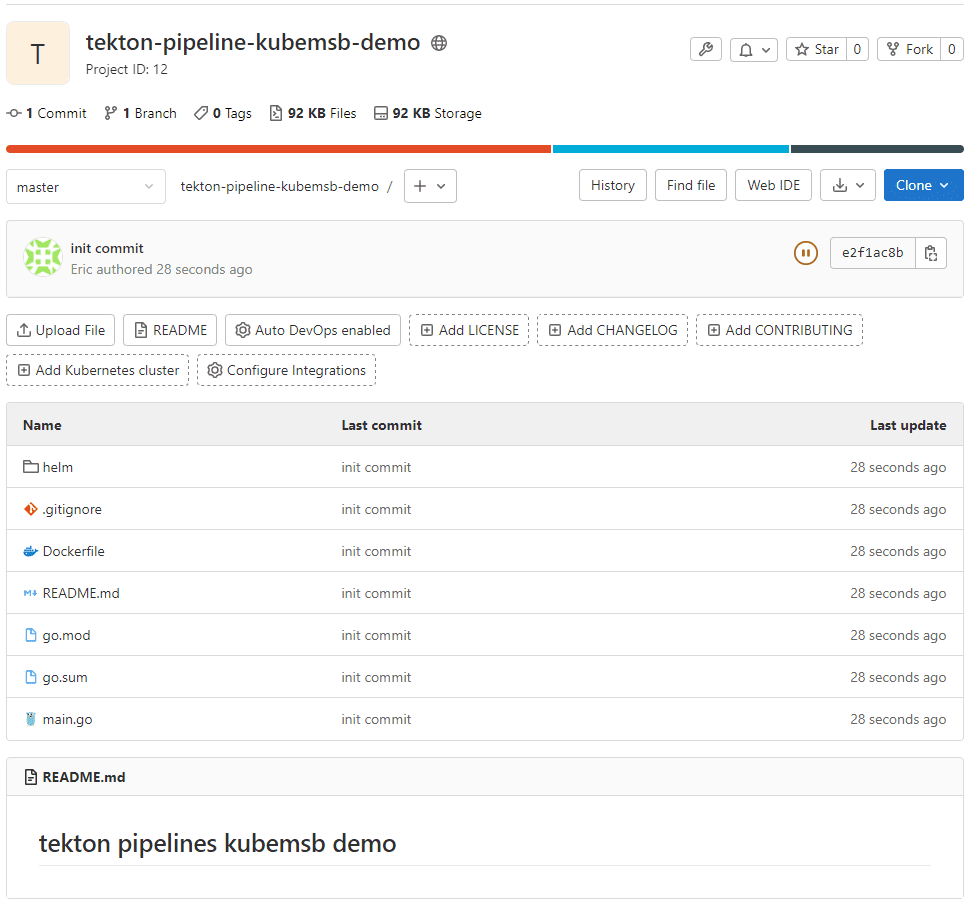

1.2 源码仓库
源代码仓库地址：http://192.168.10.250/root/tekton-pipeline-kubemsb-demo
1.3 本案例涉及应用环境
gitlab
- gitlab认证
harbor
- harbor认证
ServiceAccount
- 可使用harbor及gitlab
存储后端动态供给
- nfs实现
- storageclass: managed-nfs-storage
namespace
- kubemsb-ops
- 注：流水线自动创建
二、Clone 代码
2.1 实现思路
Clone 代码在 Tekton 中不需要我们主动定义一个任务，只需要在执行的任务上面指定一个输入的代码资源即可。
虽然我们可以不用单独定义一个 Clone 代码的任务，直接使用 git 类型的输入资源即可，由于这里涉及到的任务较多，而且很多时候都需要先 Clone 代码然后再进行操作，所以最好的方式是将代码 Clone 下来过后通过 Workspace 共享给其他任务，这里我们可以直接使用 Catalog git-clone 来实现这个任务，我们可以根据自己的需求做一些定制。
2.2 Clone任务资源清单文件
对应的 Task 如下所示，一般来说我们只需要提供 output 这个用于持久化代码的 workspace，然后还包括 url 和 revision 这两个参数，其他使用默认的即可。
# vim task-clone.yaml
# cat task-clone.yaml
apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
name: git-clone
spec:
workspaces:
- name: output
description: The git repo will be cloned onto the volume backing this Workspace.
- name: basic-auth
optional: true
description: |
A Workspace containing a .gitconfig and .git-credentials file. These
will be copied to the user's home before any git commands are run. Any
other files in this Workspace are ignored. It is strongly recommended
to use ssh-directory over basic-auth whenever possible and to bind a
Secret to this Workspace over other volume types.
params:
- name: url
description: Repository URL to clone from.
type: string
- name: revision
description: Revision to checkout. (branch, tag, sha, ref, etc...)
type: string
default: ""
- name: refspec
description: Refspec to fetch before checking out revision.
default: ""
- name: submodules
description: Initialize and fetch git submodules.
type: string
default: "true"
- name: depth
description: Perform a shallow clone, fetching only the most recent N commits.
type: string
default: "1"
- name: sslVerify
description: Set the `http.sslVerify` global git config. Setting this to `false` is not advised unless you are sure that you trust your git remote.
type: string
default: "true"
- name: subdirectory
description: Subdirectory inside the `output` Workspace to clone the repo into.
type: string
default: ""
- name: sparseCheckoutDirectories
description: Define the directory patterns to match or exclude when performing a sparse checkout.
type: string
default: ""
- name: deleteExisting
description: Clean out the contents of the destination directory if it already exists before cloning.
type: string
default: "true"
- name: verbose
description: Log the commands that are executed during `git-clone`'s operation.
type: string
default: "true"
- name: gitInitImage
description: The image providing the git-init binary that this Task runs.
type: string
default: "www.kubemsb.com/tekton/tekton-git-init:v0.24.1"
- name: userHome
description: |
Absolute path to the user's home directory. Set this explicitly if you are running the image as a non-root user or have overridden
the gitInitImage param with an image containing custom user configuration.
type: string
default: "/root"
results:
- name: commit
description: The precise commit SHA that was fetched by this Task.
- name: url
description: The precise URL that was fetched by this Task.
steps:
- name: clone
image: "$(params.gitInitImage)"
env:
- name: HOME
value: "$(params.userHome)"
- name: PARAM_URL
value: $(params.url)
- name: PARAM_REVISION
value: $(params.revision)
- name: PARAM_REFSPEC
value: $(params.refspec)
- name: PARAM_SUBMODULES
value: $(params.submodules)
- name: PARAM_DEPTH
value: $(params.depth)
- name: PARAM_SSL_VERIFY
value: $(params.sslVerify)
- name: PARAM_SUBDIRECTORY
value: $(params.subdirectory)
- name: PARAM_DELETE_EXISTING
value: $(params.deleteExisting)
- name: PARAM_VERBOSE
value: $(params.verbose)
- name: PARAM_SPARSE_CHECKOUT_DIRECTORIES
value: $(params.sparseCheckoutDirectories)
- name: PARAM_USER_HOME
value: $(params.userHome)
- name: WORKSPACE_OUTPUT_PATH
value: $(workspaces.output.path)
- name: WORKSPACE_BASIC_AUTH_DIRECTORY_BOUND
value: $(workspaces.basic-auth.bound)
- name: WORKSPACE_BASIC_AUTH_DIRECTORY_PATH
value: $(workspaces.basic-auth.path)
script: |
#!/usr/bin/env sh
set -eu
if [ "${PARAM_VERBOSE}" = "true" ] ; then
set -x
fi
if [ "${WORKSPACE_BASIC_AUTH_DIRECTORY_BOUND}" = "true" ] ; then
cp "${WORKSPACE_BASIC_AUTH_DIRECTORY_PATH}/.git-credentials" "${PARAM_USER_HOME}/.git-credentials"
cp "${WORKSPACE_BASIC_AUTH_DIRECTORY_PATH}/.gitconfig" "${PARAM_USER_HOME}/.gitconfig"
chmod 400 "${PARAM_USER_HOME}/.git-credentials"
chmod 400 "${PARAM_USER_HOME}/.gitconfig"
fi
CHECKOUT_DIR="${WORKSPACE_OUTPUT_PATH}/${PARAM_SUBDIRECTORY}"
cleandir() {
# Delete any existing contents of the repo directory if it exists.
#
# We don't just "rm -rf ${CHECKOUT_DIR}" because ${CHECKOUT_DIR} might be "/"
# or the root of a mounted volume.
if [ -d "${CHECKOUT_DIR}" ] ; then
# Delete non-hidden files and directories
rm -rf "${CHECKOUT_DIR:?}"/*
# Delete files and directories starting with . but excluding ..
rm -rf "${CHECKOUT_DIR}"/.[!.]*
# Delete files and directories starting with .. plus any other character
rm -rf "${CHECKOUT_DIR}"/..?*
fi
}
if [ "${PARAM_DELETE_EXISTING}" = "true" ] ; then
cleandir
fi
/ko-app/git-init \
-url="${PARAM_URL}" \
-revision="${PARAM_REVISION}" \
-refspec="${PARAM_REFSPEC}" \
-path="${CHECKOUT_DIR}" \
-sslVerify="${PARAM_SSL_VERIFY}" \
-submodules="${PARAM_SUBMODULES}" \
-depth="${PARAM_DEPTH}" \
-sparseCheckoutDirectories="${PARAM_SPARSE_CHECKOUT_DIRECTORIES}"
cd "${CHECKOUT_DIR}"
RESULT_SHA="$(git rev-parse HEAD)"
EXIT_CODE="$?"
if [ "${EXIT_CODE}" != 0 ] ; then
exit "${EXIT_CODE}"
fi
printf "%s" "${RESULT_SHA}" > "$(results.commit.path)"
printf "%s" "${PARAM_URL}" > "$(results.url.path)"三、编译打包
3.1 编译打包目的
第二个阶段是编译打包阶段，此案例中项目的 Dockerfile 不是使用的多阶段构建，所以需要先用一个任务去将应用编译打包成二进制文件，然后将这个编译过后的文件传递到下一个任务进行镜像构建。
3.2 编译打包任务资源清单文件
定义一个 workspace 把 clone 任务里面的代码关联起来。
这个构建任务很简单，将需要用到的环境变量直接通过 env 注入（也可以直接写入到 script 中，或者直接使用 command 来执行任务都可以)，然后构建生成的 app 这个二进制文件保留在代码根目录，这样也就可以通过 workspace 进行共享了。
# vim task-build.yaml
# cat task-build.yaml
apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
name: build
spec:
workspaces:
- name: go-repo
mountPath: /workspace/repo
steps:
- name: build
image: golang:1.14-alpine
workingDir: /workspace/repo
script: |
go build -v -o app
env:
- name: GOPROXY
value: https://goproxy.cn
- name: GOOS
value: linux
- name: GOARCH
value: amd64四、Docker 镜像制作
4.1 Dockerfile编写
Dockerfile在源代码仓库中，直接被Clone下载使用。
直接将编译好的二进制文件拷贝到镜像中即可，通过 Workspace 去获取上一个构建任务的制品
这个任务的重点还是要去声明一个 Workspace，当执行任务的时候要使用和前面构建任务同一个 Workspace，这样就可以获得上面编译成的 app 这个二进制文件了。
# vim Dockerfile
# cat Dockerfile
FROM alpine
WORKDIR /home
# 修改alpine源为阿里云
RUN sed -i 's/dl-cdn.alpinelinux.org/mirrors.ustc.edu.cn/g' /etc/apk/repositories && \
apk update && \
apk upgrade && \
apk add ca-certificates && update-ca-certificates && \
apk add --update tzdata && \
rm -rf /var/cache/apk/*
COPY app /home/
ENV TZ=Asia/Shanghai
EXPOSE 8080
ENTRYPOINT ./app4.2 通过任务构建容器镜像
下面开始构建并推送 Docker 镜像，构建的方法可以使用 Kaniko、DooD、DinD 3种模式，本次直接使用 DinD 这种模式，要使用 DinD 模式构建镜像，需要用到 sidecar 功能。
创建一个如下所示的任务：
# vim task-docker.yaml
# cat task-docker.yaml
apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
name: docker
spec:
workspaces:
- name: go-repo
params:
- name: image
description: Reference of the image docker will produce.
- name: registry_mirror
description: Specific the docker registry mirror
default: ""
- name: registry_url
description: private docker images registry url
steps:
- name: docker-build # 构建步骤
image: docker:stable
env:
- name: DOCKER_HOST # 用 TLS 形式通过 TCP 链接 sidecar
value: tcp://localhost:2376
- name: DOCKER_TLS_VERIFY # 校验 TLS
value: "1"
- name: DOCKER_CERT_PATH # 使用 sidecar 守护进程生成的证书
value: /certs/client
- name: DOCKER_PASSWORD
valueFrom:
secretKeyRef:
name: harbor-auth
key: password
- name: DOCKER_USERNAME
valueFrom:
secretKeyRef:
name: harbor-auth
key: username
workingDir: $(workspaces.go-repo.path)
script: | # docker 构建命令
docker login $(params.registry_url) -u $DOCKER_USERNAME -p $DOCKER_PASSWORD
docker build --no-cache -f ./Dockerfile -t $(params.image) .
docker push $(params.image)
volumeMounts: # 声明挂载证书目录
- mountPath: /certs/client
name: dind-certs
sidecars: # sidecar 模式，提供 docker daemon服务，实现真正的 DinD 模式
- image: docker:dind
name: server
args:
- --storage-driver=vfs
- --userland-proxy=false
- --debug
- --insecure-registry=$(params.registry_url)
- --registry-mirror=$(params.registry_mirror)
securityContext:
privileged: true
env:
- name: DOCKER_TLS_CERTDIR # 将生成的证书写入与客户端共享的路径
value: /certs
volumeMounts:
- mountPath: /certs/client
name: dind-certs
readinessProbe: # 等待 dind daemon 生成它与客户端共享的证书
periodSeconds: 1
exec:
command: ["ls", "/certs/client/ca.pem"]
volumes: # 使用 emptyDir 的形式即可
- name: dind-certs五、部署应用
5.1 实现思路
部署阶段，项目中已包含了 Helm Chart 包，所以直接使用 Helm 来部署即可，要实现 Helm 部署，当然我们首先需要一个包含 helm 命令的镜像，可以自己去编写一个这样的任务，也可以直接去 hub.tekton.dev 上面查找 Catalog，比如 helm-upgrade-from-source 这个 Task 任务就完全可以满足我们的部署需求
5.2 任务资源清单文件

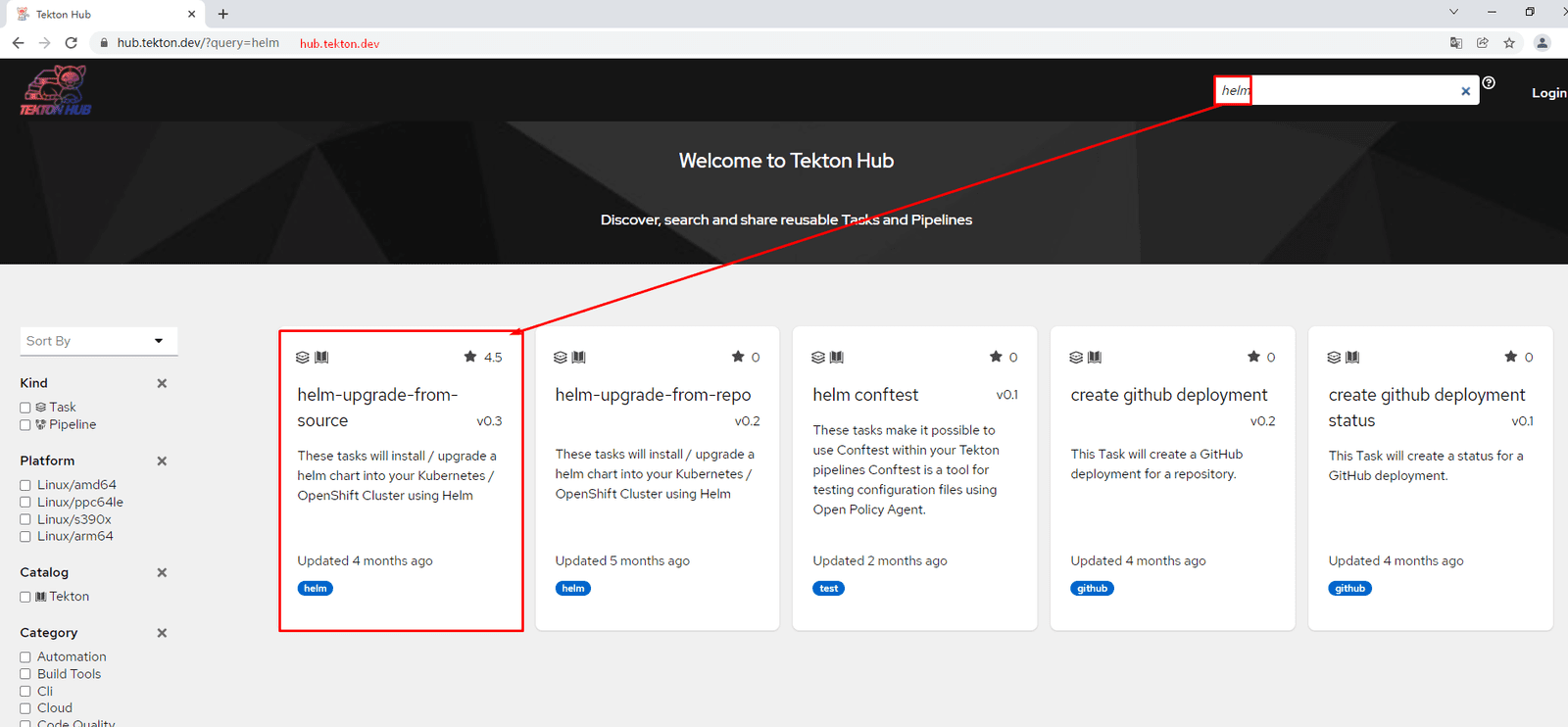

Catalog 里面也包含完整的使用文档了，我们可以将该任务直接下载下来根据我们自己的需求做一些定制修改
本案例中因为我们的 Helm Chart 模板就在代码仓库中，所以不需要从 Chart Repo 仓库中获取，只需要指定 Chart 路径即可，其他可配置的参数都通过 params 参数暴露出去了，非常灵活，最后我们还可以获取Helm 部署的状态，写入到了 Results 中，方便后续任务处理。
# vim task-deployment.yaml
# cat task-deployment.yaml
apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
name: deploy
spec:
params:
- name: charts_dir
description: The directory in source that contains the helm chart
- name: release_name
description: The helm release name
- name: release_namespace
description: The helm release namespace
default: ""
- name: overwrite_values
description: "Specify the values you want to overwrite, comma separated: autoscaling.enabled=true,replicas=1"
default: ""
- name: values_file
description: "The values file to be used"
default: "values.yaml"
- name: helm_image
description: "helm image to be used"
default: "docker.io/lachlanevenson/k8s-helm:v3.3.4@sha256:e1816be207efbd342cba9d3d32202e237e3de20af350617f8507dc033ea66803" #tag: v3.3.4
workspaces:
- name: source
results:
- name: helm-status
description: Helm deploy status
steps:
- name: upgrade
image: $(params.helm_image)
workingDir: /workspace/source
script: |
echo current installed helm releases
helm list --namespace "$(params.release_namespace)"
echo installing helm chart...
helm upgrade --install --wait --values "$(params.charts_dir)/$(params.values_file)" --create-namespace --namespace "$(params.release_namespace)" $(params.release_name) $(params.charts_dir) --debug --set "$(params.overwrite_values)"
status=`helm status $(params.release_name) --namespace "$(params.release_namespace)" | awk '/STATUS/ {print $2}'`
echo ${status} | tr -d "\n" | tee $(results.helm-status.path)六、回滚

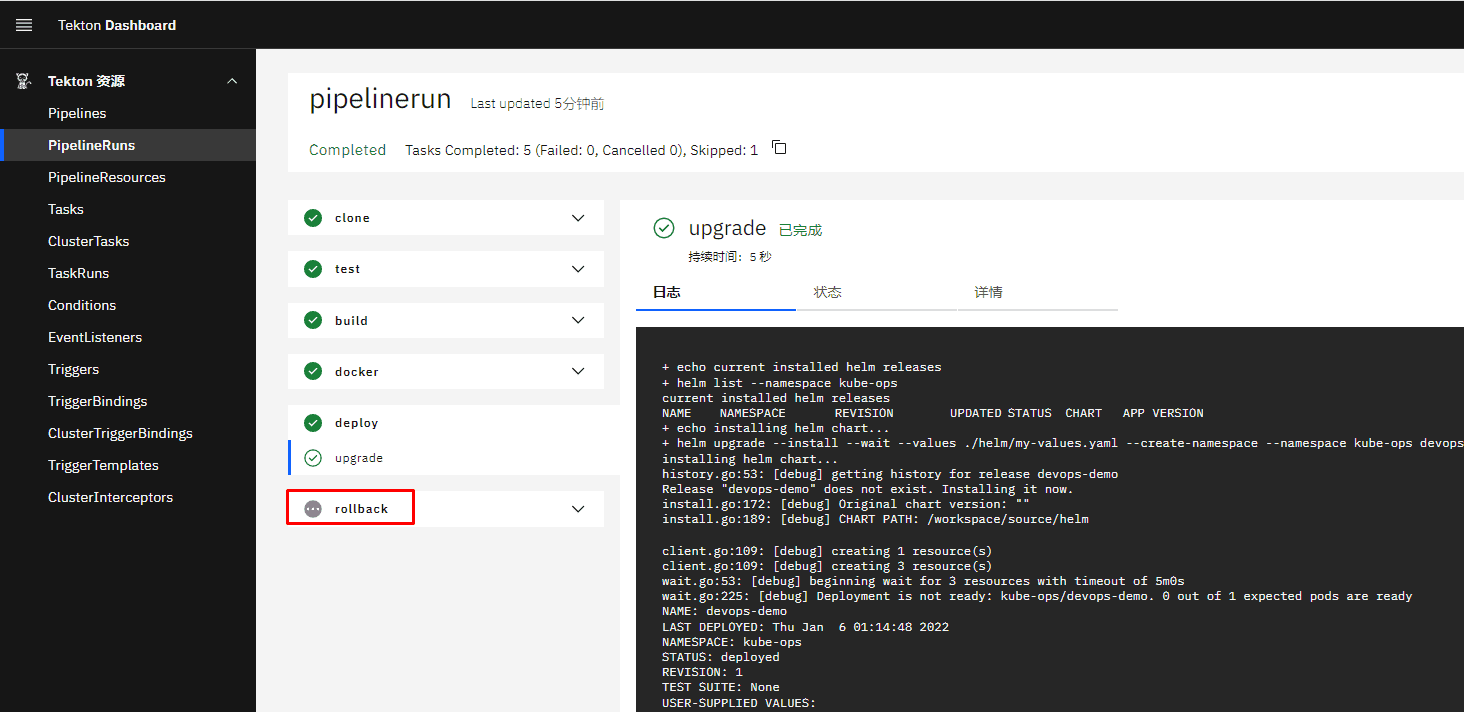

6.1 实现思路
最后应用部署完成后可能还需要回滚，因为可能部署的应用有错误，当然这个回滚动作最好是我们自己去触发，但是在某些场景下，比如 helm 部署已经明确失败了，那么就可以自动回滚了，所以需要判断当部署失败的时候执行回滚操作，也就是这个任务并不是一定会发生的，只在某些场景下才会出现，我们可以在流水线中通过使用 WhenExpressions 来实现这个功能。要只在满足某些条件时运行任务，可以使用 when 字段来保护任务执行，when 字段允许你列出对 WhenExpressions 的一系列引用。
WhenExpressions 由 Input、Operator 和 Values 几部分组成：
Input是WhenExpressions的输入，它可以是一个静态的输入或变量（Params 或 Results），如果未提供输入，则默认为空字符串Operator是一个运算符，表示 Input 和 Values 之间的关系，有效的运算符包括in、notinValues是一个字符串数组，必须提供一个非空的 Values 数组，它同样可以包含静态值或者变量（Params、Results 或者 Workspaces 绑定）
当在一个 Task 任务中配置了 WhenExpressions，在执行 Task 之前会评估声明的 WhenExpressions，如果结果为 True，则执行任务，如果为 False，则不会执行该任务。
6.2 回滚任务资源清单文件
# vim task-rollback.yaml
# cat task-rollback.yaml
apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
name: rollback
spec:
params:
- name: release_name
description: The helm release name
- name: release_namespace
description: The helm release namespace
default: ""
- name: helm_image
description: "helm image to be used"
default: "docker.io/lachlanevenson/k8s-helm:v3.3.4@sha256:e1816be207efbd342cba9d3d32202e237e3de20af350617f8507dc033ea66803" #tag: v3.3.4
steps:
- name: rollback
image: $(params.helm_image)
script: |
echo rollback current installed helm releases
helm rollback $(params.release_name) --namespace $(params.release_namespace)七、流水线
现在我们的整个工作流任务都已经创建完成了，接下来我们就可以将这些任务全部串联起来组成一个 Pipeline 流水线了，将上面定义的几个 Task 引用到 Pipeline 中来，当然还需要声明 Task 中用到的 resources 或者 workspaces 这些数据。
7.1 实现思路
整体流程比较简单，就是在 Pipeline 需要先声明使用到的 Workspace、Resource、Params 这些资源，然后将声明的数据传递到 Task 任务中去，需要注意的是最后一个回滚任务，我们需要根据前面的 deploy 任务的结果来判断是否需要执行该任务，所以这里我们使用了 when 属性，通过 $(tasks.deploy.results.helm-status) 获取部署状态。
7.2 pipeline资源清单文件
# vim pipeline.yaml
# cat pipeline.yaml
apiVersion: tekton.dev/v1beta1
kind: Pipeline
metadata:
name: pipeline
spec:
workspaces: # 声明 workspaces
- name: go-repo-pvc
params:
# 定义代码仓库
- name: git_url
- name: revision
type: string
default: "master"
# 定义镜像参数
- name: image
- name: registry_url
type: string
default: "www.kubemsb.com"
- name: registry_mirror
type: string
default: "https://s27w6kze.mirror.aliyuncs.com"
# 定义 helm charts 参数
- name: charts_dir
- name: release_name
- name: release_namespace
default: "default"
- name: overwrite_values
default: ""
- name: values_file
default: "values.yaml"
tasks: # 添加task到流水线中
- name: clone
taskRef:
name: git-clone
workspaces:
- name: output
workspace: go-repo-pvc
params:
- name: url
value: $(params.git_url)
- name: revision
value: $(params.revision)
- name: build # 编译二进制程序
taskRef:
name: build
runAfter: # 测试任务执行之后才执行 build task
- clone
workspaces: # 传递 workspaces
- name: go-repo
workspace: go-repo-pvc
- name: docker # 构建并推送 Docker 镜像
taskRef:
name: docker
runAfter:
- build
workspaces: # 传递 workspaces
- name: go-repo
workspace: go-repo-pvc
params: # 传递参数
- name: image
value: $(params.image)
- name: registry_url
value: $(params.registry_url)
- name: registry_mirror
value: $(params.registry_mirror)
- name: deploy # 部署应用
taskRef:
name: deploy
runAfter:
- docker
workspaces:
- name: source
workspace: go-repo-pvc
params:
- name: charts_dir
value: $(params.charts_dir)
- name: release_name
value: $(params.release_name)
- name: release_namespace
value: $(params.release_namespace)
- name: overwrite_values
value: $(params.overwrite_values)
- name: values_file
value: $(params.values_file)
- name: rollback # 回滚
taskRef:
name: rollback
when:
- input: "$(tasks.deploy.results.helm-status)"
operator: in
values: ["failed"]
params:
- name: release_name
value: $(params.release_name)
- name: release_namespace
value: $(params.release_namespace)八、执行流水线
8.1 应用环境资源创建
现在我们就可以来执行下我们的流水线，看是否符合我们自身的要求，首先我们需要先创建关联的其他资源对象，比如 Workspace 对应的 PVC、还有 GitLab、Harbor 的认证信息
# vim other.yaml
# cat other.yaml
apiVersion: v1
kind: Secret
metadata:
name: gitlab-auth
annotations:
tekton.dev/git-0: http://gitlab.kubemsb.com
type: kubernetes.io/basic-auth
stringData:
username: 'root'
password: 'abc123.net'
---
apiVersion: v1
kind: Secret
metadata:
name: harbor-auth
annotations:
tekton.dev/docker-0: http://www.kubemsb.com
type: kubernetes.io/basic-auth
stringData:
username: 'admin'
password: '12345'
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: tekton-build-sa
secrets:
- name: harbor-auth
- name: gitlab-auth
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: tekton-clusterrole-binding
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: tekton-build-sa
namespace: default
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: go-repo-pvc
spec:
resources:
requests:
storage: 5Gi
volumeMode: Filesystem
storageClassName: managed-nfs-storage # 使用 StorageClass 自动生成 PV
accessModes:
- ReadWriteOnce这些关联的资源对象创建完成后，还需要为上面的 ServiceAccount 绑定一个权限，因为在 Helm 容器中我们要去操作一些集群资源，必然需要先做权限声明，这里我们可以将 tekton-build-sa 绑定到 edit 这个 ClusterRole 上去。
8.2 PipelineRun
创建一个 PipelineRun 资源对象来触发我们的流水线构建
# vim pipelinerun.yaml
# cat pipelinerun.yaml
apiVersion: tekton.dev/v1beta1
kind: PipelineRun
metadata:
name: pipelinerun
spec:
serviceAccountName: tekton-build-sa
pipelineRef:
name: pipeline
workspaces:
- name: go-repo-pvc
persistentVolumeClaim:
claimName: go-repo-pvc
params:
- name: git_url
value: http://192.168.10.250/root/tekton-pipeline-kubemsb-demo
- name: image
value: "www.kubemsb.com/test/tekton-pipeline-kubemsb-demo:v0.1.0"
- name: charts_dir
value: "./helm"
- name: release_name
value: kubemsb-demo
- name: release_namespace
value: "kubemsb-ops"
- name: overwrite_values
value: "image.repository=www.kubemsb.com/test/tekton-pipeline-kubemsb-demo,image.tag=v0.1.0"
- name: values_file
value: "my-values.yaml"8.3 应用资源清单文件
# kubectl apply -f other.yaml
secret/gitlab-auth created
secret/harbor-auth created
serviceaccount/tekton-build-sa created
clusterrolebinding.rbac.authorization.k8s.io/tekton-clusterrole-binding created
persistentvolumeclaim/go-repo-pvc created
# kubectl apply -f pipeline.yaml
pipeline.tekton.dev/pipeline created
# kubectl apply -f task-build.yaml
task.tekton.dev/build created
# kubectl apply -f task-clone.yaml
task.tekton.dev/git-clone created
# kubectl apply -f task-docker.yaml
task.tekton.dev/docker created
# kubectl apply -f task-deployment.yaml
task.tekton.dev/deploy created
# kubectl apply -f task-test.yaml
task.tekton.dev/test configured
# kubectl apply -f task-rollback.yaml
task.tekton.dev/rollback created# kubectl apply -f pipelinerun.yaml
pipelinerun.tekton.dev/pipelinerun created8.4 查看pipelinerun运行情况
# tkn pr describe pipelinerun
Name: pipelinerun
Namespace: default
Pipeline Ref: pipeline
Service Account: tekton-build-sa
Timeout: 1h0m0s
Labels:
tekton.dev/pipeline=pipeline
🌡️ Status
STARTED DURATION STATUS
23 seconds ago --- Running
📦 Resources
No resources
⚓ Params
NAME VALUE
∙ git_url http://gitlab.kubemsb.com/root/devops-demo.git
∙ image www.kubemsb.com/test/devops-demo:v0.1.0
∙ charts_dir ./helm
∙ release_name devops-demo
∙ release_namespace kube-ops
∙ overwrite_values image.repository=www.kubemsb.com/test/devops-demo,image.tag=v0.1.0
∙ values_file my-values.yaml
📝 Results
No results
📂 Workspaces
NAME SUB PATH WORKSPACE BINDING
∙ go-repo-pvc --- PersistentVolumeClaim (claimName=go-repo-pvc)
🗂 Taskruns
NAME TASK NAME STARTED DURATION STATUS
∙ pipelinerun-clone clone 23 seconds ago --- Running
∙ pipelinerun-test test 23 seconds ago 4 seconds Succeeded
⏭️ Skipped Tasks

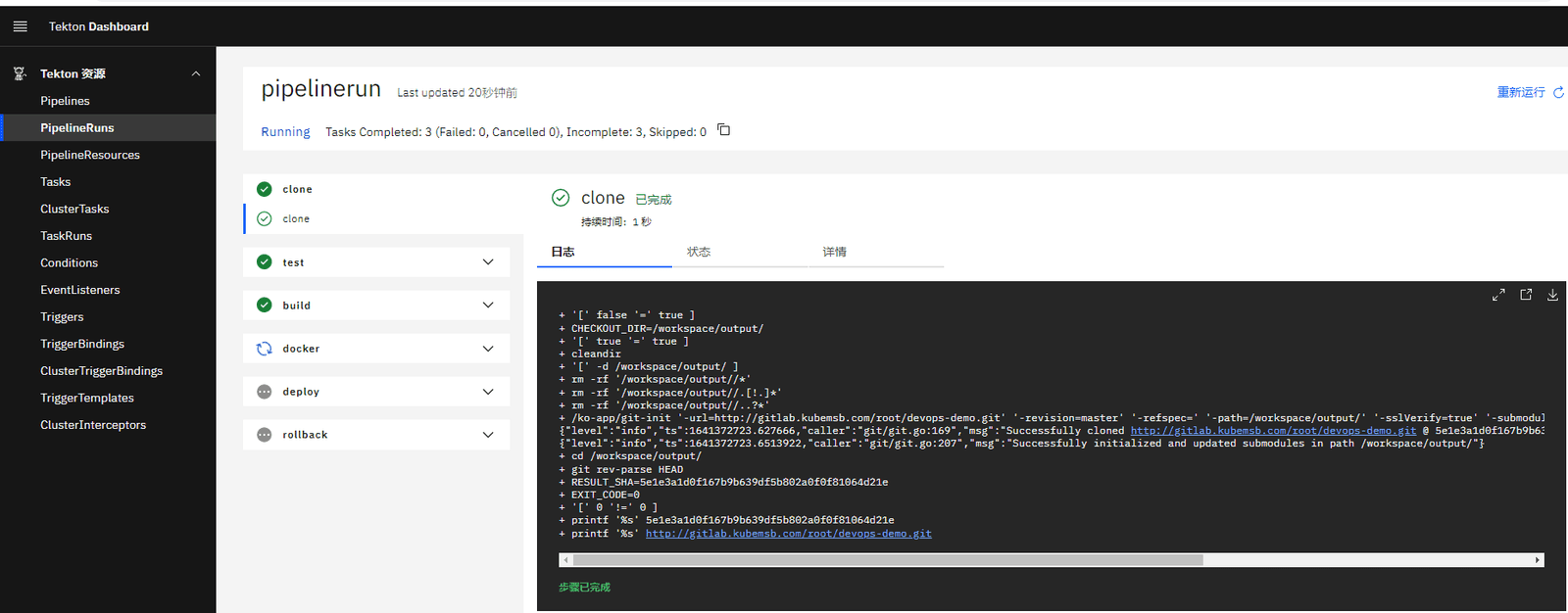

No Skipped Tasks8.5 在tekton dashboard中查看运行状态
8.6 查看应用部署情况
# kubectl get pods -n kube-ops
NAME READY STATUS RESTARTS AGE
devops-demo-5b7cd476d5-wwmfz 1/1 Running 0 32m8.7 在dnsserver中添加域名解析
[root@dnsserver ~]# cat /var/named/kubemsb.com.zone
$TTL 1D
@ IN SOA @ admin.kubemsb.com. (
0 ; serial
1D ; refresh
1H ; retry
1W ; expire
3H ) ; minimum
NS @
@ A 192.168.10.253
master01 A 192.168.10.10
worker01 A 192.168.10.20
worker02 A 192.168.10.21
yaml A 192.168.10.252
harbor A 192.168.10.251
www A 192.168.10.251
gitlab A 192.168.10.250
el A 192.168.10.203
smart A 192.168.10.203 添加此行内容
nfsserver A 192.168.10.249

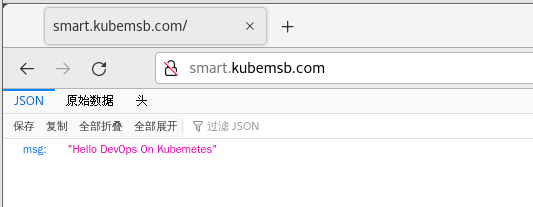

*.knative A 192.168.10.2008.8 在k8s集群中访问验证
# curl http://smart.kubemsb.com
{"msg":"Hello DevOps On Kubernetes"}

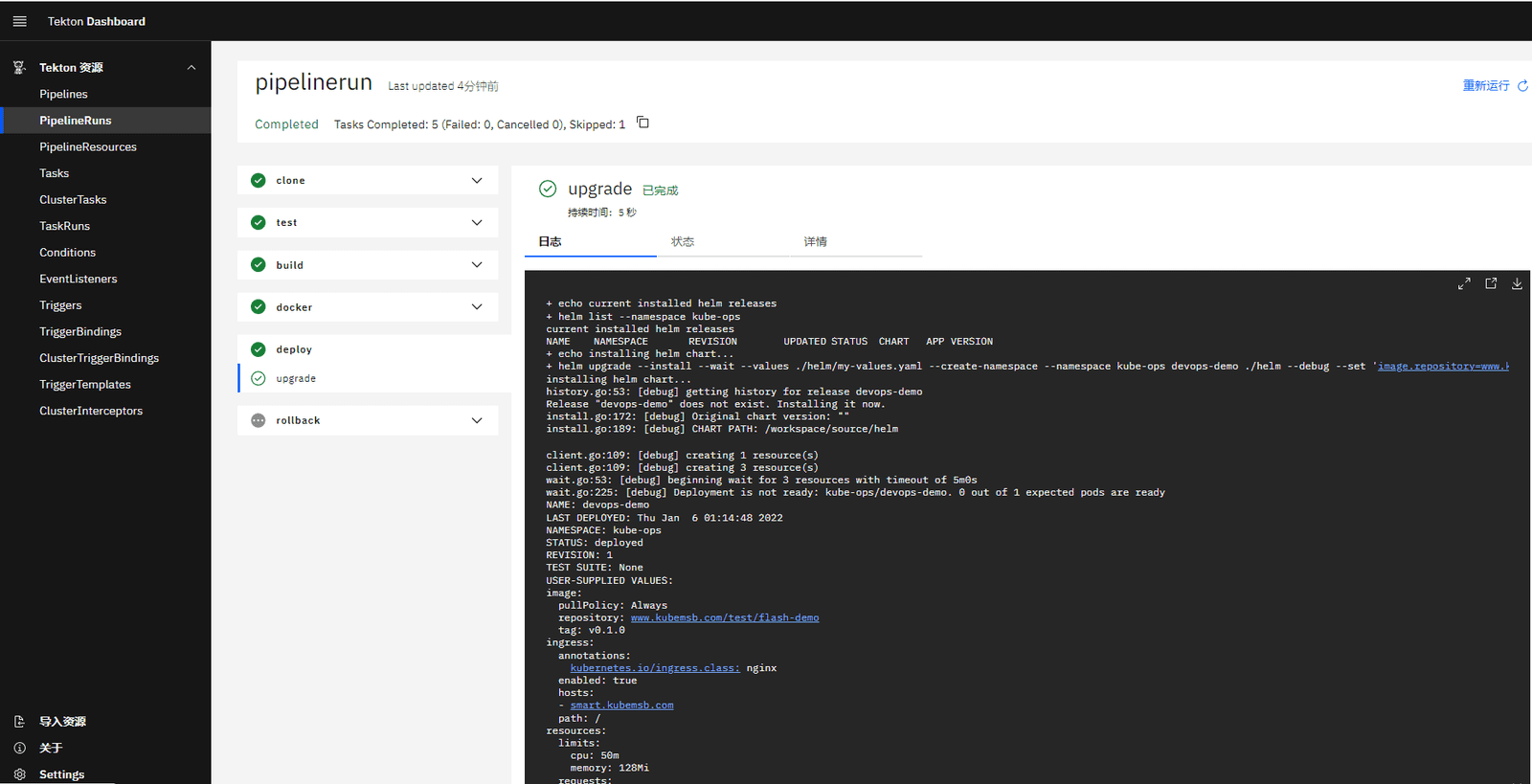

8.9 在dashboard中查看rollback
在 Dashboard 上也可以看到可以流水线可以正常执行，由于部署成功了，所以 rollback 回滚的任务也就被忽略了
九、触发器
9.1 部署tekton trigger

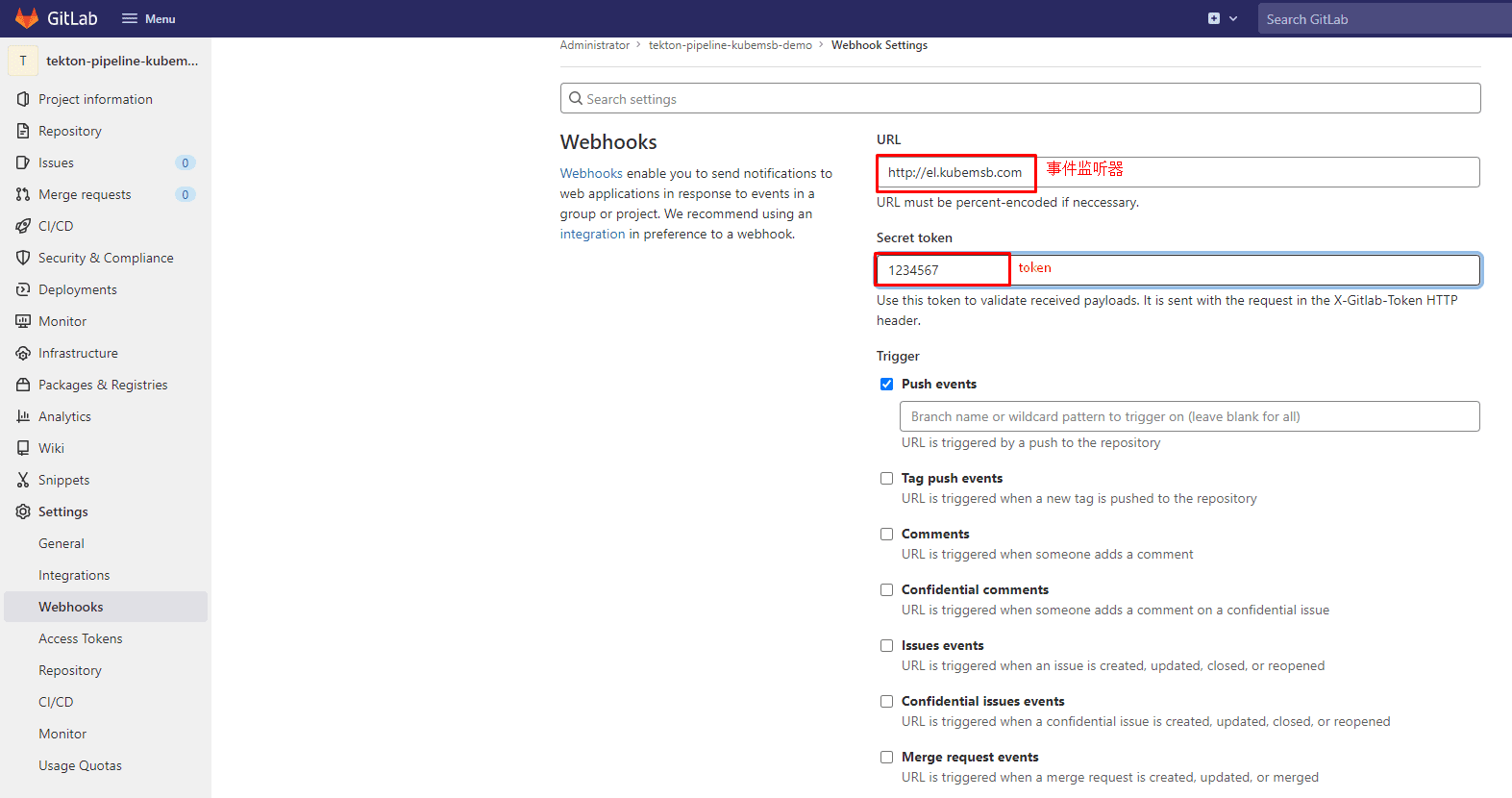

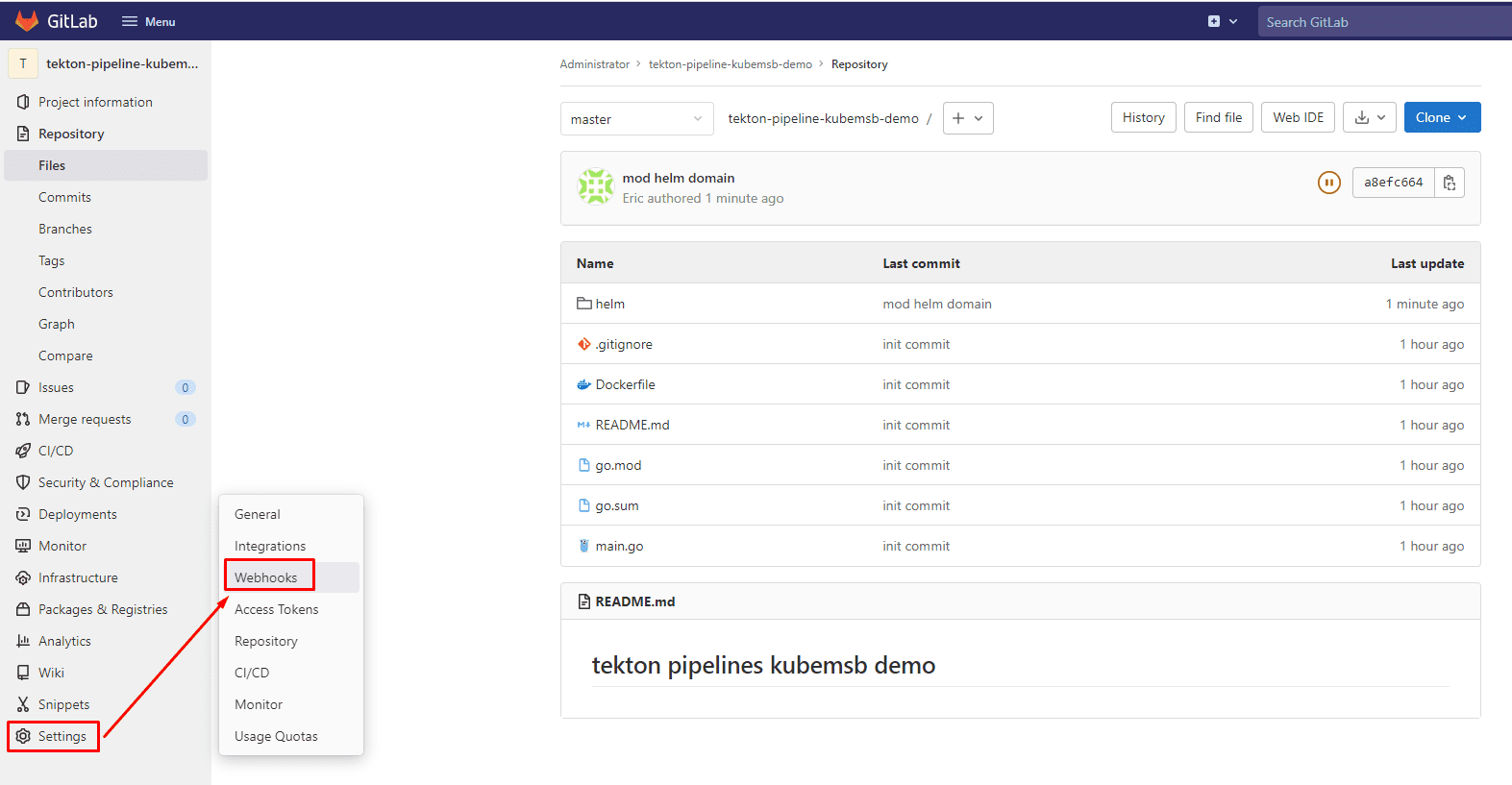

整个流水线已经成功执行了，接下来最后一步就是将 Gitlab 和 Tekton 进行对接，也就是通过 Tekton Trigger 来自动触发构建。
# kubectl apply -f https://storage.googleapis.com/tekton-releases/triggers/previous/v0.16.0/release.yaml# kubectl apply -f https://storage.googleapis.com/tekton-releases/triggers/previous/v0.16.0/interceptors.yaml9.2 创建webhook认证secret及RBAC授权
首先添加一个用于 Gitlab Webhook 访问的 Secret Token，同样要将这个 Secret 关联到上面使用的 ServiceAccount 上面去，然后继续添加对应的 RBAC 权限：
# vim gitlab-webhook-rbac.yaml
# cat gitlab-webhook-rbac.yaml
apiVersion: v1
kind: Secret
metadata:
name: gitlab-secret
type: Opaque
stringData:
secretToken: "1234567"
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: tekton-build-sa
secrets:
- name: harbor-auth
- name: gitlab-auth
- name: gitlab-secret
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: tekton-triggers-gitlab-minimal
rules:
# EventListeners need to be able to fetch all namespaced resources
- apiGroups: ["triggers.tekton.dev"]
resources: ["eventlisteners", "triggerbindings", "triggertemplates", "triggers"]
verbs: ["get", "list", "watch"]
- apiGroups: [""]
# configmaps is needed for updating logging config
resources: ["configmaps"]
verbs: ["get", "list", "watch"]
# Permissions to create resources in associated TriggerTemplates
- apiGroups: ["tekton.dev"]
resources: ["pipelineruns", "pipelineresources", "taskruns"]
verbs: ["create"]
- apiGroups: [""]
resources: ["serviceaccounts"]
verbs: ["impersonate"]
- apiGroups: ["policy"]
resources: ["podsecuritypolicies"]
resourceNames: ["tekton-triggers"]
verbs: ["use"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: tekton-triggers-gitlab-binding
subjects:
- kind: ServiceAccount
name: tekton-build-sa
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: tekton-triggers-gitlab-minimal
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: tekton-triggers-gitlab-clusterrole
rules:
# EventListeners need to be able to fetch any clustertriggerbindings
- apiGroups: ["triggers.tekton.dev"]
resources: ["clustertriggerbindings", "clusterinterceptors"]
verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: tekton-triggers-gitlab-clusterbinding
subjects:
- kind: ServiceAccount
name: tekton-build-sa
namespace: default
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: tekton-triggers-gitlab-clusterrole9.3 创建EventListener(事件监听器)
创建 EventListener 资源对象，用来接收 Gitlab 的 Push Event 事件
# vim gitlab-listener.yaml
# cat gitlab-listener.yaml
apiVersion: triggers.tekton.dev/v1alpha1
kind: EventListener
metadata:
name: gitlab-listener # 该事件监听器会创建一个名为el-gitlab-listener的Service对象
spec:
serviceAccountName: tekton-build-sa
triggers:
- name: gitlab-push-events-trigger
interceptors:
- ref:
name: gitlab
params:
- name: secretRef # 引用 gitlab-secret 的 Secret 对象中的 secretToken 的值
value:
secretName: gitlab-secret
secretKey: secretToken
- name: eventTypes
value:
- Push Hook # 只接收 GitLab Push 事件
bindings: # 定义TriggerBinding，配置参数
- name: gitrevision
value: $(body.checkout_sha)
- name: gitrepositoryurl
value: $(body.repository.git_http_url)
template:
ref: gitlab-template9.4 创建TriggerTemplate
上面我们通过 TriggerBinding 定义了两个参数 gitrevision、gitrepositoryurl，这两个参数的值可以通过 Gitlab 发送过来的 POST 请求中获取到数据，然后我们就可以将这两个参数传递到 TriggerTemplate 对象中去，这里的模板其实也就是将上面我们定义的 PipelineRun 对象模板化，主要是替换 git_url 和镜像 TAG 这两个参数
# vim gitlab-template.yaml
# cat gitlab-template.yaml
apiVersion: triggers.tekton.dev/v1alpha1
kind: TriggerTemplate
metadata:
name: gitlab-template
spec:
params: # 定义参数，和 TriggerBinding 中的保持一致
- name: gitrevision
- name: gitrepositoryurl
resourcetemplates: # 定义资源模板
- apiVersion: tekton.dev/v1beta1
kind: PipelineRun # 定义 pipeline 模板
metadata:
generateName: gitlab-run- # TaskRun 名称前缀
spec:
serviceAccountName: tekton-build-sa
pipelineRef:
name: pipeline
workspaces:
- name: go-repo-pvc
persistentVolumeClaim:
claimName: go-repo-pvc
params:
- name: git_url
value: $(tt.params.gitrepositoryurl)
- name: image
value: "www.kubemsb.com/test/tekton-pipeline-kubemsb-demo:$(tt.params.gitrevision)"
- name: charts_dir
value: "./helm"
- name: release_name
value: kubemsb-demo
- name: release_namespace
value: "kubemsb-ops"
- name: overwrite_values
value: "image.repository=www.kubemsb.com/test/tekton-pipeline-kubemsb-demo,image.tag=$(tt.params.gitrevision)"
- name: values_file
value: "my-values.yaml"9.5 应用资源清单文件
直接创建上面新建的几个资源对象即可，这会创建一个 eventlistern 服务用来接收 Webhook 请求：
# kubectl apply -f gitlab-listener.yaml
eventlistener.triggers.tekton.dev/gitlab-listener created# kubectl apply -f gitlab-template.yaml
triggertemplate.triggers.tekton.dev/gitlab-template created# kubectl apply -f gitlab-webhook-rbac.yaml
secret/gitlab-secret created
serviceaccount/tekton-build-sa configured
role.rbac.authorization.k8s.io/tekton-triggers-gitlab-minimal created
rolebinding.rbac.authorization.k8s.io/tekton-triggers-gitlab-binding created
clusterrole.rbac.authorization.k8s.io/tekton-triggers-gitlab-clusterrole created
clusterrolebinding.rbac.authorization.k8s.io/tekton-triggers-gitlab-clusterbinding created9.6 创建EventListener ingress对象
为了能够让集群外gitlab访问至集群内eventlistener，需要把eventlistener通过ingress暴露在集群外。
查看已创建的eventlistener
# kubectl get eventlistener
NAME ADDRESS AVAILABLE REASON READY REASON
gitlab-listener http://el-gitlab-listener.default.svc.cluster.local:8080 True MinimumReplicasAvailable True查看svc
# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
el-gitlab-listener ClusterIP 10.103.43.240 <none> 8080/TCP,9000/TCP 3m11s# vim ingress-el.yaml
# cat ingress-el.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress
namespace: default
annotations:
kubernetes.io/ingress.class: nginx
spec:
rules:
- host: el.kubemsb.com
http:
paths:
- pathType: Prefix
path: "/"
backend:
service:
name: el-gitlab-listener
port:
number: 8080# kubectl apply -f ingress-el.yaml
ingress.networking.k8s.io/ingress created# kubectl get ingress
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress <none> el.kubemsb.com 80 51s[root@dnsserver ~]# cat /var/named/kubemsb.com.zone
$TTL 1D
@ IN SOA @ admin.kubemsb.com. (
0 ; serial
1D ; refresh
1H ; retry
1W ; expire
3H ) ; minimum
NS @
@ A 192.168.10.253
master01 A 192.168.10.10
worker01 A 192.168.10.20
worker02 A 192.168.10.21
yaml A 192.168.10.252
harbor A 192.168.10.251
www A 192.168.10.251
gitlab A 192.168.10.250
el A 192.168.10.203 添加此行内容
smart A 192.168.10.203
nfsserver A 192.168.10.249
*.knative A 192.168.10.200十、GitLab WebHook实现

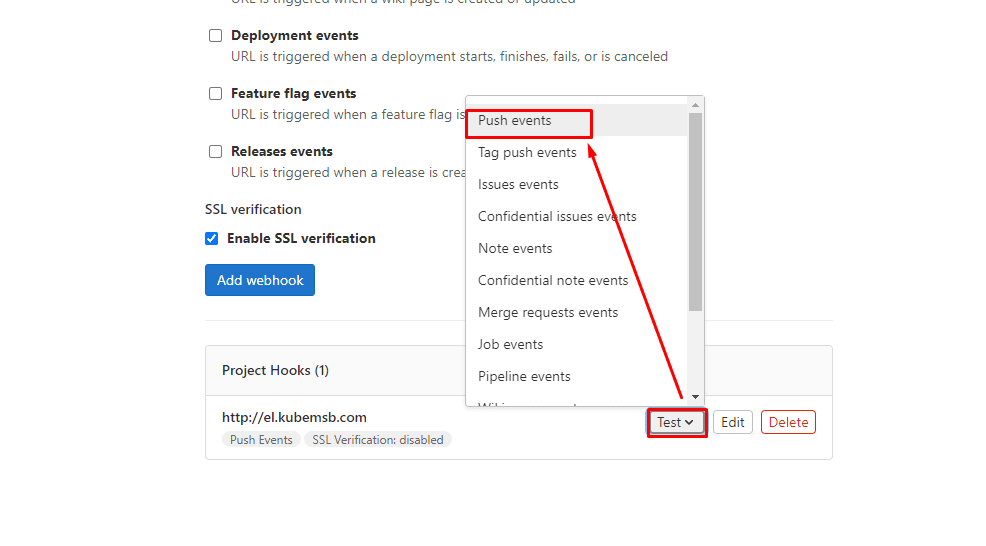

10.1 gitlab仓库实现webhook配置
10.2 修改本地代码上传至gitlab仓库
触发器和监听器配置好了，接下来去修改下项目代码，然后提交代码，正常提交过后就会在集群中创建一个 PipelinRun 对象用来执行流水线
# vim main.go
# cat main.go
package main
import (
"net/http"
"github.com/gin-gonic/gin"
"github.com/sirupsen/logrus"
)
func main() {
r := gin.Default()
r.GET("/", func(c *gin.Context) {
c.JSON(http.StatusOK, gin.H {
"msg": "Hello KUBEMSB!!!", 修改此处
})
})
r.GET("/health", func(c *gin.Context) {
c.JSON(http.StatusOK, gin.H {
"health": true,
})
})
if err := r.Run(":8080"); err != nil {
logrus.WithError(err).Fatal("Couldn't listen")
}
}在项目目录中提交代码
# git add .
# git commit -m "history"

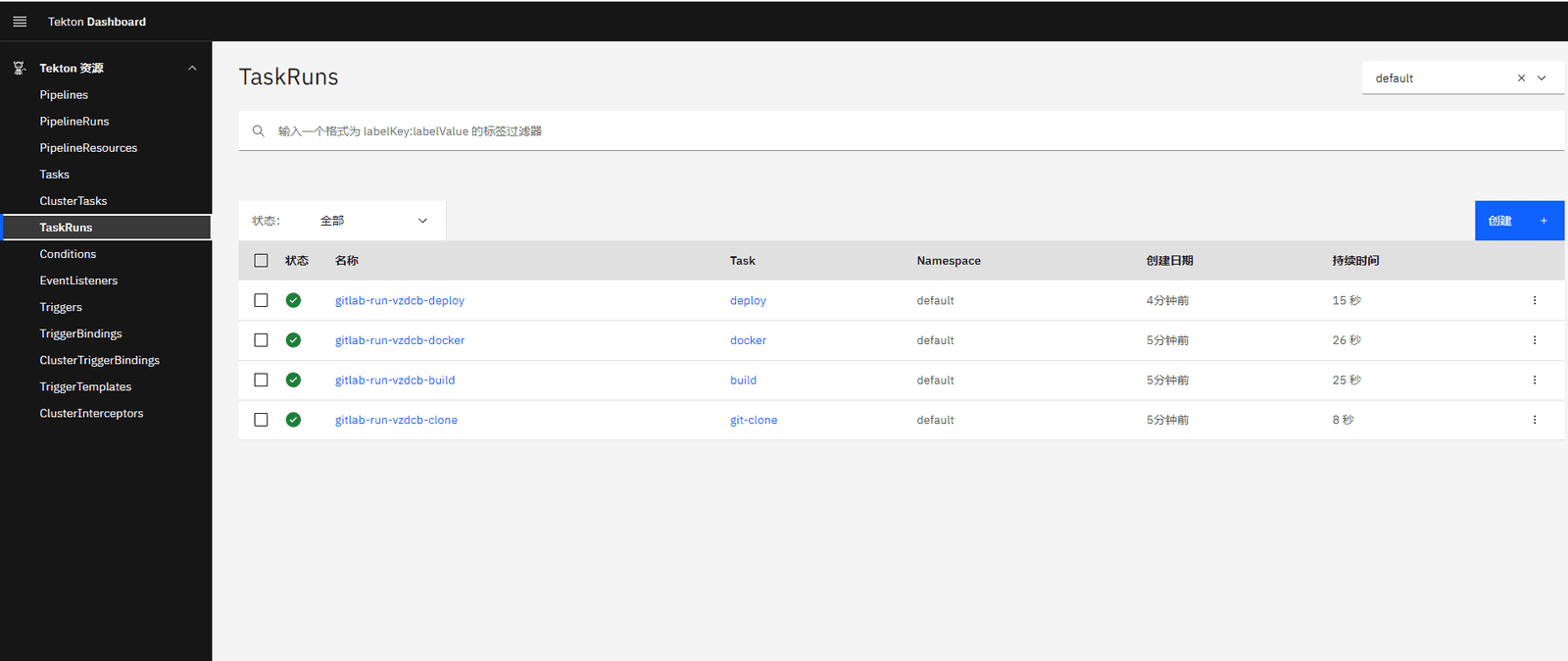

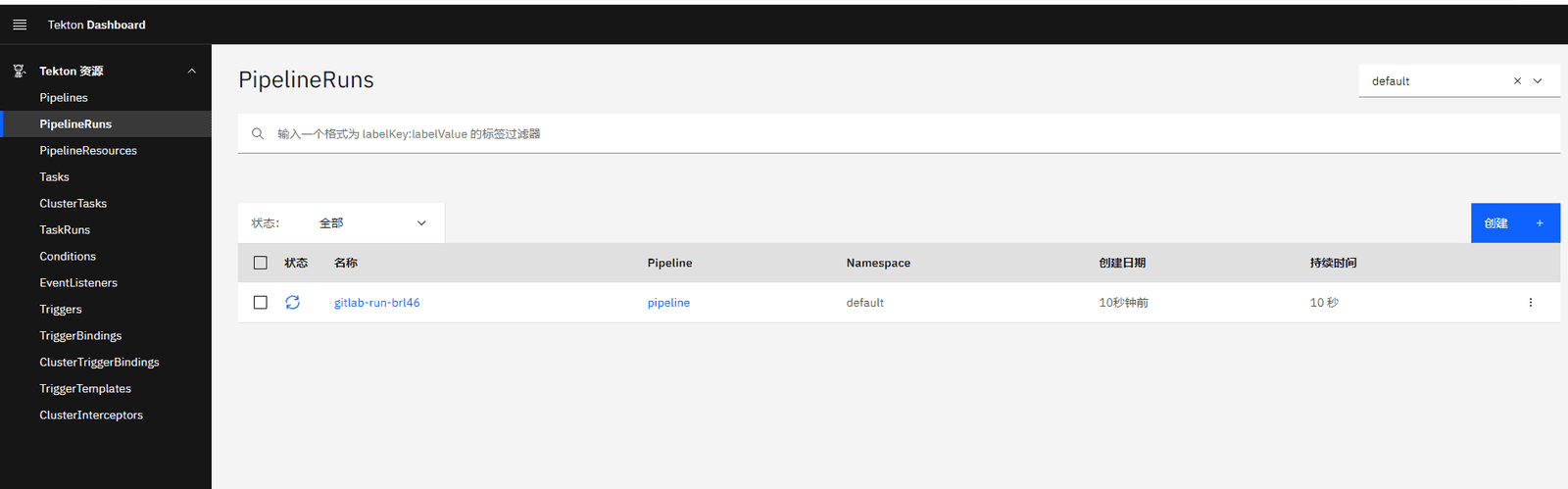

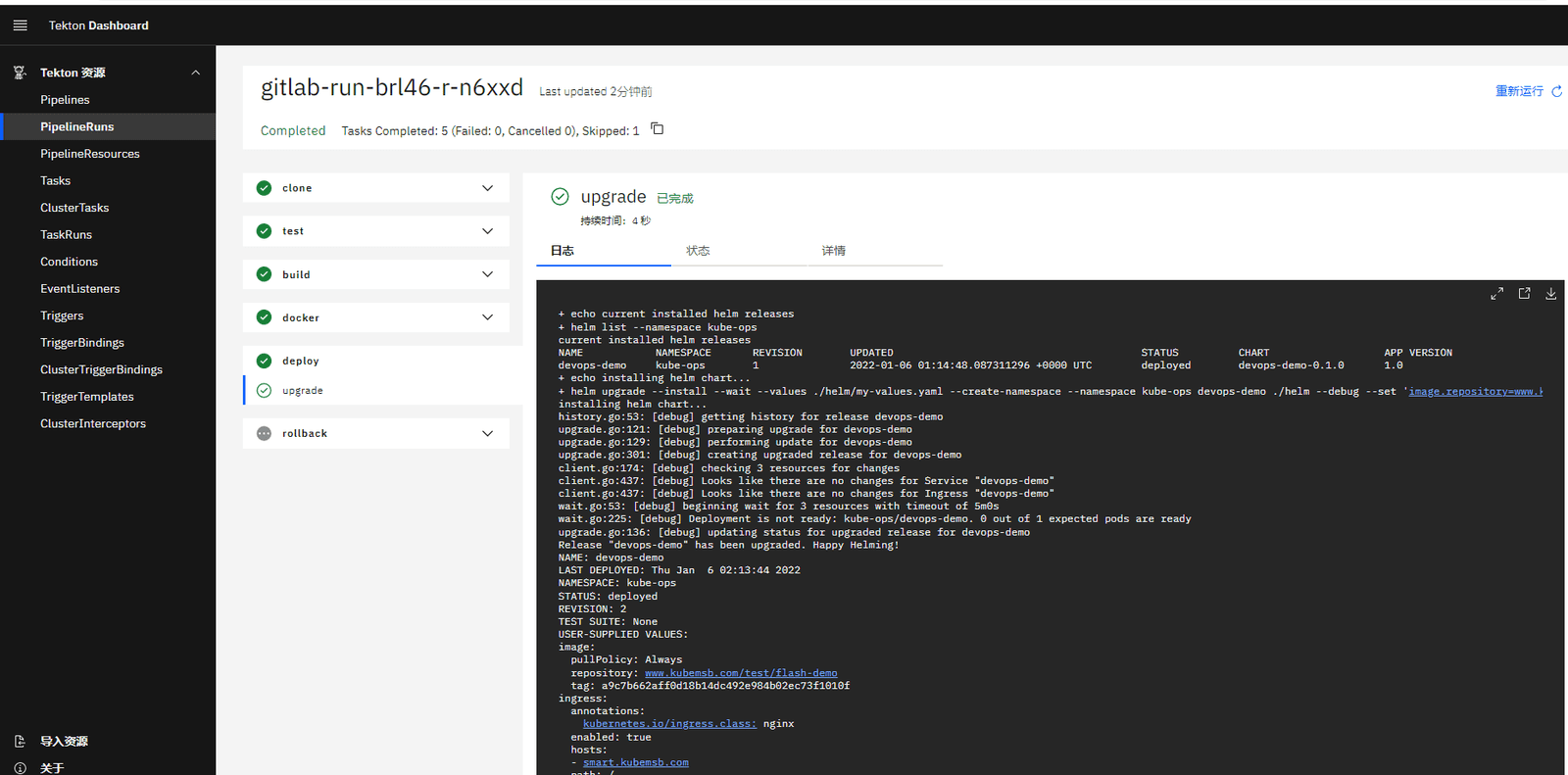

# git push -u origin --all10.3 在tekton dashboard中查看执行情况
# curl http://smart.kubemsb.com
{"msg":"Hello KUBEMSB!!!"}可以看到流水线执行成功后，应用已经成功部署了我们新提交的代码，到这里我们就完成了使用 Tekton 来实现项目发布自动化流水线。
