GitLab 触发 Tekton 任务构建
2026/8/13大约 12 分钟
Serverless · 第 18 篇
来源课程笔记整理优化；插图已迁入博客静态目录。
基于GitLab 触发 Tekton 实现任务构建
一、Tekton Triggers介绍
前面我们都是通过创建一个 TaskRun 或者一个 PipelineRun 对象来触发构建任务，但是在实际的工作中更多的是开发人员提交代码过后自动触发构建任务，这个时候就需要用到 Tekton 里面的 Triggers 概念。
Triggers 同样通过下面的几个 CRD 对象对 Tekton 进行了一些扩展：
TriggerTemplate: 创建资源的模板，比如用来创建PipelineResource和PipelineRunTriggerBinding: 校验事件并提取相关字段属性ClusterTriggerBinding: 和TriggerBinding类似，只是是全局的Interceptor: 处理事件以进行自定义验证或过滤，称为拦截器EventListener: 事件监听器，连接TriggerBinding和TriggerTemplate到事件接收器，使用从各个TriggerBinding中提取的参数来创建TriggerTemplate中指定的 resources，同样通过interceptor字段来指定外部服务对事件属性进行预处理
二、部署Tekton Triggers

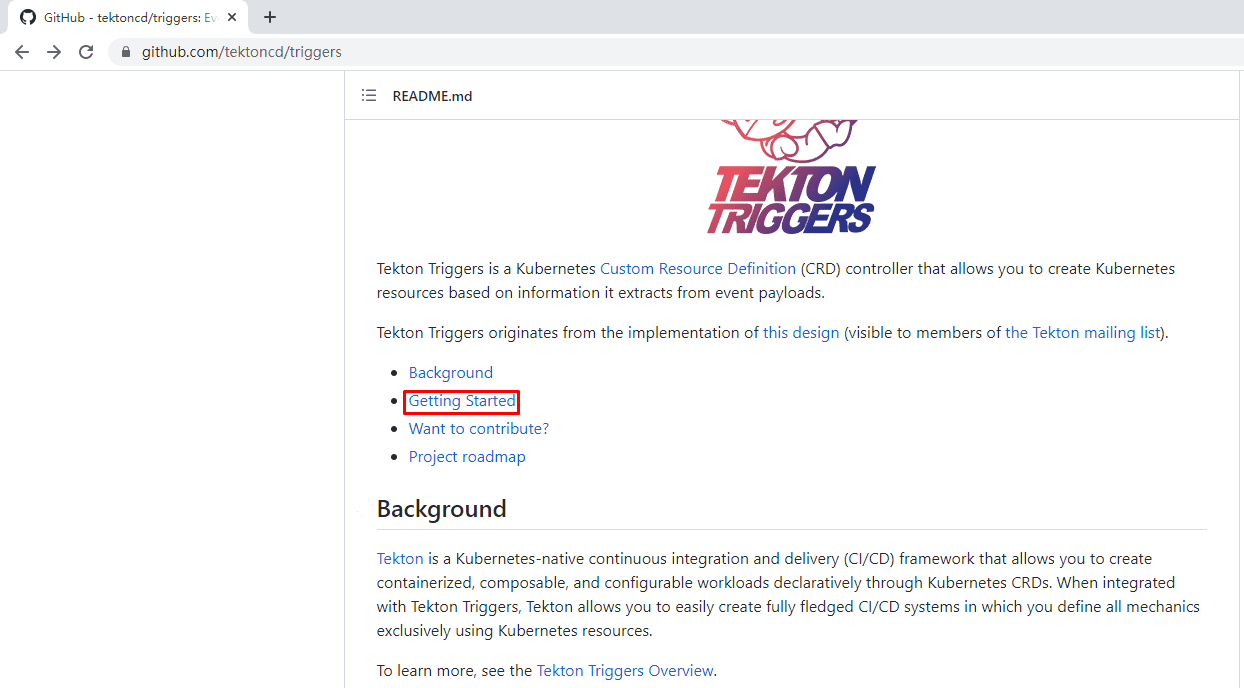

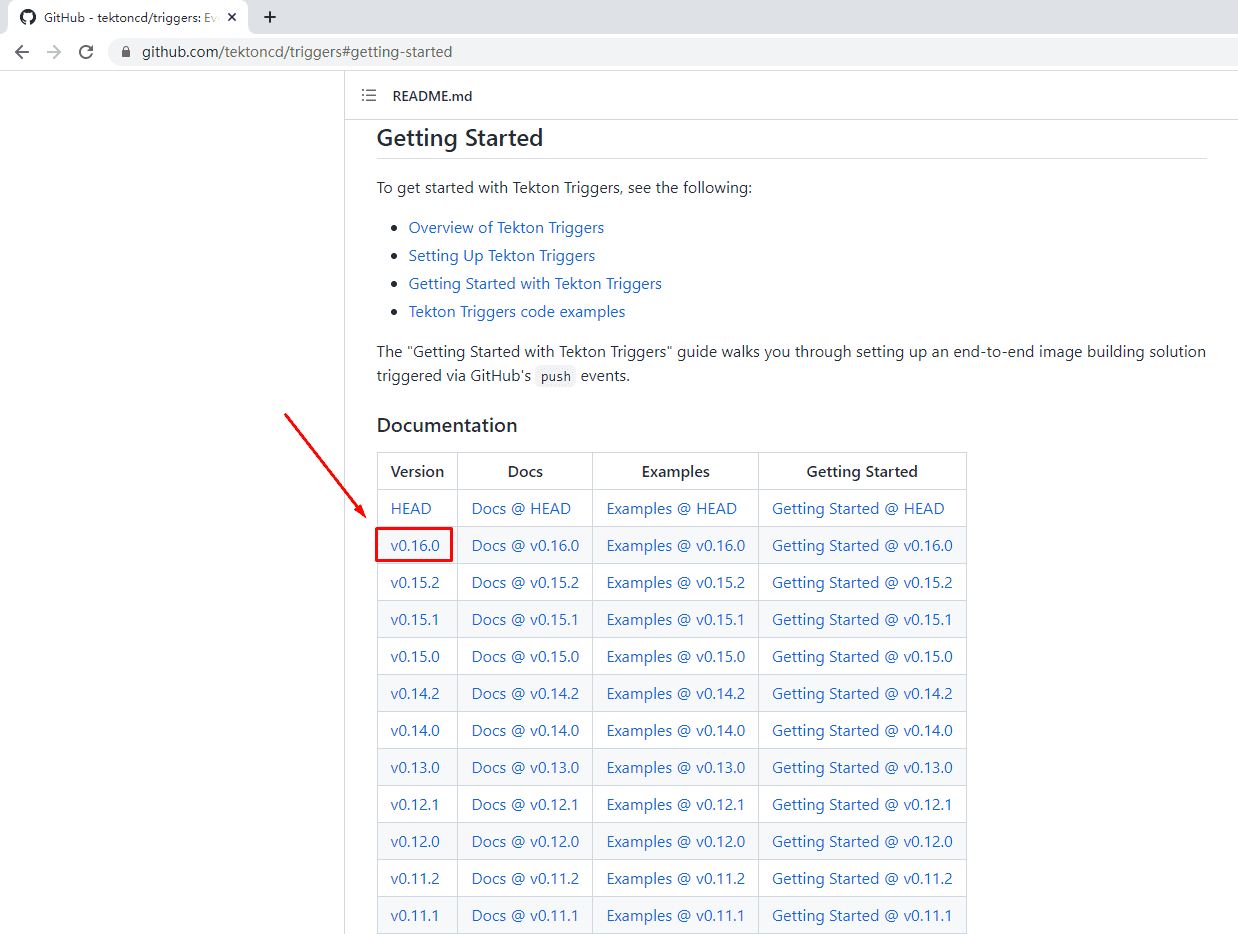

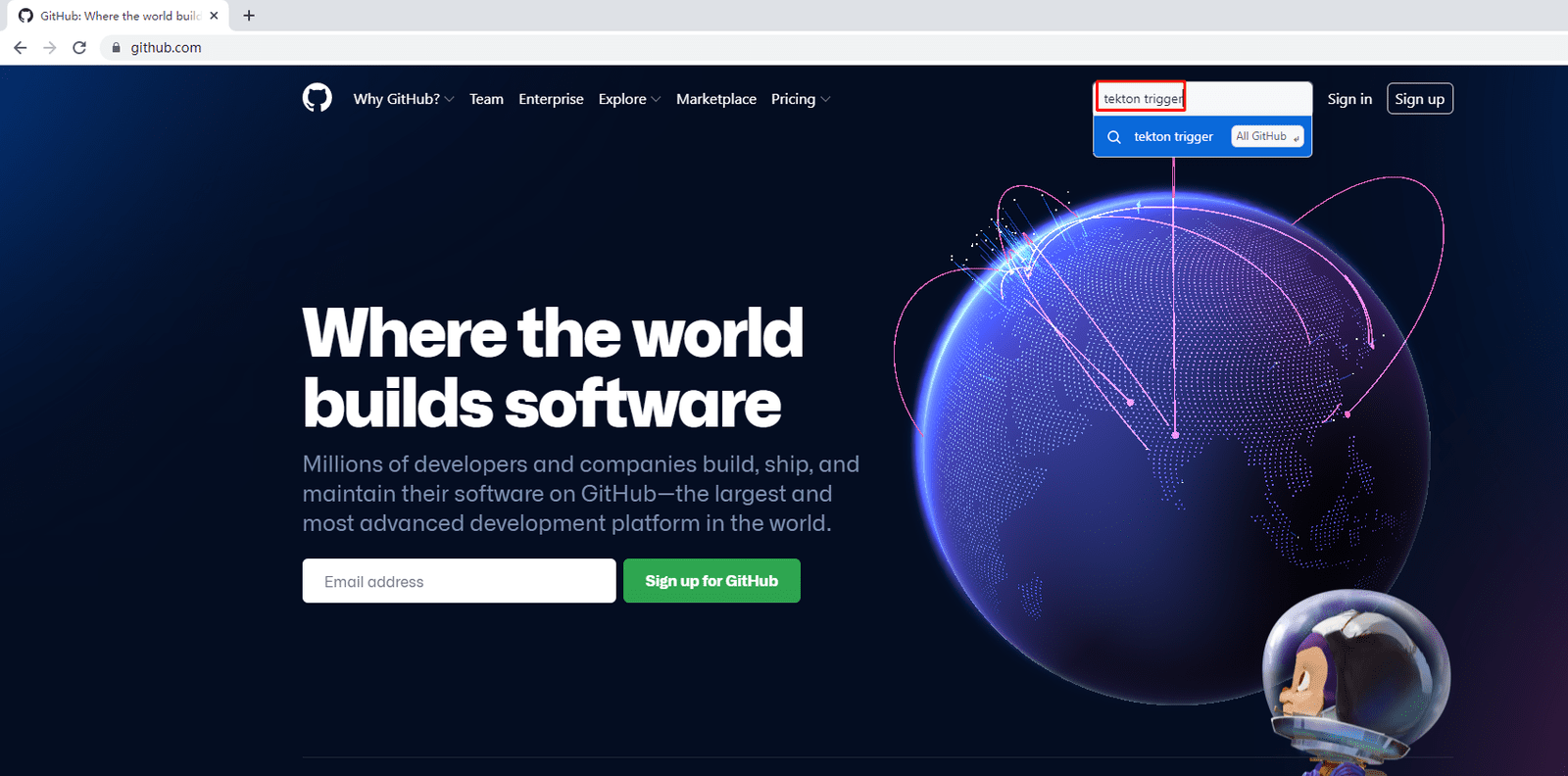

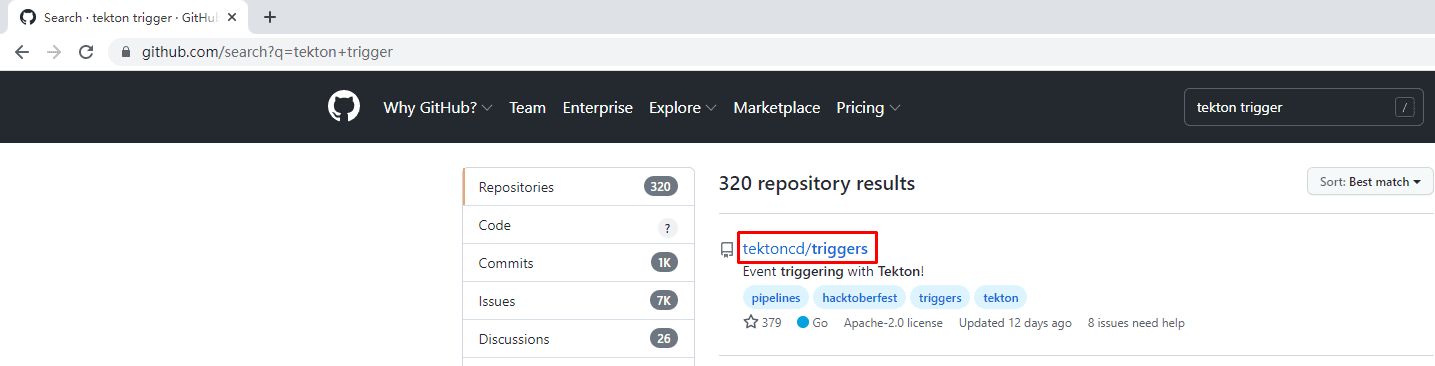

要使用 Tekton Triggers 就需要安装对应的控制器，可以直接通过 tektoncd/triggers 的 GitHub 仓库说明进行安装，如下所示的命令（需要注意 v0.16.0 版本需要安装两个资源清单）

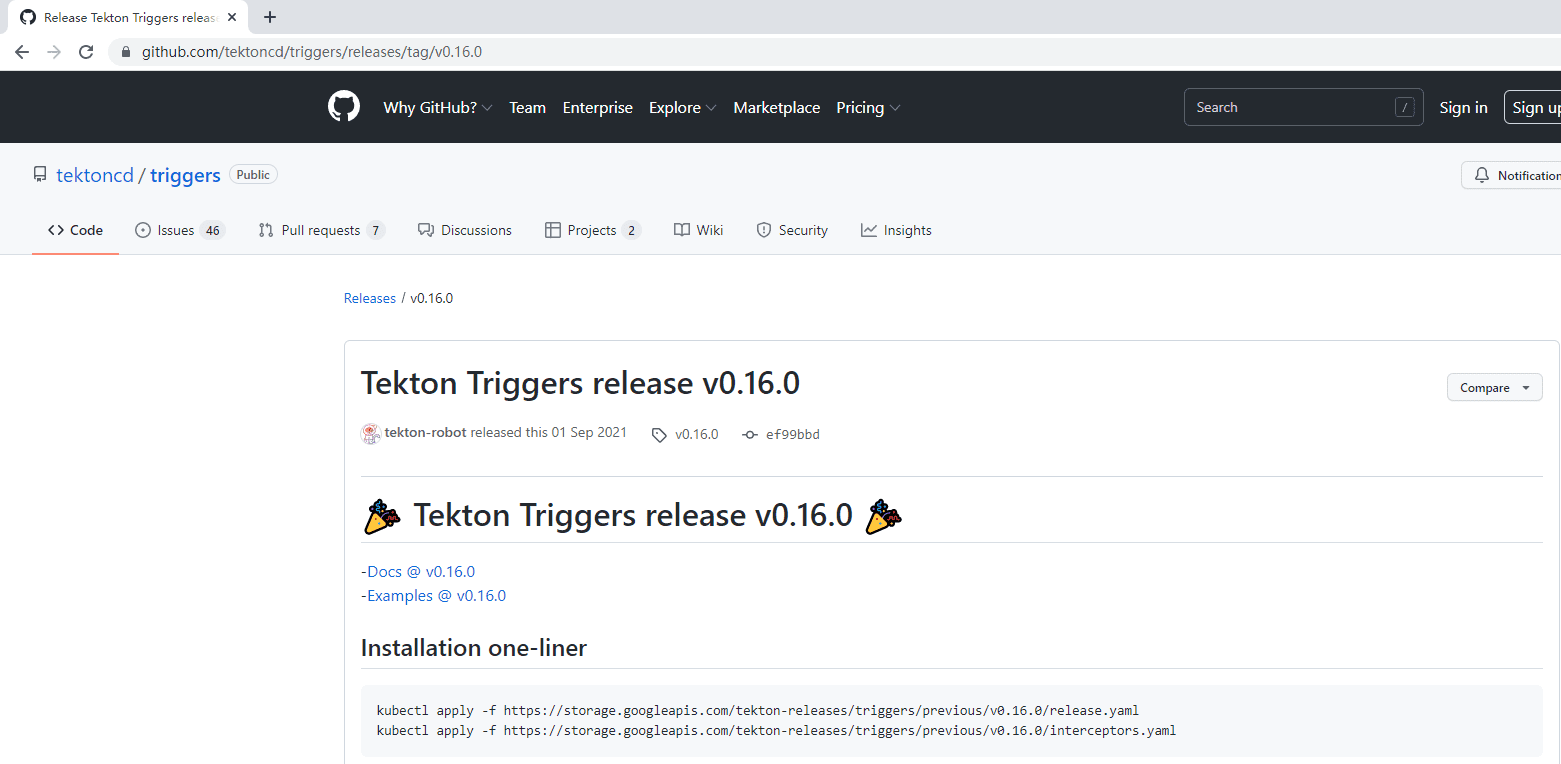

2.1 获取Tekton Triggers部署资源清单文件
2.2 部署并验证是否部署成功
安装triggers-controller与triggers-webhook
# kubectl apply -f https://storage.googleapis.com/tekton-releases/triggers/previous/v0.16.0/release.yaml安装triggers-core-interceptors
# kubectl apply -f https://storage.googleapis.com/tekton-releases/triggers/previous/v0.16.0/interceptors.yaml查看 Triggers 的相关组件安装状态，直到都为Running 状态
# kubectl get pods -n tekton-pipelines
NAME READY STATUS RESTARTS AGE
tekton-dashboard-7487777d44-mg46b 1/1 Running 1 22h
tekton-pipelines-controller-99b764966-84ggp 1/1 Running 1 24h
tekton-pipelines-webhook-55c9dd7446-t44sh 1/1 Running 1 24h
tekton-triggers-controller-6b7df75f4f-6ddbd 1/1 Running 1 21h
tekton-triggers-core-interceptors-7cb974f69f-hs7qh 1/1 Running 1 21h
tekton-triggers-webhook-74b774b8c9-xw59t 1/1 Running 1 21h三、查看已安装版本
# tkn version
Client version: 0.21.0
Pipeline version: v0.31.0
Triggers version: v0.16.0
Dashboard version: v0.23.0四、源码仓库准备

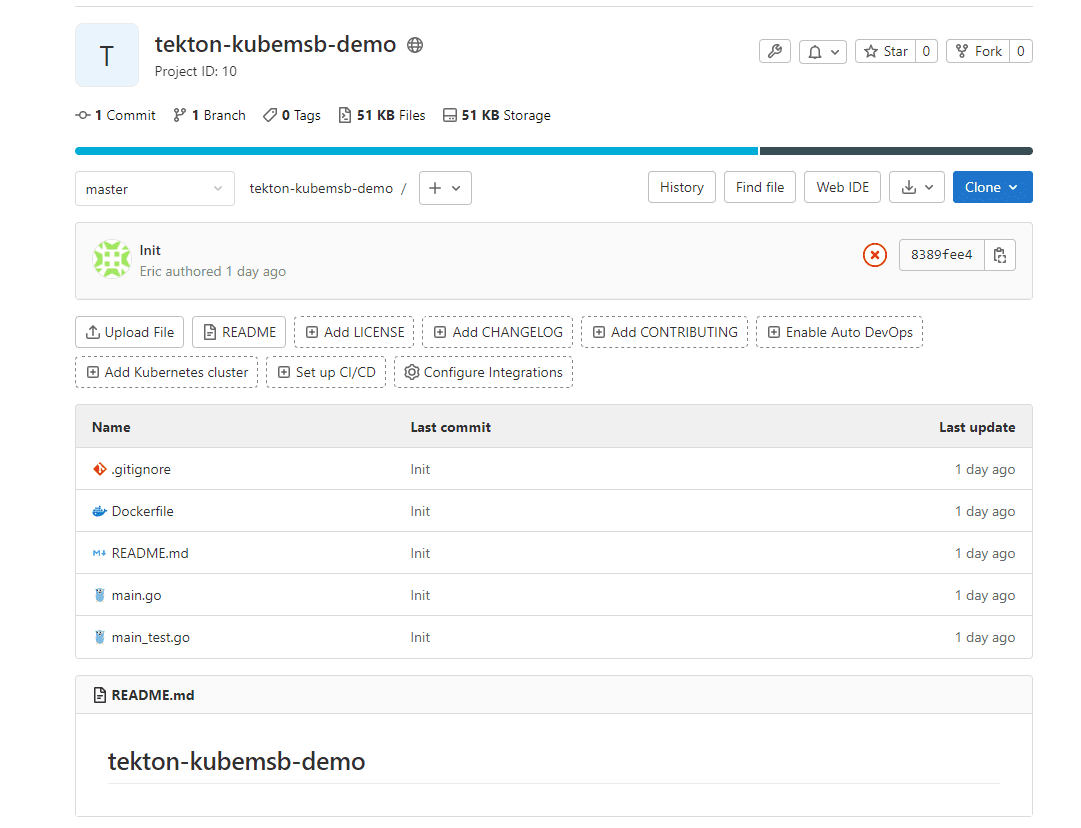

代码已经推送到私有仓库 GitLab，地址为：http://192.168.10.250/root/tekton-kubemsb-demo。
五、EventListener（事件监听器）资源对象创建
5.1 创建事件监听器资源对象
当我们提交源代码到 GitLab 的时候，需要触发 Tekton 的任务运行，必须先创建一个EventListener,即事件监听器，所以首先需要完成这个事件监听器对象创建。
创建一个名为
gitlab-listener的EventListener资源对象
# vim gitlab-push-listener.yaml
# cat gitlab-push-listener.yaml
apiVersion: triggers.tekton.dev/v1alpha1
kind: EventListener
metadata:
name: gitlab-listener # 该事件监听器会创建一个名为el-gitlab-listener的Service对象
spec:
serviceAccountName: tekton-triggers-gitlab-sa
triggers:
- name: gitlab-push-events-trigger
interceptors:
- ref:
name: gitlab
params:
- name: secretRef # 引用 gitlab-secret 的 Secret 对象中的 secretToken 的值
value:
secretName: gitlab-secret
secretKey: secretToken
- name: eventTypes
value:
- Push Hook # 只接收 GitLab Push 事件
bindings:
- ref: tekton-kubemsb-demo-binding
template:
ref: tekton-kubemsb-demo-template由于
EventListener创建完成后会生成一个 Listener 的服务，用来对外暴露用于接收事件响应，上面我们创建的对象名为gitlab-listener，创建完成后会生成一个名为el-gitlab-listener的 Service 对象另外需要注意的是在上面的
EventListener对象中我们添加了interceptors属性，其中有一个内置的gitlab拦截器，GitLab 拦截器包含验证和过滤来自 GitLab 的请求逻辑， 比如我们可以配置 WebHook 的Secret Token，可以通过 Secret 对象引入进来如果GitLab部署在集群内部，可以用 Service 的 DNS 形式来访问
EventListener即可，如果Gitlab暴露到集群外部则可以使用 NodePort 或者 Ingress 的形式。
interceptors:
- ref:
name: gitlab
params:
- name: secretRef # 引用 gitlab-secret 的 Secret 对象中的 secretToken 的值
value:
secretName: gitlab-secret
secretKey: secretToken
- name: eventTypes
value:
- Push Hook # 只接收 GitLab Push 事件5.2 创建用于WebHook认证的Secret及RBAC授权
对应的 Secret 资源对象如下所示，一个用于 WebHook 的 Secret Token，另外一个是用于 GitLab 登录认证使用的：
# vim gitlab-secret.yaml
# cat gitlab-secret.yaml
apiVersion: v1
kind: Secret
metadata:
name: gitlab-secret
type: Opaque
stringData:
secretToken: '1234567'
---
apiVersion: v1
kind: Secret
metadata:
name: gitlab-auth
annotations:
tekton.dev/git-0: http://gitlab.kubemsb.com
type: kubernetes.io/basic-auth
stringData:
username: 'root'
password: 'abc123.net'由于 EventListener 对象需要访问其他资源对象，所以需要声明 RBAC，如下所示：
# vim event-listener-rbac.yaml
# cat event-listener-rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: tekton-triggers-gitlab-sa
secrets:
- name: gitlab-secret
- name: gitlab-auth
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: tekton-triggers-gitlab-minimal
rules:
# EventListeners need to be able to fetch all namespaced resources
- apiGroups: ['triggers.tekton.dev']
resources:
['eventlisteners', 'triggerbindings', 'triggertemplates', 'triggers']
verbs: ['get', 'list', 'watch']
- apiGroups: ['']
# configmaps is needed for updating logging config
resources: ['configmaps']
verbs: ['get', 'list', 'watch']
# Permissions to create resources in associated TriggerTemplates
- apiGroups: ['tekton.dev']
resources: ['pipelineruns', 'pipelineresources', 'taskruns']
verbs: ['create']
- apiGroups: ['']
resources: ['serviceaccounts']
verbs: ['impersonate']
- apiGroups: ['policy']
resources: ['podsecuritypolicies']
resourceNames: ['tekton-triggers']
verbs: ['use']
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: tekton-triggers-gitlab-binding
subjects:
- kind: ServiceAccount
name: tekton-triggers-gitlab-sa
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: tekton-triggers-gitlab-minimal
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: tekton-triggers-gitlab-clusterrole
rules:
# EventListeners need to be able to fetch any clustertriggerbindings
- apiGroups: ['triggers.tekton.dev']
resources: ['clustertriggerbindings', 'clusterinterceptors']
verbs: ['get', 'list', 'watch']
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: tekton-triggers-gitlab-clusterbinding
subjects:
- kind: ServiceAccount
name: tekton-triggers-gitlab-sa
namespace: default
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: tekton-triggers-gitlab-clusterrole5.3 创建TriggerBinding与TriggerTemplate对象
接下来就是最重要的 TriggerBinding 和 TriggerTemplate 对象了，在上面的 EventListener 对象中将两个对象组合在一起，这样就可以将 TriggerBinding 中的参数传递到 TriggerTemplate 对象中进行模板化。
bindings:
- ref: tekton-kubemsb-demo-binding # TriggerBinding 对象
template:
ref: tekton-kubemsb-demo-template # TriggerTemplate 对象5.3.1 定义 TriggerBinding 对象
# vim triggerbinding.yaml
# cat triggerbinding.yaml
apiVersion: triggers.tekton.dev/v1alpha1
kind: TriggerBinding
metadata:
name: tekton-kubemsb-demo-binding
spec:
params:
- name: gitrevision
value: $(body.checkout_sha)
- name: gitrepositoryurl
value: $(body.repository.git_http_url)这里需要注意的是参数的值是通过读取 GitLab WebHook 发送过来的数据值，通过 $() 包裹的 JSONPath 表达式来提取的，关于表达式的更多用法可以查看官方文档说明，至于能够提取哪些参数值，则可以查看 WebHook 的说明，比如这里是 GitLab Webhook 的 Push Hook，对应的请求体数据如下所示：
{
"object_kind": "push",
"before": "95790bf891e76fee5e1747ab589903a6a1f80f22",
"after": "da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
"ref": "refs/heads/master",
"checkout_sha": "da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
"user_id": 4,
"user_name": "John Smith",
"user_username": "jsmith",
"user_email": "john@example.com",
"user_avatar": "https://s.gravatar.com/avatar/d4c74594d841139328695756648b6bd6?s=8://s.gravatar.com/avatar/d4c74594d841139328695756648b6bd6?s=80",
"project_id": 15,
"project":{
"id": 15,
"name":"Diaspora",
"description":"",
"web_url":"http://example.com/mike/diaspora",
"avatar_url":null,
"git_ssh_url":"git@example.com:mike/diaspora.git",
"git_http_url":"http://example.com/mike/diaspora.git",
"namespace":"Mike",
"visibility_level":0,
"path_with_namespace":"mike/diaspora",
"default_branch":"master",
"homepage":"http://example.com/mike/diaspora",
"url":"git@example.com:mike/diaspora.git",
"ssh_url":"git@example.com:mike/diaspora.git",
"http_url":"http://example.com/mike/diaspora.git"
},
"repository":{
"name": "Diaspora",
"url": "git@example.com:mike/diaspora.git",
"description": "",
"homepage": "http://example.com/mike/diaspora",
"git_http_url":"http://example.com/mike/diaspora.git",
"git_ssh_url":"git@example.com:mike/diaspora.git",
"visibility_level":0
},
"commits": [
{
"id": "b6568db1bc1dcd7f8b4d5a946b0b91f9dacd7327",
"message": "Update Catalan translation to e38cb41.\n\nSee https://gitlab.com/gitlab-org/gitlab for more information",
"title": "Update Catalan translation to e38cb41.",
"timestamp": "2011-12-12T14:27:31+02:00",
"url": "http://example.com/mike/diaspora/commit/b6568db1bc1dcd7f8b4d5a946b0b91f9dacd7327",
"author": {
"name": "Jordi Mallach",
"email": "jordi@softcatala.org"
},
"added": ["CHANGELOG"],
"modified": ["app/controller/application.rb"],
"removed": []
},
{
"id": "da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
"message": "fixed readme",
"title": "fixed readme",
"timestamp": "2012-01-03T23:36:29+02:00",
"url": "http://example.com/mike/diaspora/commit/da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
"author": {
"name": "GitLab dev user",
"email": "gitlabdev@dv6700.(none)"
},
"added": ["CHANGELOG"],
"modified": ["app/controller/application.rb"],
"removed": []
}
],
"total_commits_count": 4
}请求体中的任何属性都可以提取出来，作为 TriggerBinding 的参数，如果是其他的 Hook 事件，对应的请求体结构可以查看 GitLab 文档说明。
5.3.2 定义TriggerTemplate对象
定义TriggerBinding对象后就可以在 TriggerTemplate 对象中通过参数来读取上面 TriggerBinding 中定义的参数值了。
定义一个如下所示的 TriggerTemplate 对象，声明一个 TaskRun 的模板，定义的 Task 任务用于在容器中打印出代码的目录结构。
# vim triggertemplate.yaml
# cat triggertemplate.yaml
apiVersion: triggers.tekton.dev/v1alpha1
kind: TriggerTemplate
metadata:
name: tekton-kubemsb-demo-template
spec:
params: # 定义参数，和 TriggerBinding 中的保持一致
- name: gitrevision
- name: gitrepositoryurl
resourcetemplates: # 定义资源模板
- apiVersion: tekton.dev/v1beta1
kind: TaskRun # 定义 TaskRun 模板
metadata:
generateName: gitlab-run- # TaskRun 名称前缀
spec:
serviceAccountName: tekton-triggers-gitlab-sa
taskSpec: # Task 任务声明
resources:
inputs: # 定义一个名为 source 的 git 输入资源
- name: source
type: git
steps:
- name: show-path
image: ubuntu # 定义一个执行步骤，列出代码目录结构
script: |
#! /bin/bash
ls -la $(resources.inputs.source.path)
resources: # 声明具体的输入资源参数
inputs:
- name: source # 和 Task 中的资源名保持一直
resourceSpec: # 资源声明
type: git
params:
- name: revision
value: $(tt.params.gitrevision) # 读取参数值
- name: url
value: $(tt.params.gitrepositoryurl)需要注意在最后的 pipelineresource 中引用参数值的时候使用了一个
tt的前缀。
5.3.3 应用资源清单文件
定义完过后，直接创建上面的资源对象，创建完成后会自动生成 EventListener 的 Pod 和 Service 对象。
# kubectl apply -f gitlab-push-listener.yaml
eventlistener.triggers.tekton.dev/gitlab-listener created
# kubectl apply -f triggerbinding.yaml
triggerbinding.triggers.tekton.dev/devops-demo-binding created
# kubectl apply -f triggertemplate.yaml
triggertemplate.triggers.tekton.dev/devops-demo-template created
# kubectl apply -f event-listener-rbac.yaml
serviceaccount/tekton-triggers-gitlab-sa created
role.rbac.authorization.k8s.io/tekton-triggers-gitlab-minimal created
rolebinding.rbac.authorization.k8s.io/tekton-triggers-gitlab-binding created
clusterrole.rbac.authorization.k8s.io/tekton-triggers-gitlab-clusterrole created
clusterrolebinding.rbac.authorization.k8s.io/tekton-triggers-gitlab-clusterbinding created5.3.4 查看事件监听器资源
查看事件监听器svc
# kubectl get svc -l eventlistener=gitlab-listener
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
el-gitlab-listener ClusterIP 10.104.23.173 <none> 8080/TCP,9000/TCP 2m4s查看事件监听器pod
# kubectl get pod -l eventlistener=gitlab-listener
NAME READY STATUS RESTARTS AGE
el-gitlab-listener-684f7d8bd5-s5hjd 1/1 Running 0 70s查看事件监听器对象
# kubectl get eventlistener
NAME ADDRESS AVAILABLE REASON READY REASON
gitlab-listener http://el-gitlab-listener.default.svc.cluster.local:8080 True MinimumReplicasAvailable True查看事件监听器endpoints
# kubectl get endpoints
NAME ENDPOINTS AGE
el-gitlab-listener 10.244.79.72:8080,10.244.79.72:9000 68m六、Ingress资源准备
el需要在k8s集群之外访问，以上无法被K8S集群外主机访问，可以通过如下方法实现：部署ingress nginx
应用ingress controller部署资源清单文件
# kubectl apply -f https://raw.fastgit.org/kubernetes/ingress-nginx/main/deploy/static/provider/baremetal/deploy.yaml查看ingress部署
# kubectl get pods -n ingress-nginx
NAME READY STATUS RESTARTS AGE
ingress-nginx-admission-create-bb29k 0/1 Completed 0 65s
ingress-nginx-admission-patch-kmxbw 0/1 Completed 1 65s
ingress-nginx-controller-5fd866c9b6-cw527 1/1 Running 0 65s编辑svc修改type为LoadBalancer
# kubectl edit service ingress-nginx-controller -n ingress-nginx
service/ingress-nginx-controller edited把type:NodePort 修改为type：LoadBalancer
sessionAffinity: None
type: LoadBalancer查看其获取的IP地址
# kubectl get svc -n ingress-nginx -o wide
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
ingress-nginx-controller LoadBalancer 10.97.17.70 192.168.10.203 80:30024/TCP,443:30367/TCP 2m46s app.kubernetes.io/component=controller,app.kubernetes.io/instance=ingress-nginx,app.kubernetes.io/name=ingress-nginx创建ingress对象，便于在k8s集群之外访问到EventListener
# vim ingress.yaml
# cat ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress
namespace: default
annotations:
kubernetes.io/ingress.class: nginx
spec:
rules:
- host: el.kubemsb.com
http:
paths:
- pathType: Prefix
path: "/"
backend:
service:
name: el-gitlab-listener
port:
number: 8080应用资源清单文件
# kubectl apply -f ingress.yaml
ingress.networking.k8s.io/ingress created修改dnsserver服务器中配置，添加EventListener域名解析，并重启named服务。
# cat /var/named/kubemsb.com.zone
$TTL 1D
@ IN SOA @ admin.kubemsb.com. (
0 ; serial
1D ; refresh
1H ; retry
1W ; expire
3H ) ; minimum
NS @
@ A 192.168.10.253
master01 A 192.168.10.10
worker01 A 192.168.10.20
worker02 A 192.168.10.21
yaml A 192.168.10.252
harbor A 192.168.10.251
www A 192.168.10.251
gitlab A 192.168.10.250
nfsserver A 192.168.10.249
el A 192.168.10.203 添加此内容
*.knative A 192.168.10.200在k8s集群内访问验证域名是否可用
# dig -t a el.kubemsb.com @10.96.0.10
; <<>> DiG 9.11.4-P2-RedHat-9.11.4-26.P2.el7_9.8 <<>> -t a el.kubemsb.com @10.96.0.10
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 48039
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 1, ADDITIONAL: 2
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;el.kubemsb.com. IN A
;; ANSWER SECTION:
el.kubemsb.com. 30 IN A 192.168.10.203
;; AUTHORITY SECTION:
kubemsb.com. 30 IN NS kubemsb.com.
;; ADDITIONAL SECTION:
kubemsb.com. 30 IN A 192.168.10.253
;; Query time: 1 msec
;; SERVER: 10.96.0.10#53(10.96.0.10)
;; WHEN: 三 1月 05 13:32:00 CST 2022
;; MSG SIZE rcvd: 136查看ingress对象描述，以便了解配置是否成功
# kubectl describe ingress
Name: ingress
Namespace: default
Address: 192.168.10.21
Default backend: default-http-backend:80 (<error: endpoints "default-http-backend" not found>)
Rules:
Host Path Backends
---- ---- --------
el.kubemsb.com
/ el-gitlab-listener:8080 (10.244.79.72:8080)
Annotations: kubernetes.io/ingress.class: nginx
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Sync 18m (x2 over 19m) nginx-ingress-controller Scheduled for sync七、GitLab WebHook配置
接下来我们就可以到 GitLab 的项目中配置 WebHook，注意需要配置 Secret Token，我们在上面的 Secret 对象中声明过。

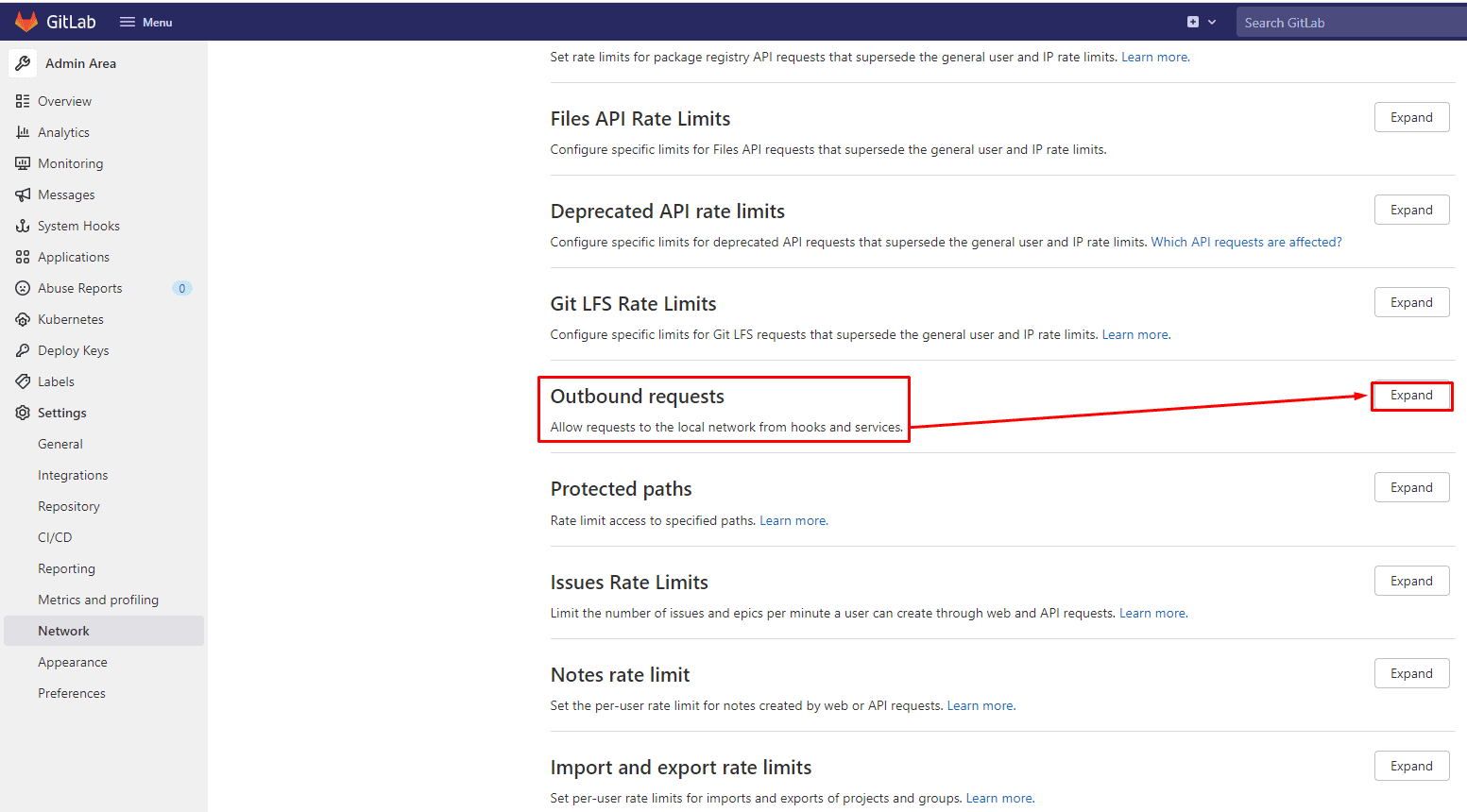

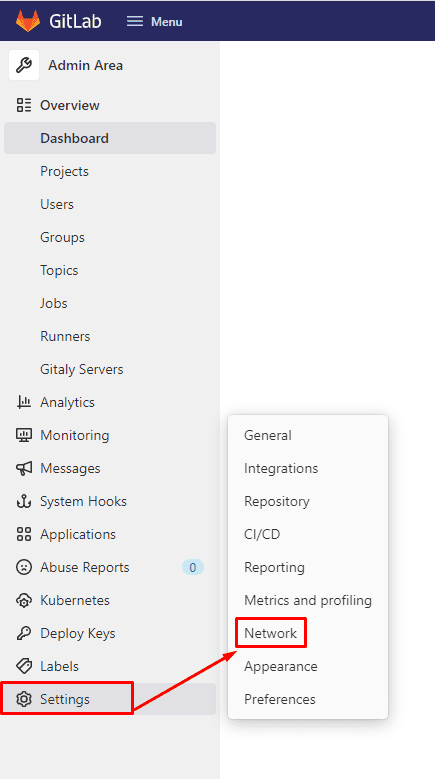

7.1 GitLab网络权限设置

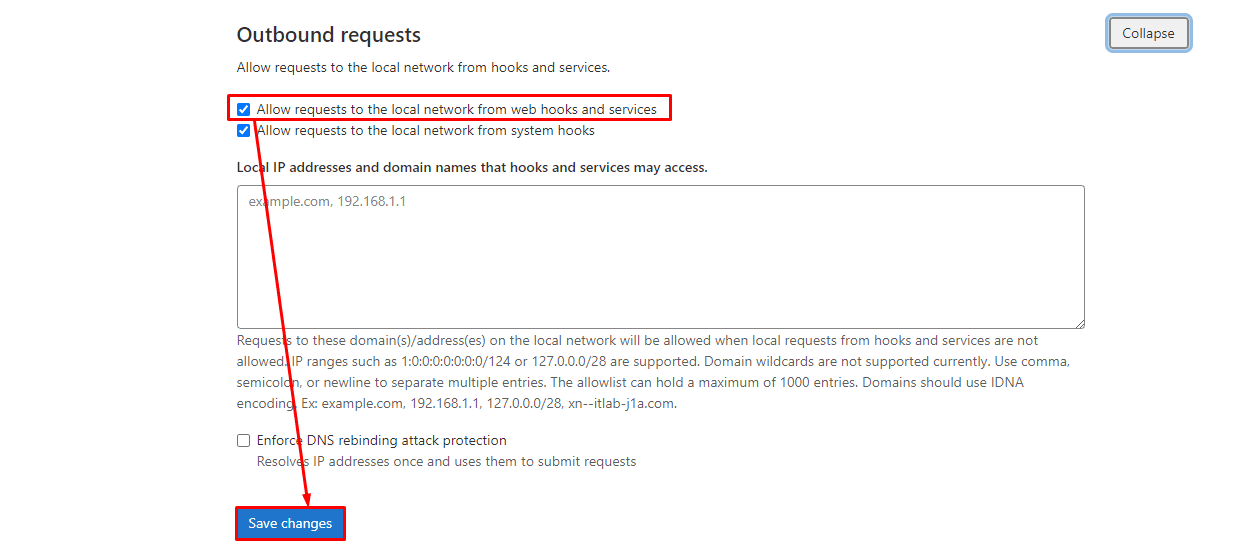

允许GitLab通过本地网络接收WebHook请求。

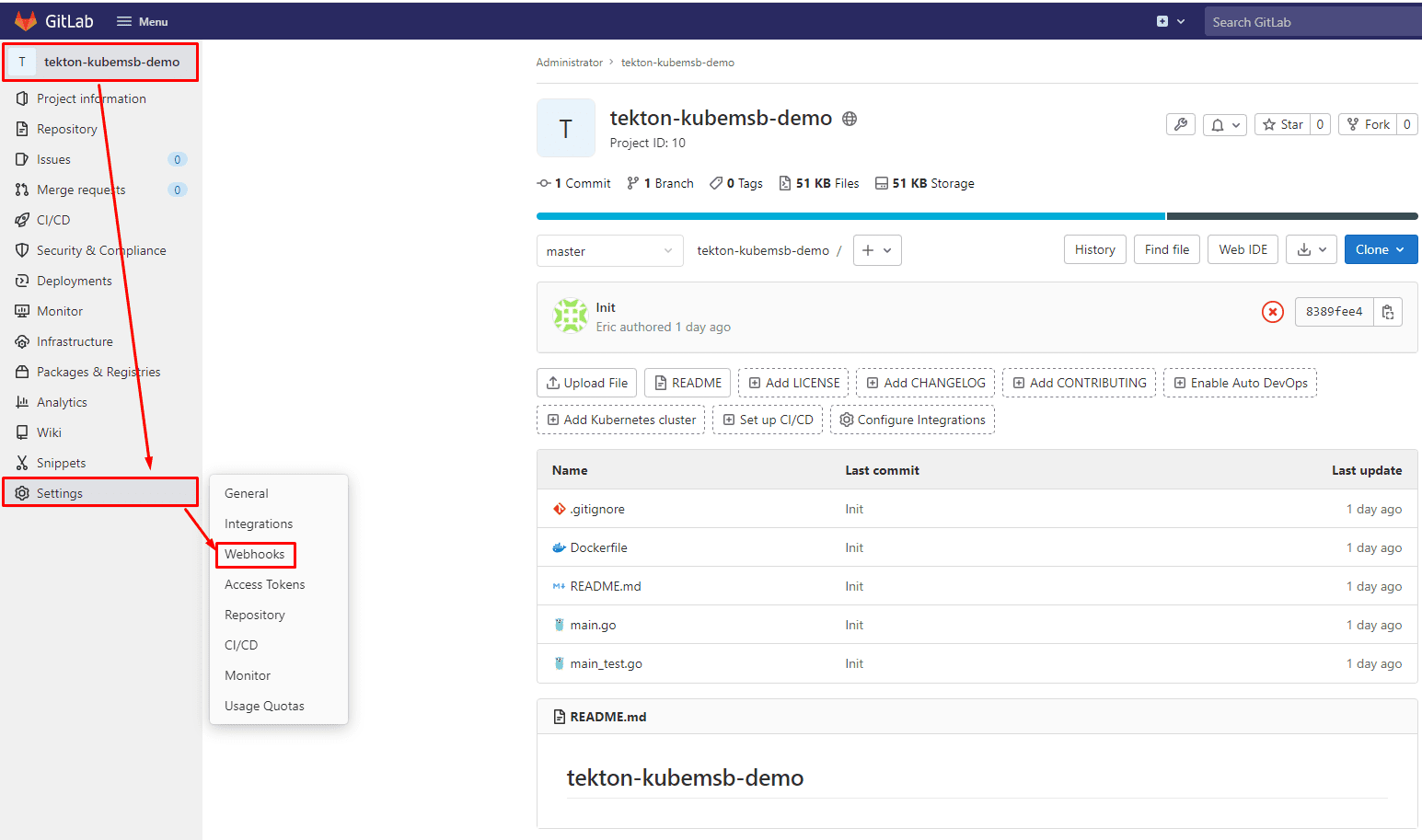

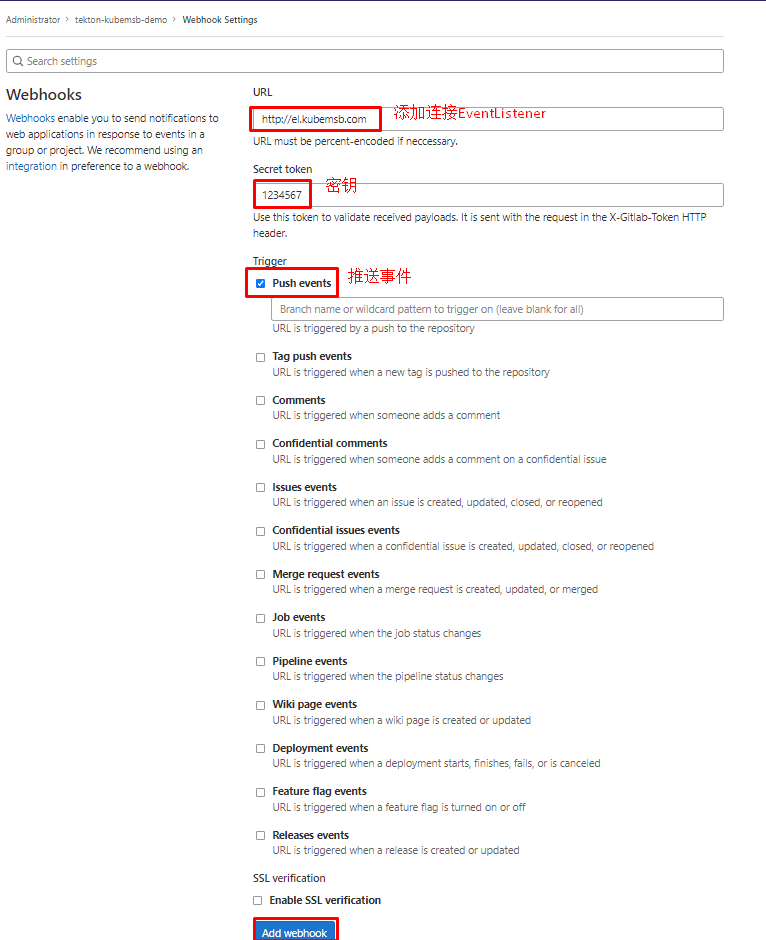

7.2 为GitLab仓库添加WebHook功能

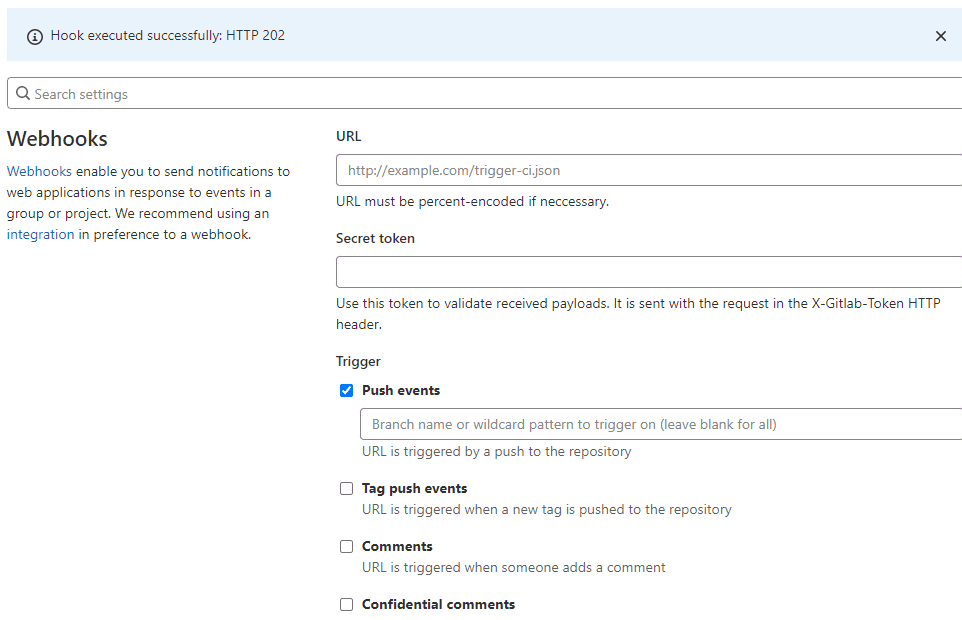

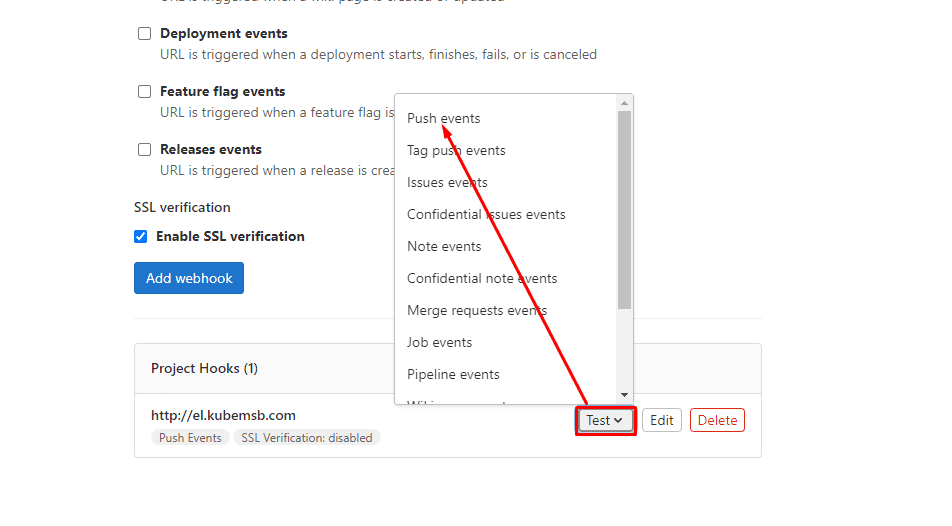

创建完成后，我们可以测试下该 WebHook 的 Push events 事件，直接点击测试即可，正常会返回 Hook executed successfully: HTTP 202 的提示信息。
八、提交本地代码至远程仓库后观察
8.1 修改本地代码并提交
[root@gitlab tekton-kubemsb-demo]# ls
Dockerfile main.go main_test.go README.md
[root@gitlab tekton-kubemsb-demo]# vim main.go
[root@gitlab tekton-kubemsb-demo]# cat main.go
package main
import "fmt"
func sum(a, b int) int {
return a + b
}
func main() {
fmt.Println("Hello KubeMSB Sum: ", sum(1, 2))
}
在 fmt.Println("Sum: ", sum(1, 2))中添加 Hello KubeMSB[root@gitlab tekton-kubemsb-demo]# git add .
[root@gitlab tekton-kubemsb-demo]# git commit -m "add hello kubemsb"
[root@gitlab tekton-kubemsb-demo]# git push -u origin master8.2 查看k8s集群中资源创建情况
查看taskrun对应的pod
# kubectl get pods -l triggers.tekton.dev/eventlistener=gitlab-listener
NAME READY STATUS RESTARTS AGE
gitlab-run-8mb96-pod 0/2 Completed 0 62s查看是否生成taskrun
# kubectl get taskrun -l triggers.tekton.dev/eventlistener=gitlab-listener
NAME SUCCEEDED REASON STARTTIME COMPLETIONTIME

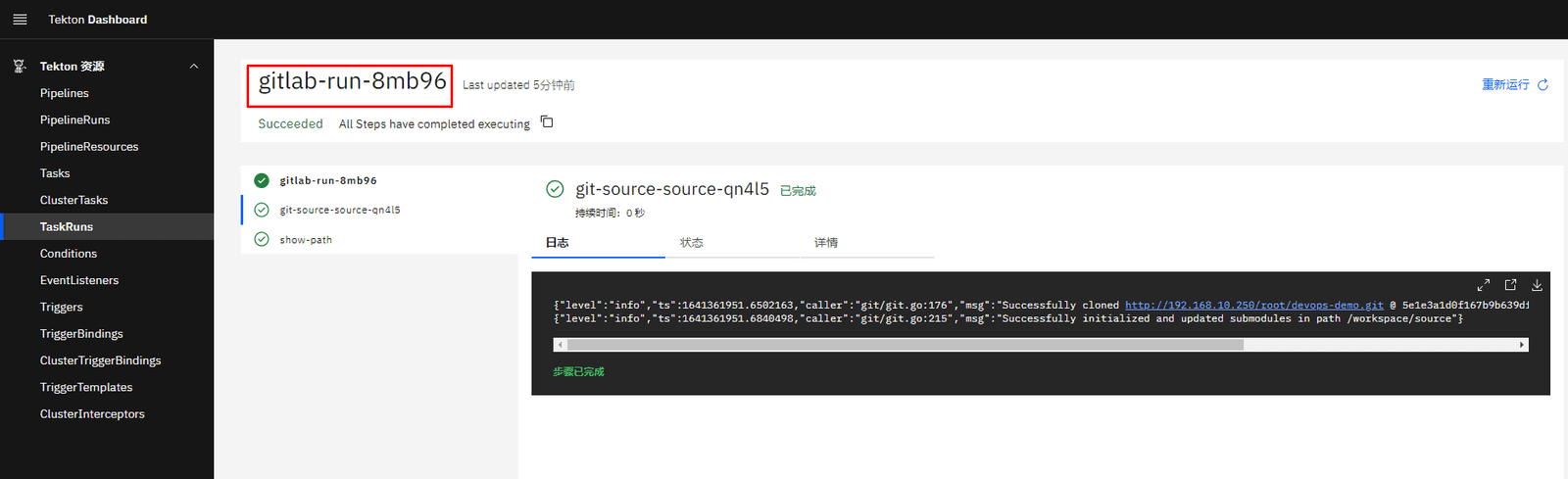

gitlab-run-8mb96 True Succeeded 103s 90s查看taskrun日志
# tkn taskrun logs gitlab-run-8mb96
[git-source-source-qn4l5] {"level":"info","ts":1641361951.6502163,"caller":"git/git.go:176","msg":"Successfully cloned http://192.168.10.250/root/tekton-kubemsb-demo.git @ 5e1e3a1d0f167b9b639df5b802a0f0f81064d21e (grafted, HEAD) in path /workspace/source"}
[git-source-source-qn4l5] {"level":"info","ts":1641361951.6840498,"caller":"git/git.go:215","msg":"Successfully initialized and updated submodules in path /workspace/source"}
[show-path] total 24
[show-path] drwxr-xr-x 5 root root 138 Jan 5 05:52 .
[show-path] drwxrwxrwx 3 root root 20 Jan 5 05:52 ..
[show-path] drwxr-xr-x 8 root root 177 Jan 5 05:52 .git
[show-path] -rw-r--r-- 1 root root 283 Jan 5 05:52 .gitignore
[show-path] -rw-r--r-- 1 root root 115 Jan 5 05:52 Dockerfile
[show-path] -rw-r--r-- 1 root root 378 Jan 5 05:52 README.md
[show-path] drwxr-xr-x 2 root root 48 Jan 5 05:52 install
[show-path] -rw-r--r-- 1 root root 119 Jan 5 05:52 main.go
[show-path] -rw-r--r-- 1 root root 169 Jan 5 05:52 main_test.go
[show-path] drwxr-xr-x 2 root root 4096 Jan 5 05:52 manifests到这里我们就完成了通过 GitLab 的 Push 事件来触发 Tekton 的一个任务。
