k8s集群中部署项目之流水线

Corey2026/8/13大约 21 分钟云原生微服务实战云原生课程笔记

微服务实战 · 第 9 篇

来源课程笔记整理优化；插图已迁入博客静态目录。

微服务项目部署之流水线编写

一、部署微服务项目环境说明

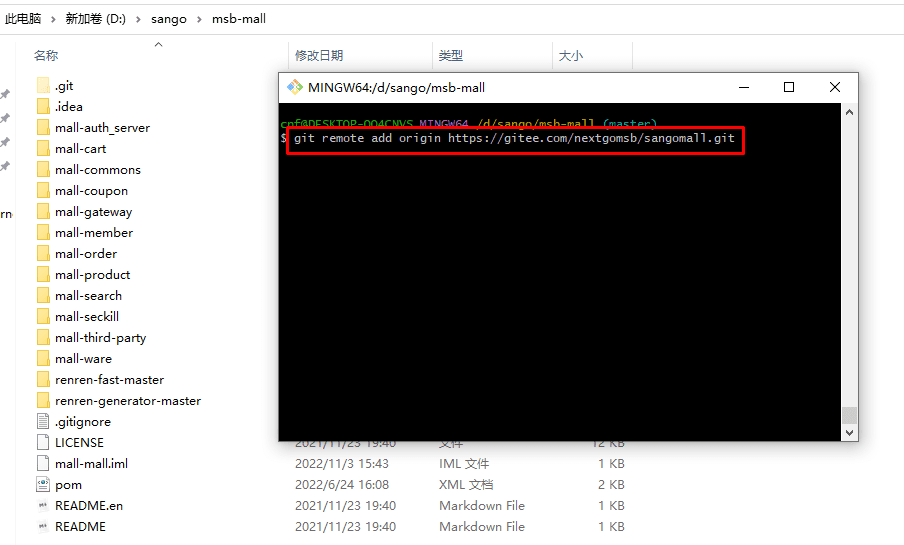

1.1 代码托管到gitee

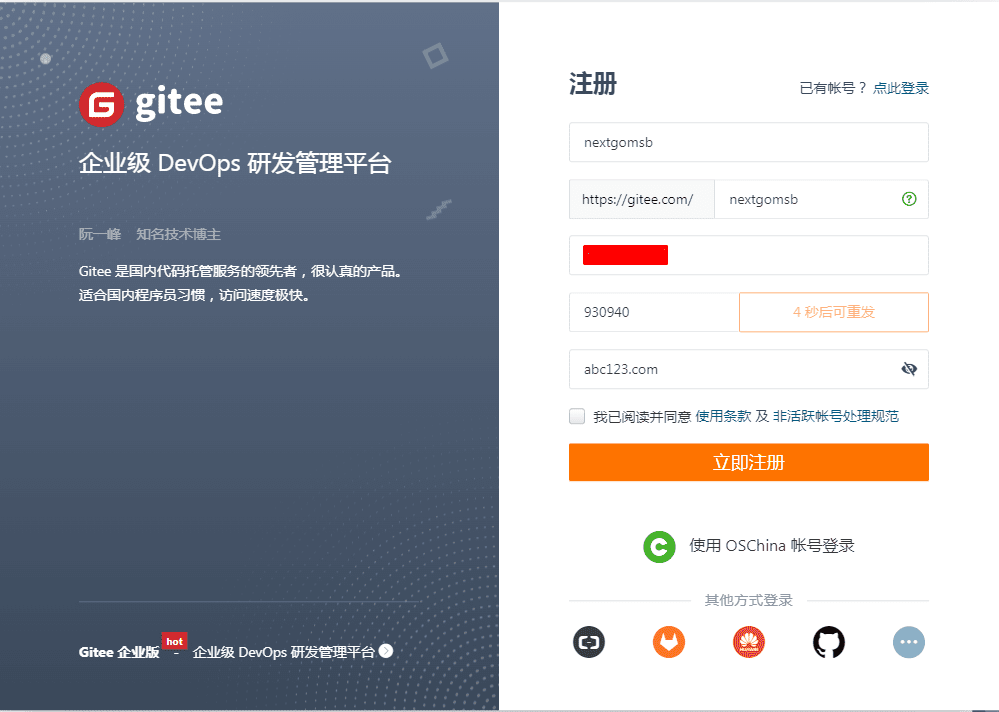

image-20221127154849203

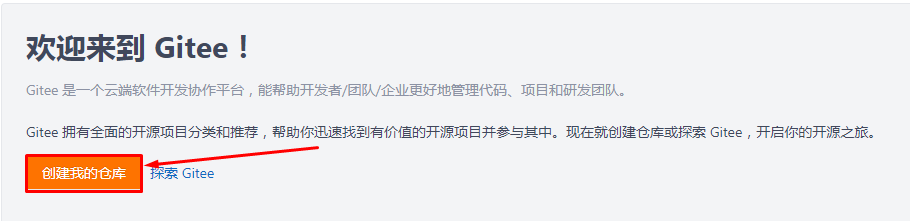

image-20221127154936408

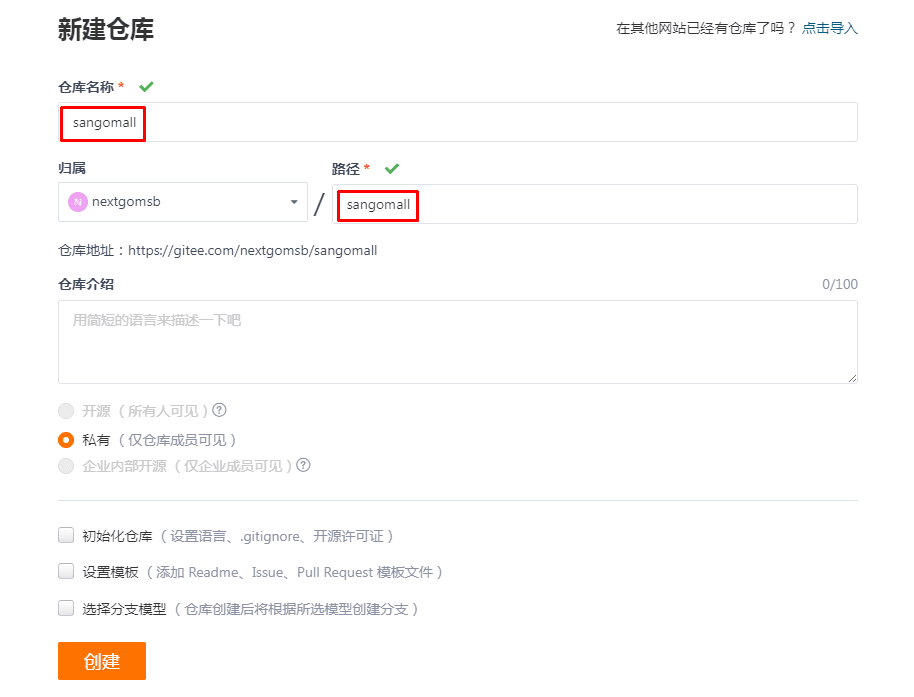

image-20221127155046469

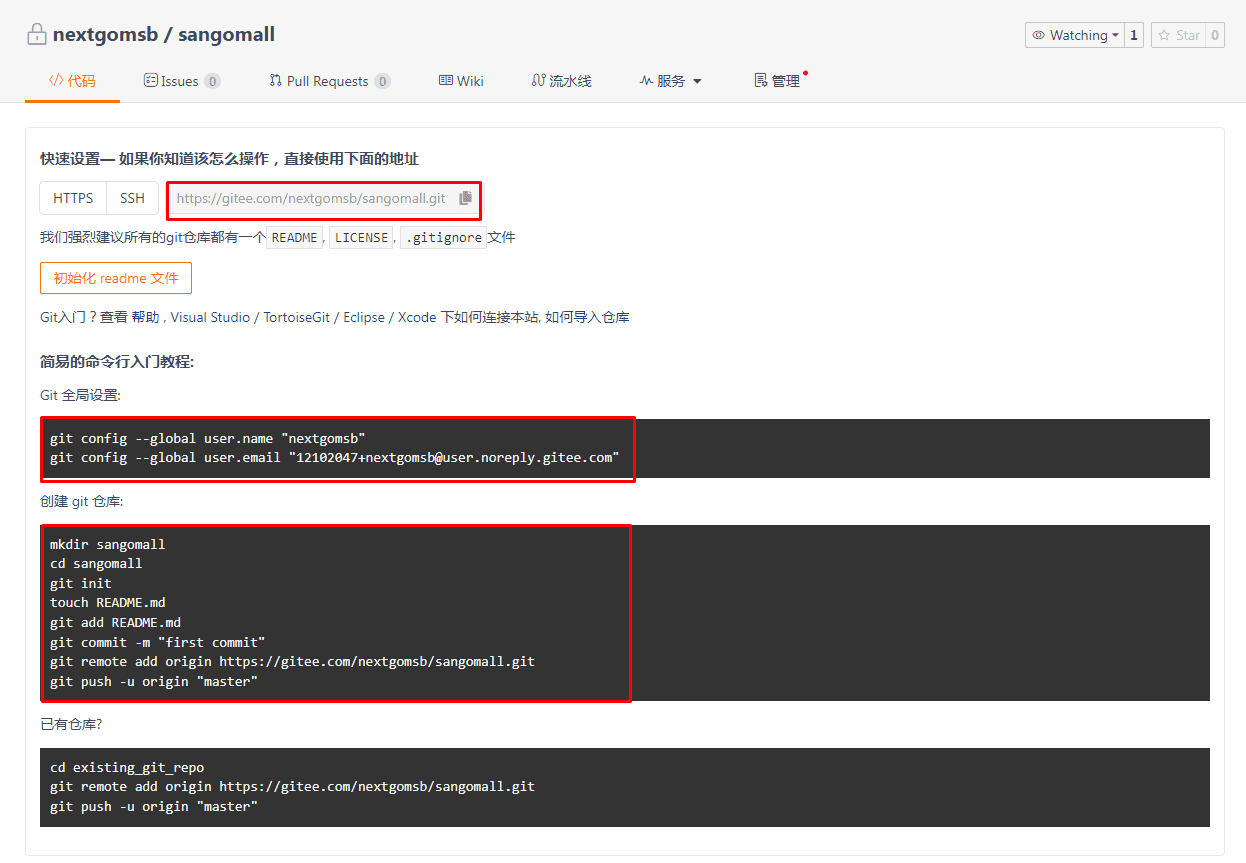

image-20221127155230878

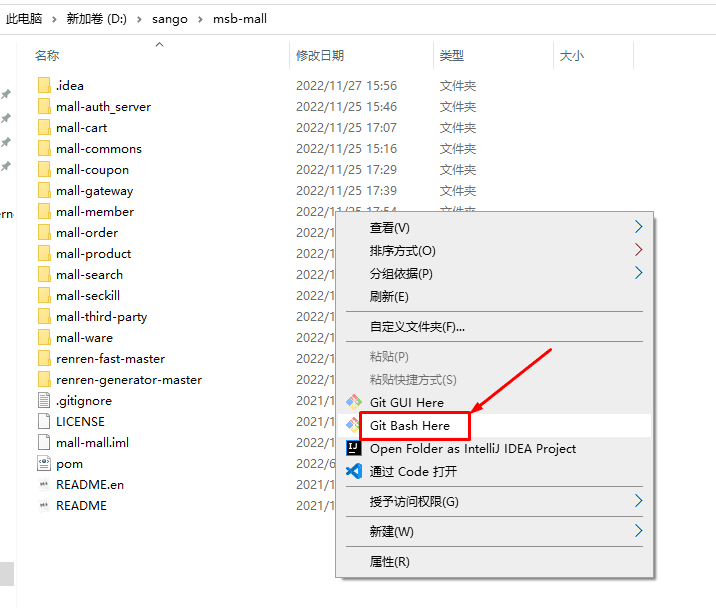

image-20221127160027561

image-20221127160344499

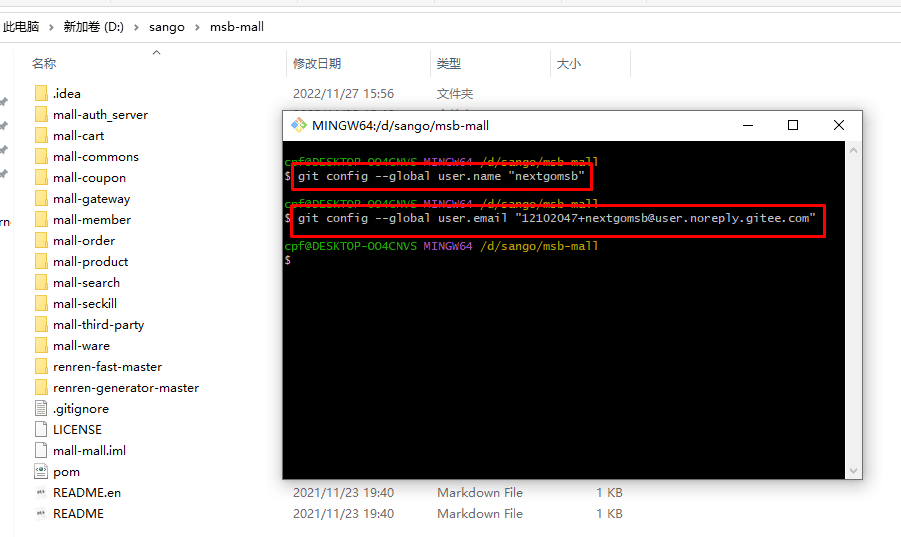

image-20221127160245815

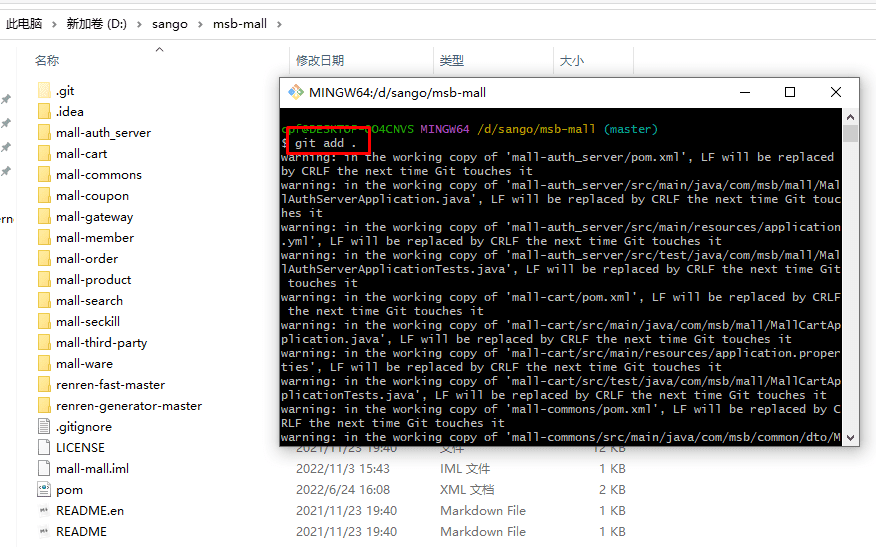

image-20221127160733328

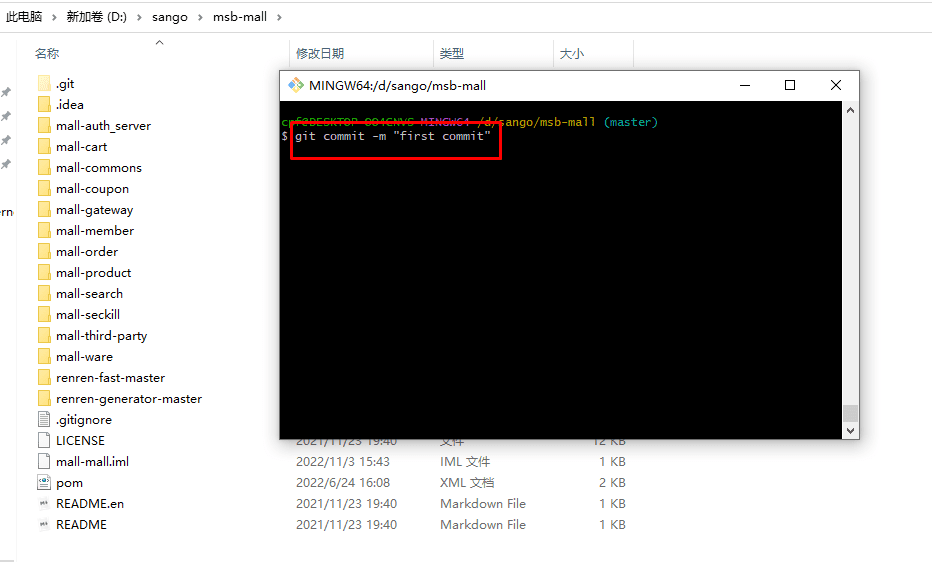

image-20221127160827890

image-20221127160931742

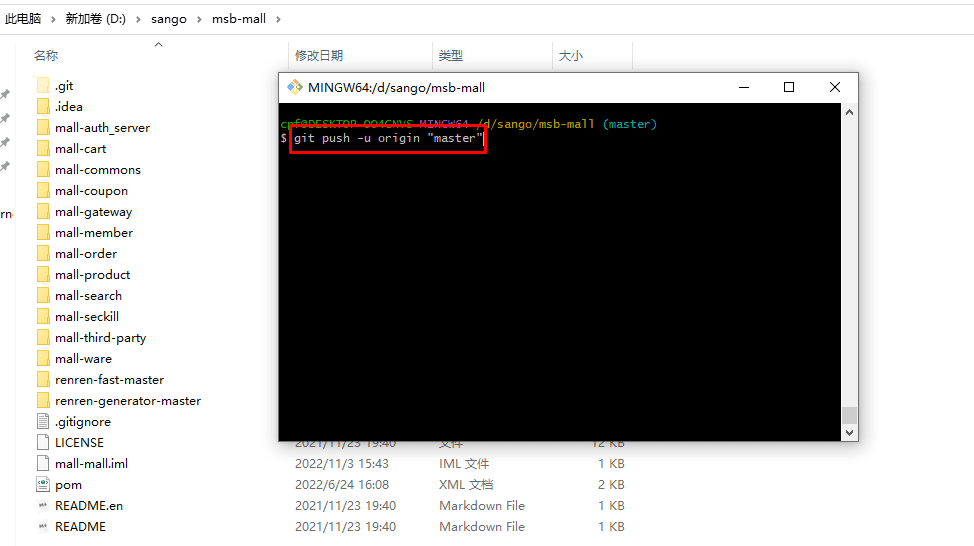

image-20221127161017688

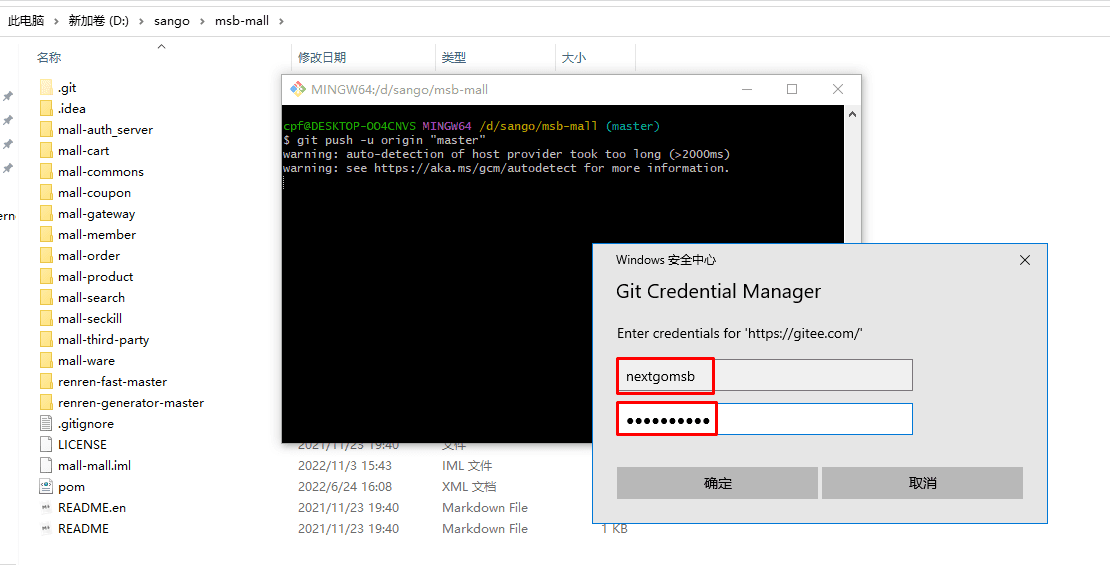

image-20221127161139612

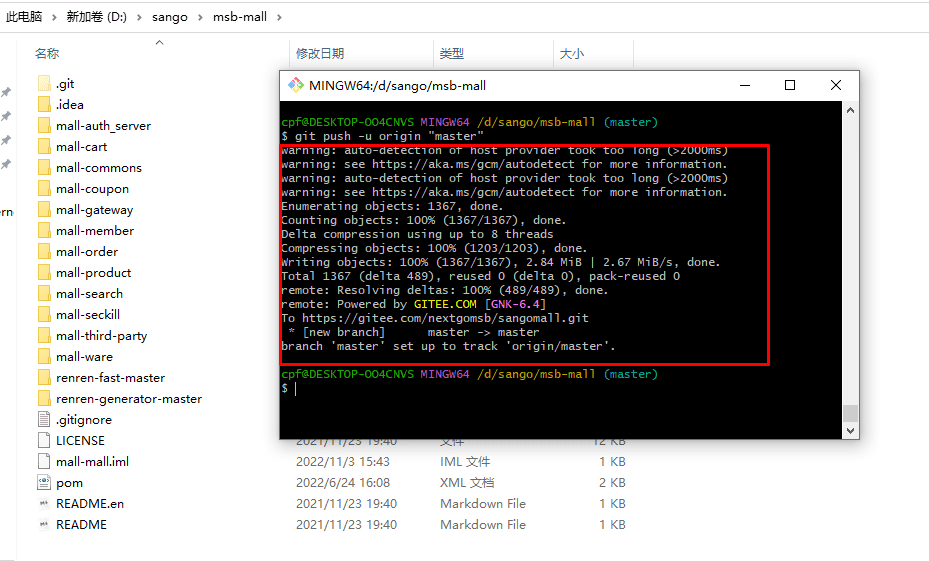

image-20221127161228386

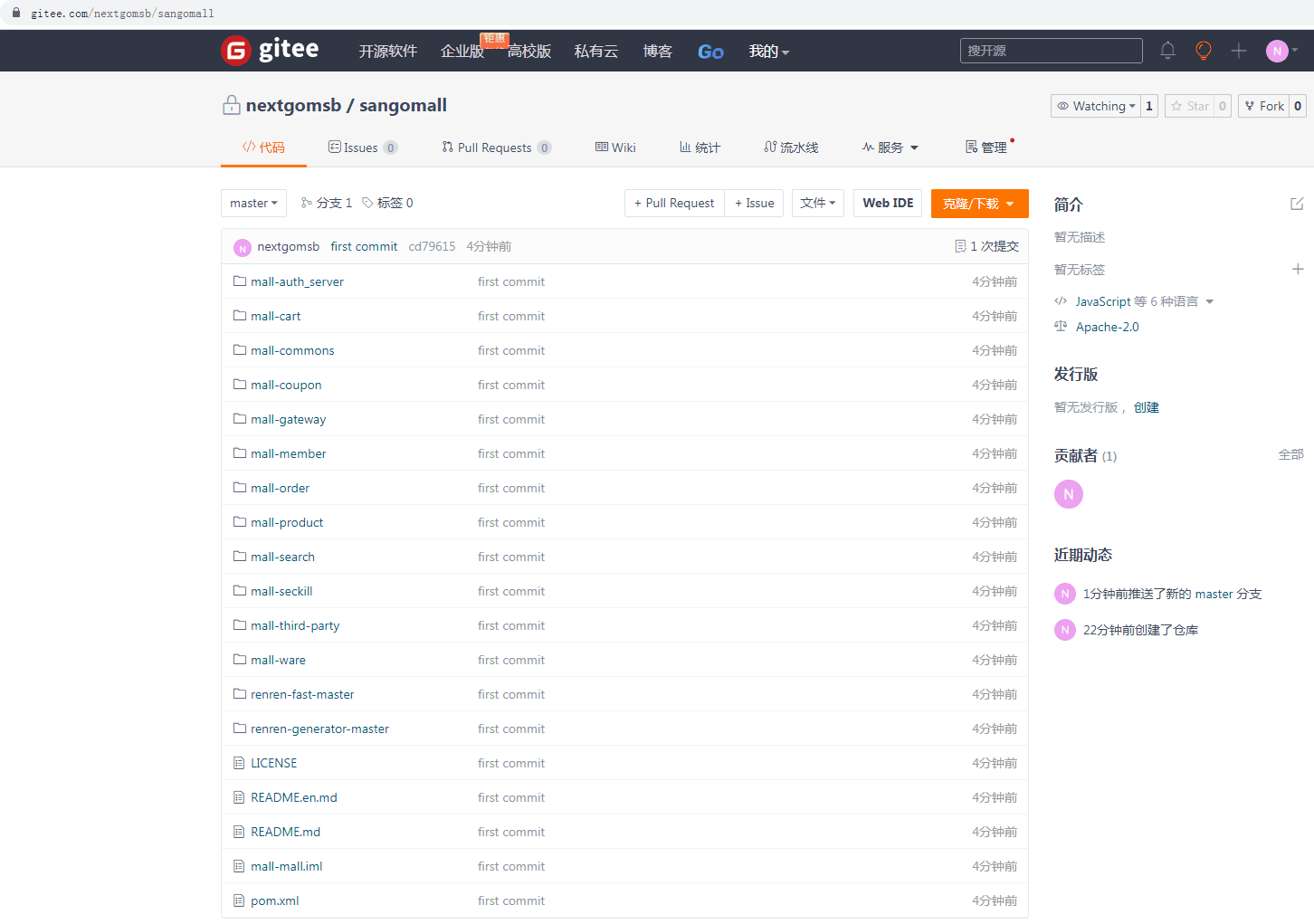

image-20221127161307681

1.2 镜像托管到dockerhub

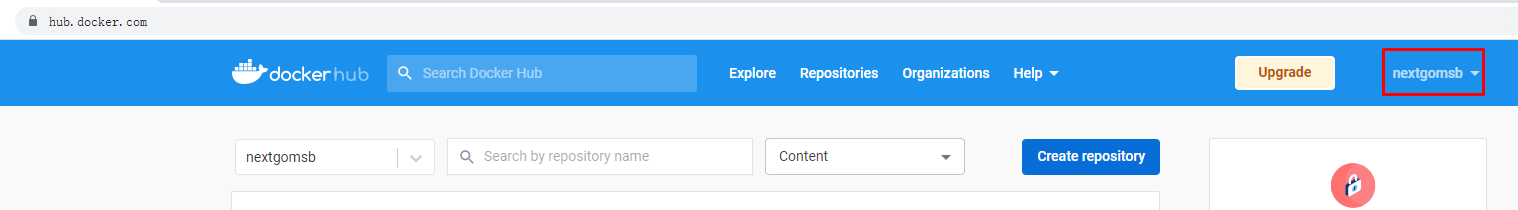

image-20221127162752936

用户名：nextgomsb
密码：abc***.com

1.3 流水线工具 KubeSphere

image-20221127162951561

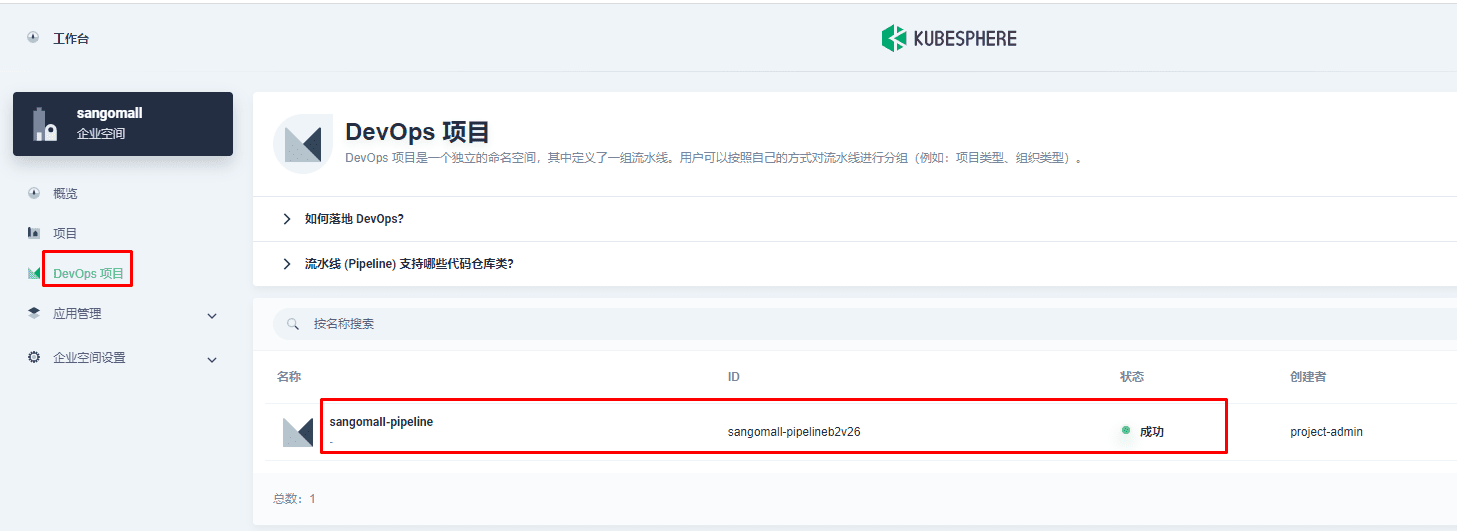

image-20221127163041224

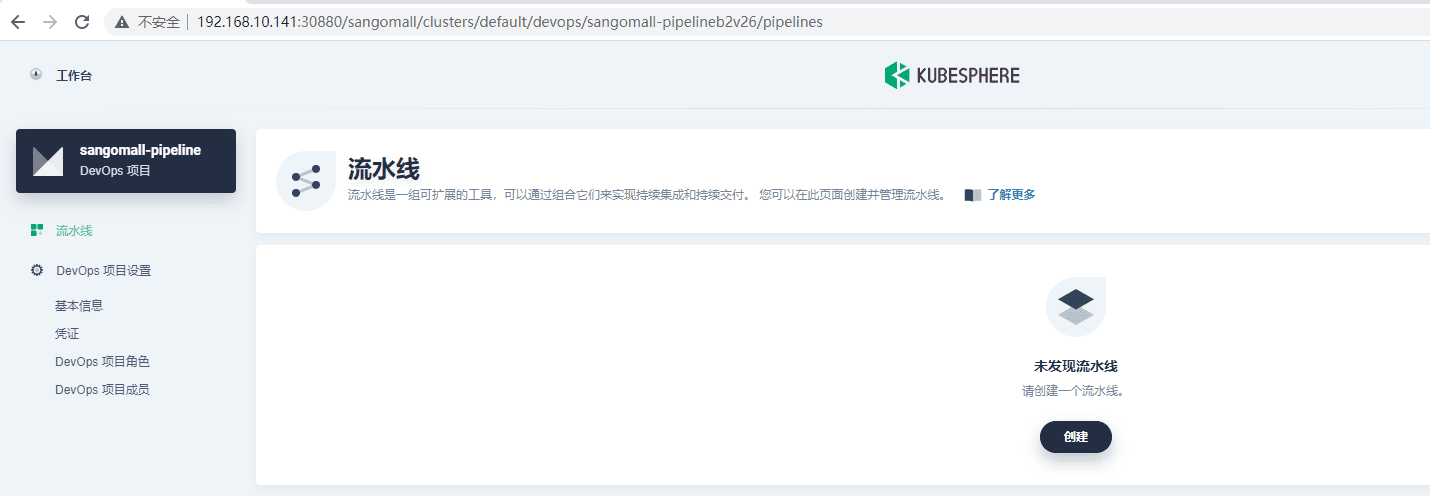

image-20221127163101453

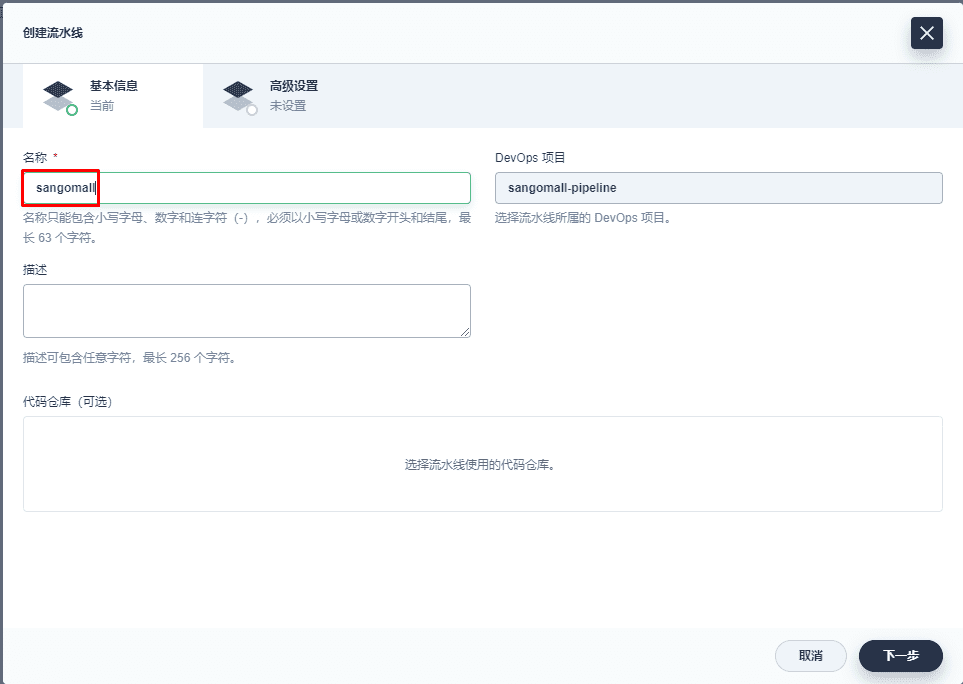

image-20221127163136315

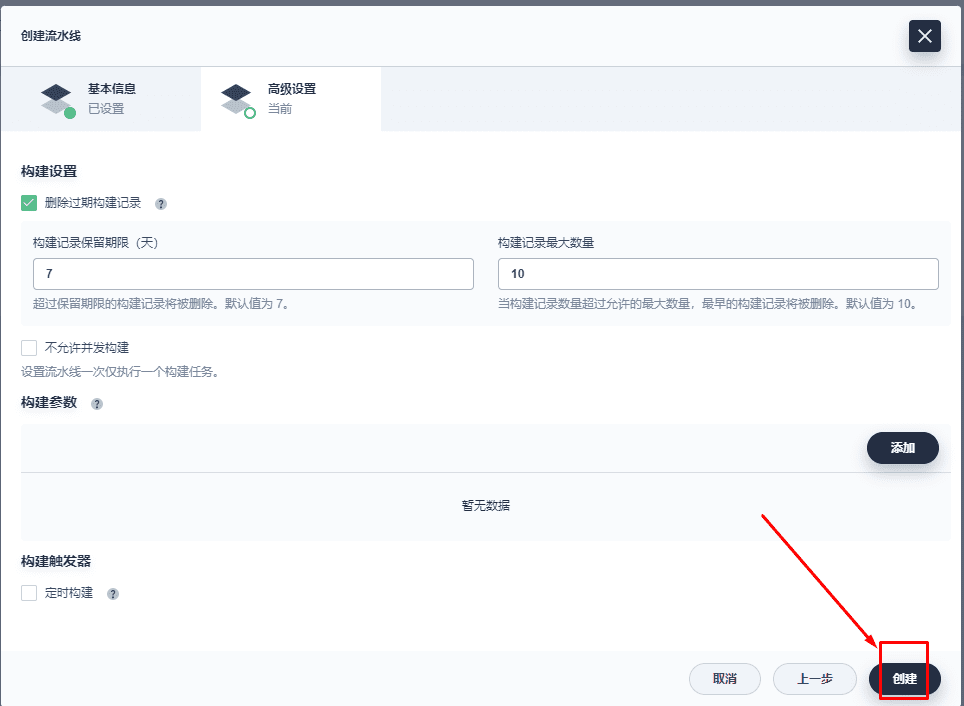

image-20221127163202665

image-20221127163226325

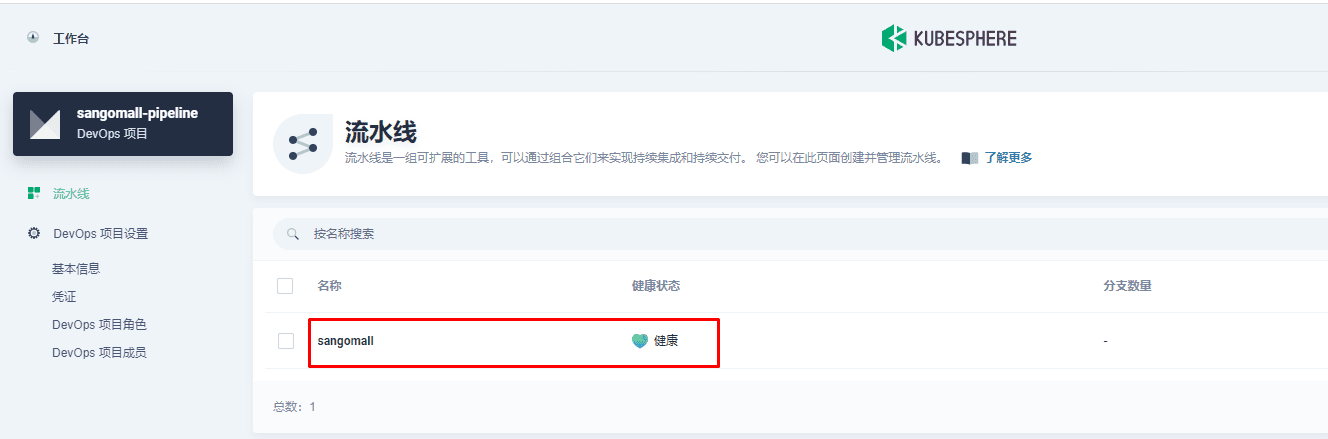

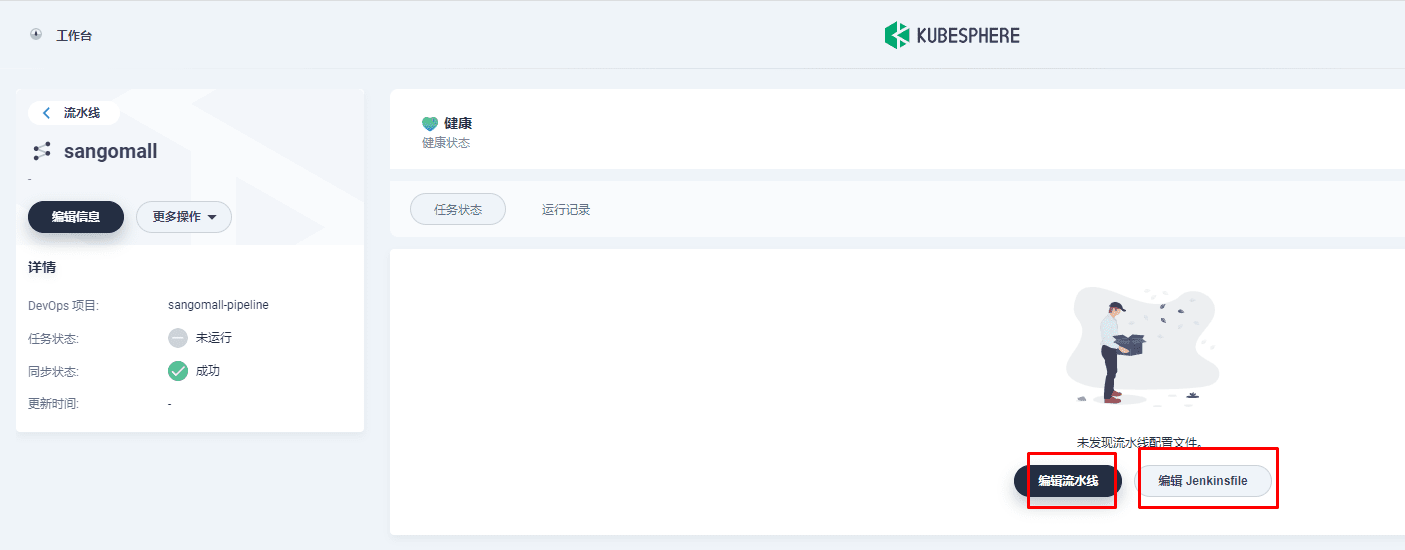

image-20221127163303392

二、通过KubeSphere部署之拉取代码流水线编写

2.1 准备凭证

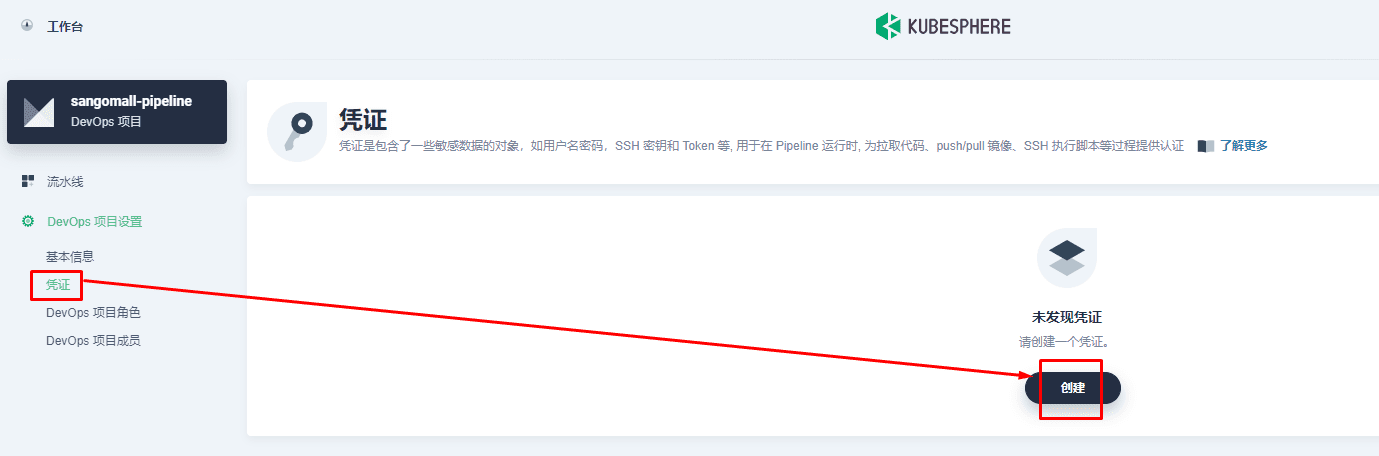

image-20221127163921095

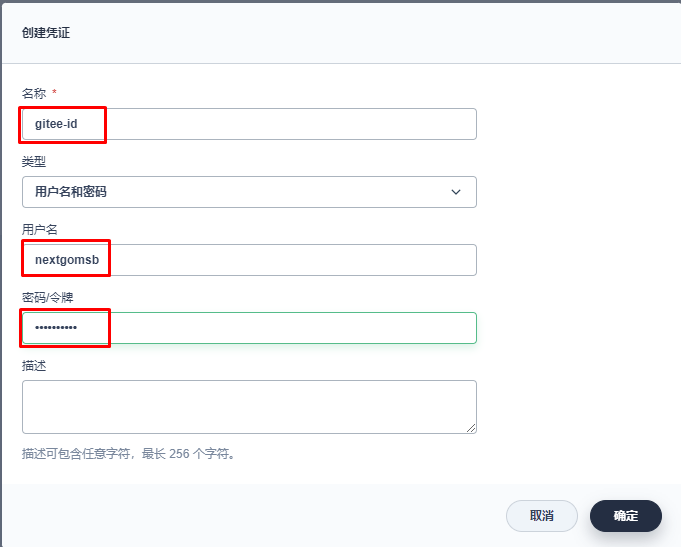

image-20221127164411541

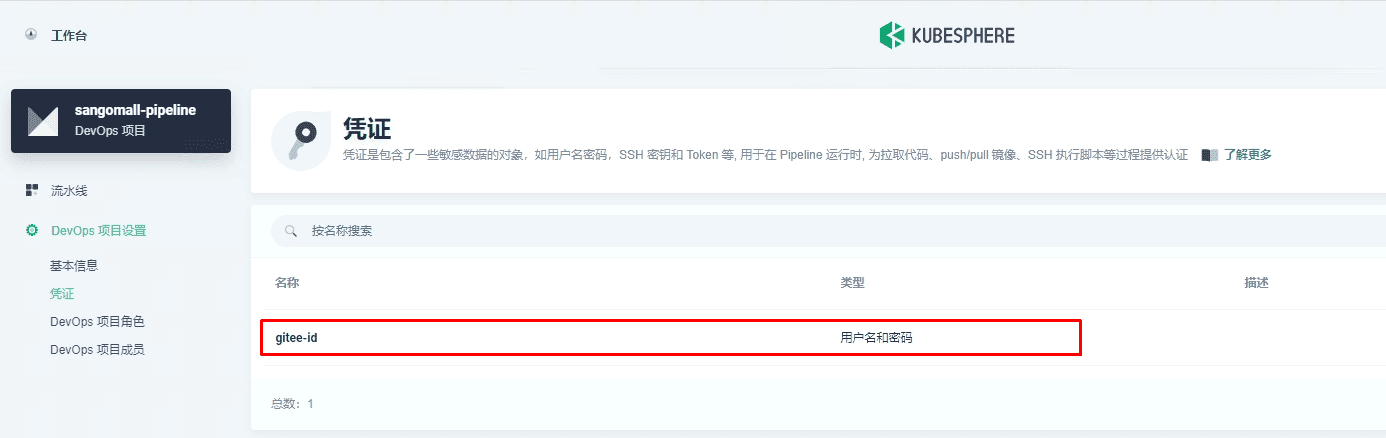

image-20221127170856292

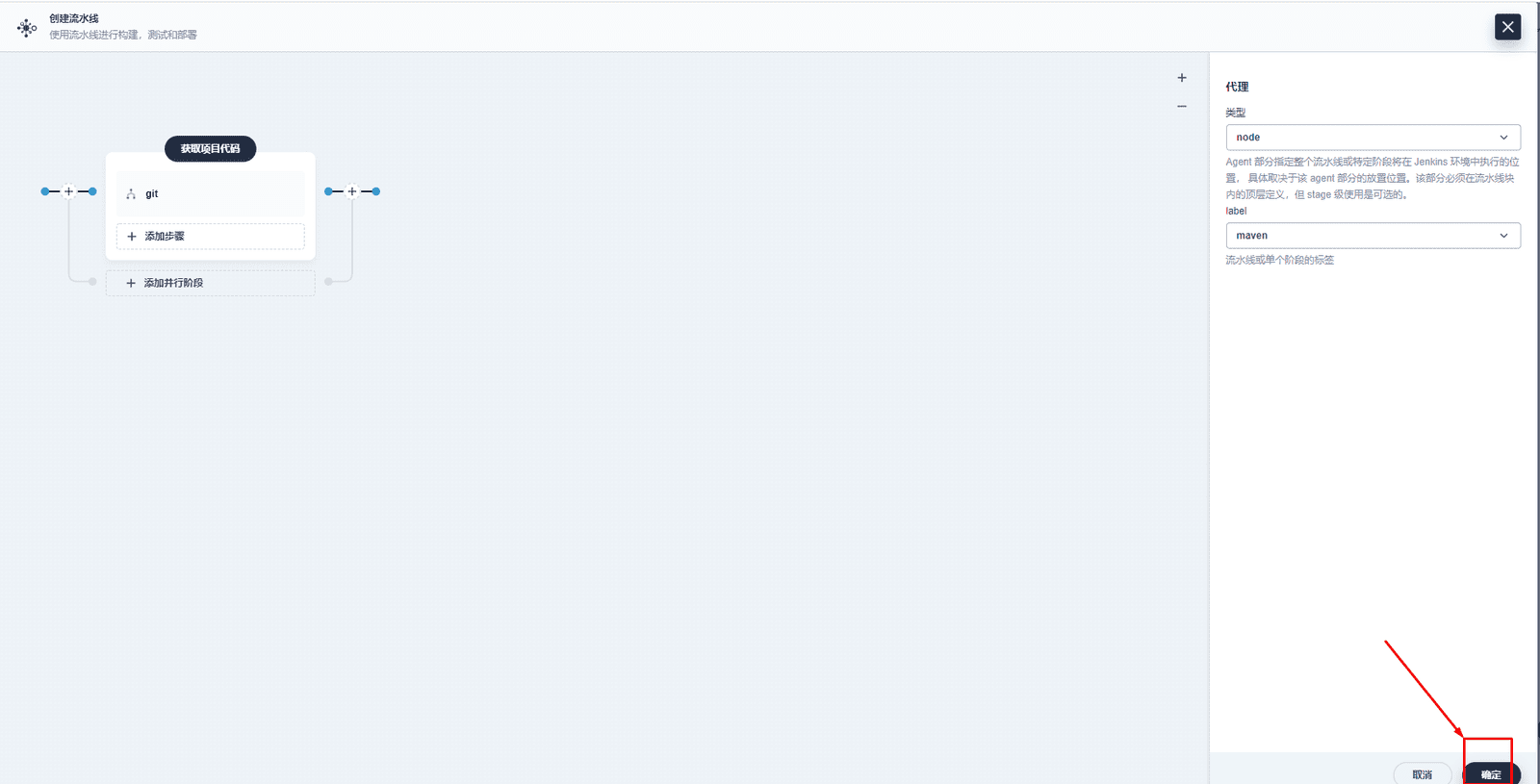

2.2 编辑流水线

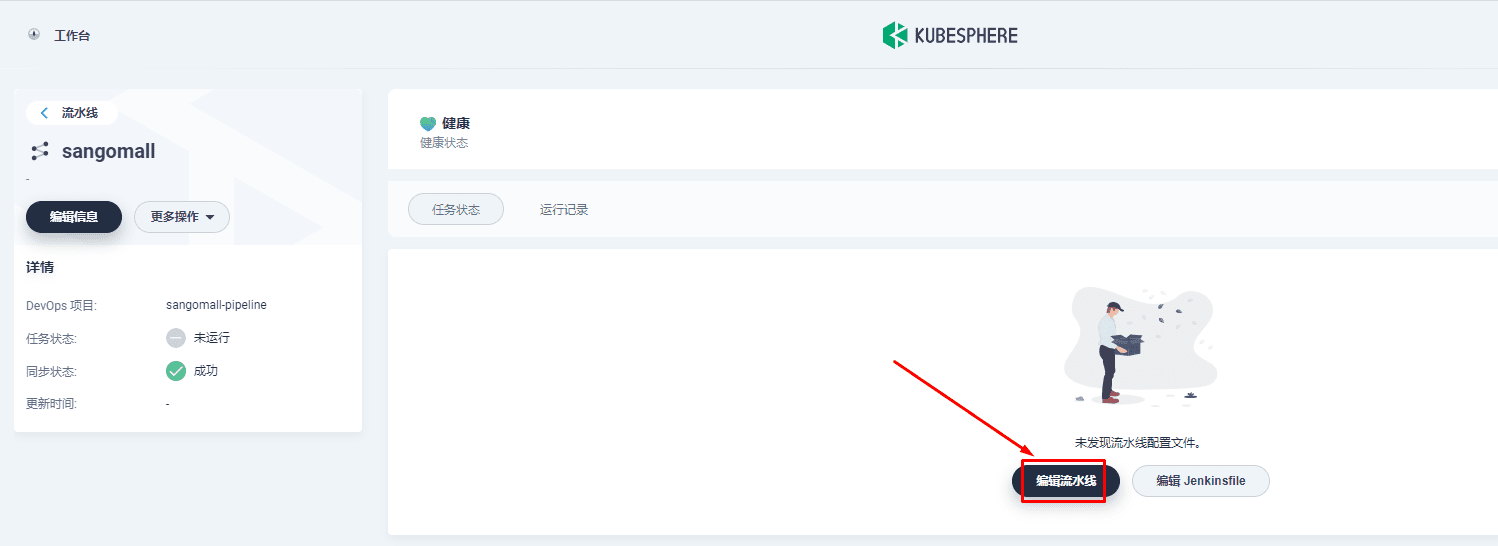

image-20221127205519288

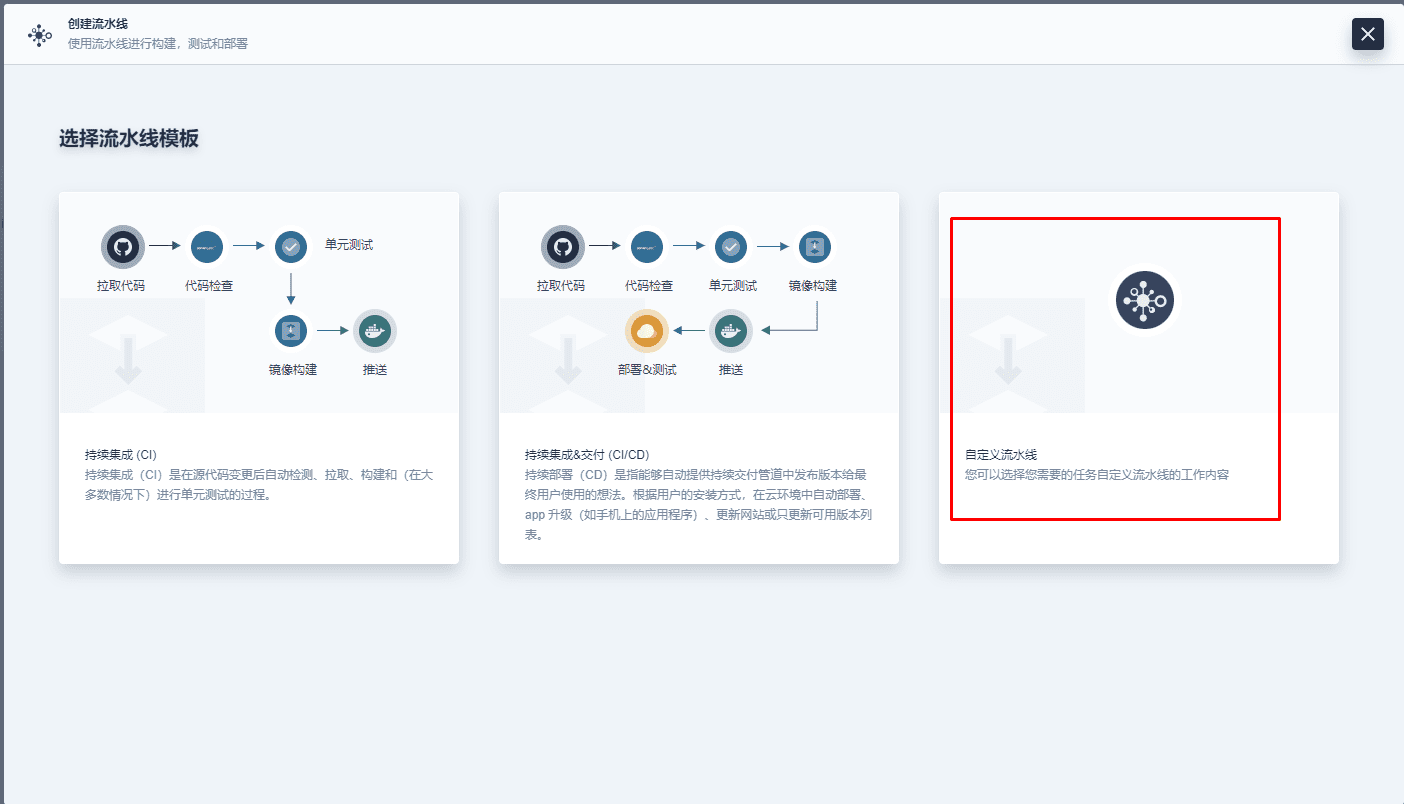

image-20221127205537019

image-20221127205600230

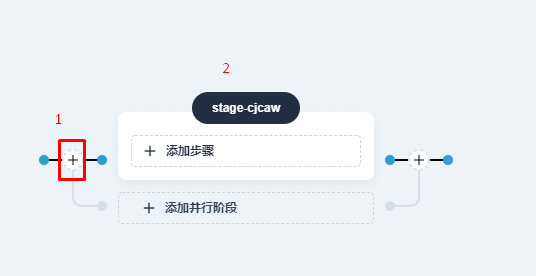

image-20221127205649139

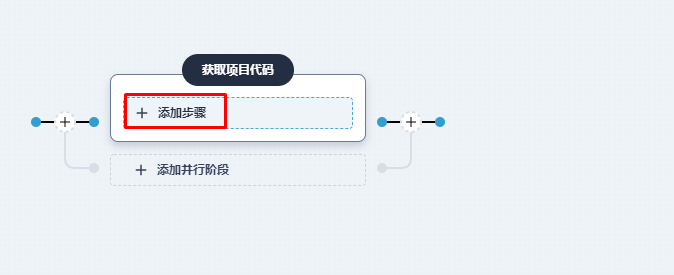

image-20221127205746358

image-20221127210005540

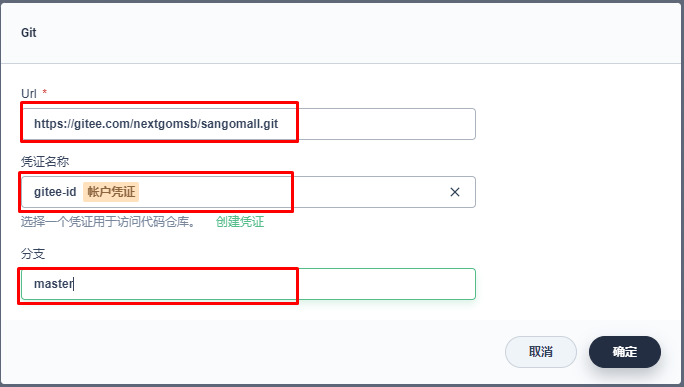

image-20221127210052246

image-20221127210133104

pipeline {
  agent {
    node {
      label 'maven'
    }

  }
  stages {
    stage('获取项目代码') {
      agent none
      steps {
        git(url: 'https://gitee.com/nextgomsb/sangomall.git', credentialsId: 'gitee-id', branch: 'master', changelog: true, poll: false)
      }
    }

  }
}

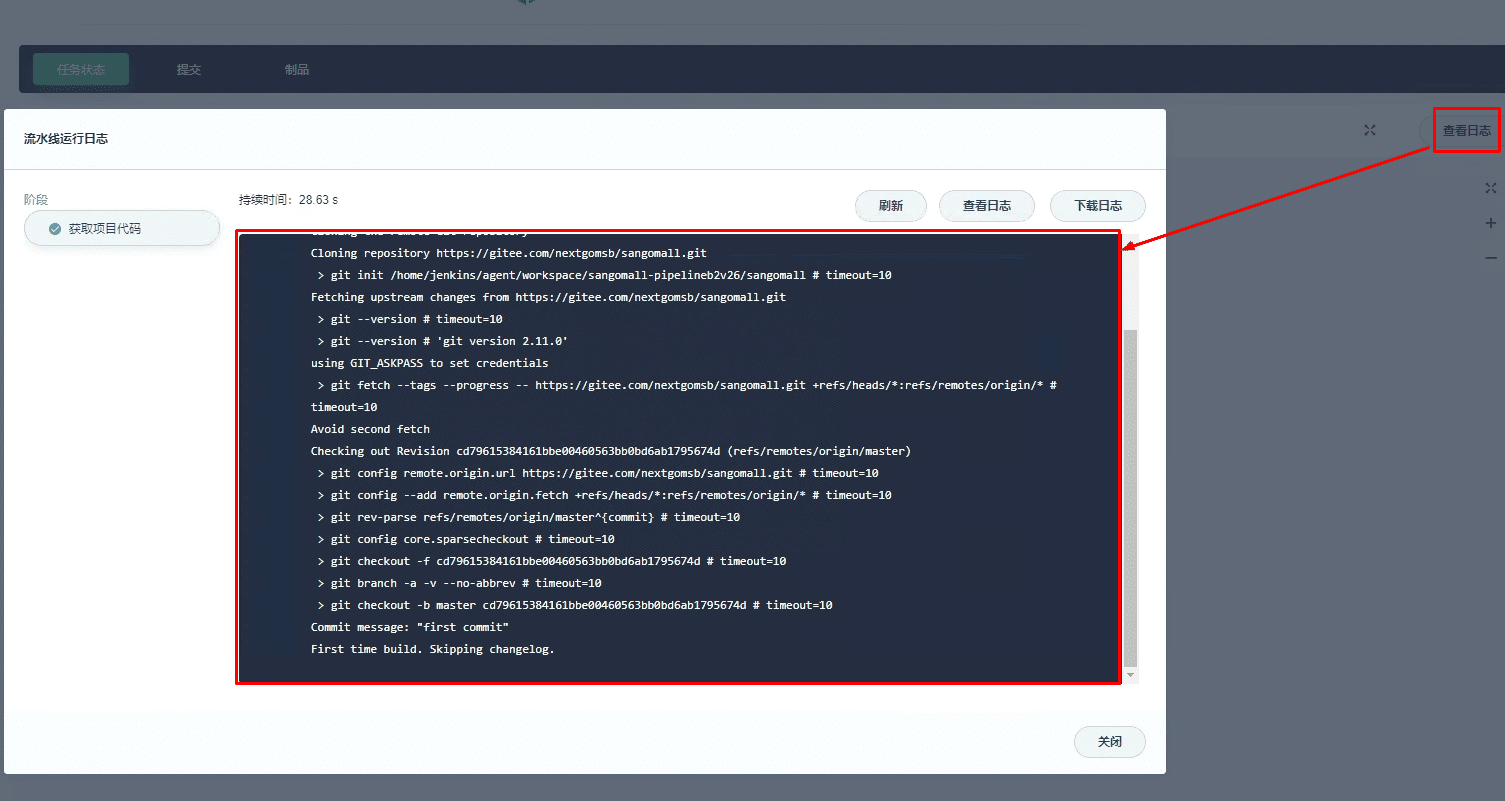

2.3 测试流水线是否可以拉取项目代码

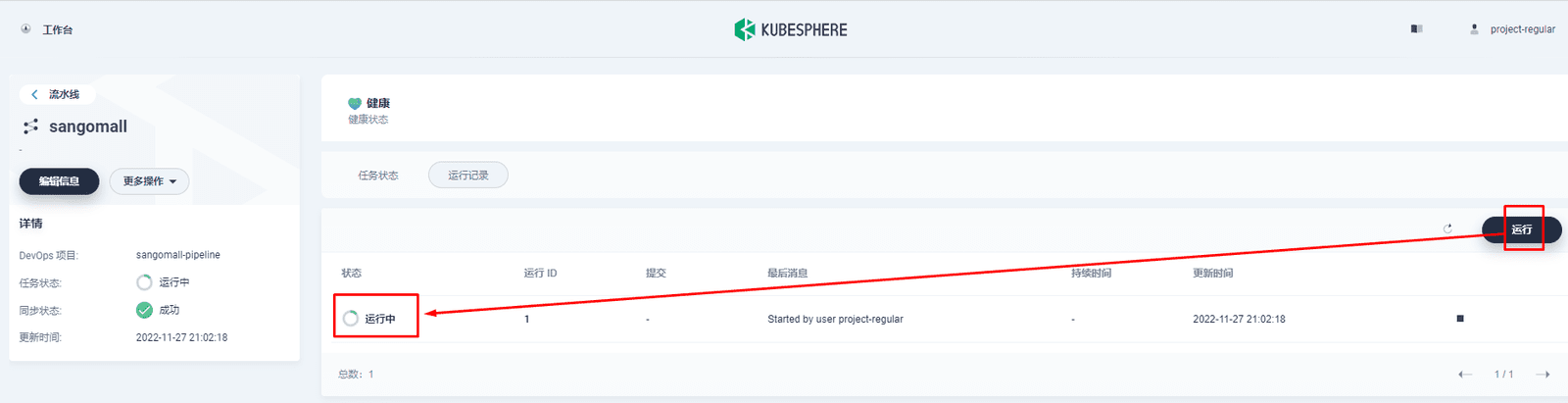

image-20221127210244024

image-20221127215333105

三、通过KubeSphere部署之参数化构建及环境变量设定

3.1 参数化构建

在流水线中添加如下内容：

parameters {
    string(name: 'PROJECT_VERSION', defaultValue: 'v1.0', description: '')
    string(name: 'PROJECT_NAME', defaultValue: '', description: '')
  }
添加后的流水线内容：

pipeline {
  agent {
    node {
      label 'maven'
    }

  }

  parameters {
    string(name: 'PROJECT_VERSION', defaultValue: 'v1.0', description: '')
    string(name: 'PROJECT_NAME', defaultValue: '', description: '')
  }
  stages {
    stage('获取项目代码') {
      agent none
      steps {
        git(url: 'https://gitee.com/nextgomsb/sangomall.git', credentialsId: 'gitee-id', branch: 'master', changelog: true, poll: false)
      }
    }

  }
}

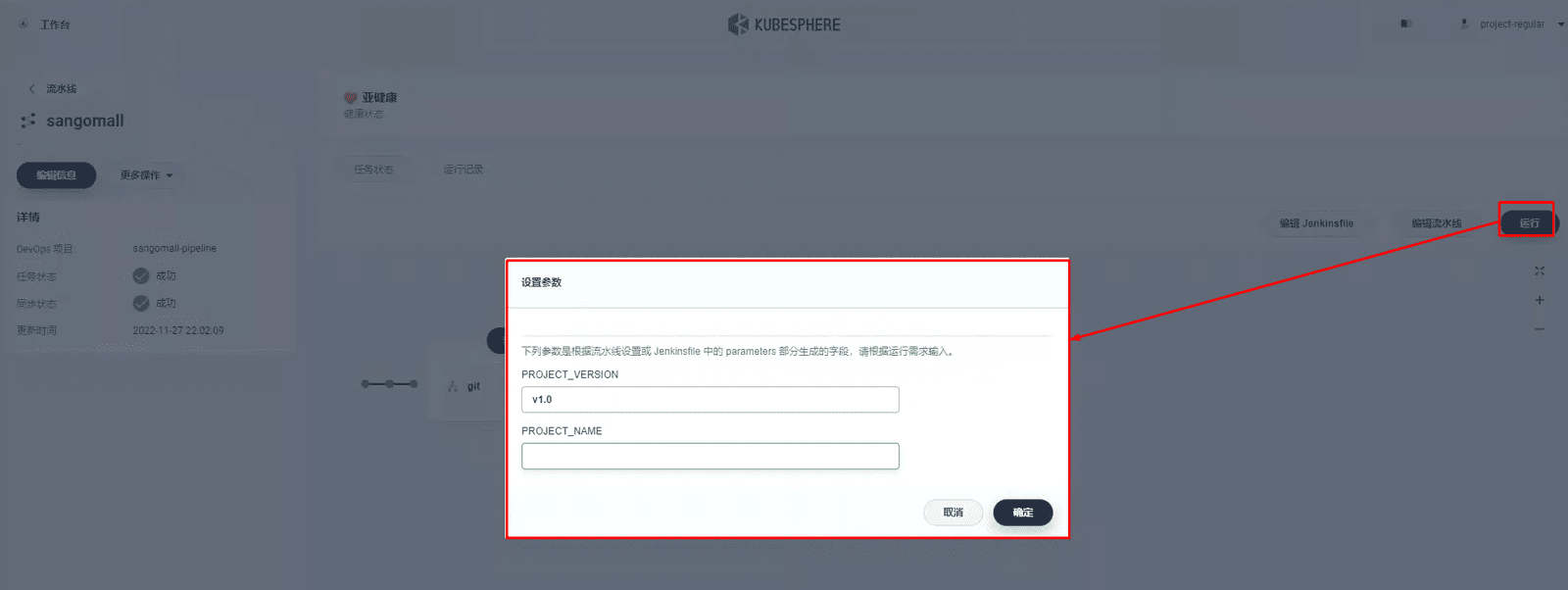

测试是否可行

image-20221127225224257

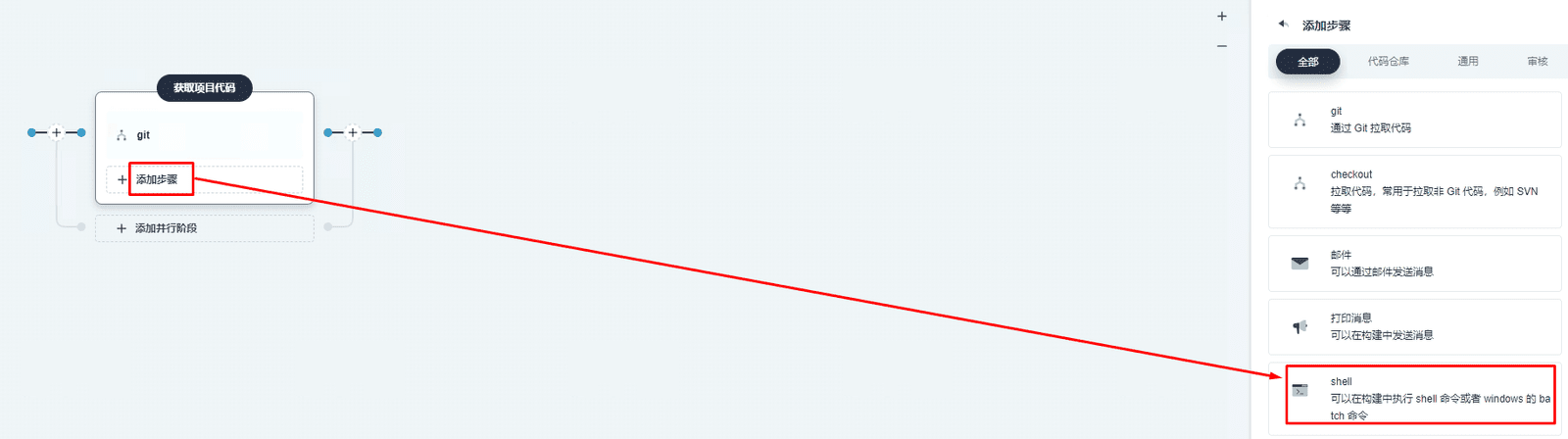

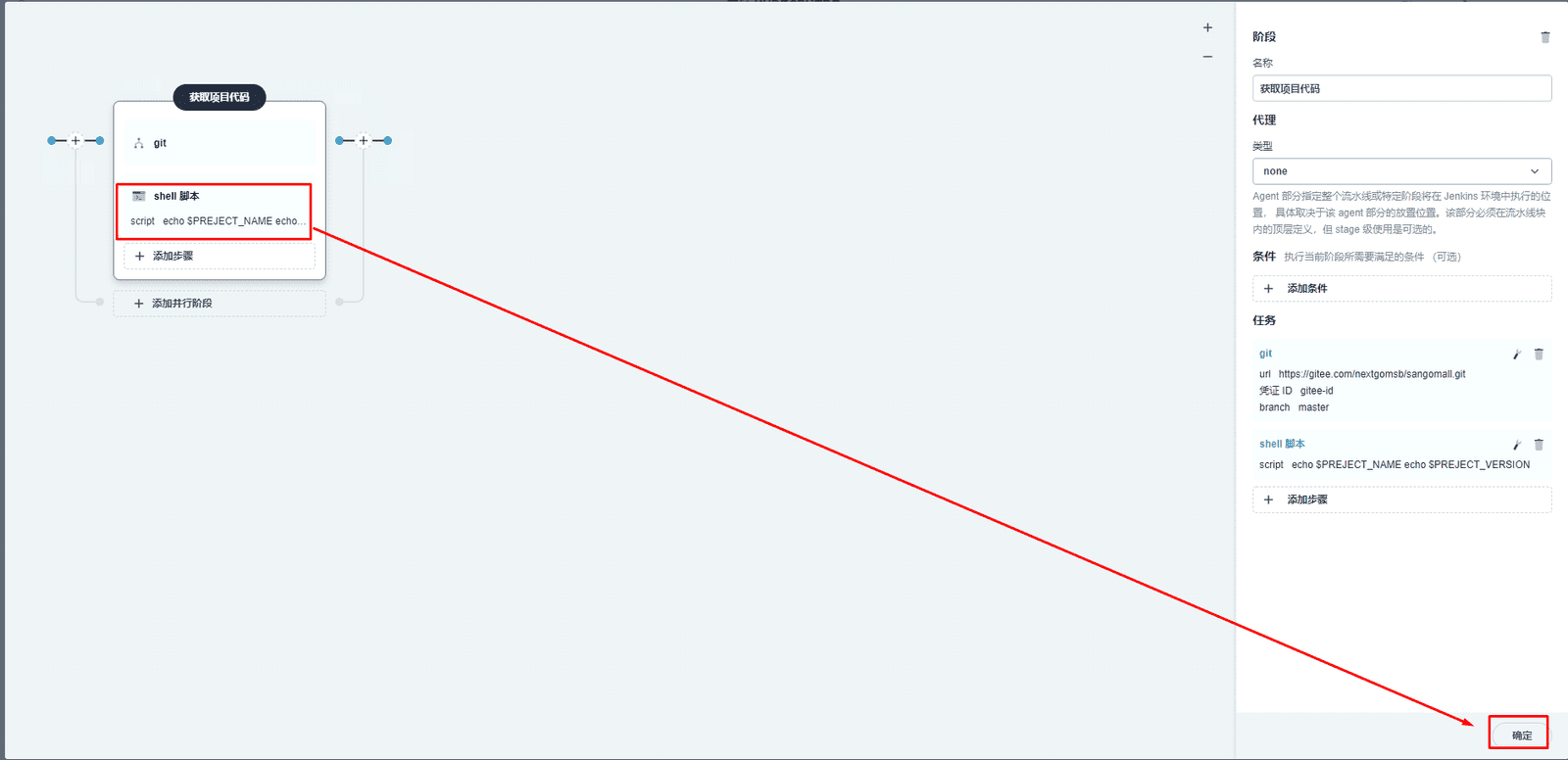

验证在流水线中接收情况

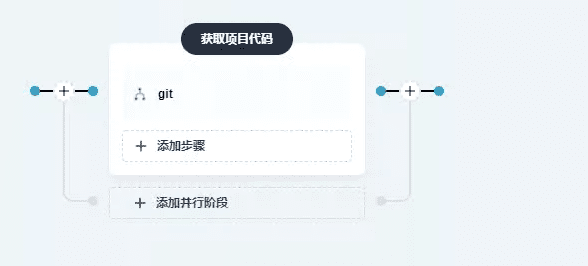

image-20221127230538954

image-20221127230639565

image-20221127232133577

image-20221127230839135

pipeline {
  agent {
    node {
      label 'maven'
    }

  }
  stages {
    stage('获取项目代码') {
      agent none
      steps {
        git(url: 'https://gitee.com/nextgomsb/sangomall.git', credentialsId: 'gitee-id', branch: 'master', changelog: true, poll: false)

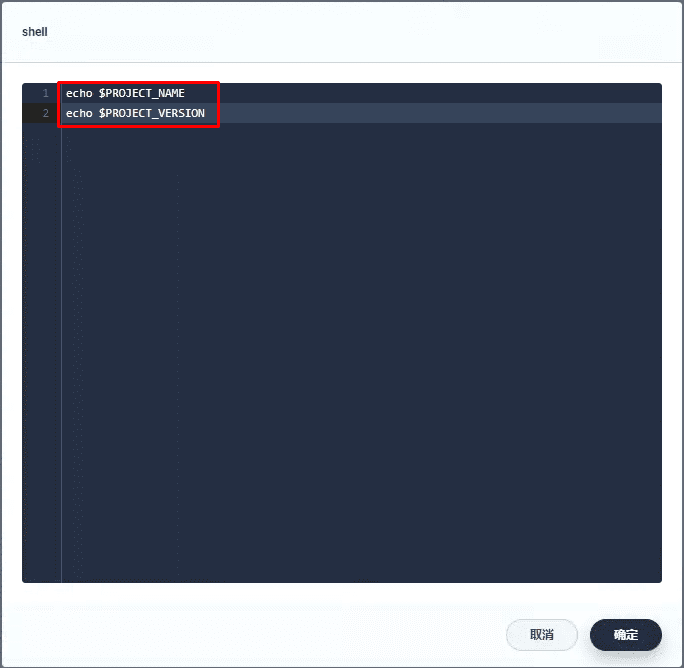

        sh '''echo $PROJECT_NAME
echo $PROJECT_VERSION'''
      }
    }

  }
  parameters {
    string(name: 'PROJECT_VERSION', defaultValue: 'v1.0', description: '')
    string(name: 'PROJECT_NAME', defaultValue: '', description: '')
  }
}

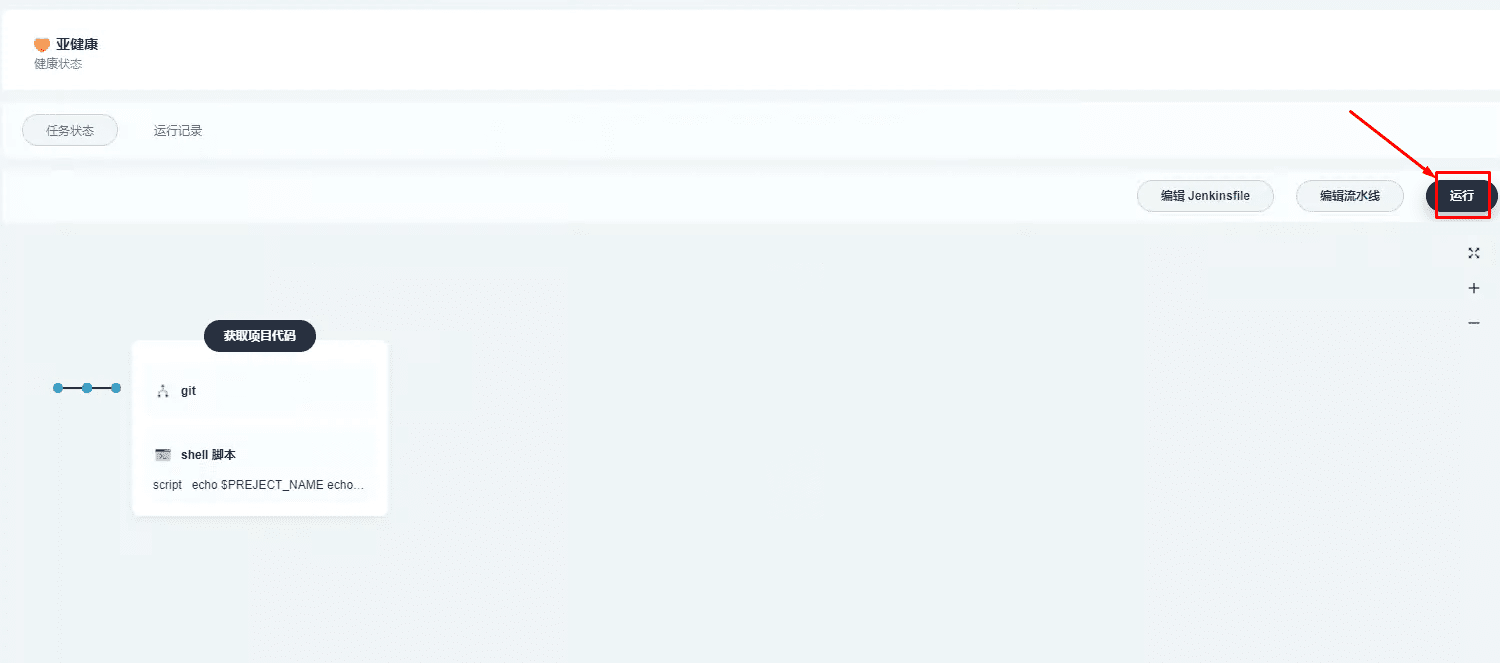

image-20221127231202447

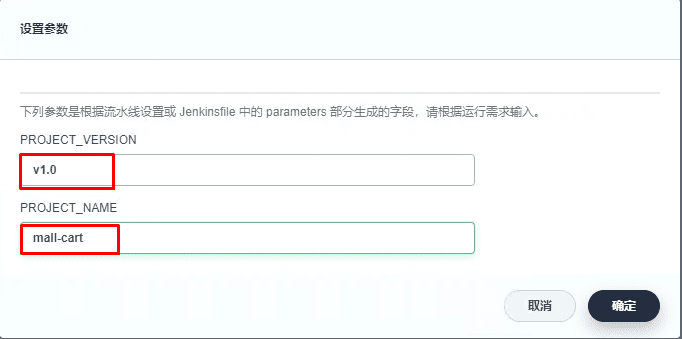

image-20221127231242736

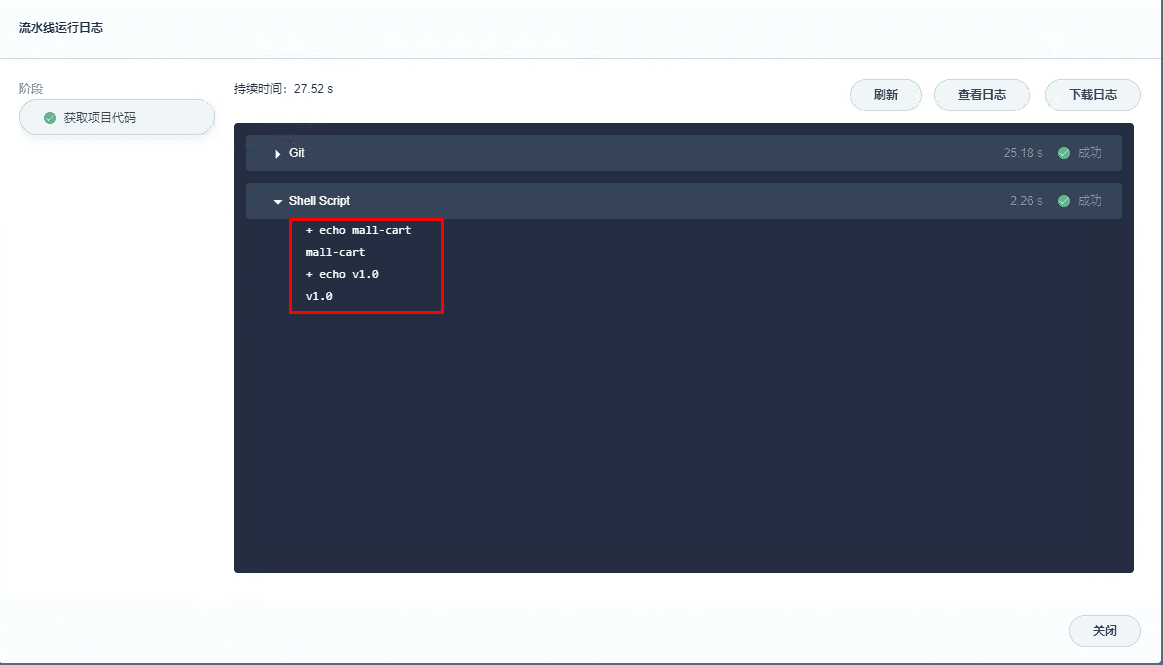

image-20221127232936900

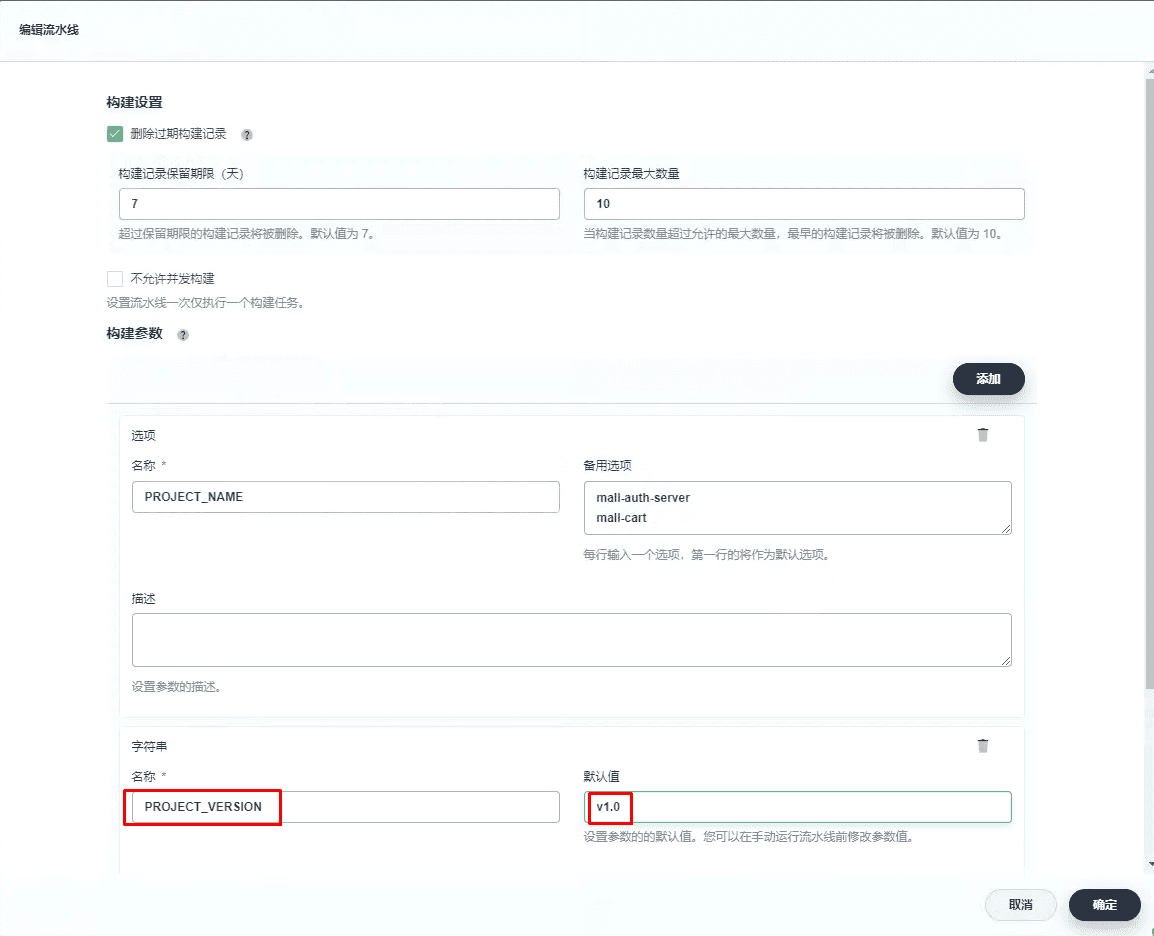

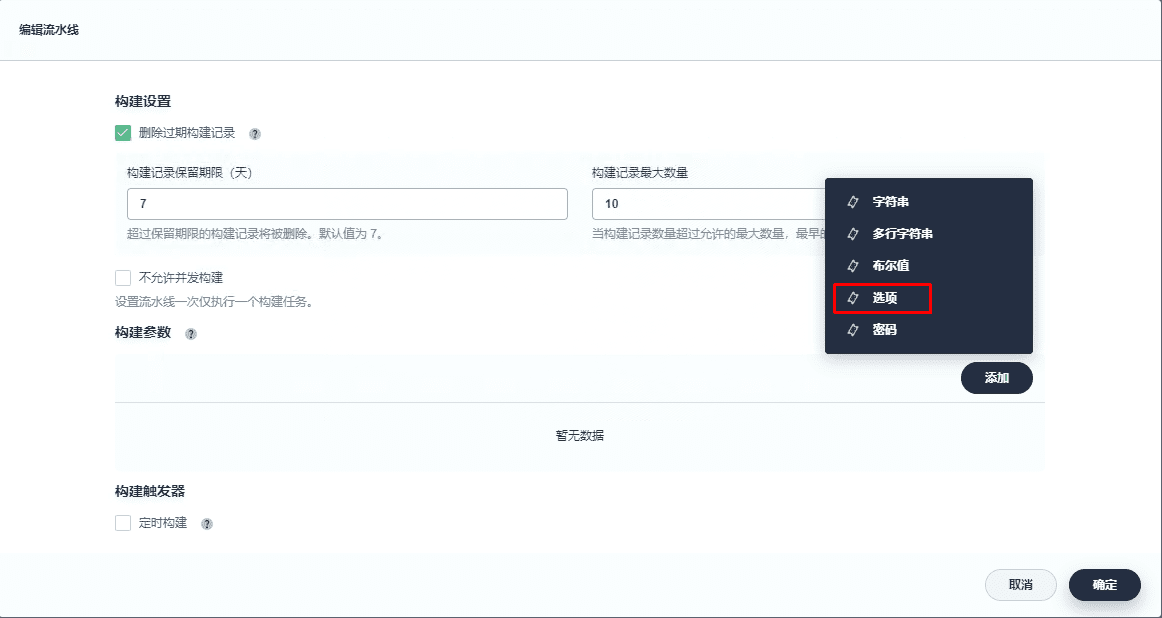

创建构建参数选项

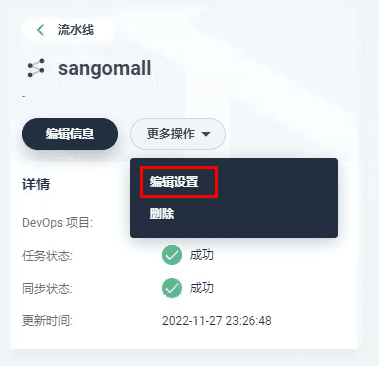

image-20221127233628865

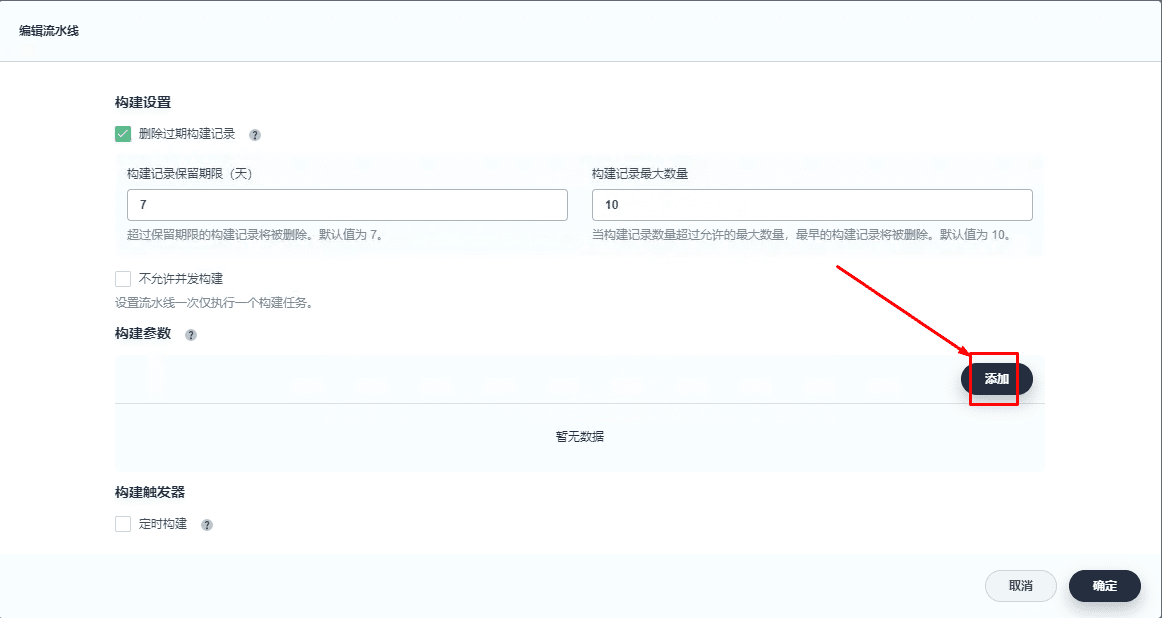

image-20221127233723969

image-20221127233804646

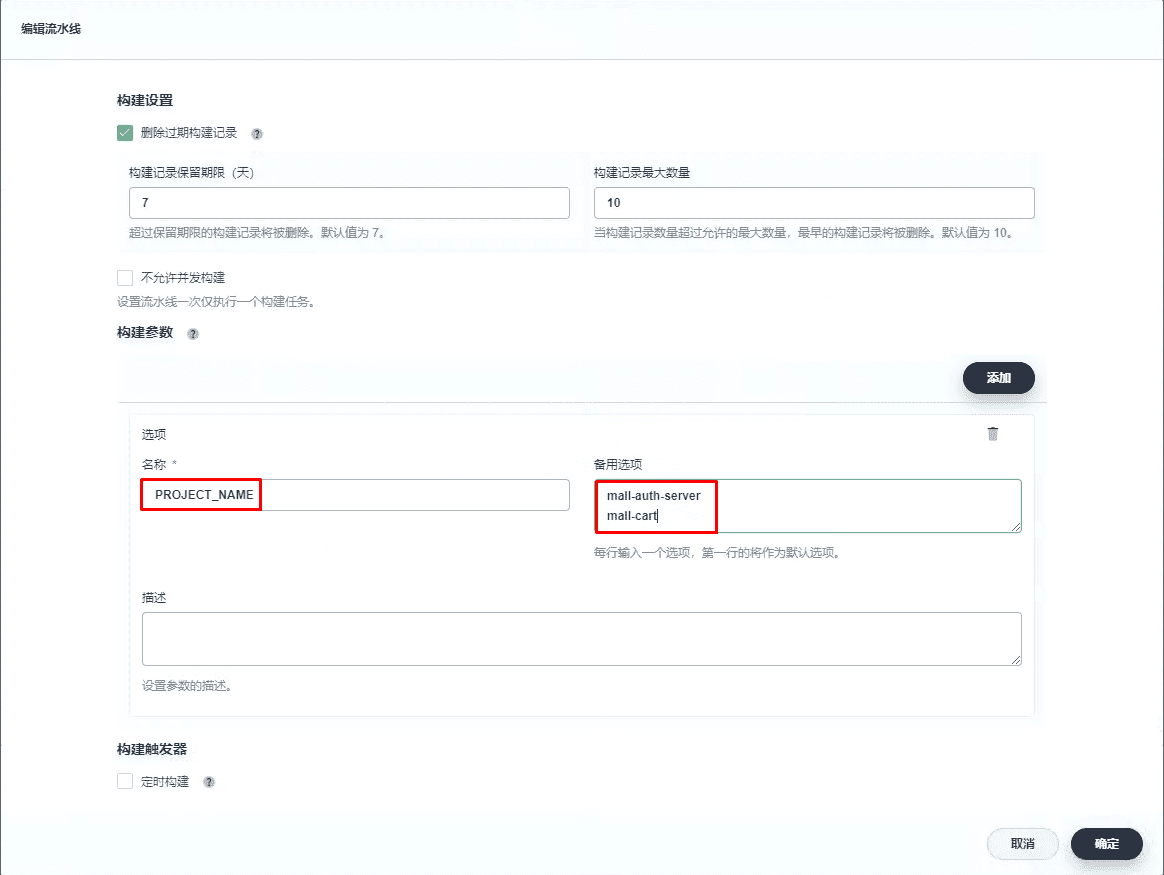

image-20221127234024831

image-20221127234329739

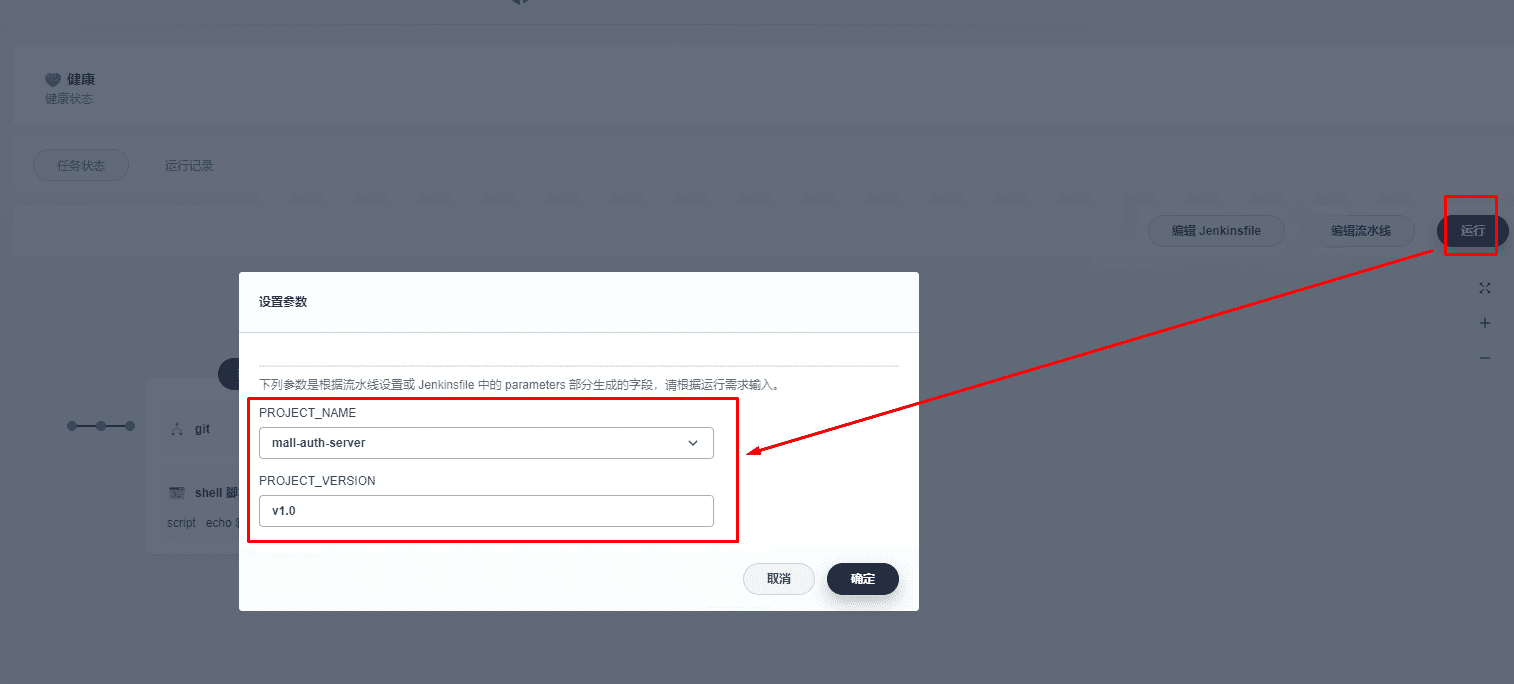

image-20221127234428847

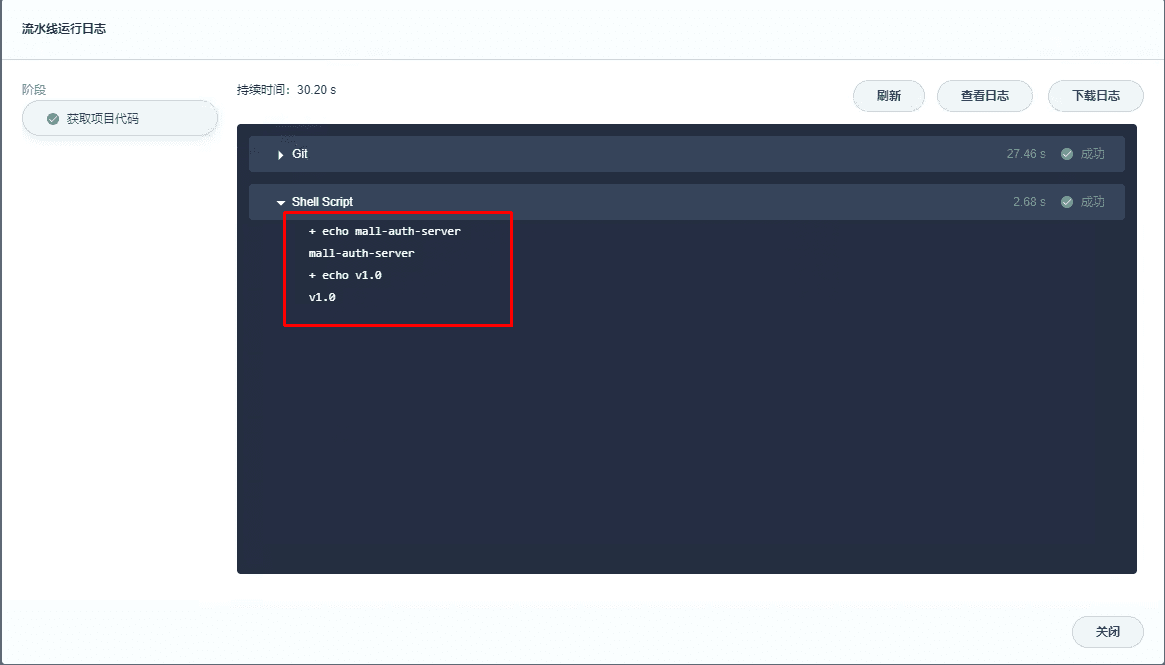

image-20221127234607857

3.2 环境变量设定

3.2.1 凭证创建

3.2.1.1 dockerhub-id

image-20221127235341750

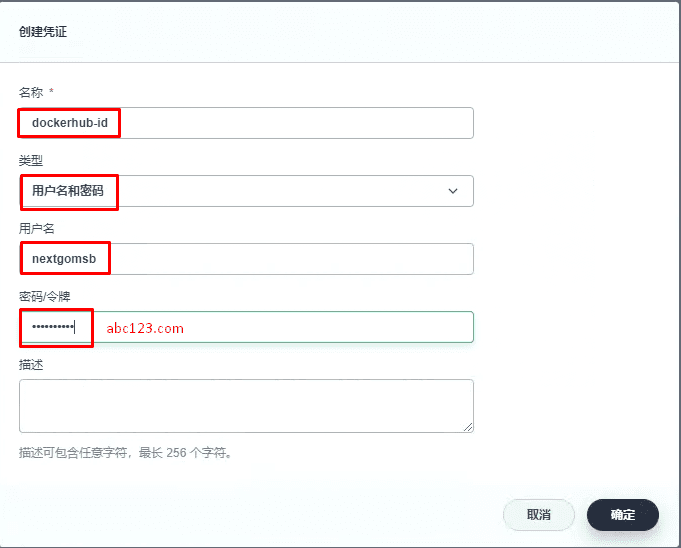

image-20221127235503887

image-20221127235522216

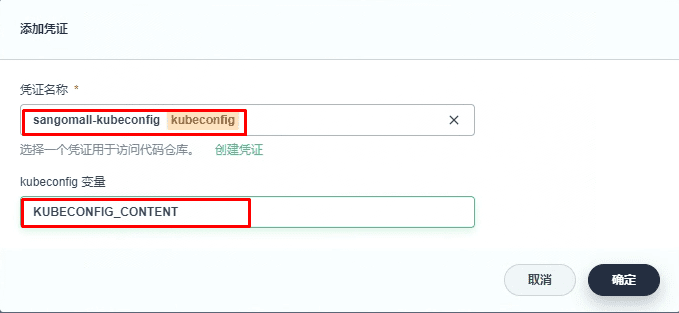

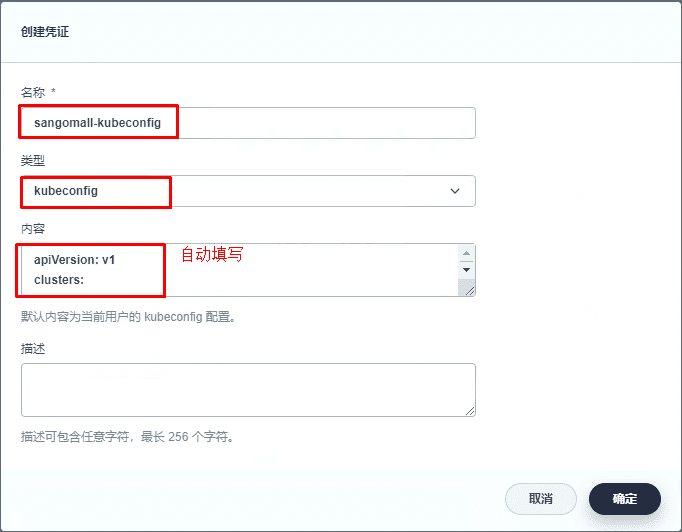

3.2.1.2 kubeconfig

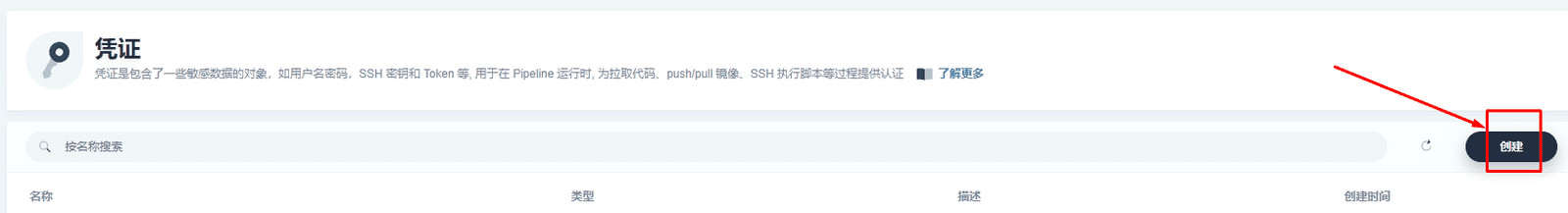

image-20221127235557861

image-20221127235700973

image-20221127235748023

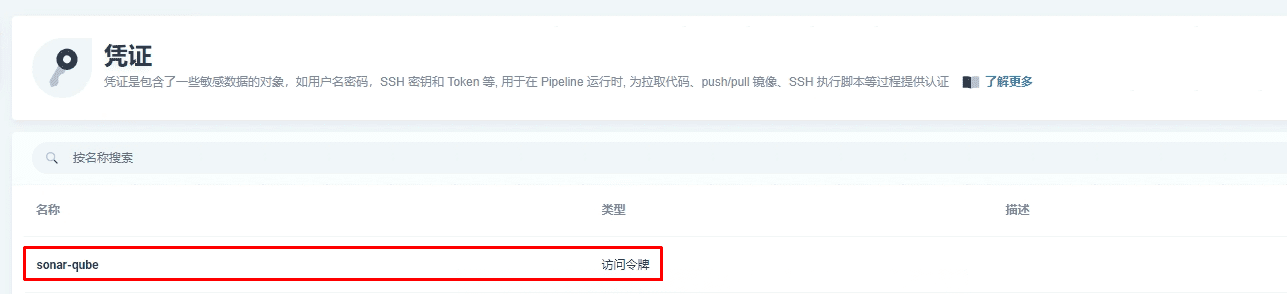

3.2.1.3 sonar-qube

sonar-qube部署及使用请参考上面的视频。

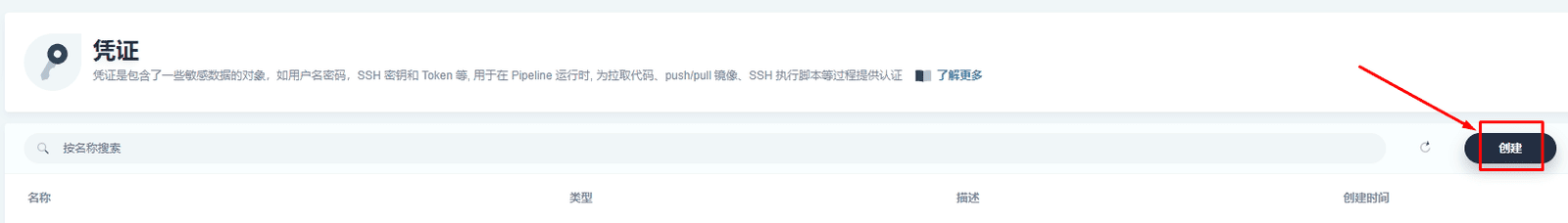

image-20221127235819225

sonar管理员令牌：4f1b3ad13420f738926140bcb110758f96aa5eac  新令牌：d19390c45296be3c44ca2cb902ffda01bd0d8d96

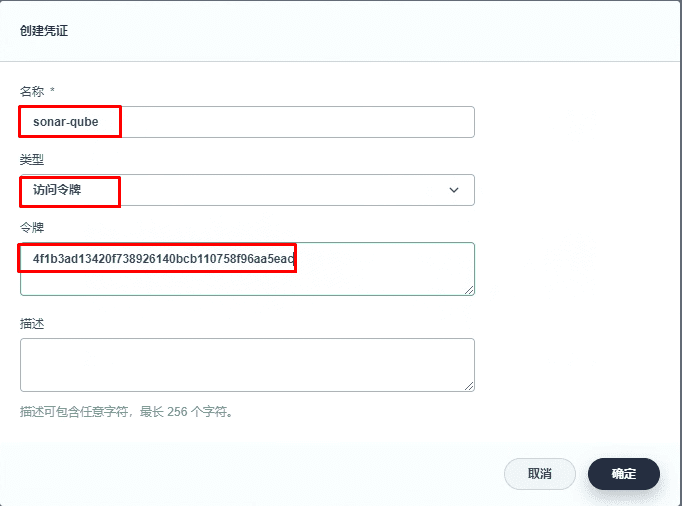

image-20221128102646596

image-20221128102710369

3.2.2 添加环境变量到jenkinsfile

environment {
	DOCKER_CREDENTIAL_ID = 'dockerhub-id'
	GITEE_CREDENTIAL_ID = 'gitee-id'
	KUBECONFIG_CREDENTIAL_ID= 'sangomall-kubeconfig'
	REGISTRY = 'docker.io'
	DOCKERHUB_NAMESPACE = 'nextgomsb'
	GITEE_ACCOUNT = 'nextgomsb'
	SONAR_CREDENTIAL_ID = 'sonar-qube'
}
添加后的内容：
pipeline {
  agent {
    node {
      label 'maven'
    }

  }
  stages {
    stage('获取项目代码') {
      agent none
      steps {
        git(url: 'https://gitee.com/nextgomsb/sangomall.git', credentialsId: 'gitee-id', branch: 'master', changelog: true, poll: false)
        sh '''echo $PROJECT_NAME
echo $PROJECT_VERSION'''
      }
    }

  }
  parameters {
    string(name: 'PROJECT_VERSION', defaultValue: 'v1.0', description: '')
    string(name: 'PROJECT_NAME', defaultValue: '', description: '')
  }
  environment {
  	DOCKER_CREDENTIAL_ID = 'dockerhub-id'
  	GITEE_CREDENTIAL_ID = 'gitee-id'
  	KUBECONFIG_CREDENTIAL_ID= 'sangomall-kubeconfig'
  	REGISTRY = 'docker.io'
  	DOCKERHUB_NAMESPACE = 'nextgomsb'
  	GITEE_ACCOUNT = 'nextgomsb'
  	SONAR_CREDENTIAL_ID = 'sonar-qube'
}

}

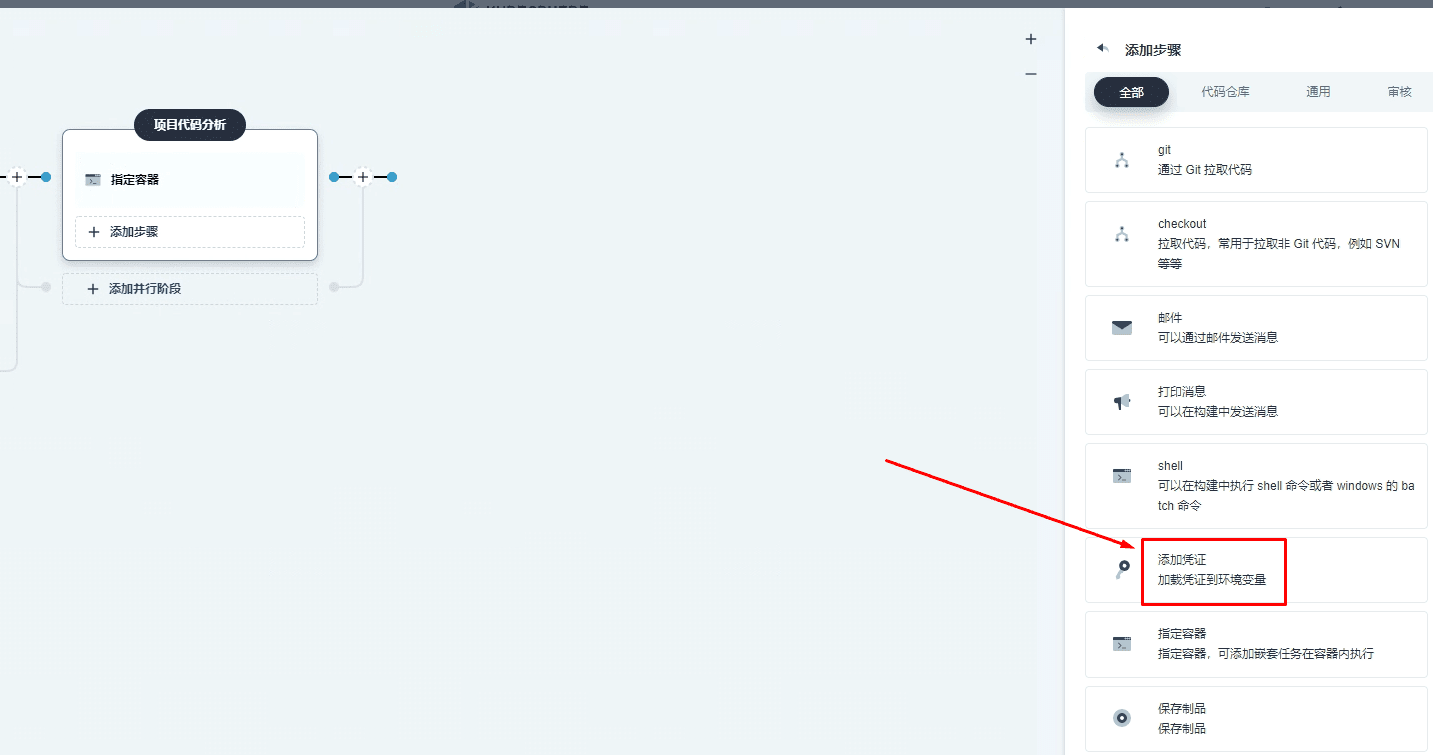

四、通过KubeSphere部署之Sonar集成至流水线编写

sonarqube集成可参考前操作步骤实施。

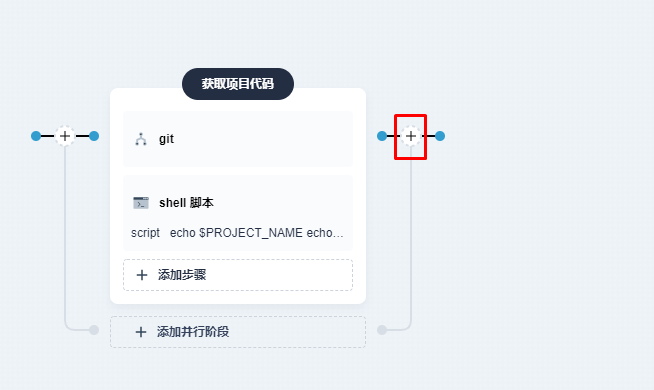

image-20221128111657036

image-20221128111744254

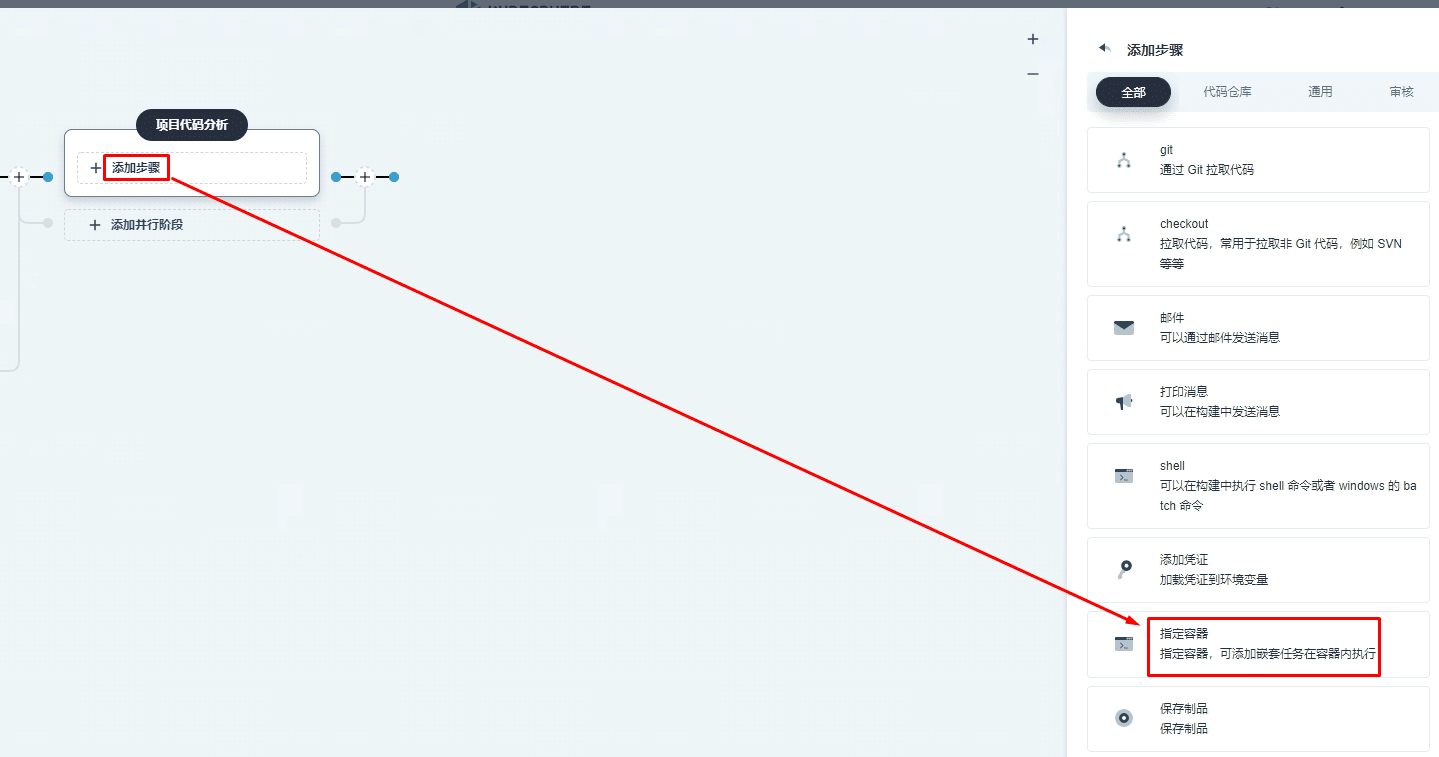

image-20221128111823041

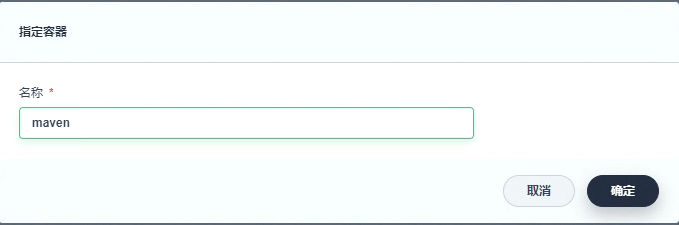

image-20221128111841138

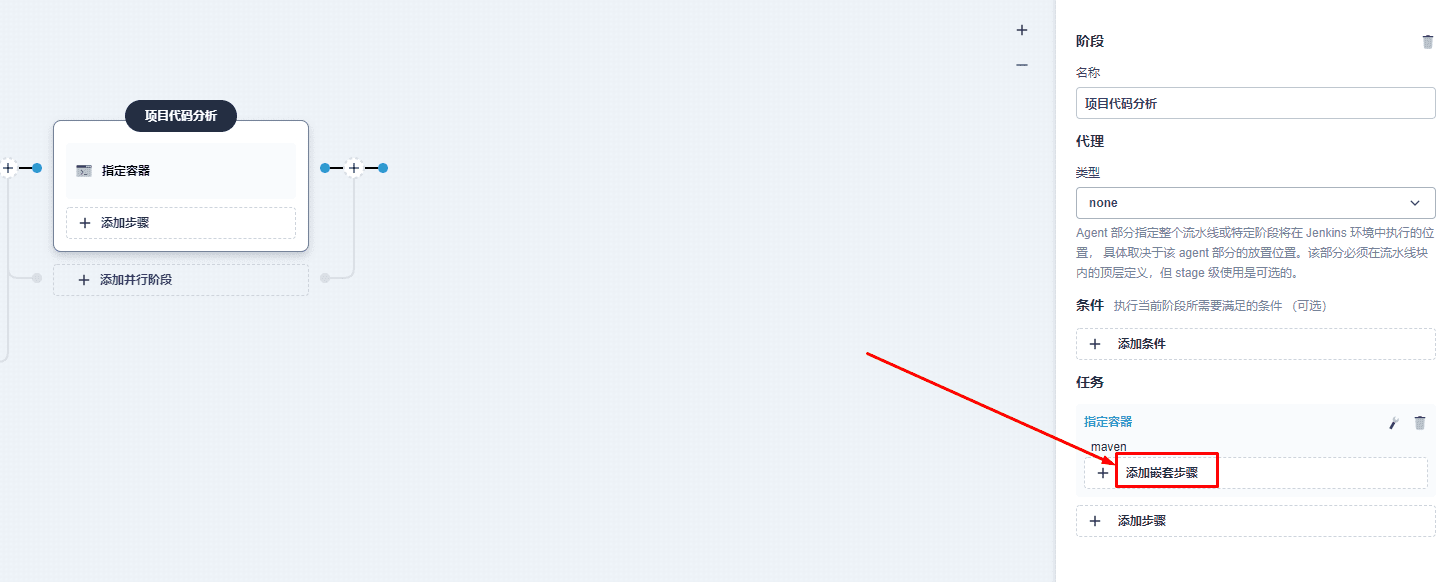

image-20221128111933907

image-20221128112008604

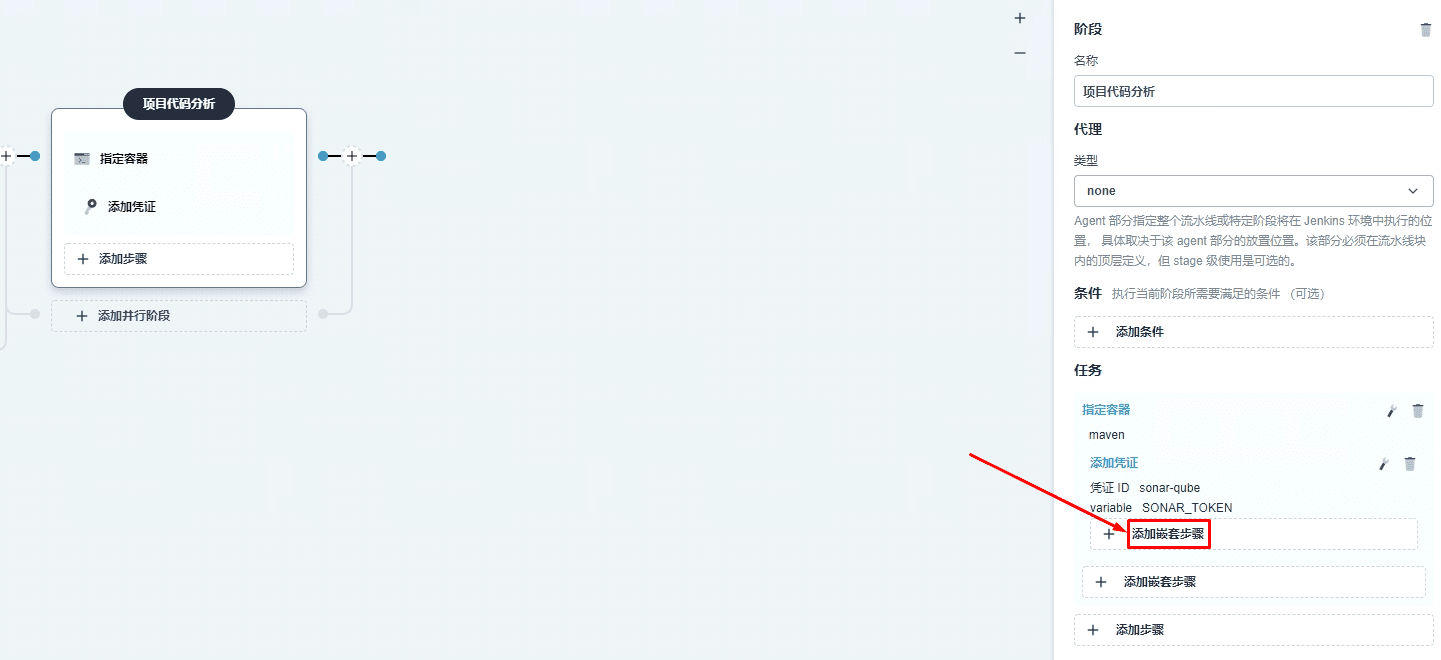

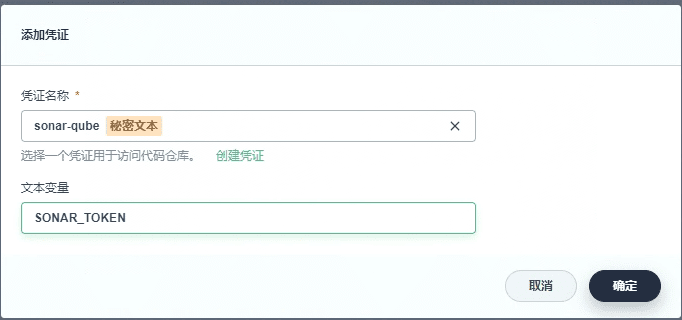

image-20221128112050609

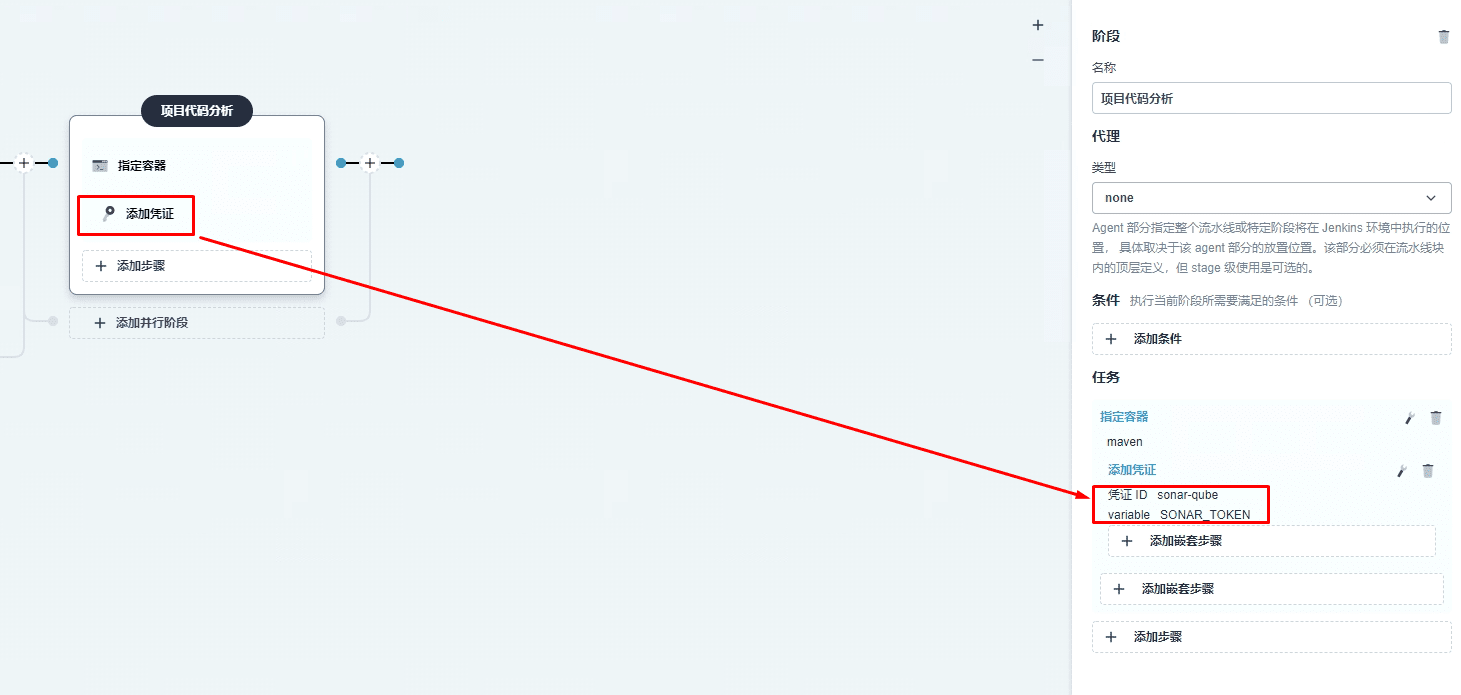

image-20221128112118254

image-20221128112202401

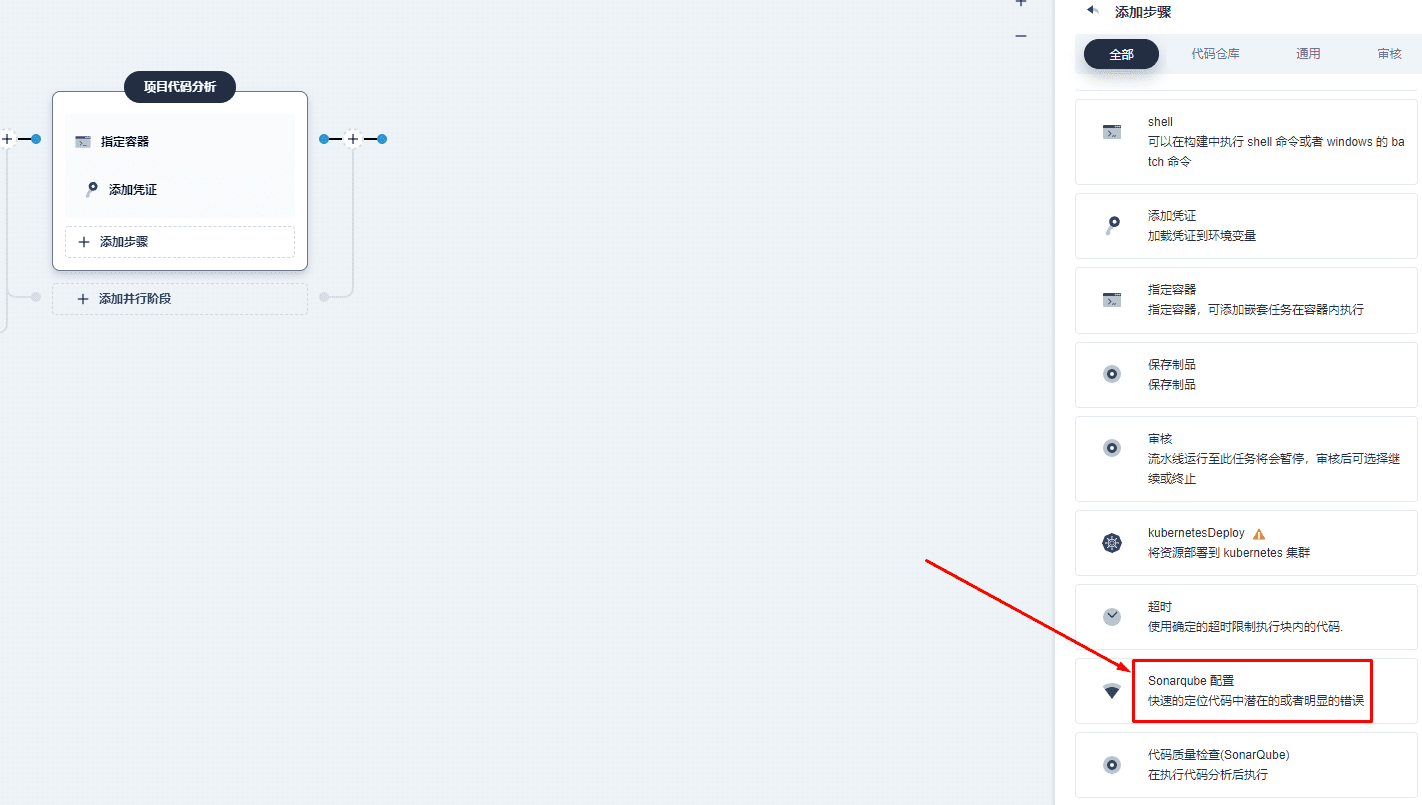

image-20221128112246196

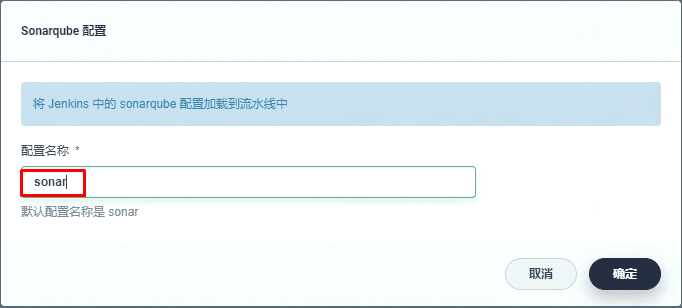

image-20221128112304951

image-20221128112333959

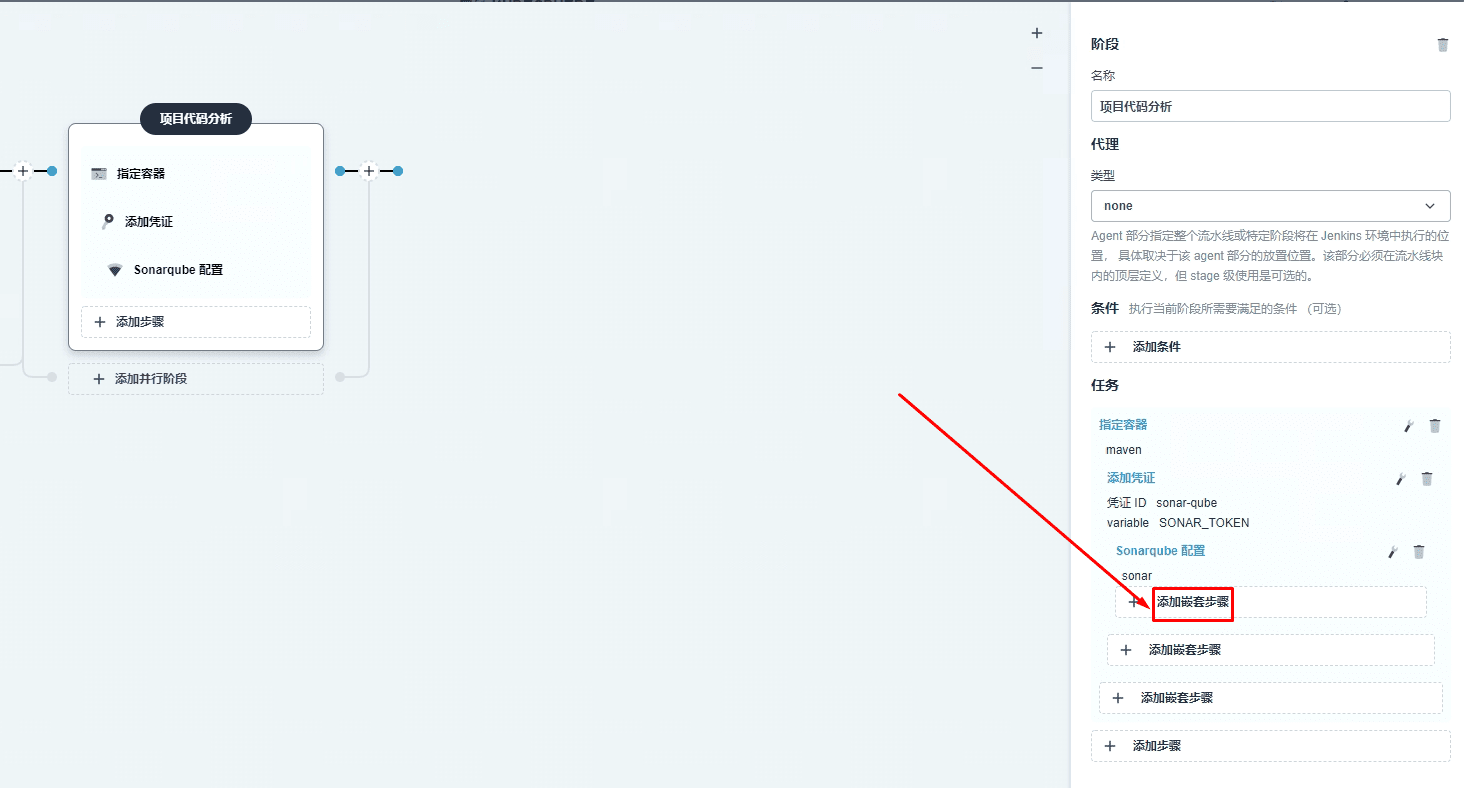

image-20221128112408202

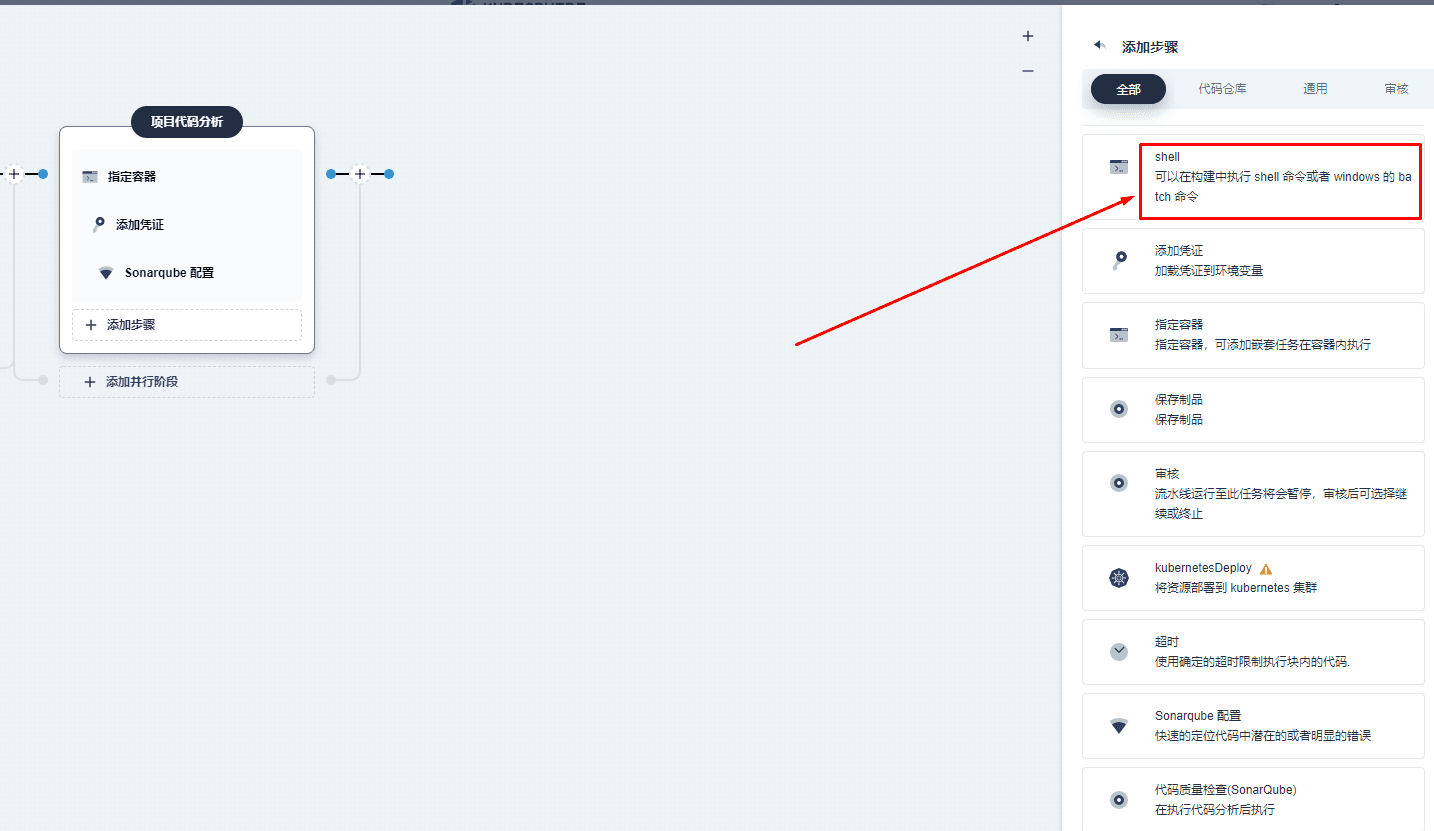

image-20221128112456079

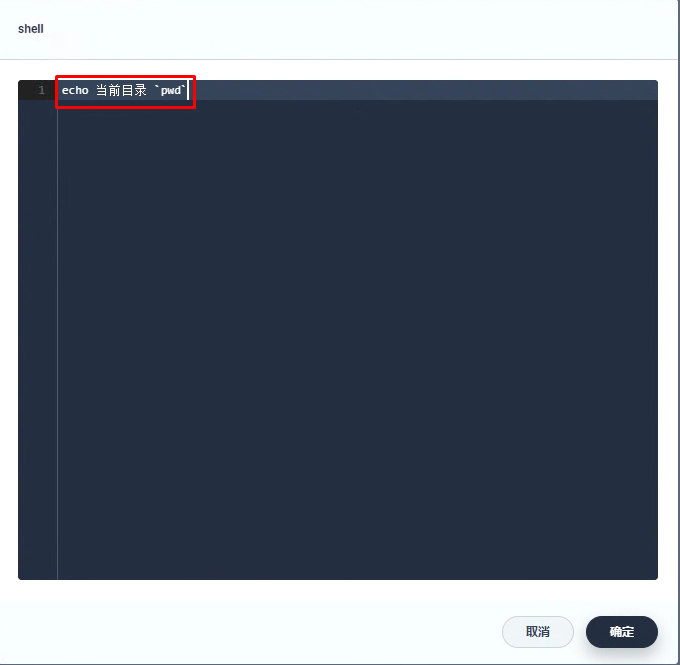

echo 当前目录 `pwd`

image-20221128113146797

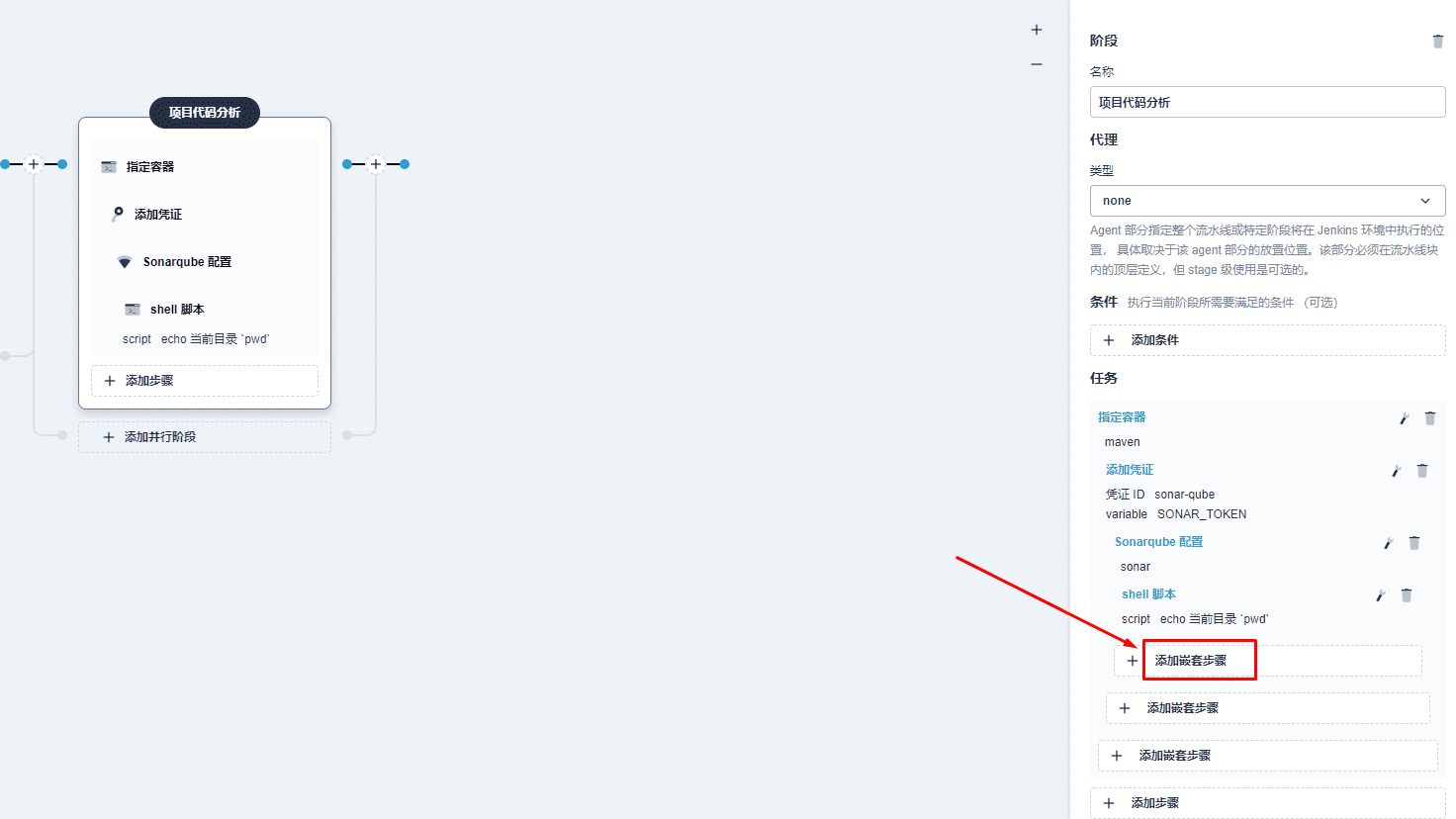

image-20221128113222823

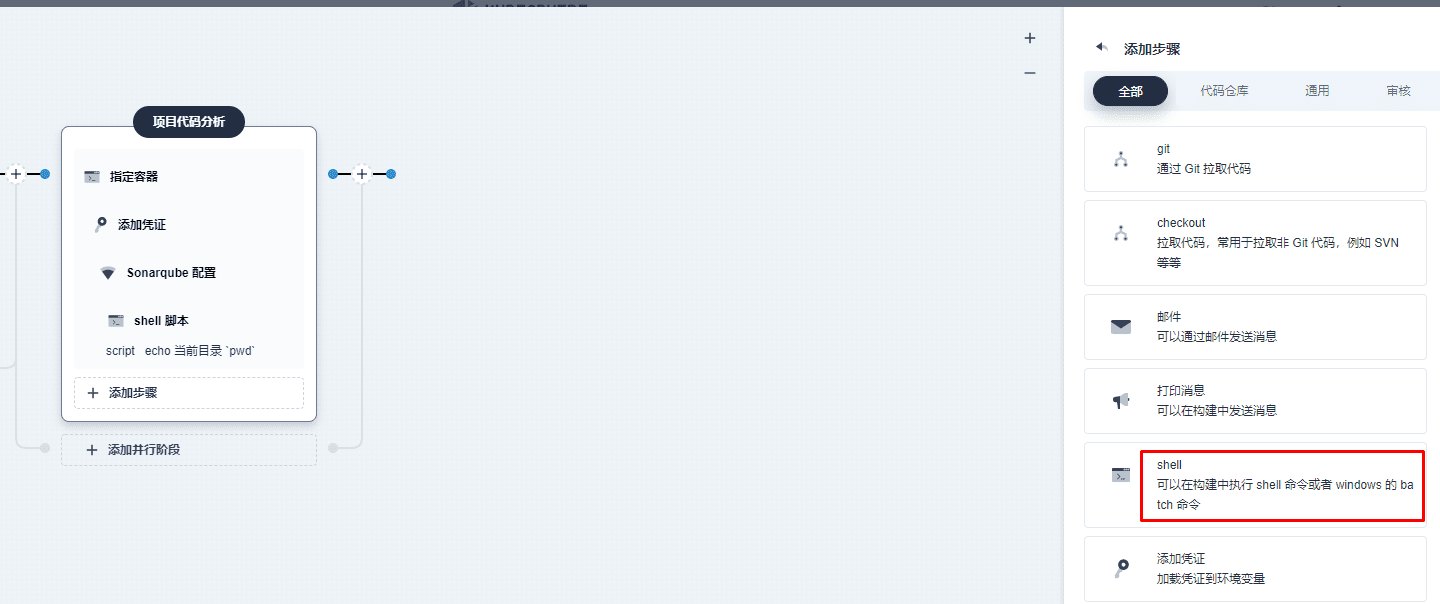

image-20221128113243346

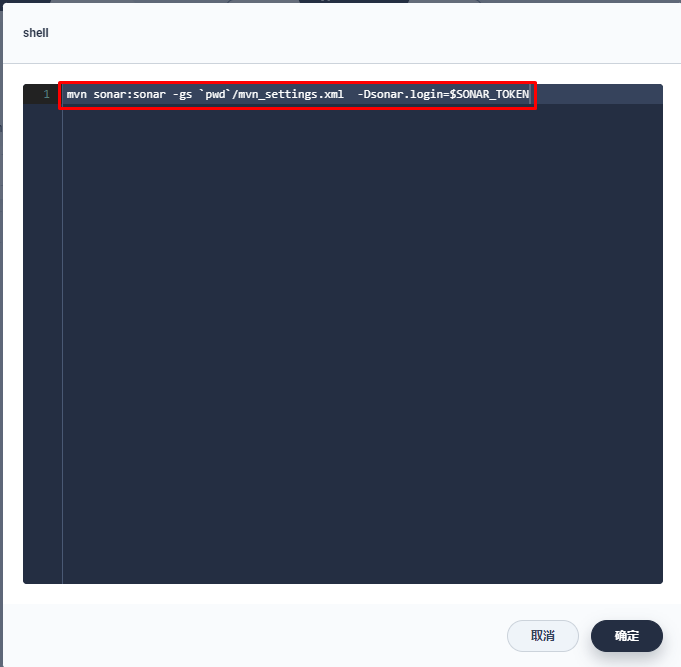

mvn sonar:sonar -gs `pwd`/mvn_settings.xml -Dsonar.login=$SONAR_TOKEN

image-20221128143202074

image-20221128113338679

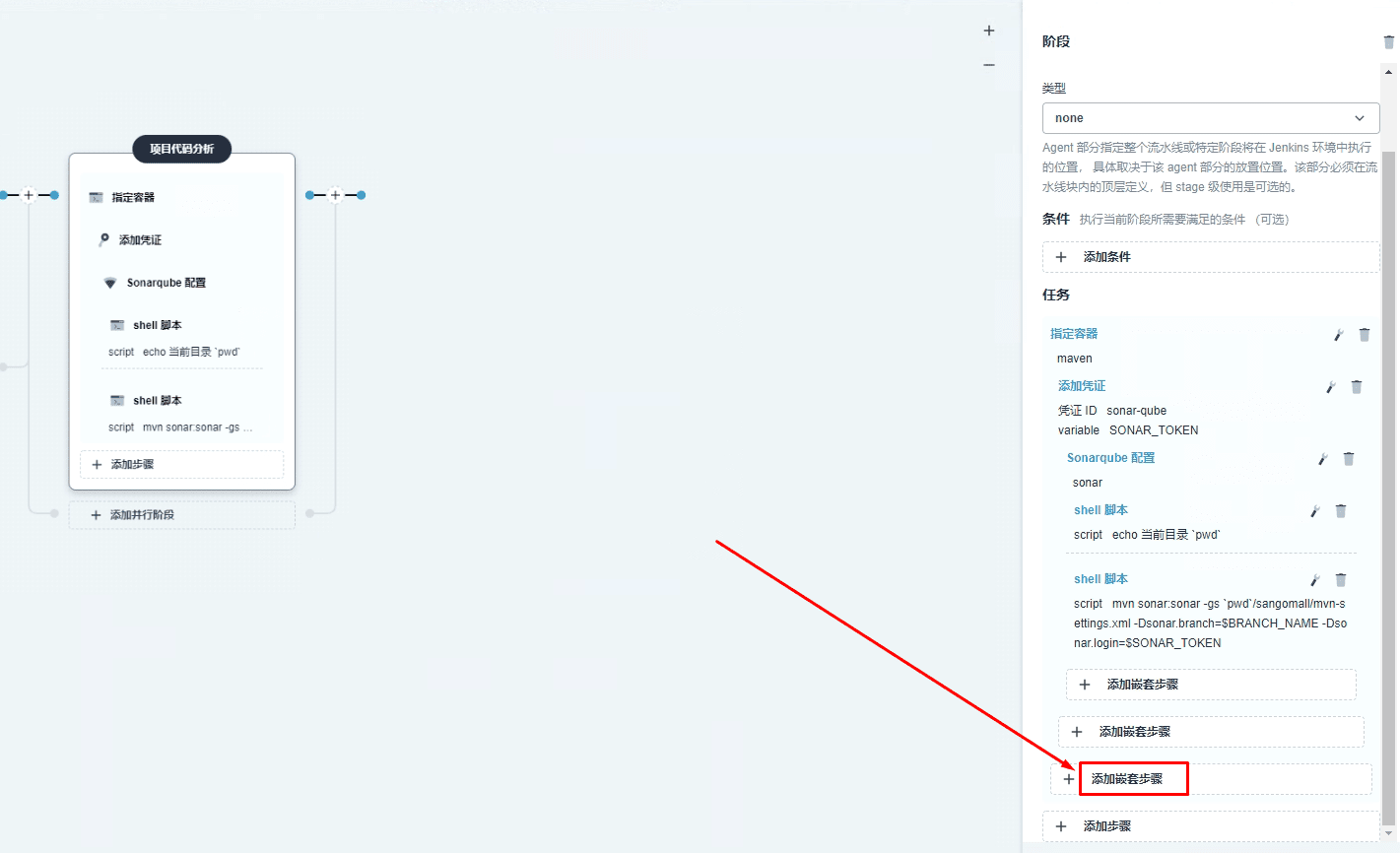

image-20221128114243954

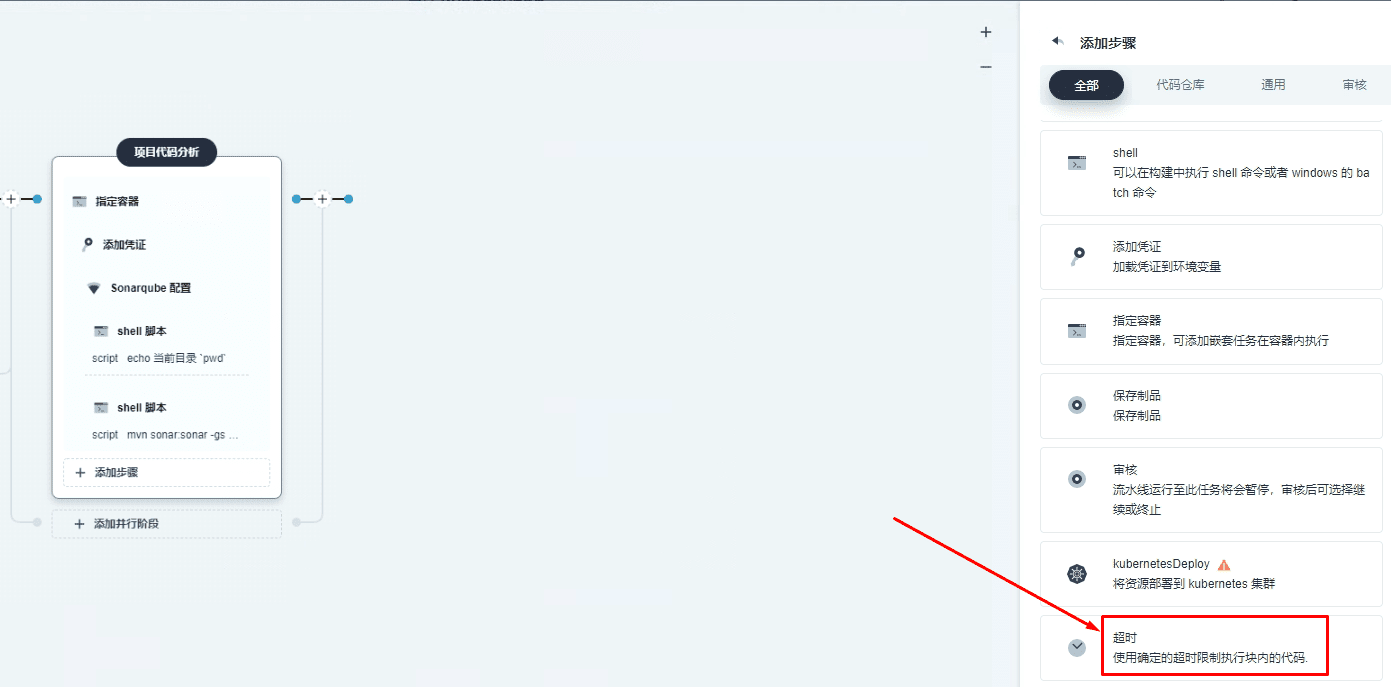

image-20221128114317392

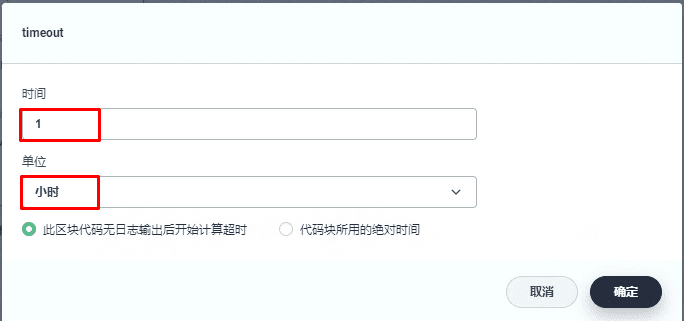

image-20221128114342818

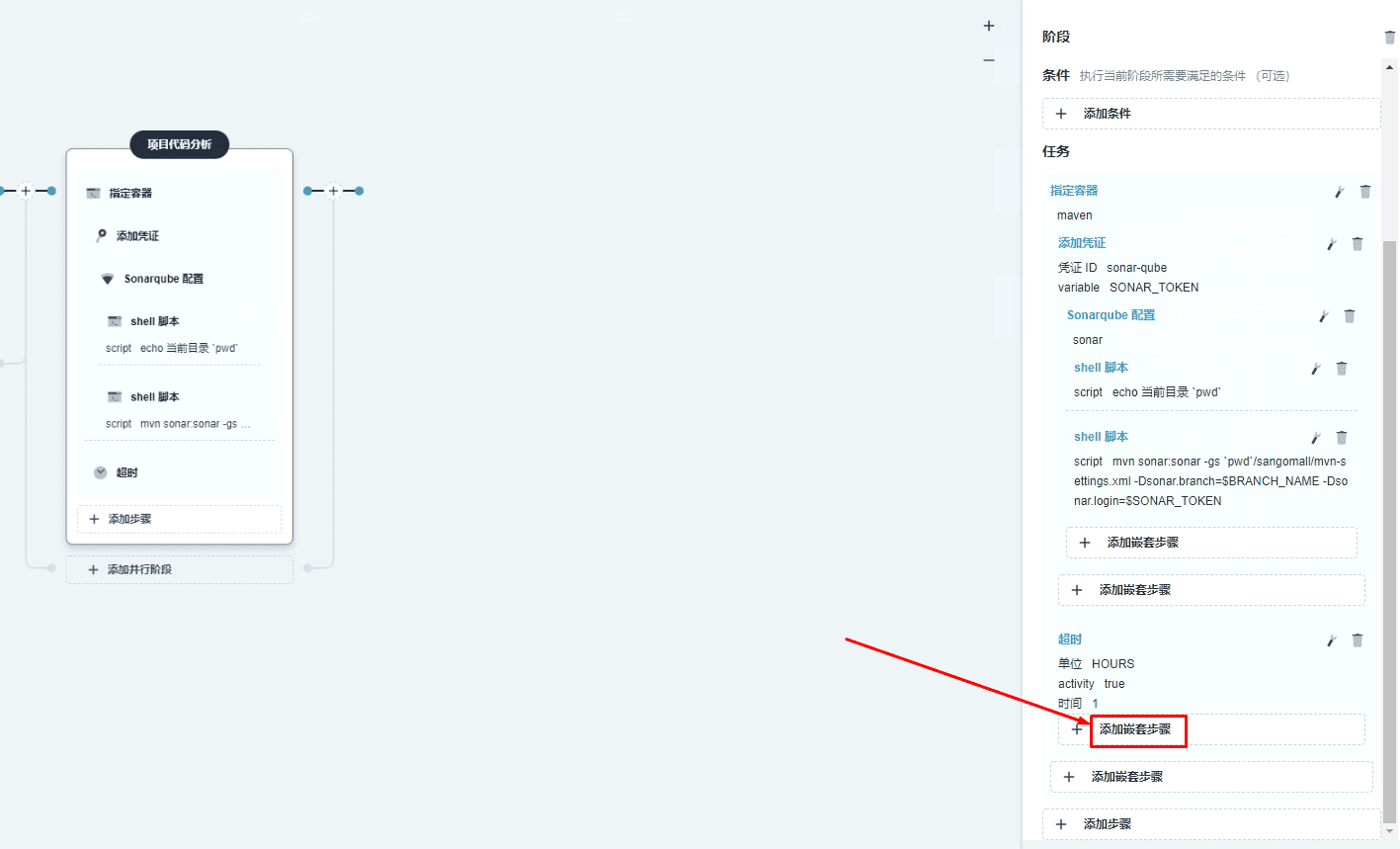

image-20221128114424349

image-20221128114505886

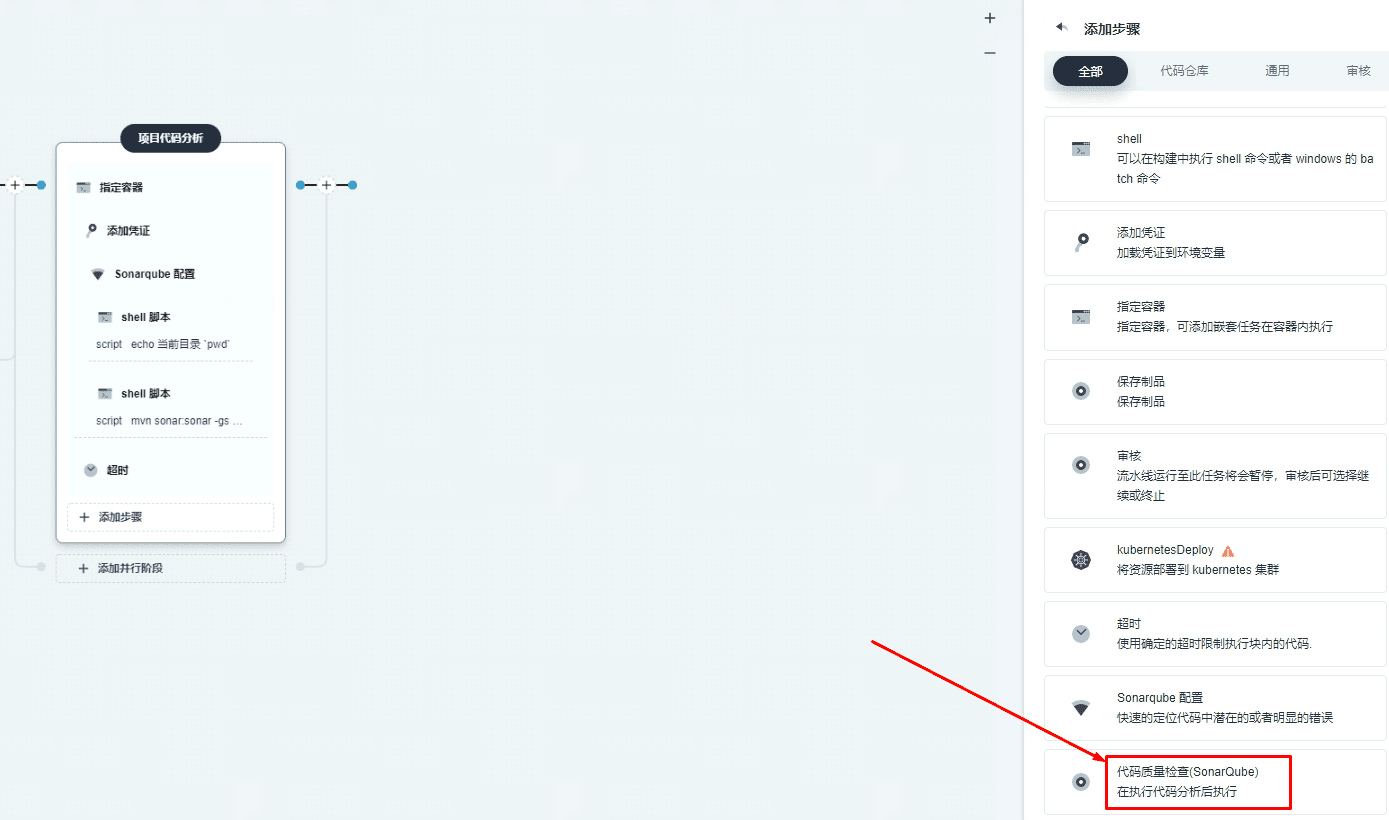

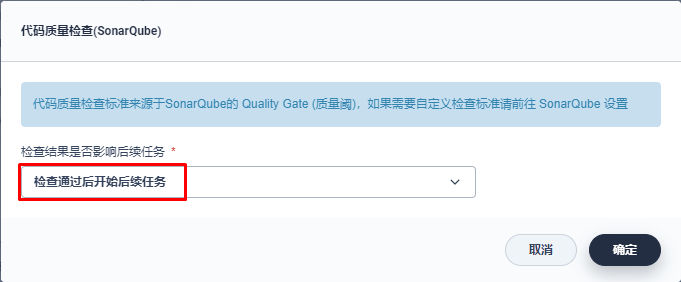

image-20221128114537392

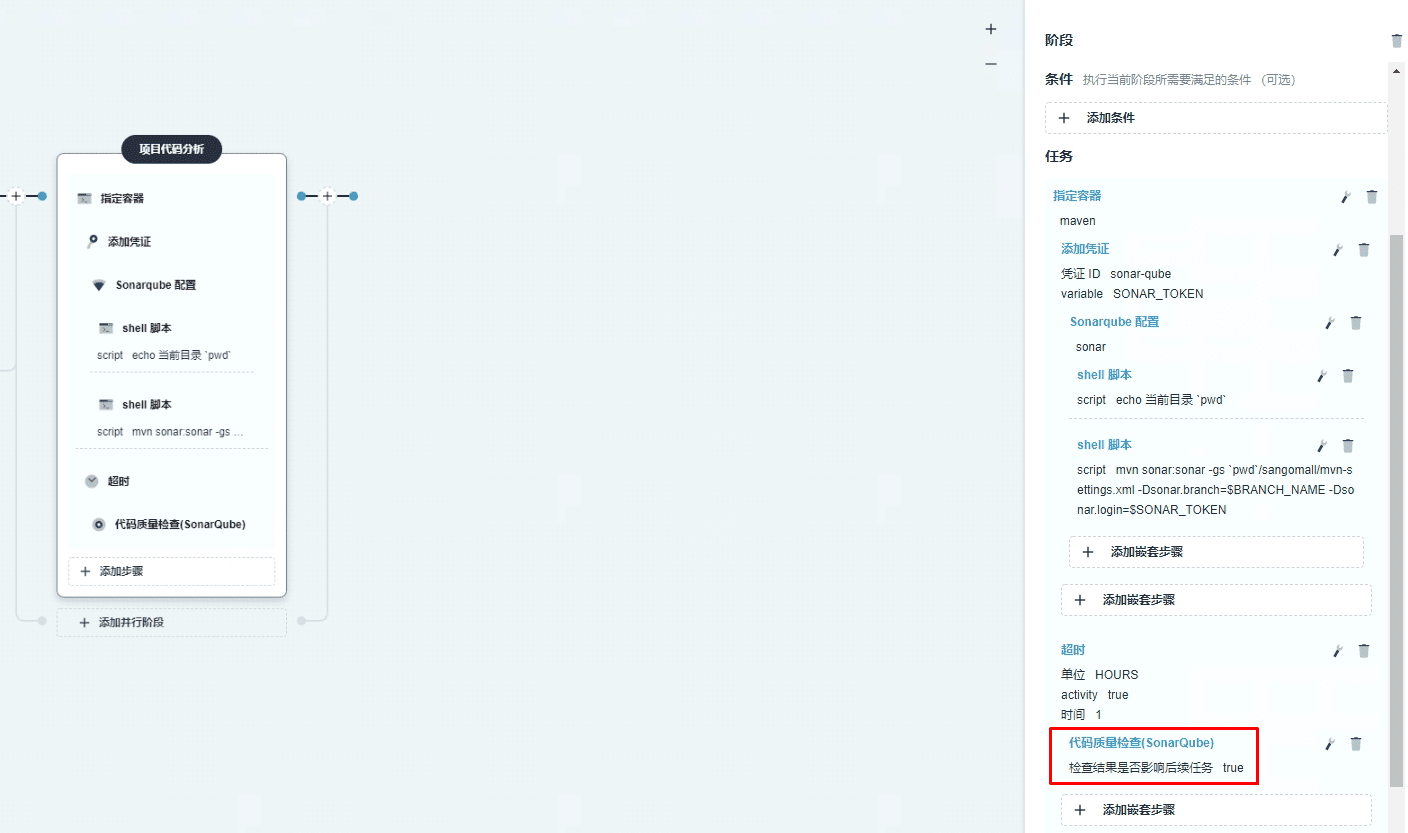

image-20221128114605493

添加sonarqube后流水线内容：
pipeline {
  agent {
    node {
      label 'maven'
    }

  }
  stages {
    stage('获取项目代码') {
      agent none
      steps {
        git(url: 'https://gitee.com/nextgomsb/sangomall.git', credentialsId: 'gitee-id', branch: 'master', changelog: true, poll: false)
        sh '''echo $PROJECT_NAME
echo $PROJECT_VERSION'''
      }
    }


    stage('项目代码分析') {
      agent none
      steps {
        container('maven') {
          withCredentials([string(credentialsId : 'sonar-qube' ,variable : 'SONAR_TOKEN' ,)]) {
            withSonarQubeEnv('sonar') {
              sh 'echo 当前目录 `pwd`'
              sh 'mvn clean install -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
              sh 'mvn sonar:sonar -gs `pwd`/mvn_settings.xml  -Dsonar.login=$SONAR_TOKEN'
            }

          }

          timeout(unit: 'HOURS', activity: true, time: 1) {
            waitForQualityGate 'true'
          }

        }

      }
    }

  }
  environment {
    DOCKER_CREDENTIAL_ID = 'dockerhub-id'
    GITEE_CREDENTIAL_ID = 'gitee-id'
    KUBECONFIG_CREDENTIAL_ID = 'sangomall-kubeconfig'
    REGISTRY = 'docker.io'
    DOCKERHUB_NAMESPACE = 'nextgomsb'
    GITEE_ACCOUNT = 'nextgomsb'
    SONAR_CREDENTIAL_ID = 'sonar-qube'

  }
  parameters {
    string(name: 'PROJECT_VERSION', defaultValue: 'v1.0', description: '')
    string(name: 'PROJECT_NAME', defaultValue: '', description: '')
  }
}

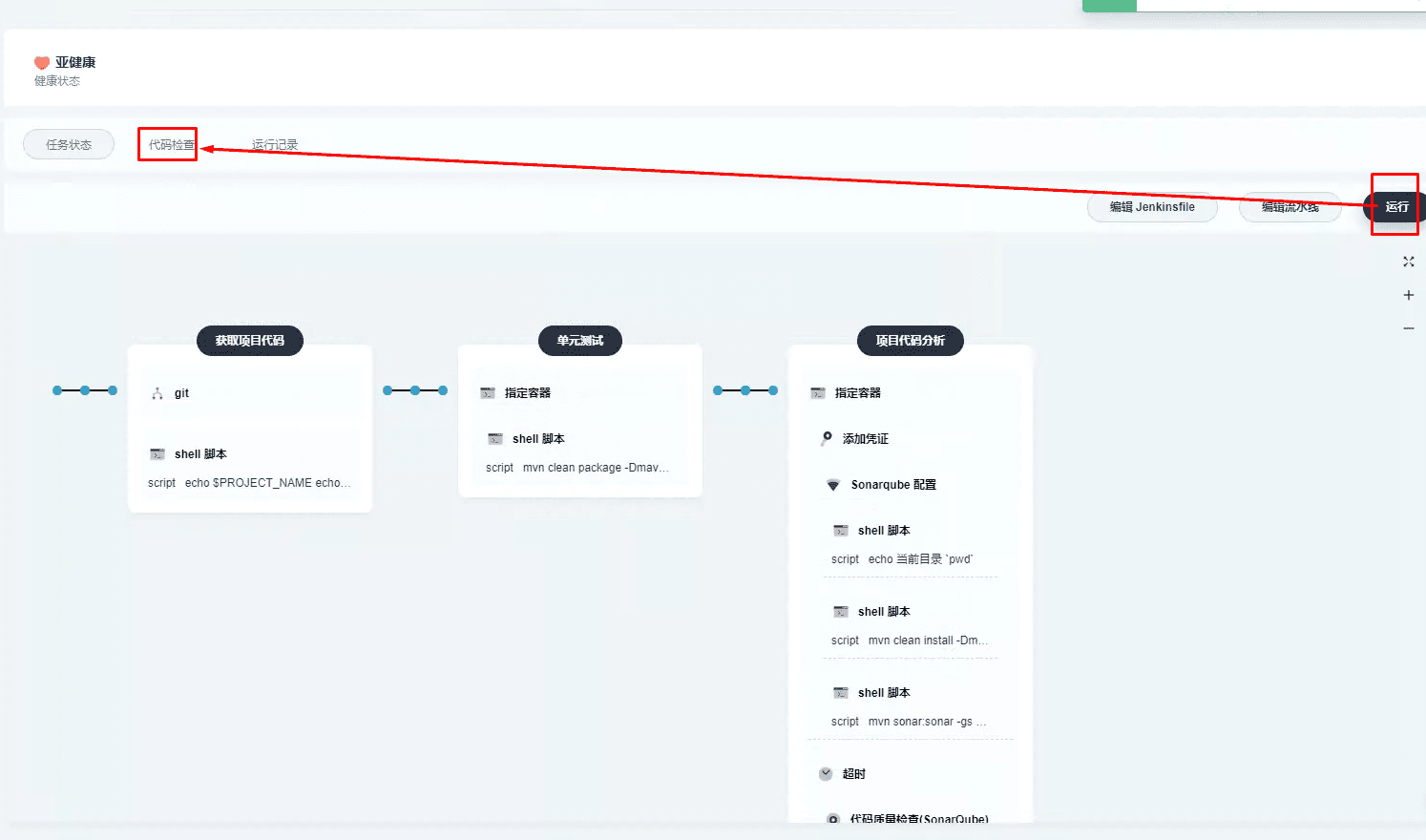

image-20221128144347484

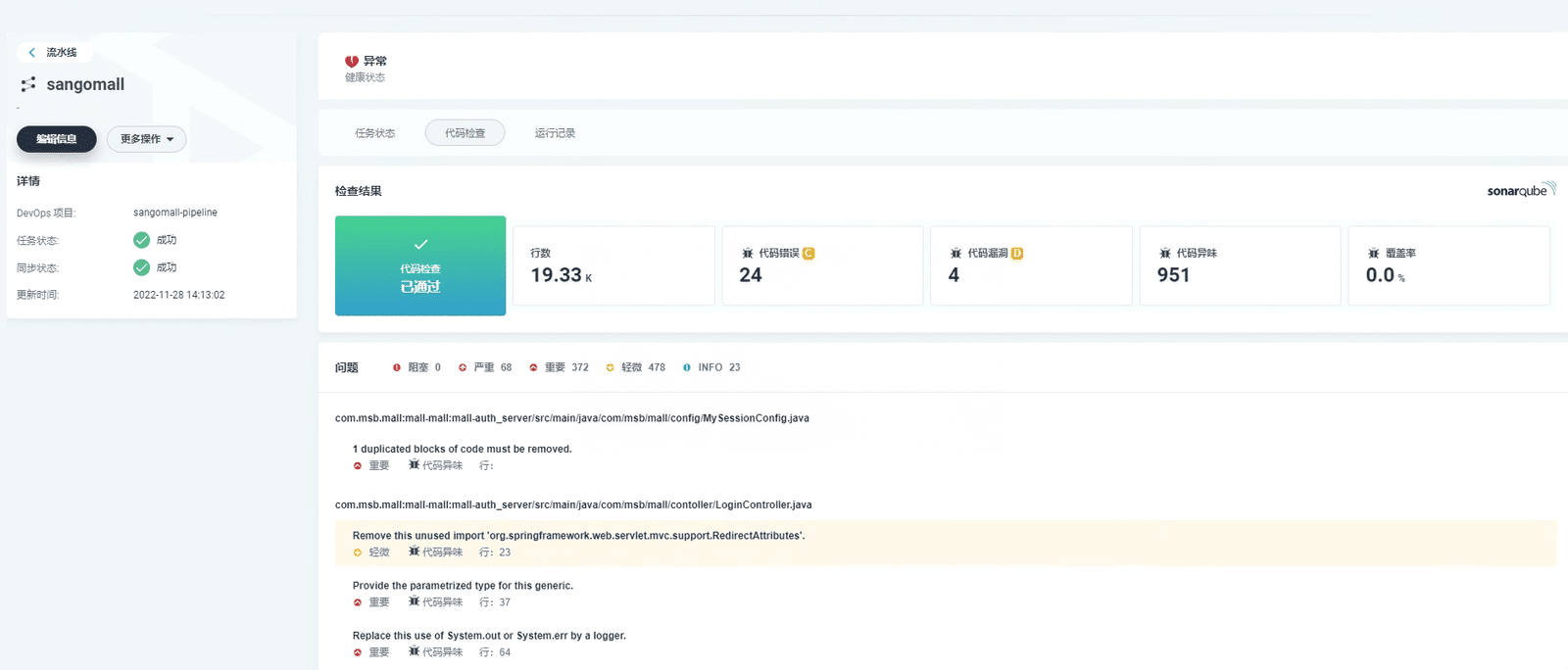

image-20221128141902772

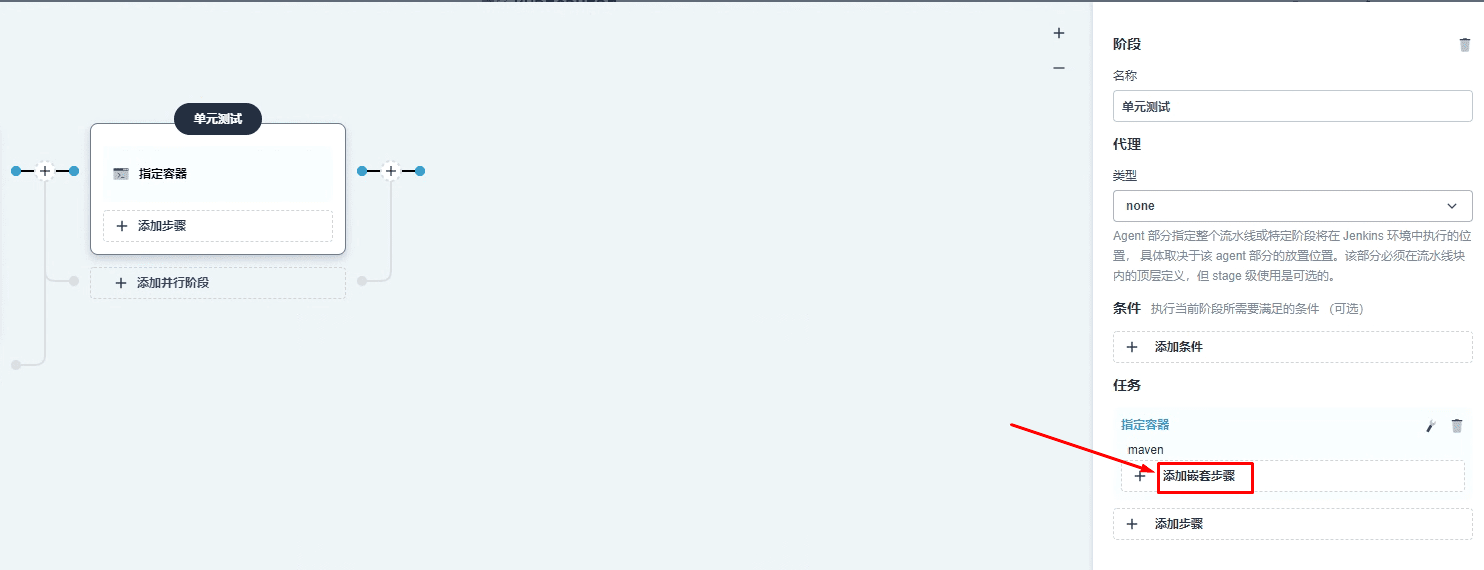

五、通过KubeSphere部署之单元测试集成至流水线编写

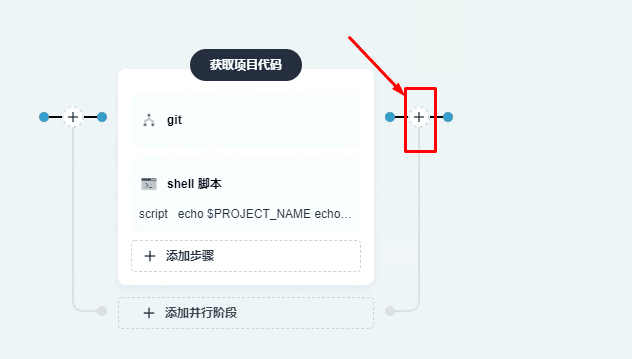

image-20221128103227797

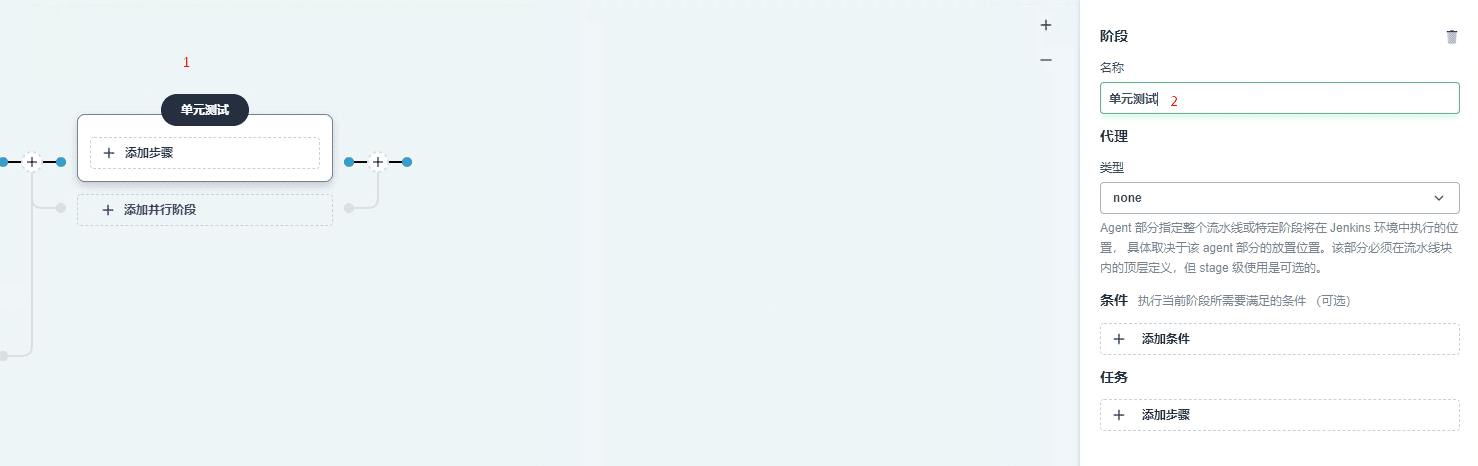

image-20221128103323127

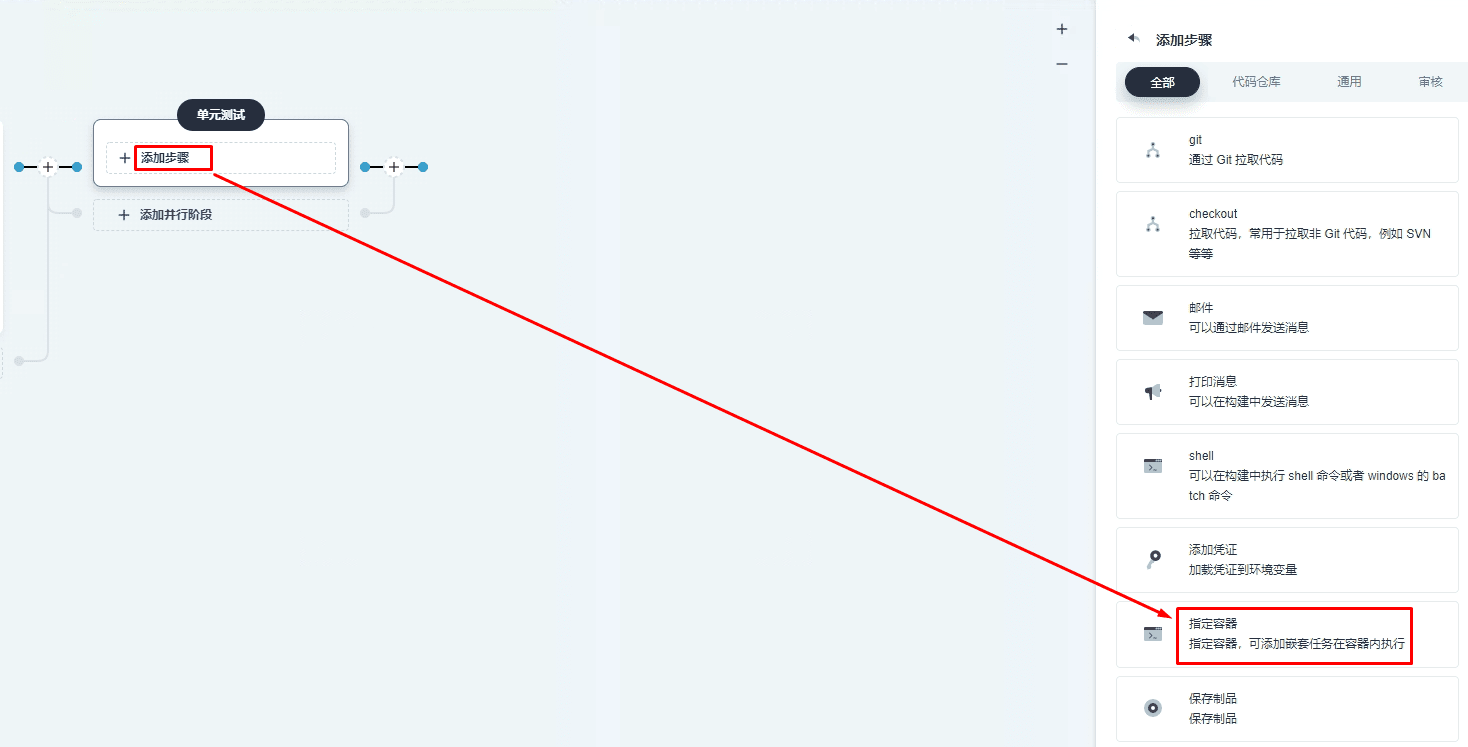

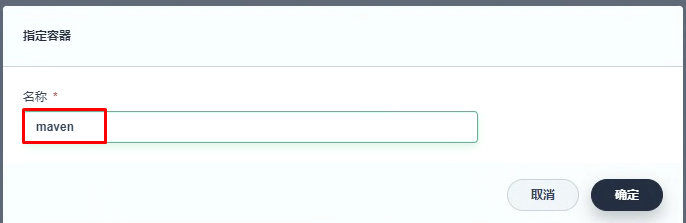

image-20221128103353780

image-20221128103423509

image-20221128103449658

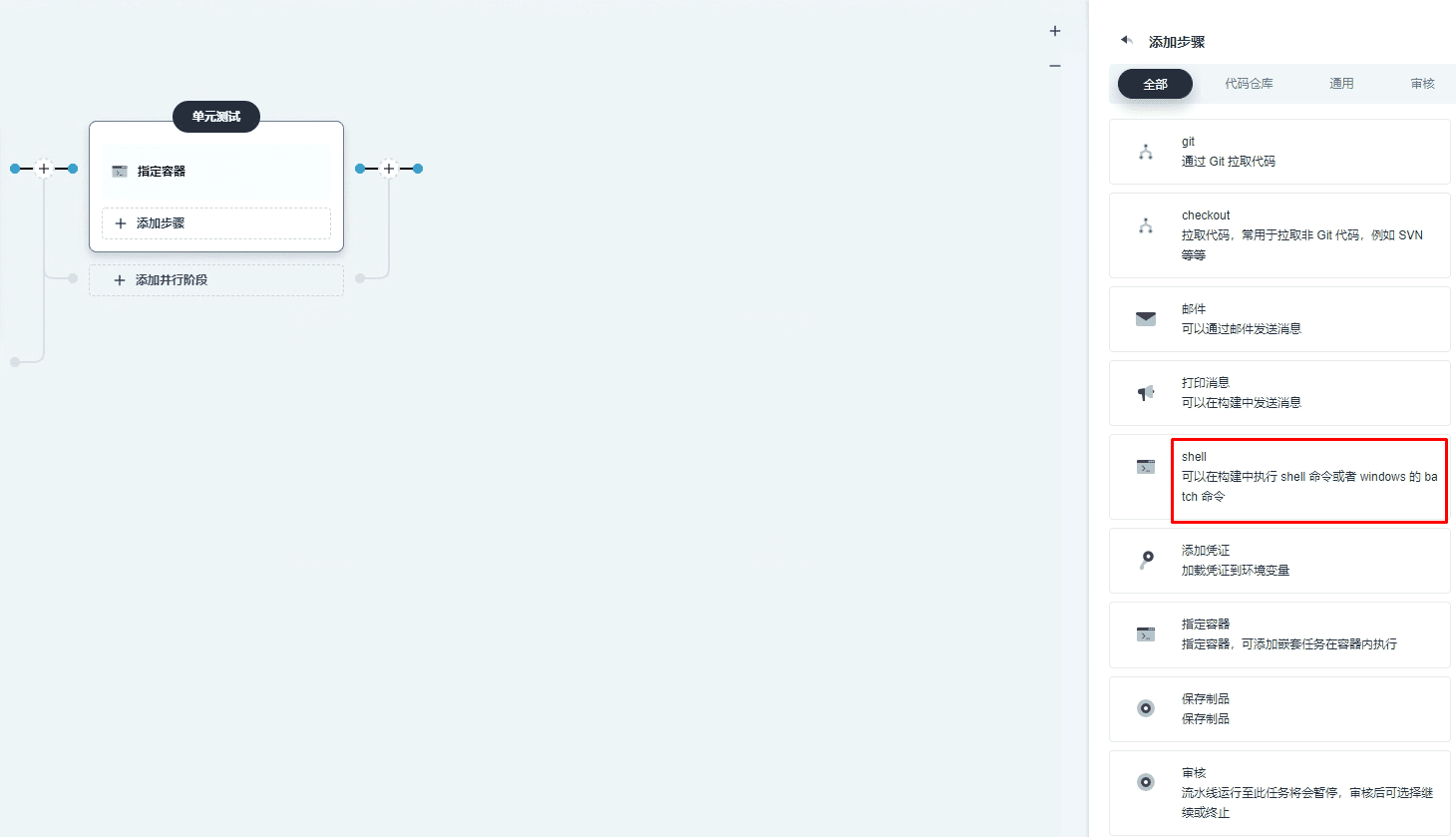

image-20221128103511027

mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml

image-20221128143316979

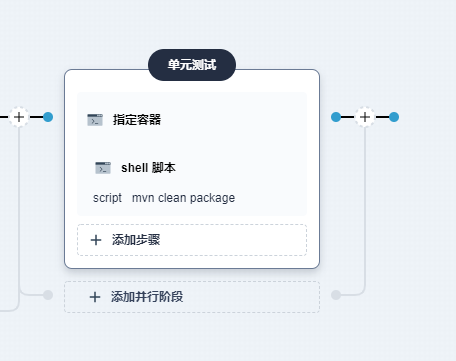

image-20221128103632834

添加单元测试后jenkinsfile内容：
添加sonarqube后流水线内容：
pipeline {
  agent {
    node {
      label 'maven'
    }

  }
  stages {
    stage('获取项目代码') {
      agent none
      steps {
        git(url: 'https://gitee.com/nextgomsb/sangomall.git', credentialsId: 'gitee-id', branch: 'master', changelog: true, poll: false)
        sh '''echo $PROJECT_NAME
echo $PROJECT_VERSION'''
      }
    }



    stage('项目代码分析') {
      agent none
      steps {
        container('maven') {
          withCredentials([string(credentialsId : 'sonar-qube' ,variable : 'SONAR_TOKEN' ,)]) {
            withSonarQubeEnv('sonar') {
              sh 'echo 当前目录 `pwd`'
              sh 'mvn clean install -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
              sh 'mvn sonar:sonar -gs `pwd`/mvn_settings.xml  -Dsonar.login=$SONAR_TOKEN'
            }

          }

          timeout(unit: 'HOURS', activity: true, time: 1) {
            waitForQualityGate 'true'
          }

        }

      }
    }

     stage('单元测试') {
      agent none
      steps {
        container('maven') {
          sh 'mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
        }

      }
    }

  }
  environment {
    DOCKER_CREDENTIAL_ID = 'dockerhub-id'
    GITEE_CREDENTIAL_ID = 'gitee-id'
    KUBECONFIG_CREDENTIAL_ID = 'sangomall-kubeconfig'
    REGISTRY = 'docker.io'
    DOCKERHUB_NAMESPACE = 'nextgomsb'
    GITEE_ACCOUNT = 'nextgomsb'
    SONAR_CREDENTIAL_ID = 'sonar-qube'

  }
  parameters {
    string(name: 'PROJECT_VERSION', defaultValue: 'v1.0', description: '')
    string(name: 'PROJECT_NAME', defaultValue: '', description: '')
  }
}

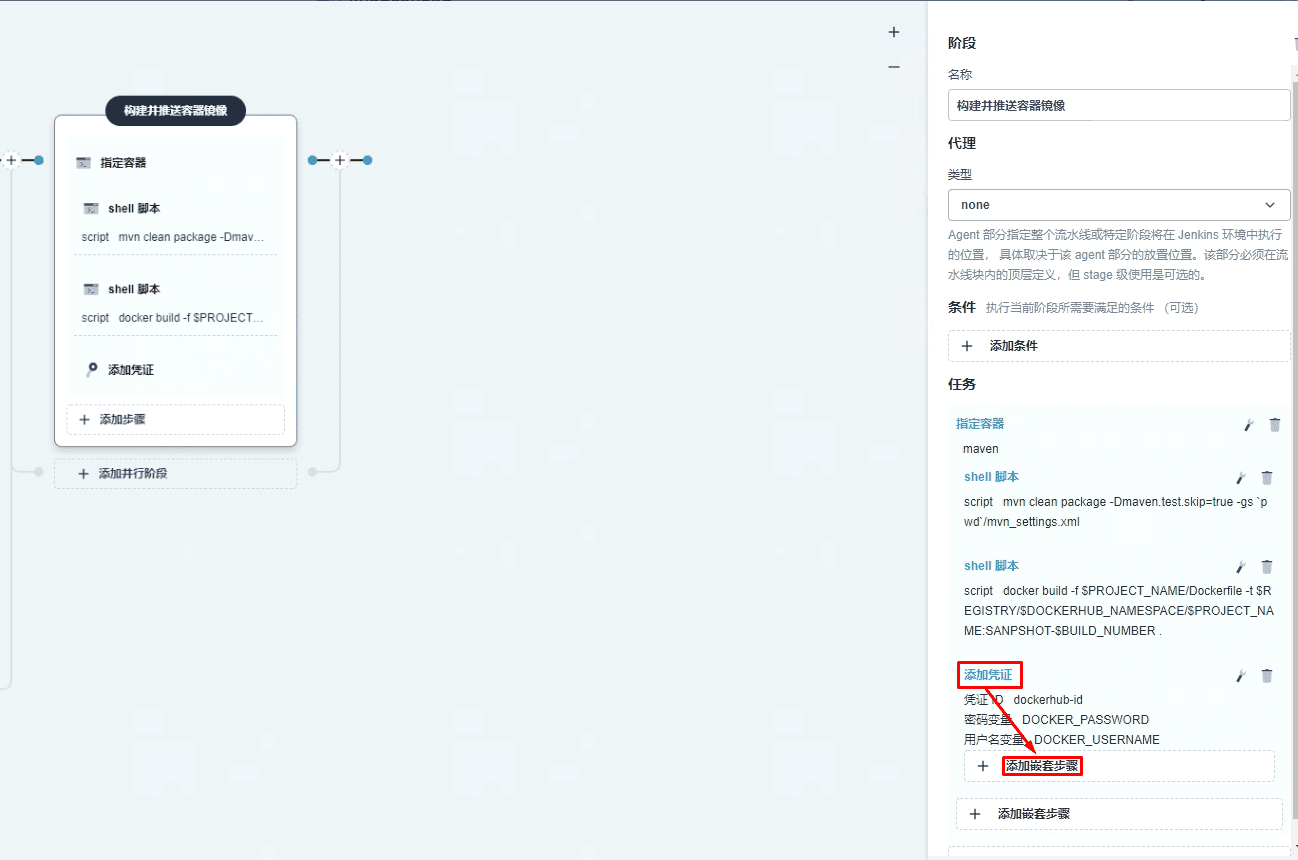

六、通过KubeSphere部署之构建项目镜像及推送镜像至dockerhub流水线编写

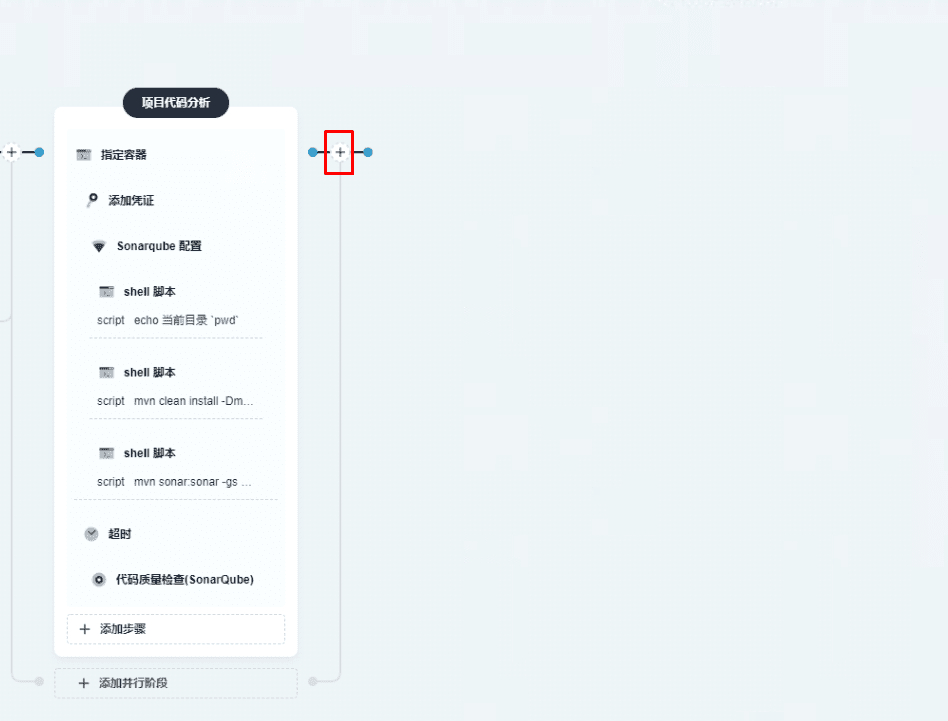

image-20221128145242766

image-20221128145325385

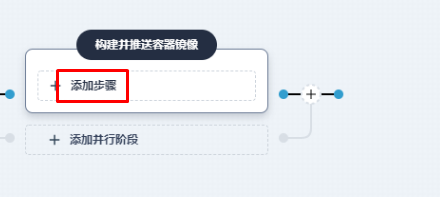

image-20221128145338427

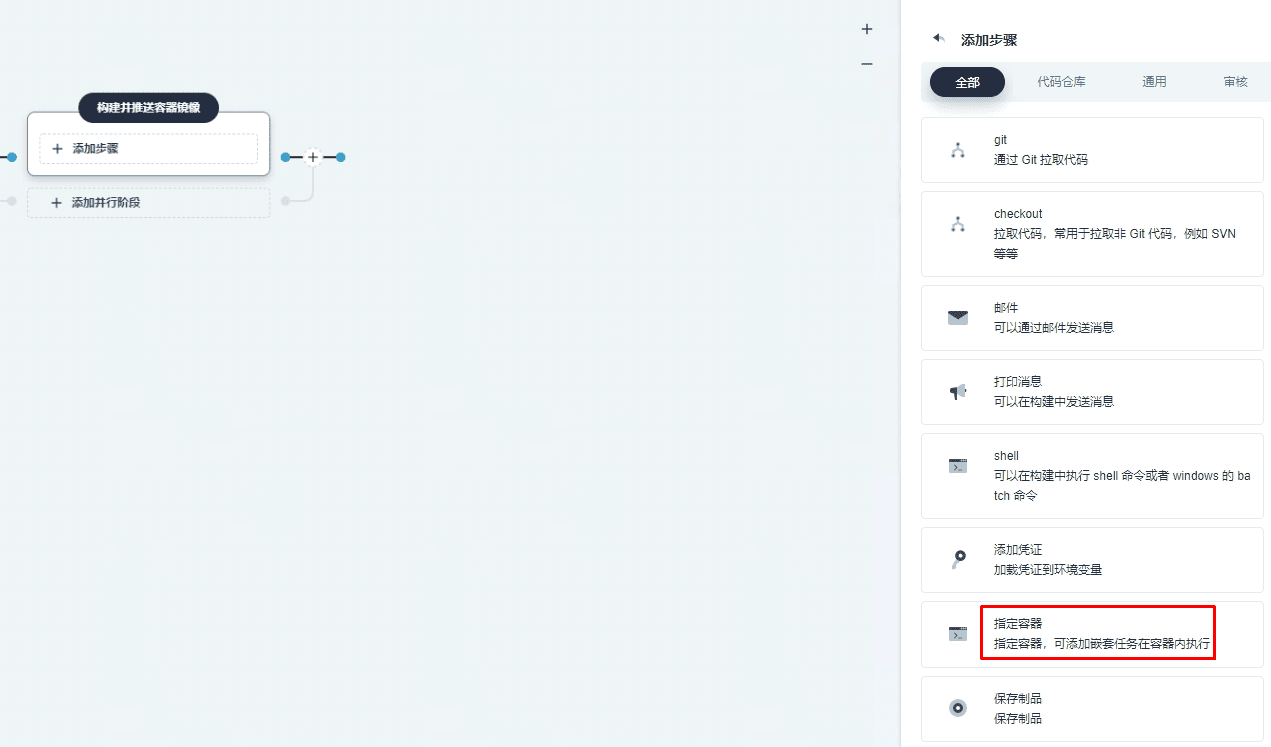

image-20221128145401549

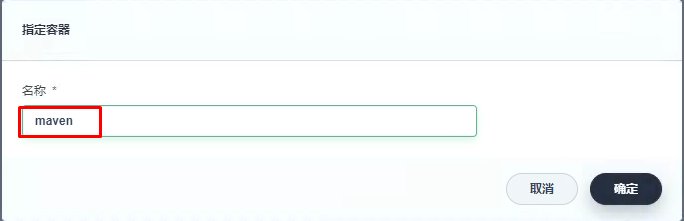

image-20221128145424178

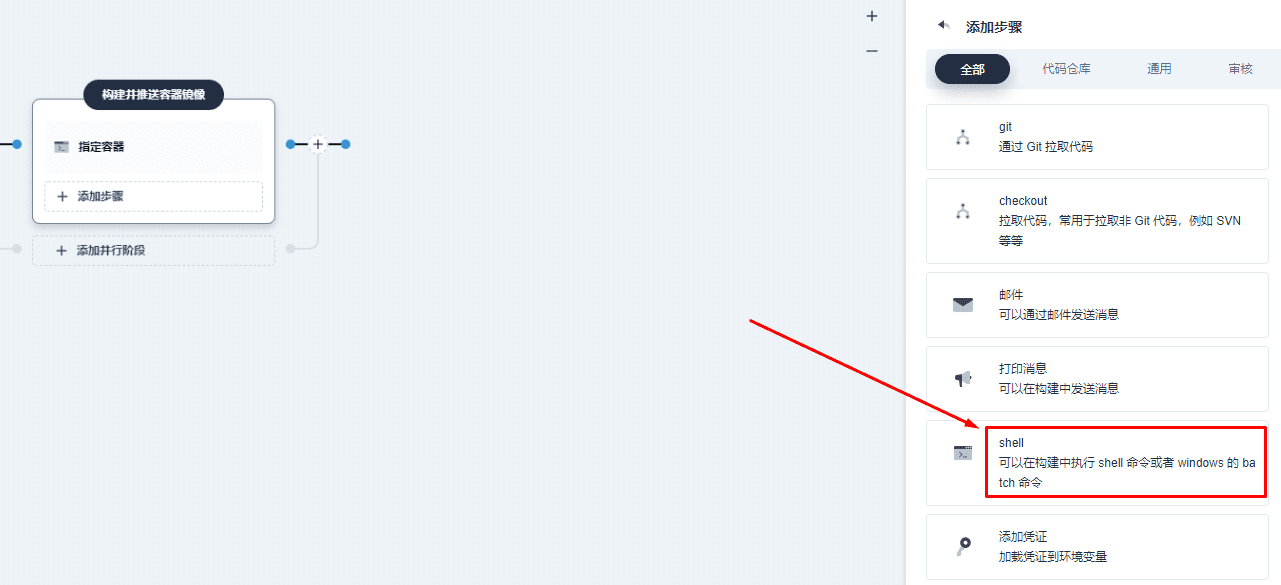

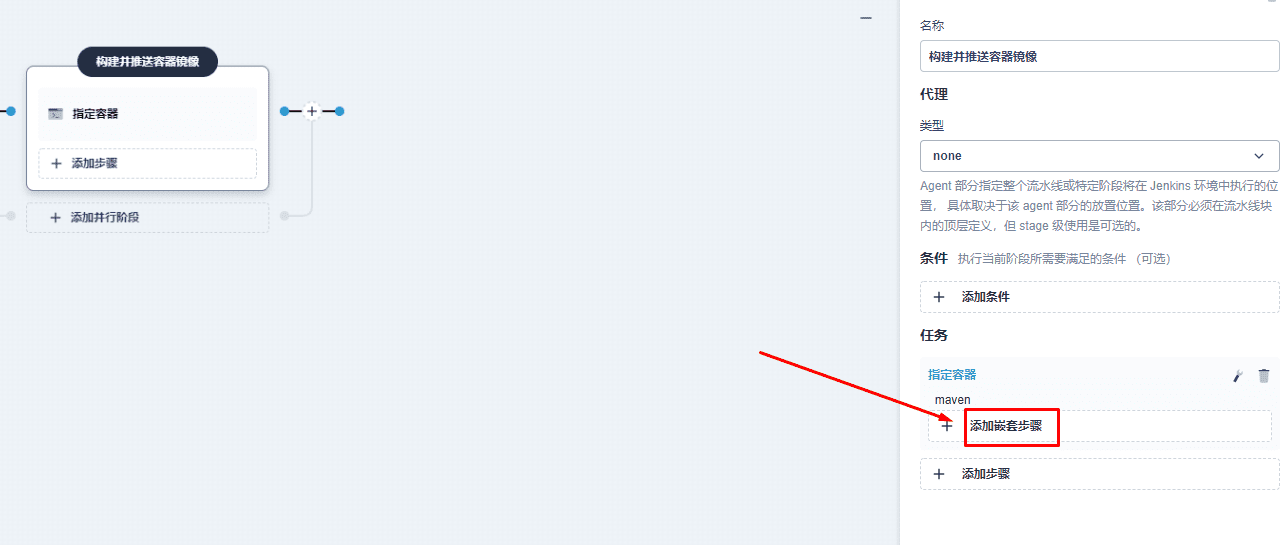

image-20221128145443792

image-20221128145506967

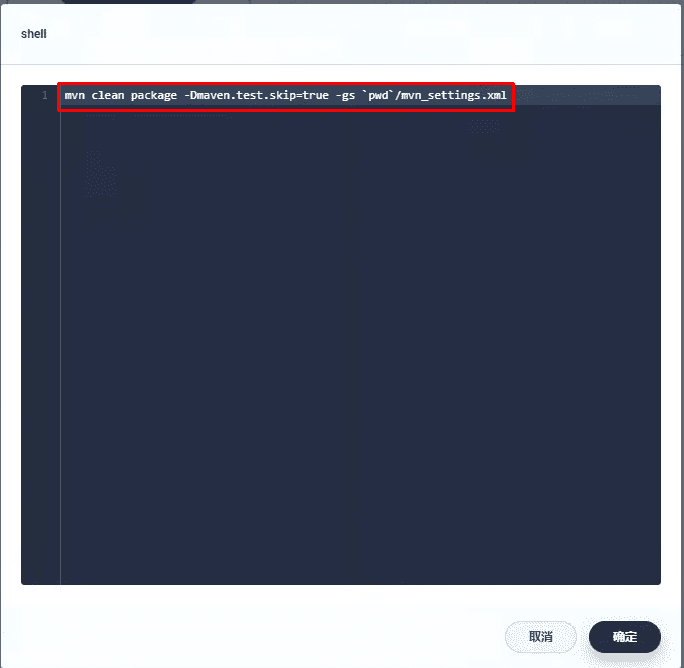

image-20221128145557419

mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml

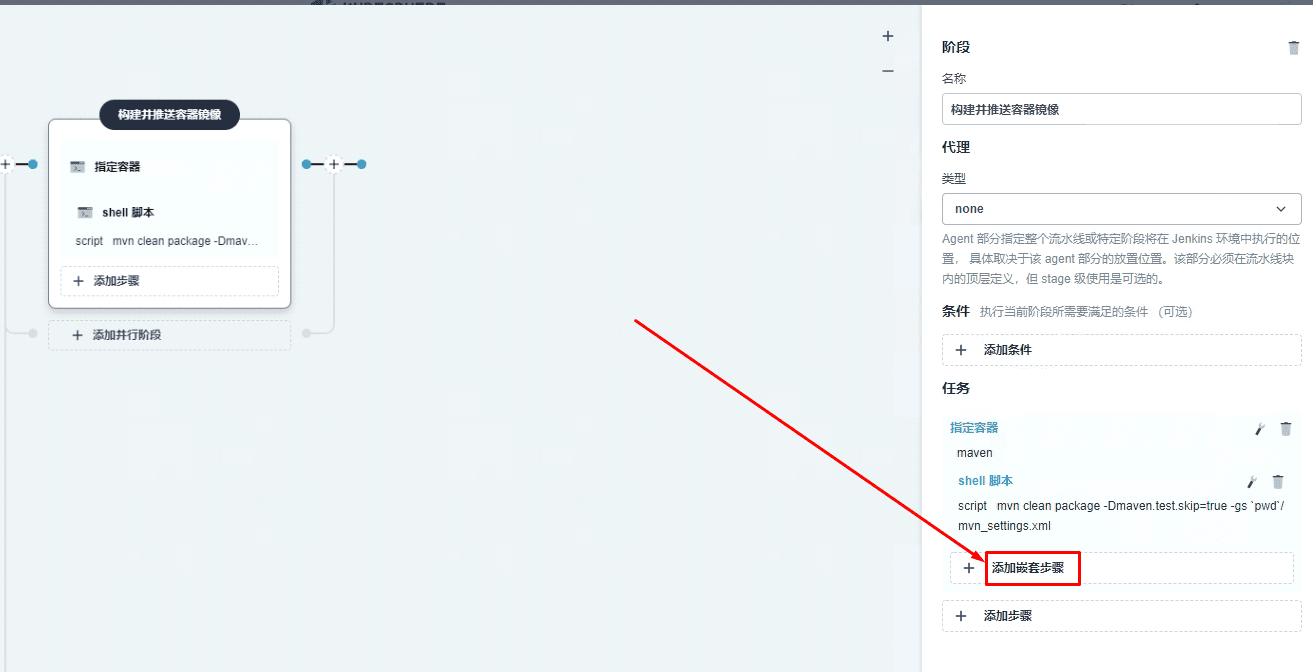

image-20221128145706021

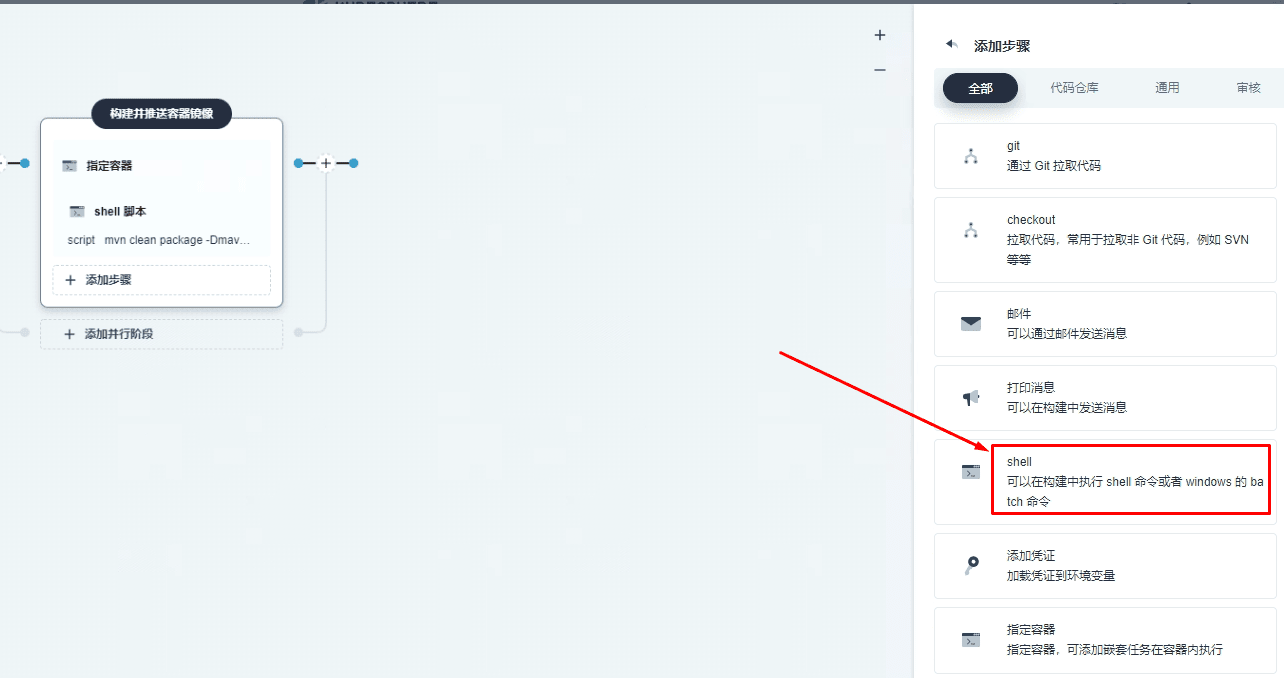

image-20221128145728241

image-20221128160439649

cd $PROJECT_NAME && docker build -f Dockerfile -t $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER .

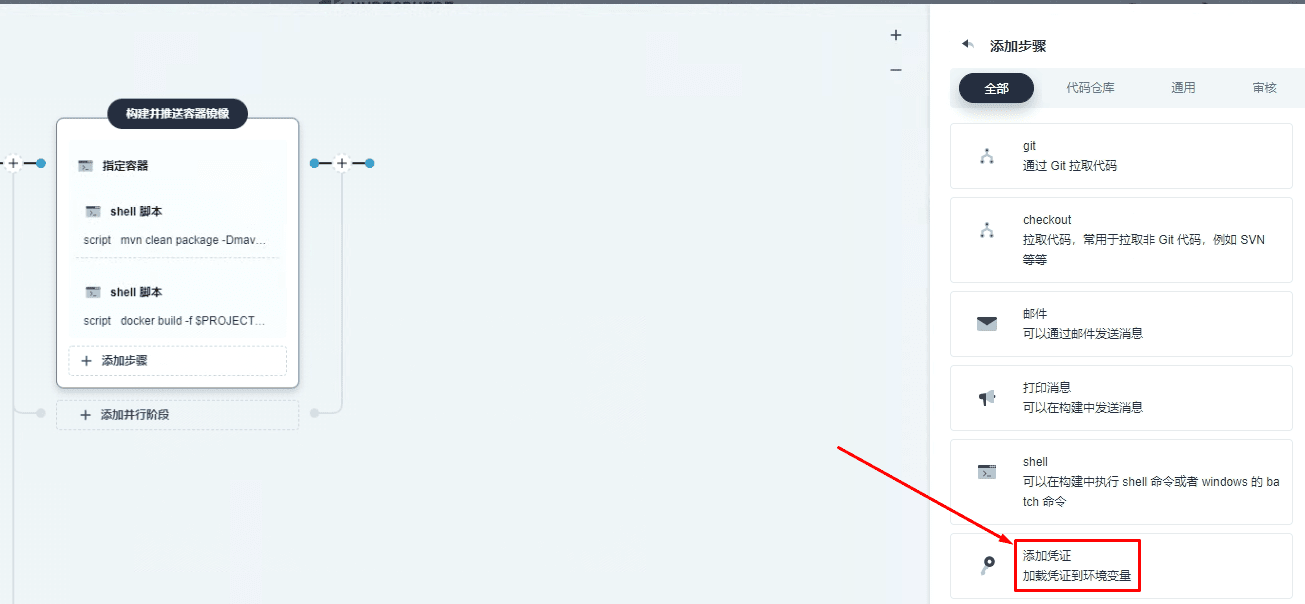

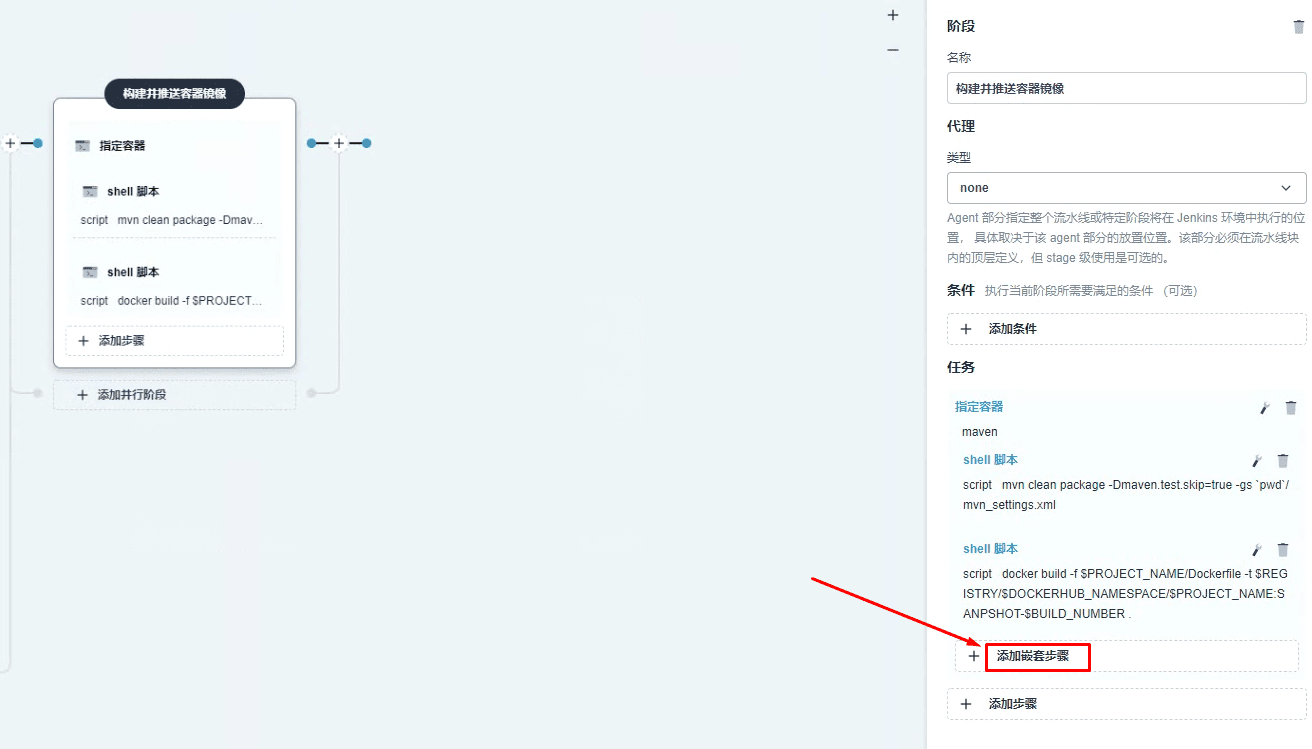

image-20221128152150147

image-20221128152219521

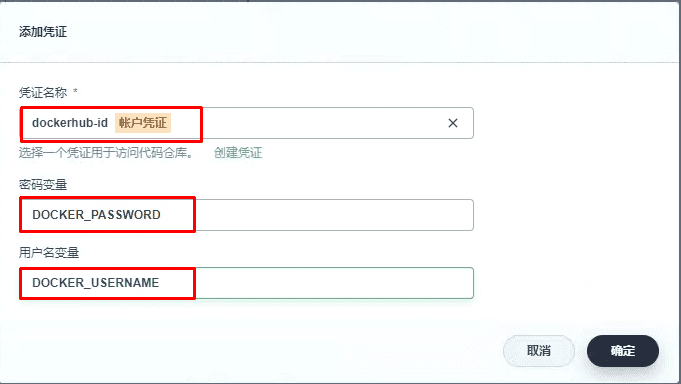

image-20221128152323287

image-20221128152417516

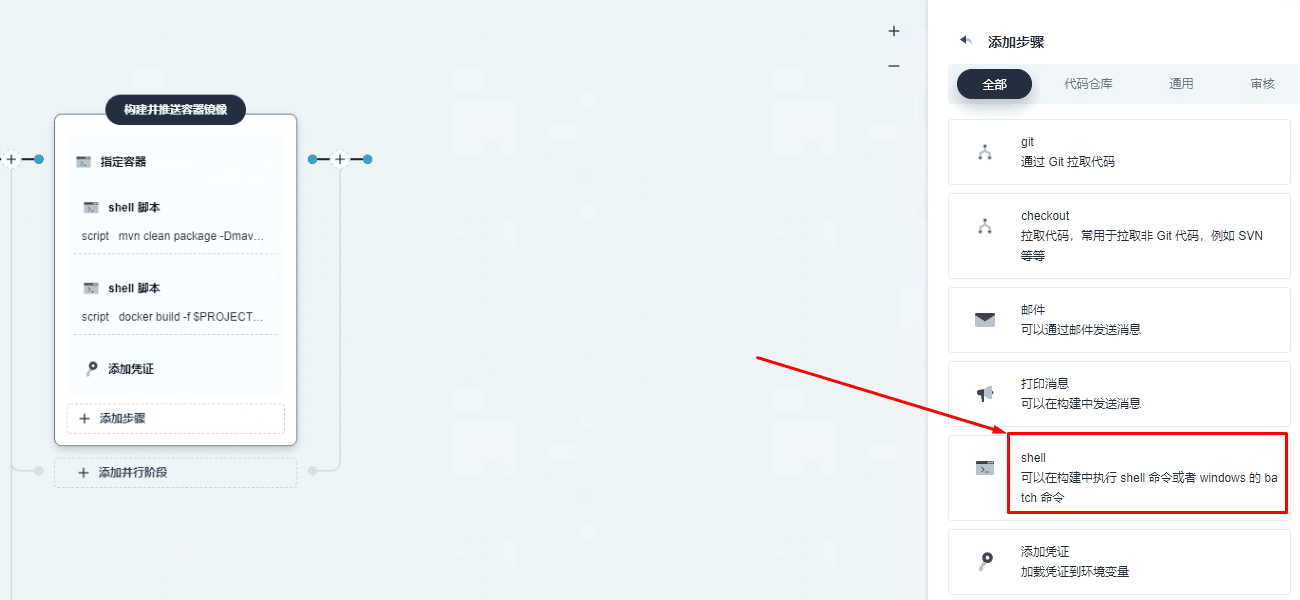

image-20221128152451286

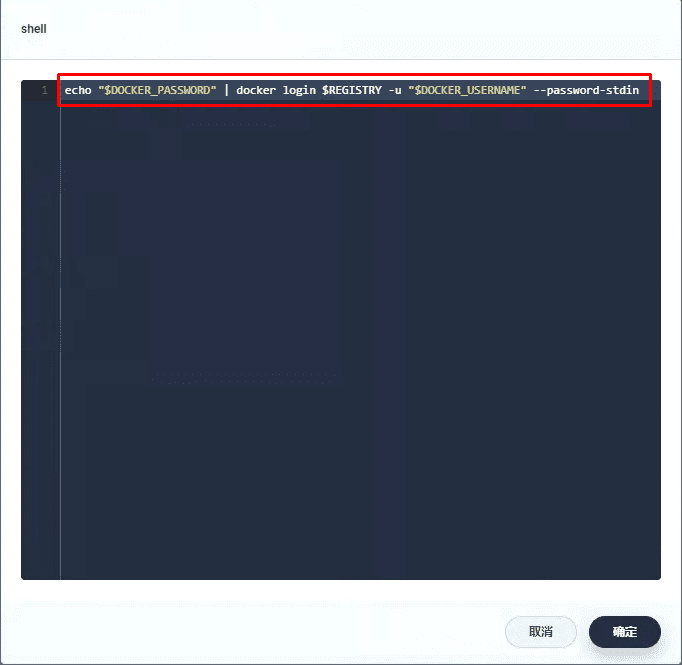

echo "$DOCKER_PASSWORD" | docker login $REGISTRY -u "$DOCKER_USERNAME" --password-stdin

image-20221128152551249

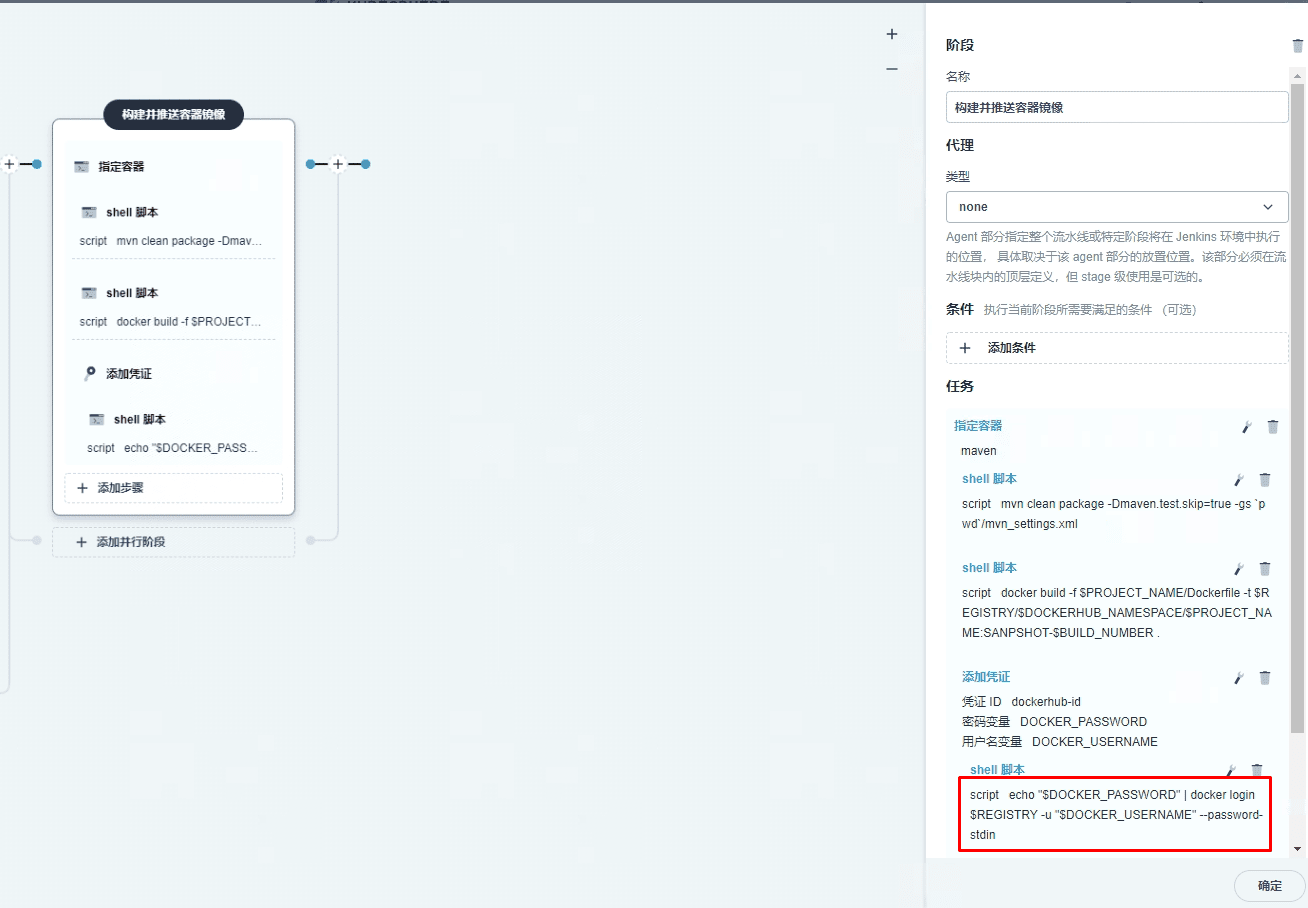

image-20221128152622854

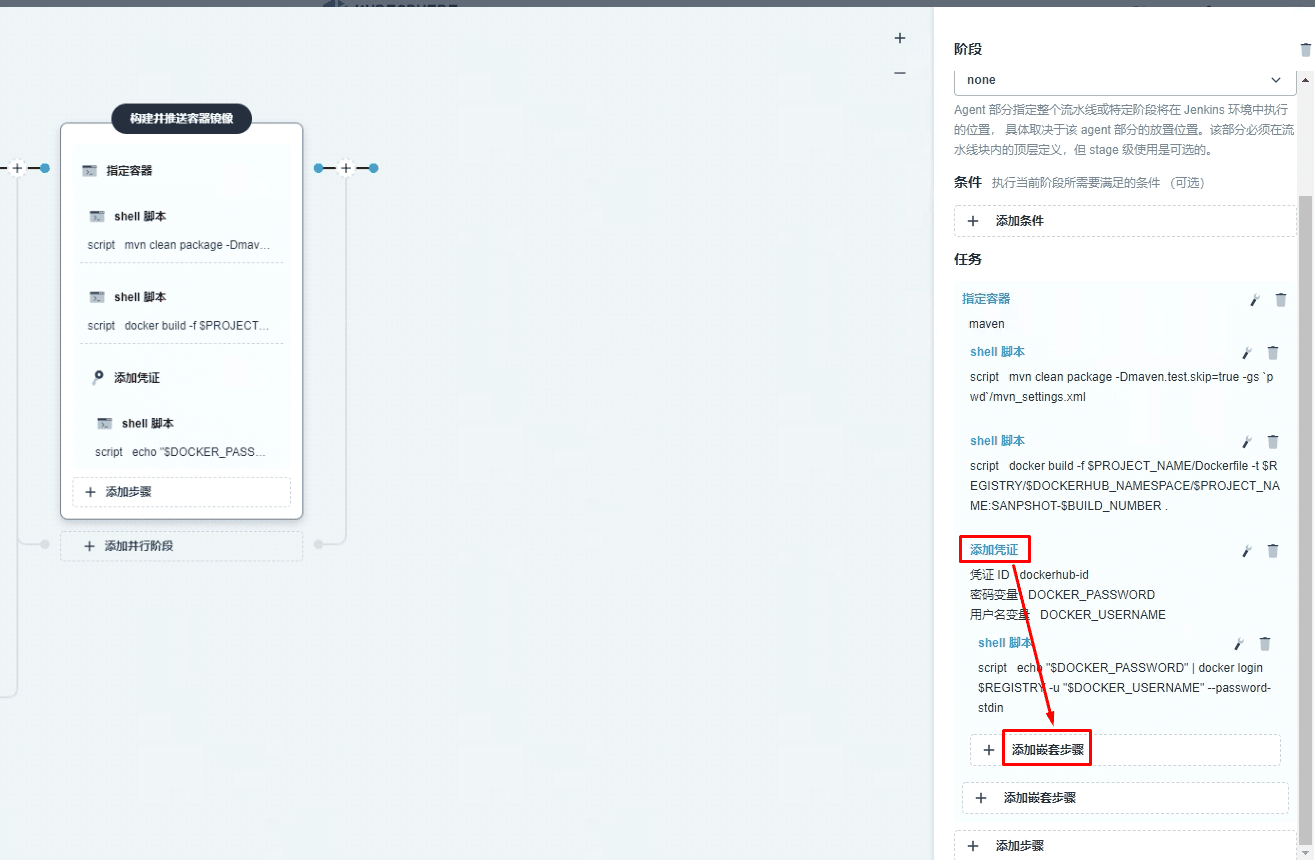

image-20221128152710561

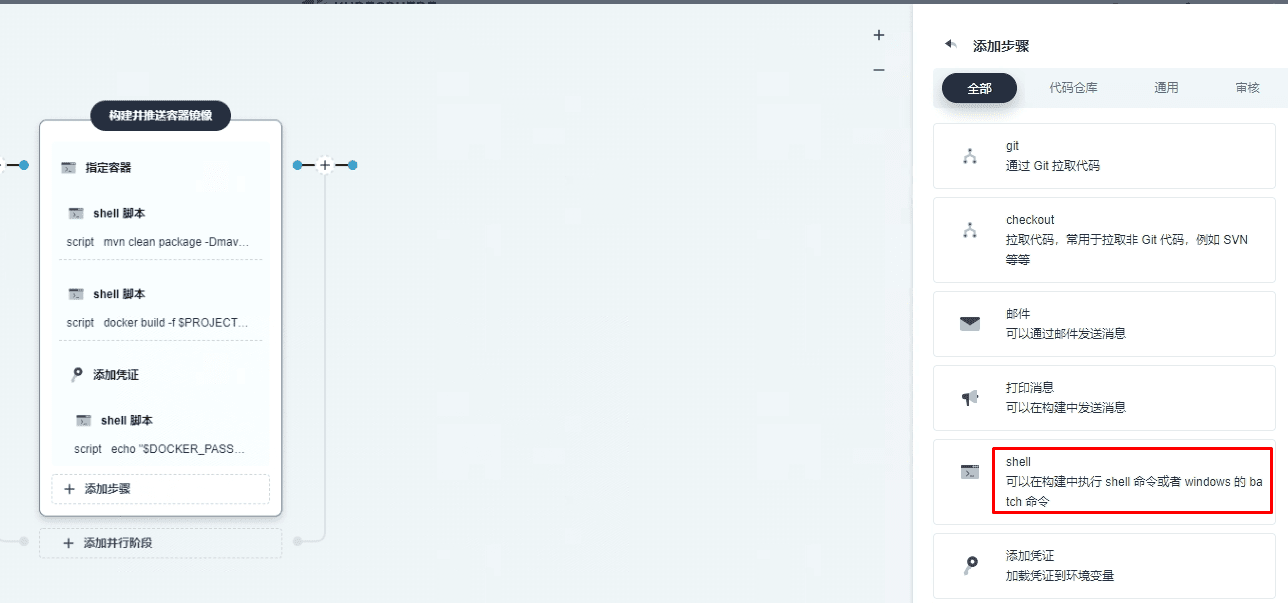

image-20221128152732871

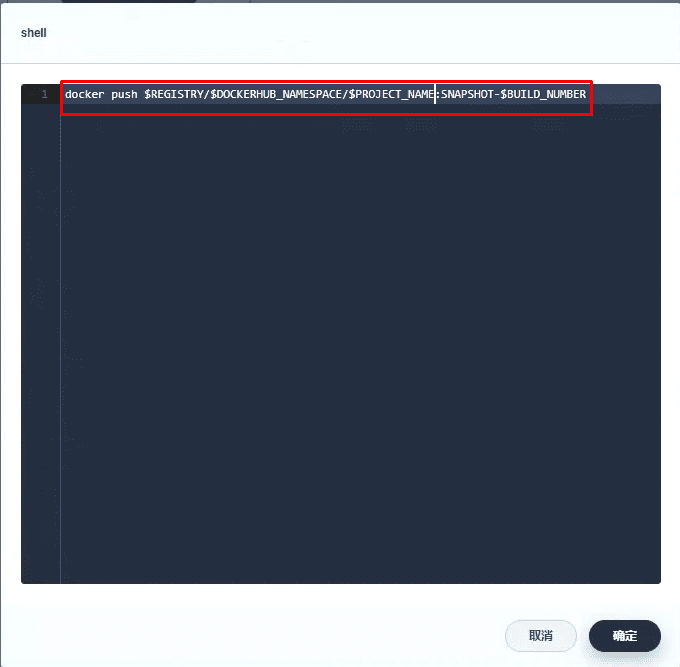

docker push $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER

image-20221128152852509

添加构建与推送容器镜像后内容如下：

pipeline {
  agent {
    node {
      label 'maven'
    }

  }
  stages {
    stage('获取项目代码') {
      agent none
      steps {
        git(url: 'https://gitee.com/nextgomsb/sangomall.git', credentialsId: 'gitee-id', branch: 'master', changelog: true, poll: false)
        sh '''echo $PROJECT_NAME
echo $PROJECT_VERSION'''
      }
    }

    stage('单元测试') {
      agent none
      steps {
        container('maven') {
          sh 'mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
        }

      }
    }

    stage('项目代码分析') {
      agent none
      steps {
        container('maven') {
          withCredentials([string(credentialsId : 'sonar-qube' ,variable : 'SONAR_TOKEN' ,)]) {
            withSonarQubeEnv('sonar') {
              sh 'echo 当前目录 `pwd`'
              sh 'mvn clean install -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
              sh 'mvn sonar:sonar -gs `pwd`/mvn_settings.xml  -Dsonar.login=$SONAR_TOKEN'
            }

          }

          timeout(unit: 'HOURS', activity: true, time: 1) {
            waitForQualityGate 'true'
          }

        }

      }
    }

    stage('构建并推送容器镜像') {
      agent none
      steps {
        container('maven') {
          sh 'mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
          sh 'cd $PROJECT_NAME && docker build -f Dockerfile -t $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER .'
          withCredentials([usernamePassword(credentialsId : 'dockerhub-id' ,passwordVariable : 'DOCKER_PASSWORD' ,usernameVariable : 'DOCKER_USERNAME' ,)]) {
            sh 'echo "$DOCKER_PASSWORD" | docker login $REGISTRY -u "$DOCKER_USERNAME" --password-stdin'
            sh 'echo $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER'
            sh 'docker push $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER'
          }

        }

      }
    }

  }
  environment {
    DOCKER_CREDENTIAL_ID = 'dockerhub-id'
    GITEE_CREDENTIAL_ID = 'gitee-id'
    KUBECONFIG_CREDENTIAL_ID = 'sangomall-kubeconfig'
    REGISTRY = 'docker.io'
    DOCKERHUB_NAMESPACE= 'nextgomsb'
    GITEE_ACCOUNT = 'nextgomsb'
    SONAR_CREDENTIAL_ID = 'sonar-qube'
  }
  parameters {
    string(name: 'PROJECT_VERSION', defaultValue: 'v1.0', description: '')
    string(name: 'PROJECT_NAME', defaultValue: '', description: '')
  }
}

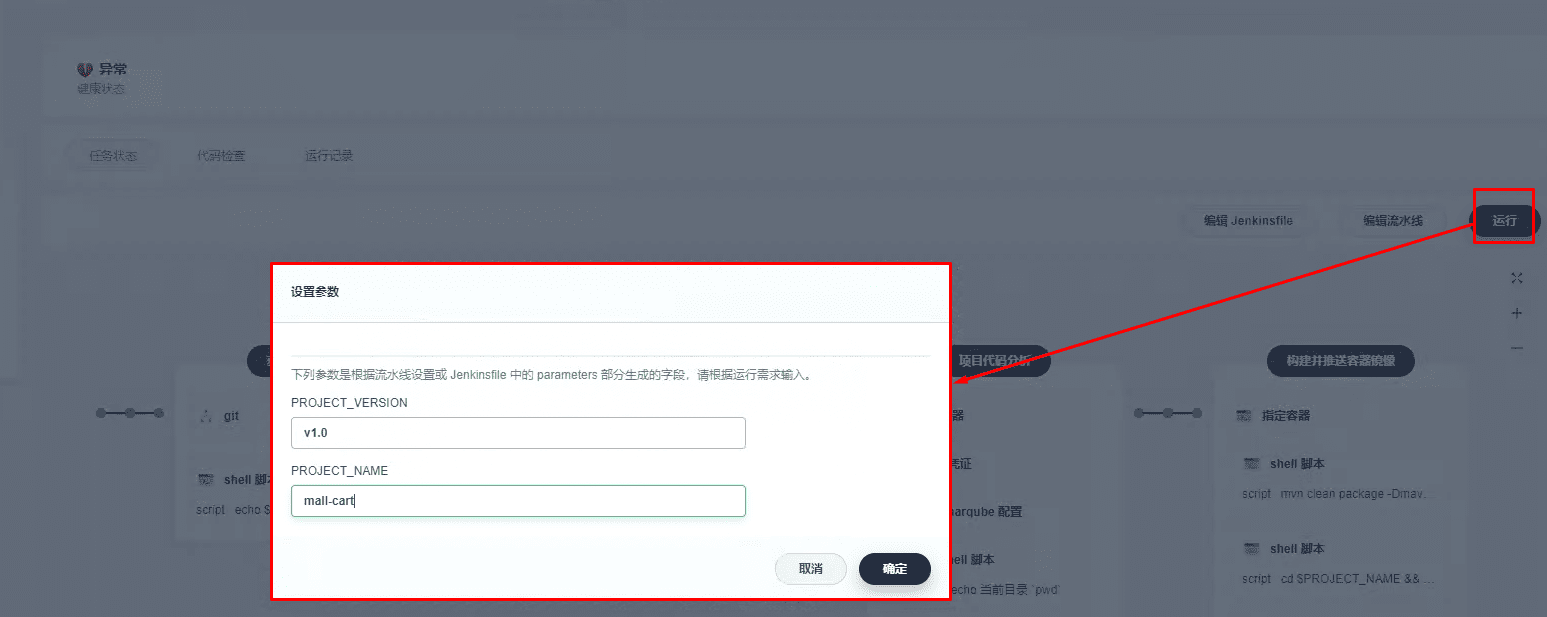

image-20221128160611270

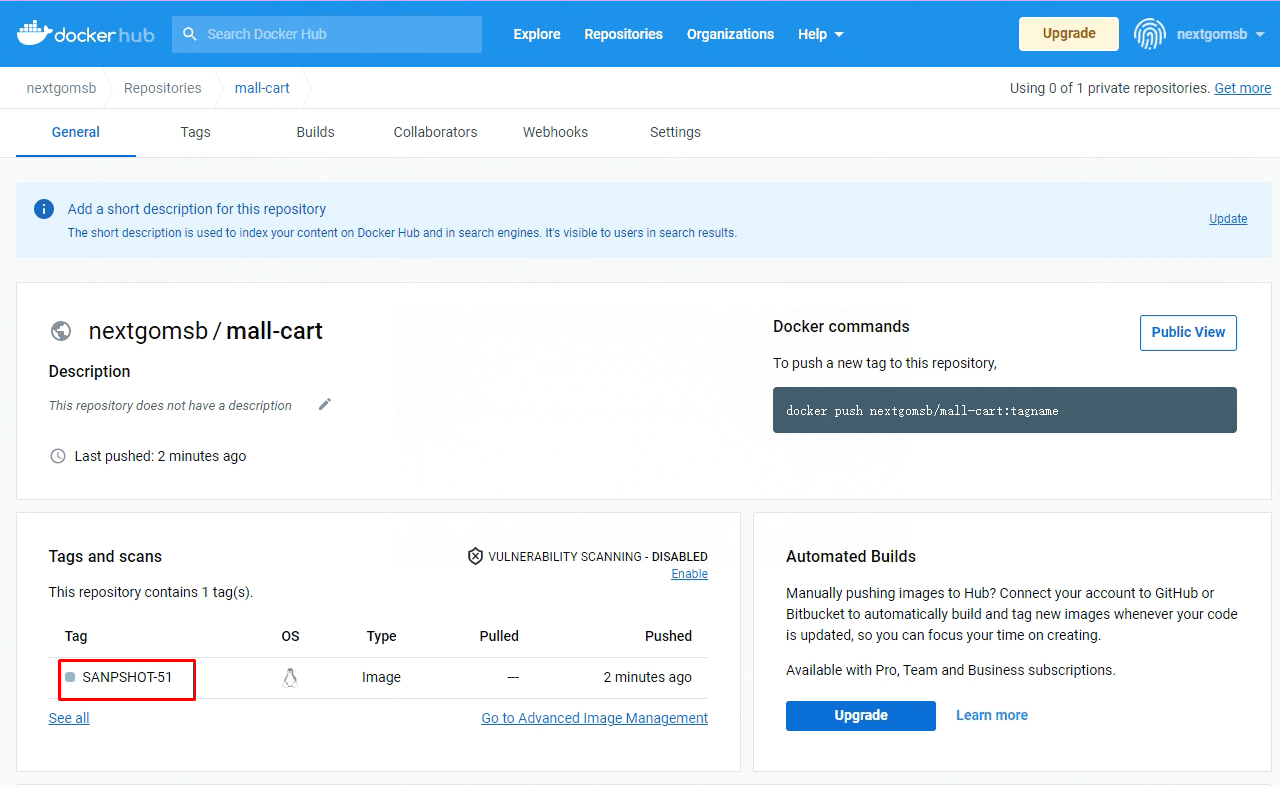

image-20221129123418124

推送最终容器镜像到DockerHub仓库

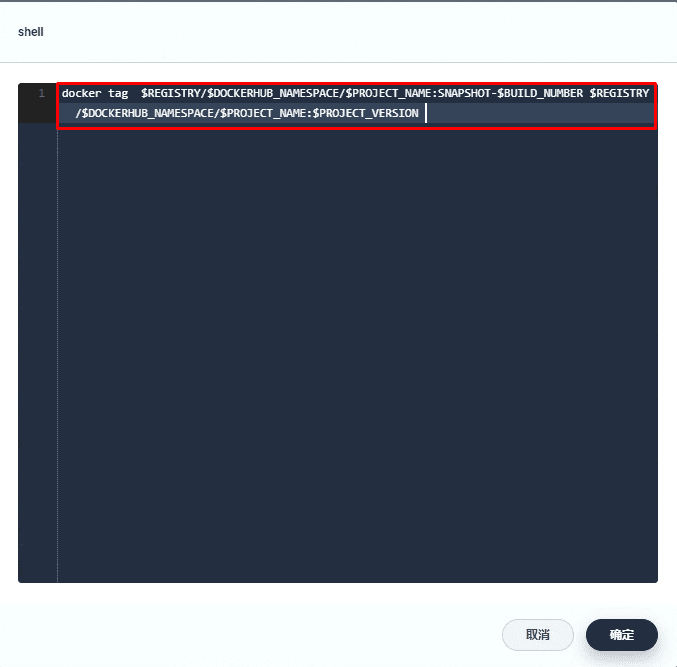

docker tag  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:latest

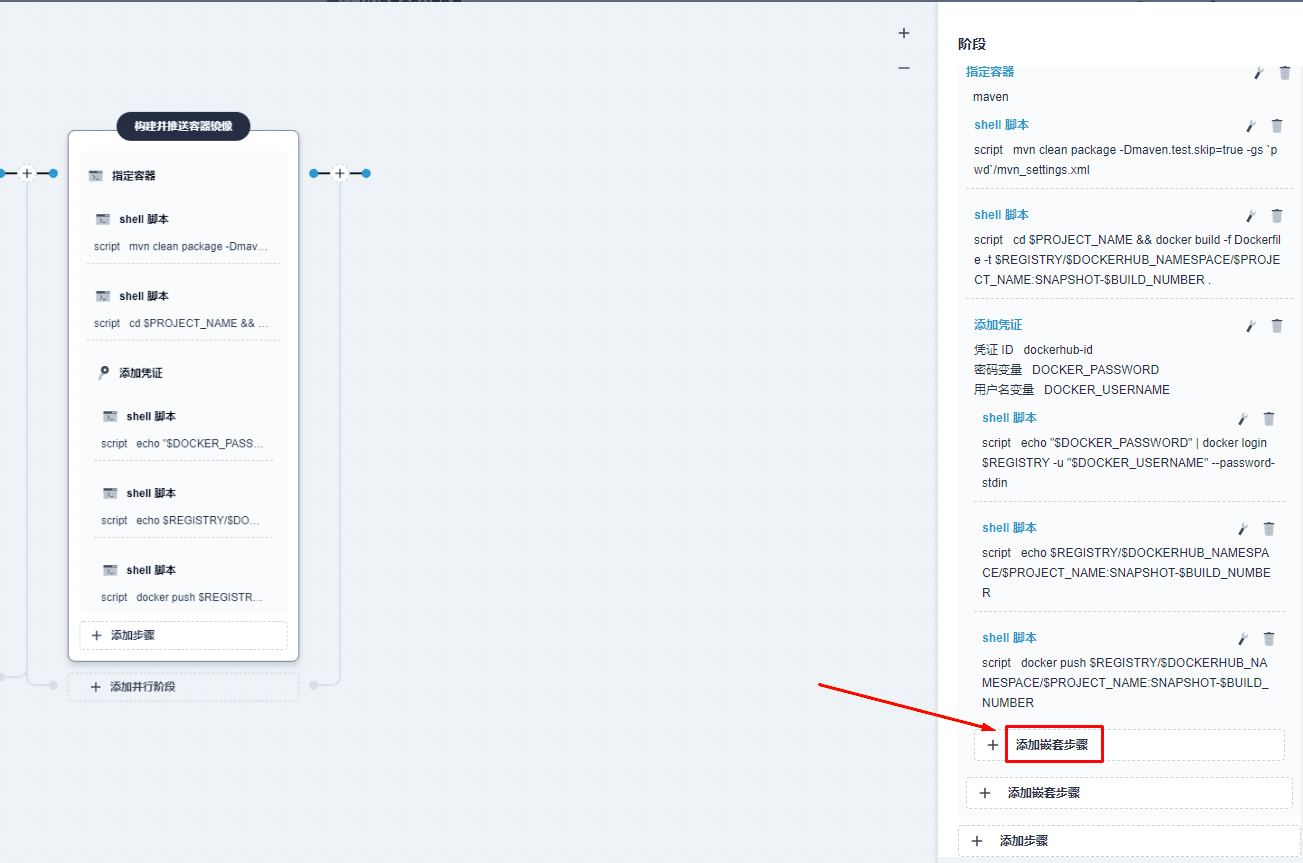

image-20221129135523996

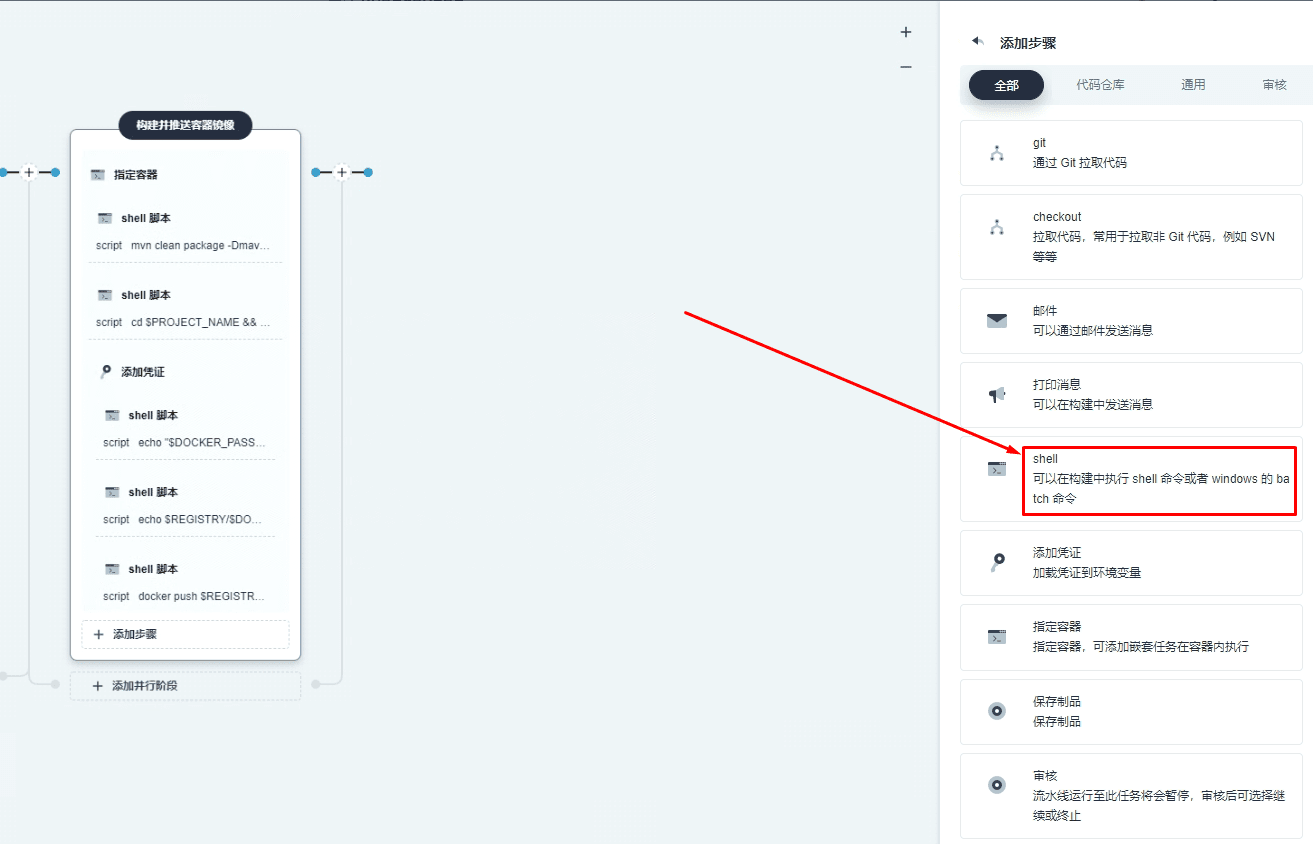

image-20221129135554135

image-20221129135633062

docker push  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:latest

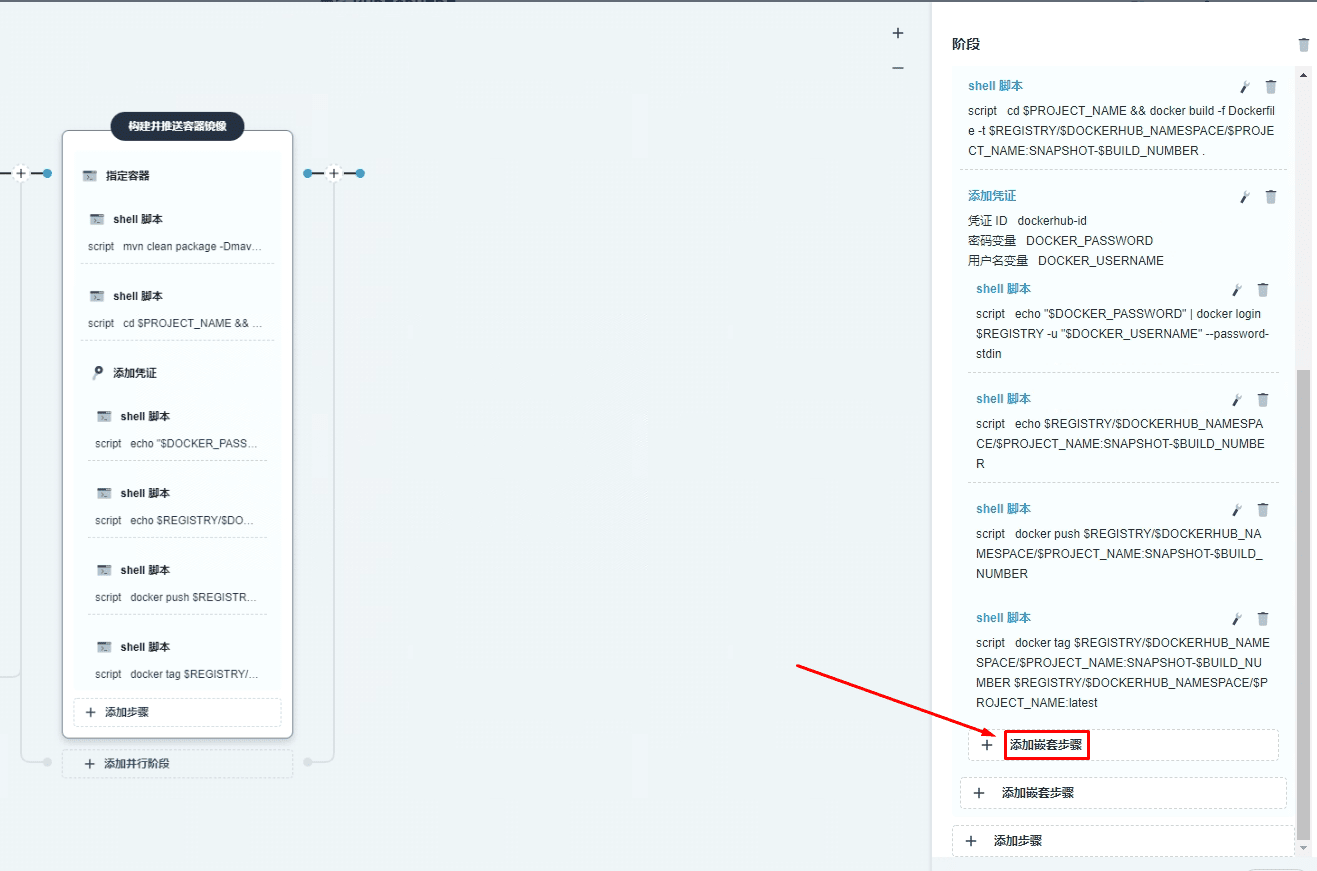

image-20221129135719707

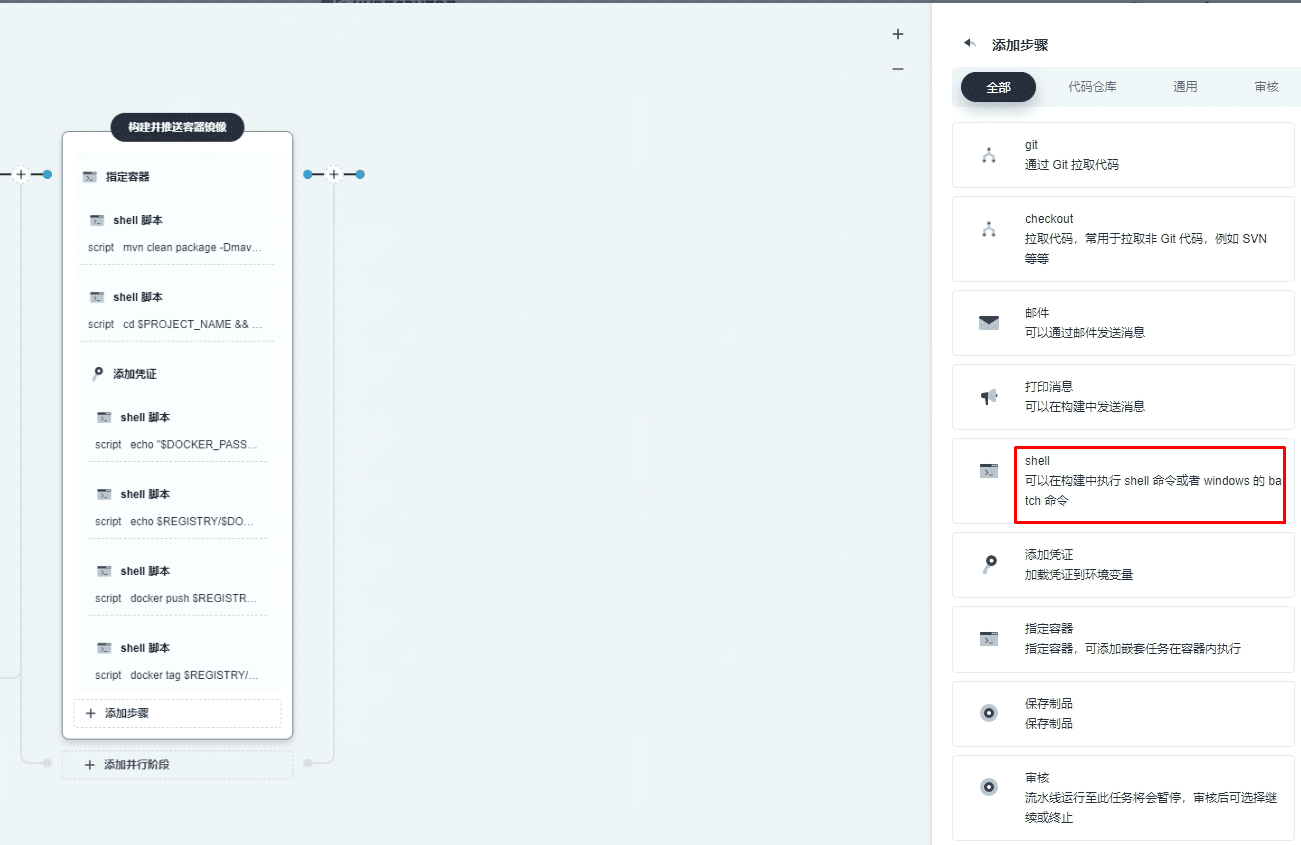

image-20221129135822757

image-20221129135906239

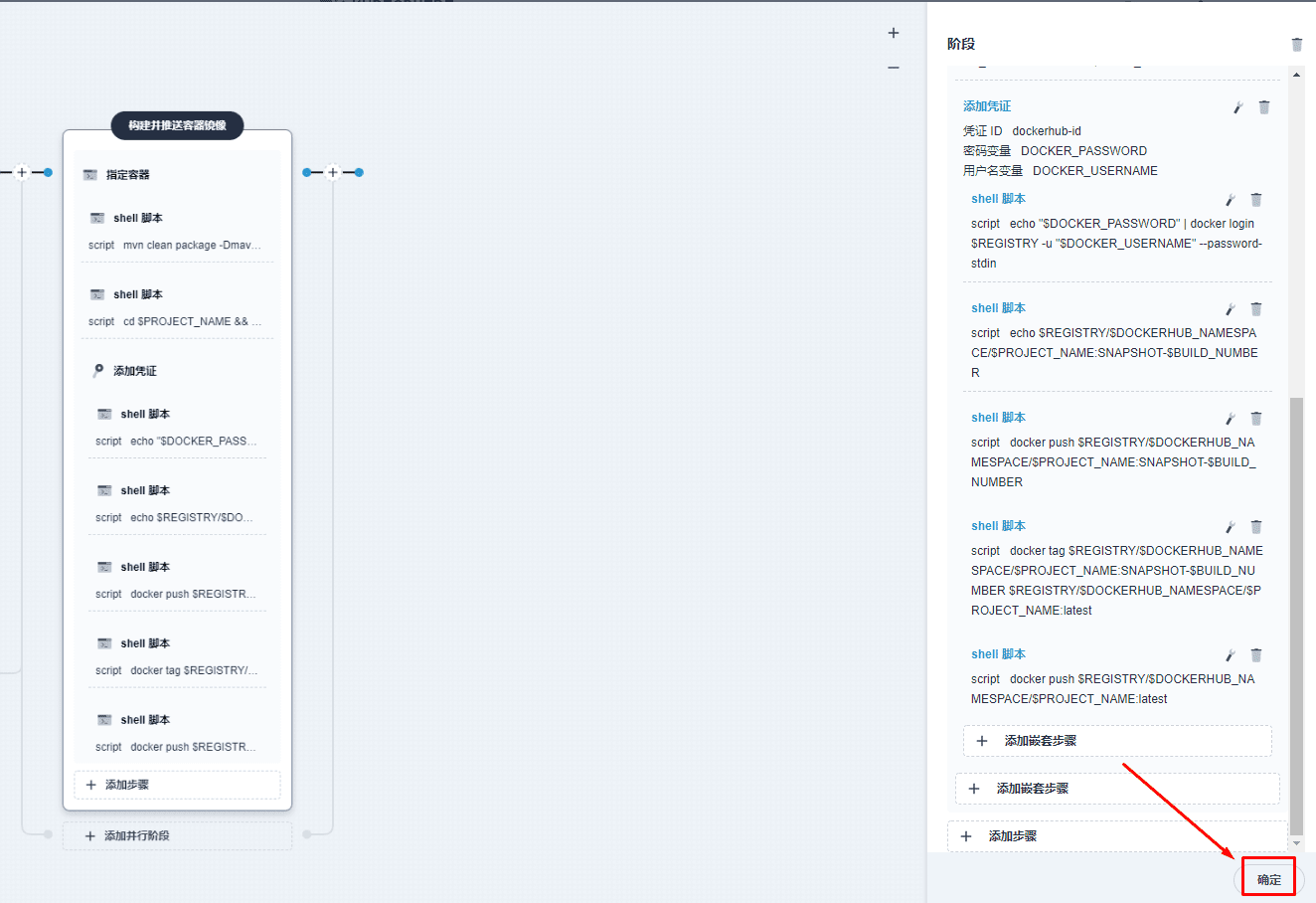

image-20221129135942411

pipeline {
  agent {
    node {
      label 'maven'
    }

  }
  stages {
    stage('获取项目代码') {
      agent none
      steps {
        git(url: 'https://gitee.com/nextgomsb/sangomall.git', credentialsId: 'gitee-id', branch: 'master', changelog: true, poll: false)
        sh '''echo $PROJECT_NAME
echo $PROJECT_VERSION'''
      }
    }

    stage('单元测试') {
      agent none
      steps {
        container('maven') {
          sh 'mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
        }

      }
    }

    stage('项目代码分析') {
      agent none
      steps {
        container('maven') {
          withCredentials([string(credentialsId : 'sonar-qube' ,variable : 'SONAR_TOKEN' ,)]) {
            withSonarQubeEnv('sonar') {
              sh 'echo 当前目录 `pwd`'
              sh 'mvn clean install -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
              sh 'mvn sonar:sonar -gs `pwd`/mvn_settings.xml  -Dsonar.login=$SONAR_TOKEN'
            }

          }

          timeout(unit: 'HOURS', activity: true, time: 1) {
            waitForQualityGate 'true'
          }

        }

      }
    }

    stage('构建并推送容器镜像') {
      agent none
      steps {
        container('maven') {
          sh 'mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
          sh 'cd $PROJECT_NAME && docker build -f Dockerfile -t $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER .'
          withCredentials([usernamePassword(credentialsId : 'dockerhub-id' ,passwordVariable : 'DOCKER_PASSWORD' ,usernameVariable : 'DOCKER_USERNAME' ,)]) {
            sh 'echo "$DOCKER_PASSWORD" | docker login $REGISTRY -u "$DOCKER_USERNAME" --password-stdin'
            sh 'echo $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER'
            sh 'docker push $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER'
            sh 'docker tag  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:latest'
            sh 'docker push  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:latest'
          }

        }

      }
    }

  }
  environment {
    DOCKER_CREDENTIAL_ID = 'dockerhub-id'
    GITEE_CREDENTIAL_ID = 'gitee-id'
    KUBECONFIG_CREDENTIAL_ID = 'sangomall-kubeconfig'
    REGISTRY = 'docker.io'
    DOCKERHUB_NAMESPACE = 'nextgomsb'
    GITEE_ACCOUNT = 'nextgomsb'
    SONAR_CREDENTIAL_ID = 'sonar-qube'

  }
  parameters {
    string(name: 'PROJECT_VERSION', defaultValue: 'v1.0', description: '')
    string(name: 'PROJECT_NAME', defaultValue: '', description: '')
  }
}

image-20221129141354479

image-20221129141436402

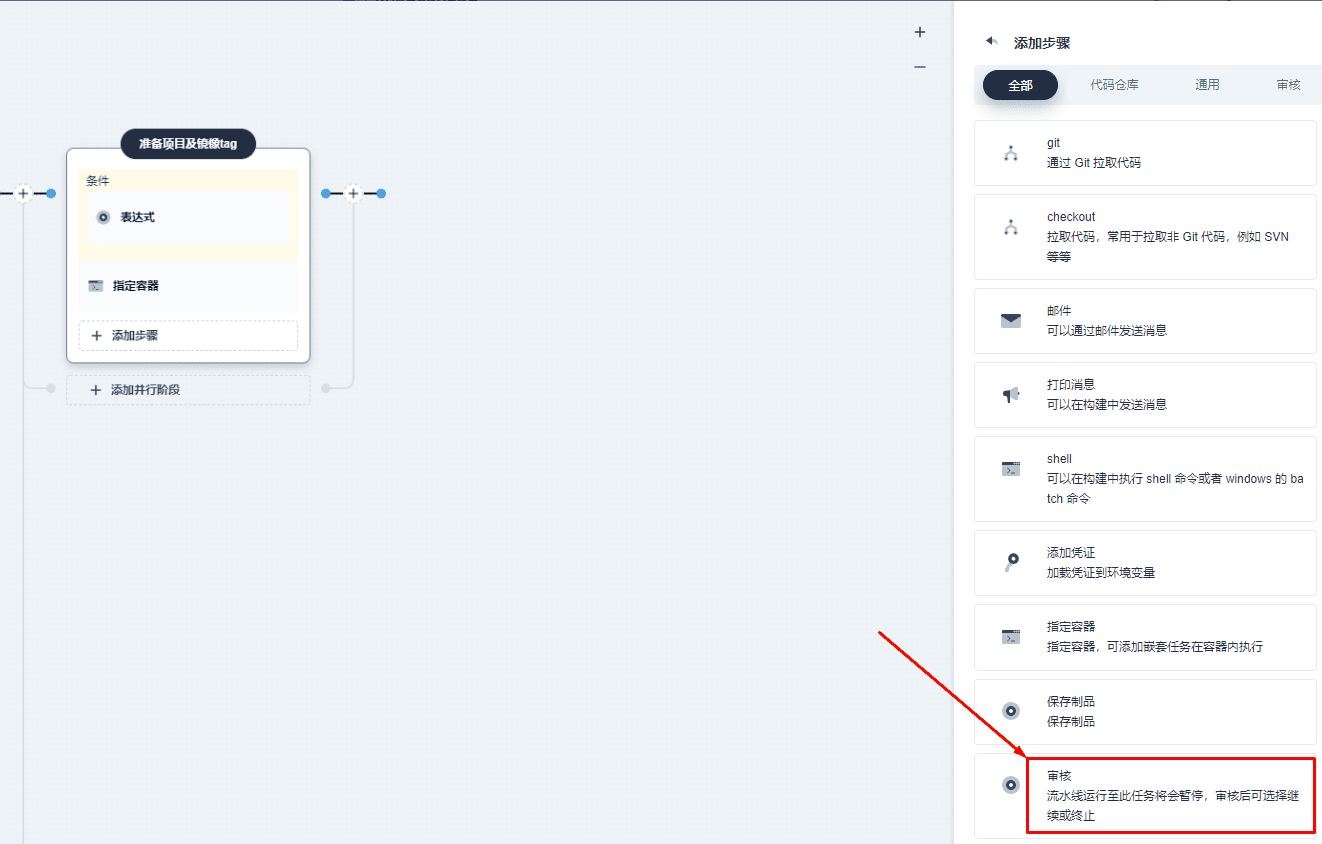

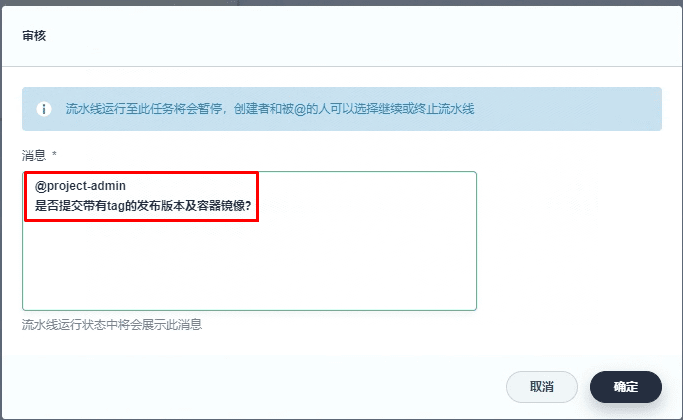

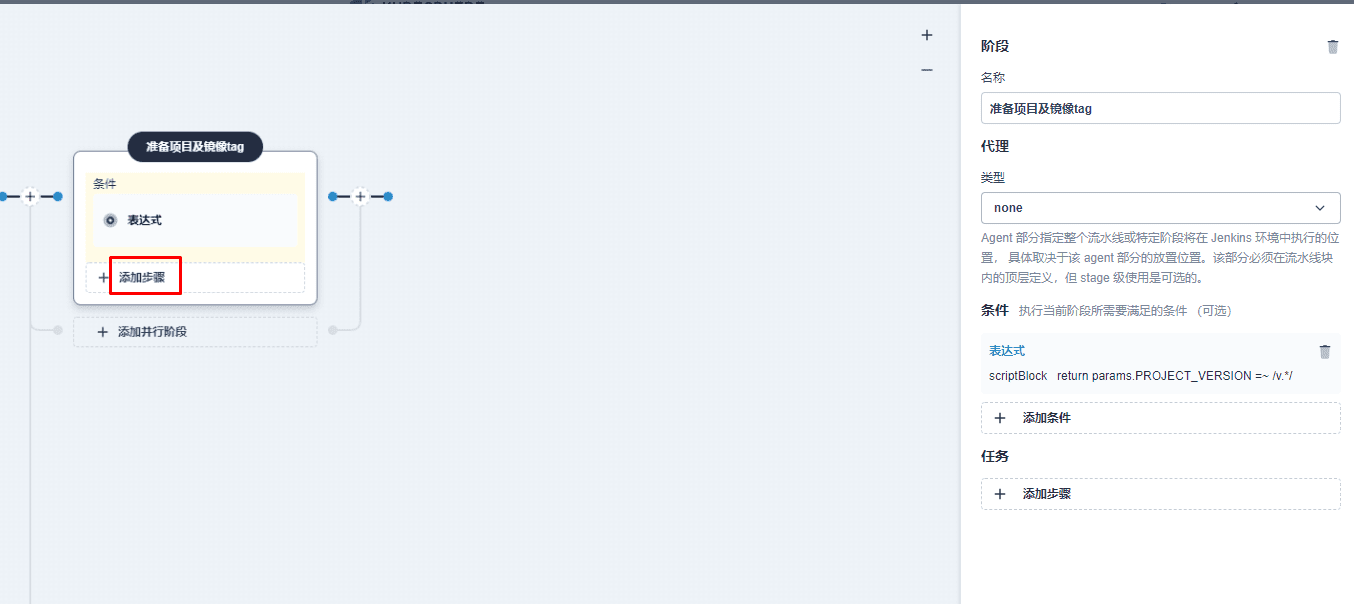

七、通过KubeSphere部署之为项目发布准备对应版本的容器镜像

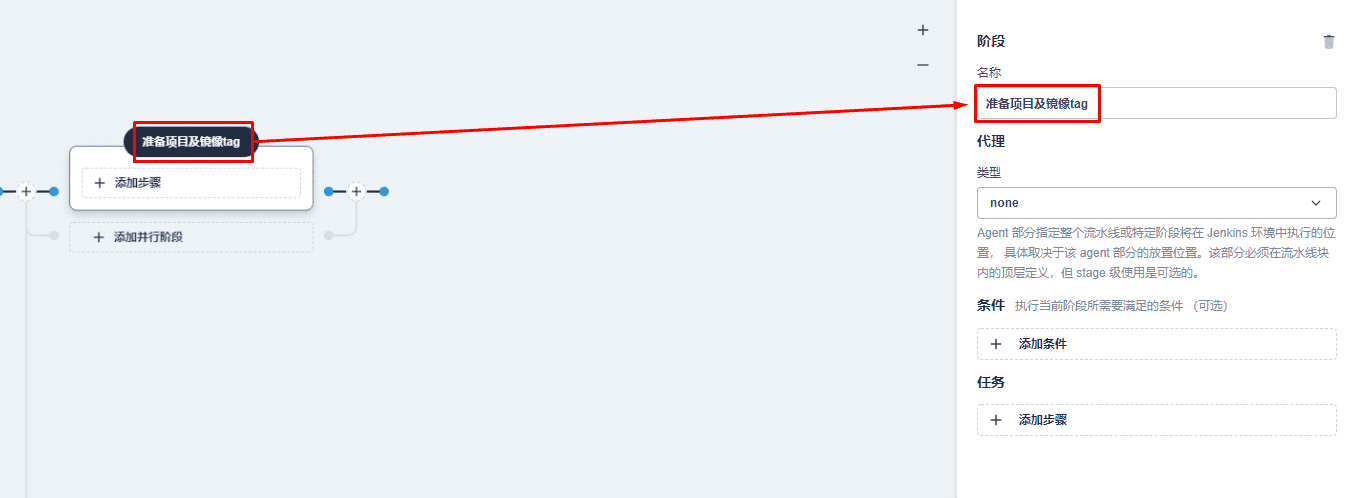

image-20221129175701257

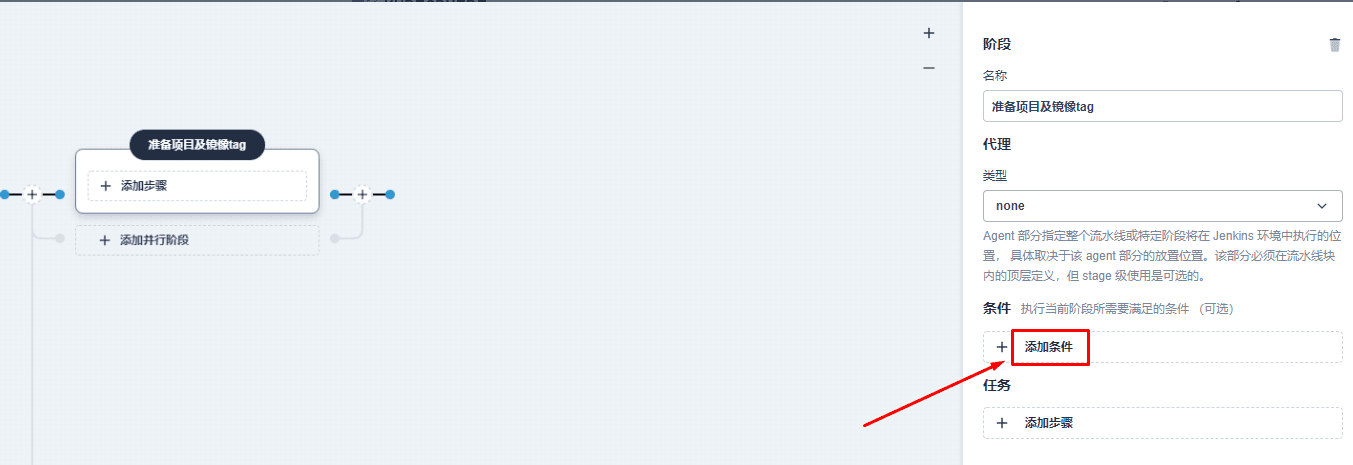

image-20221129175740422

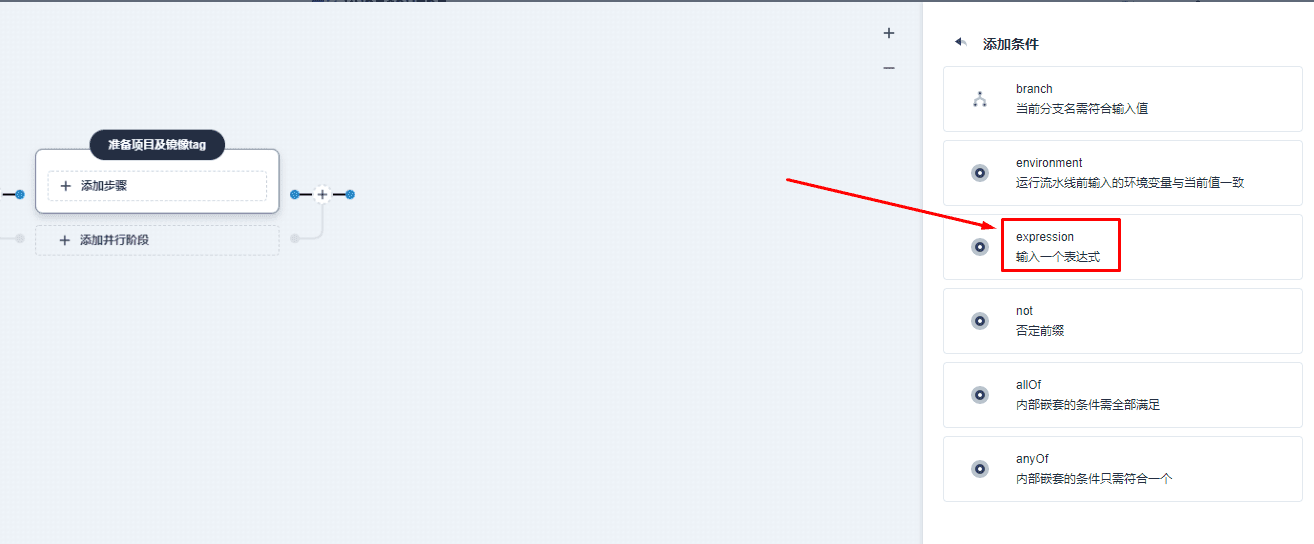

image-20221129175814854

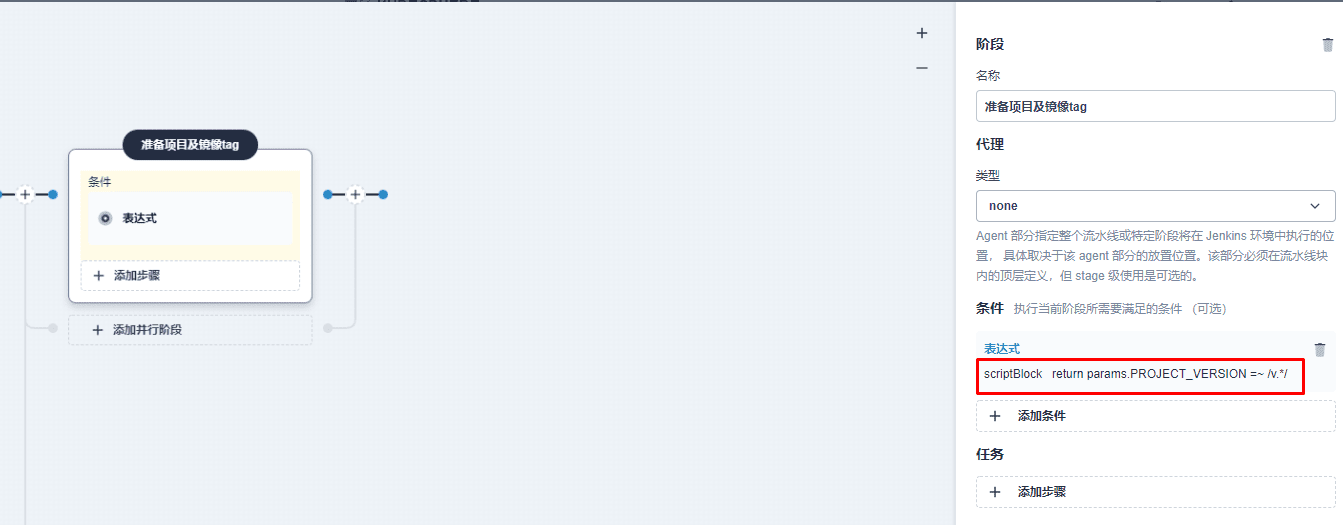

return params.PROJECT_VERSION =~ /v.*/

image-20221129180028245

image-20221129180049392

image-20221129180127897

image-20221129180146365

image-20221129180210829

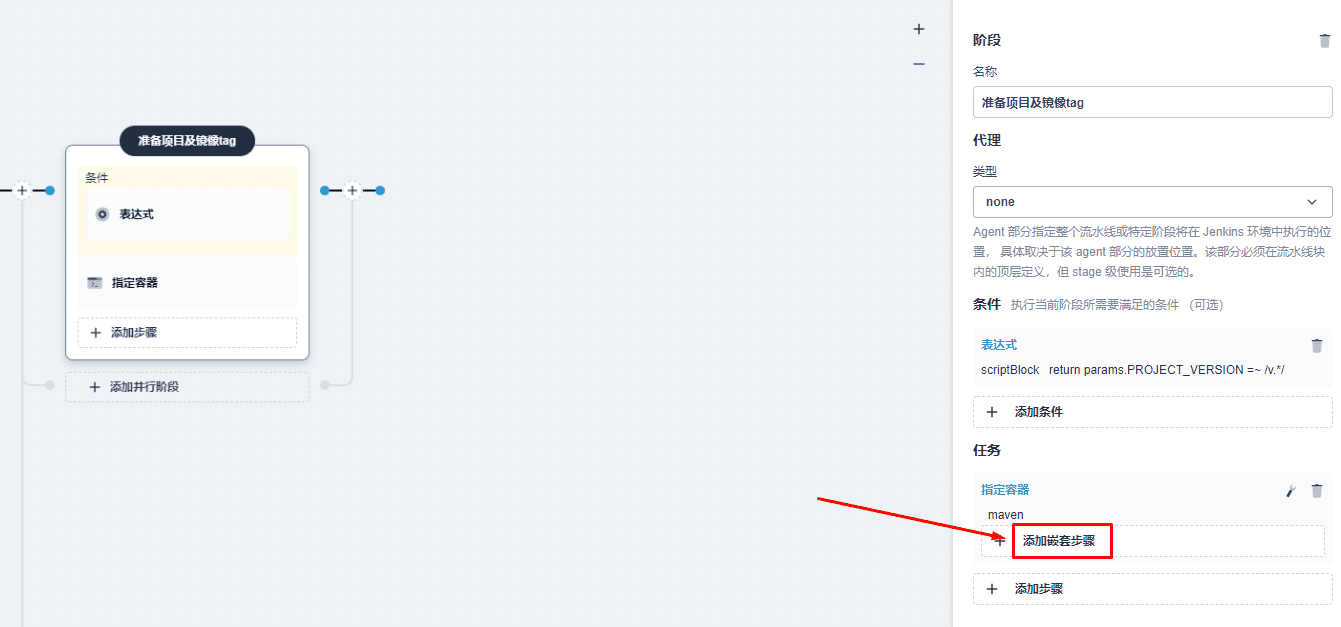

image-20221129180248540

image-20221129180316440

image-20221129180418373

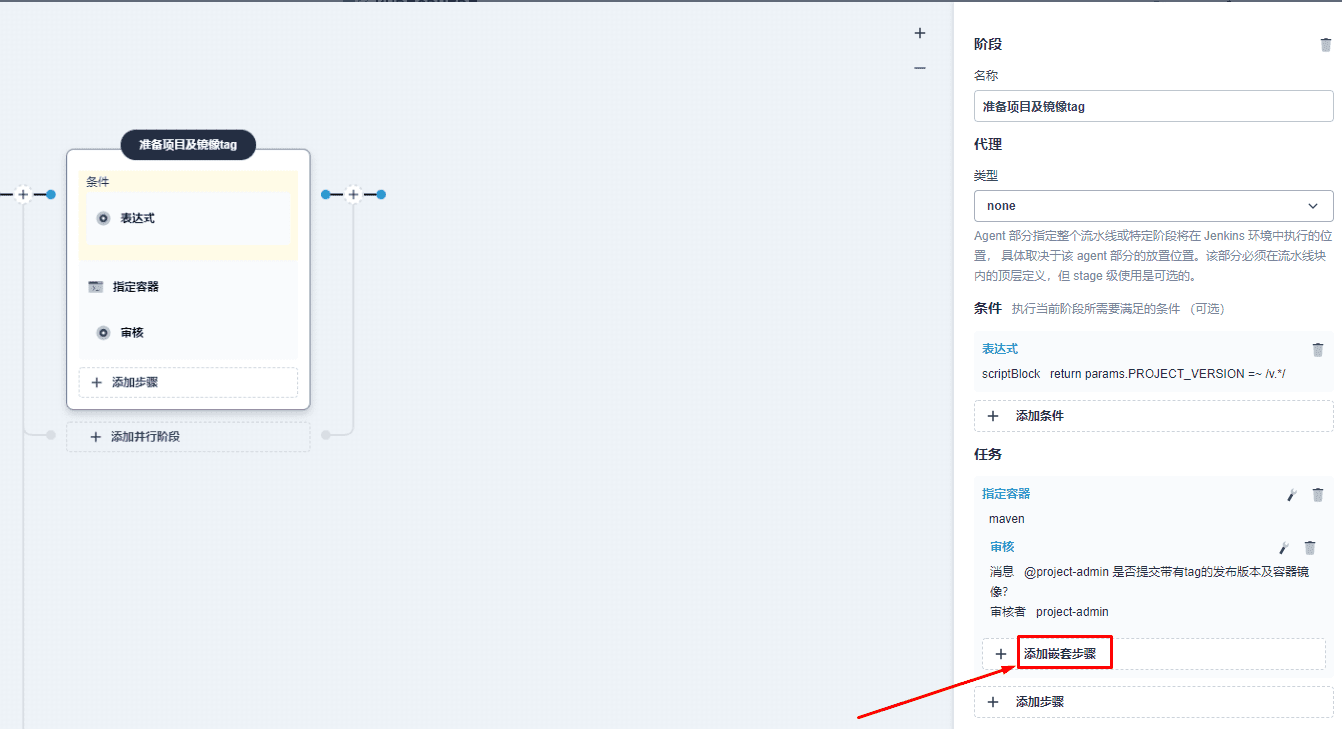

image-20221129180516224

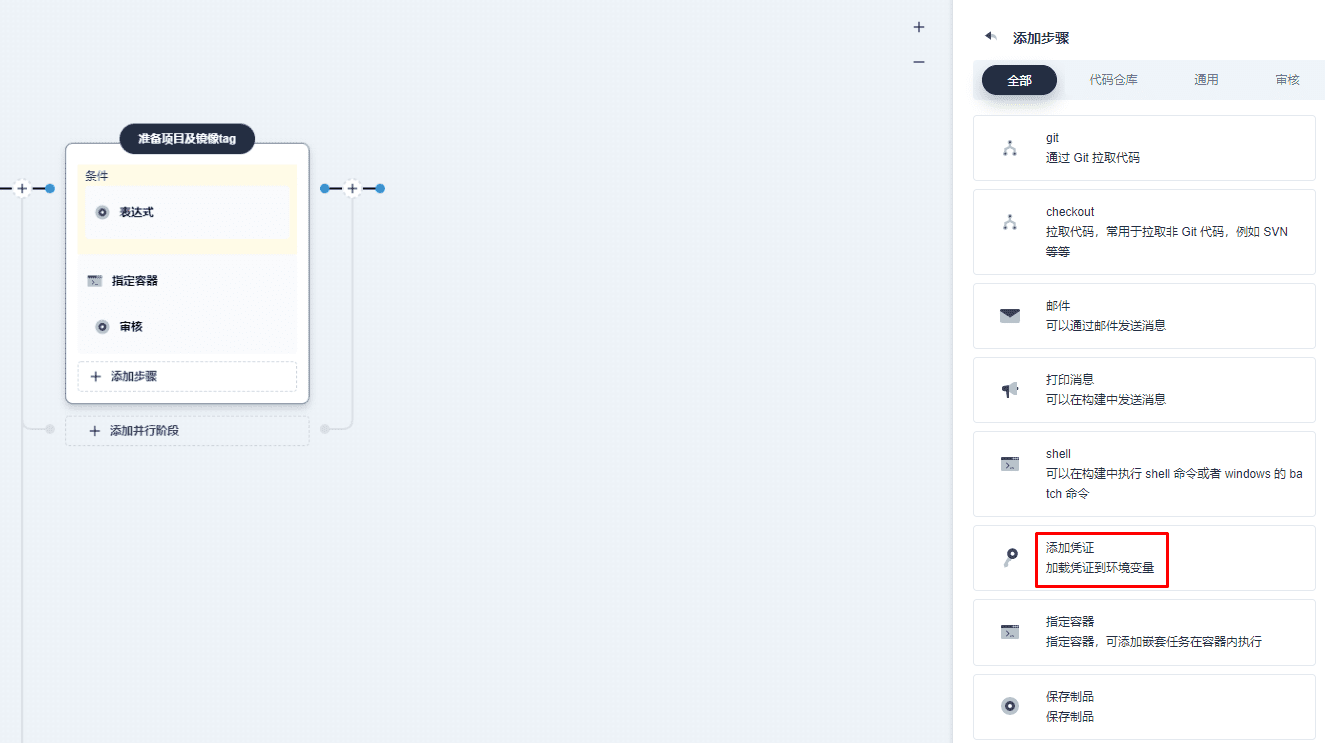

image-20221129180540703

image-20221129180958747

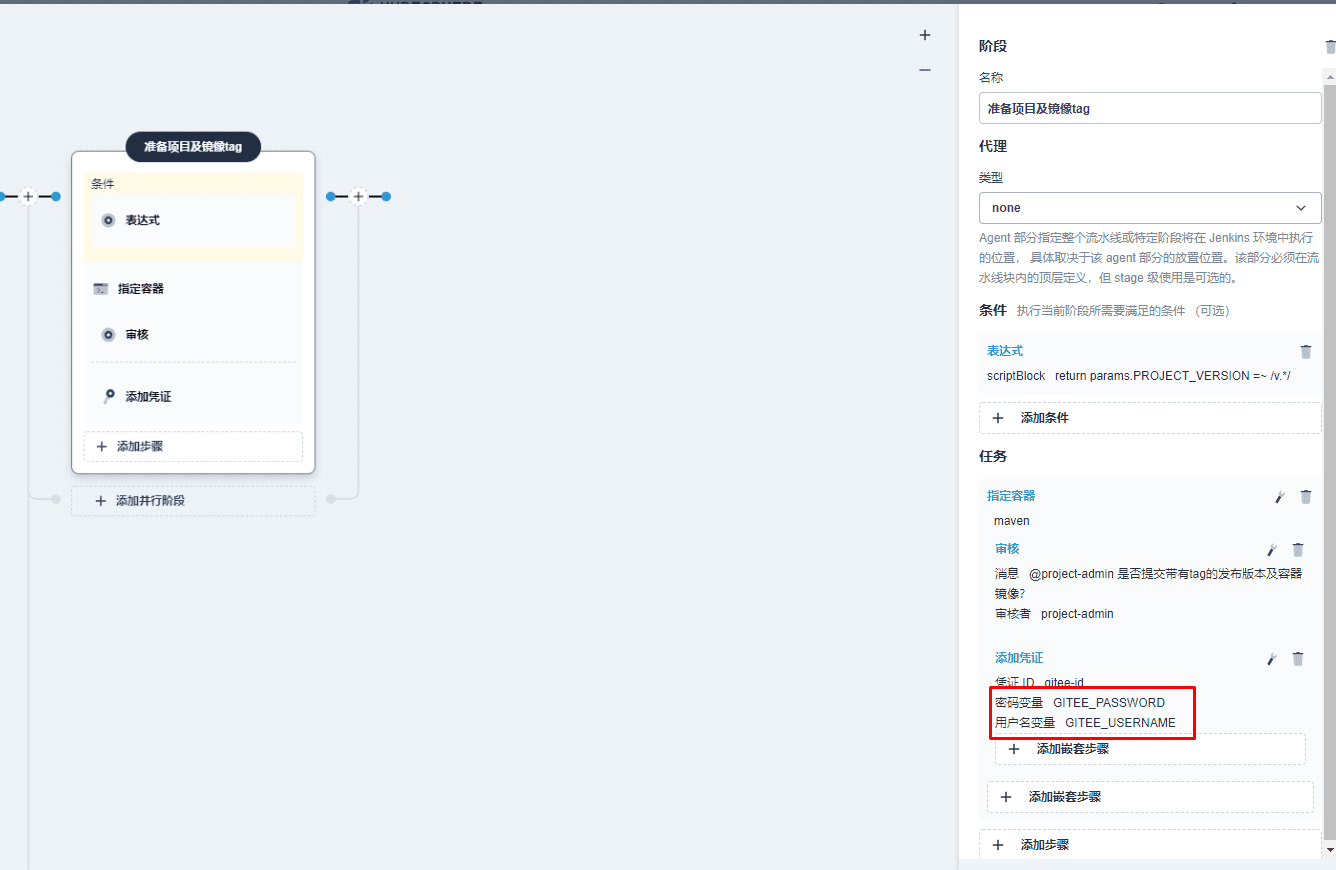

image-20221129181020080

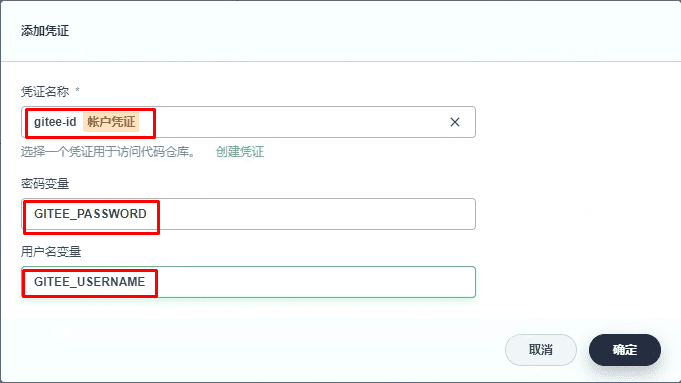

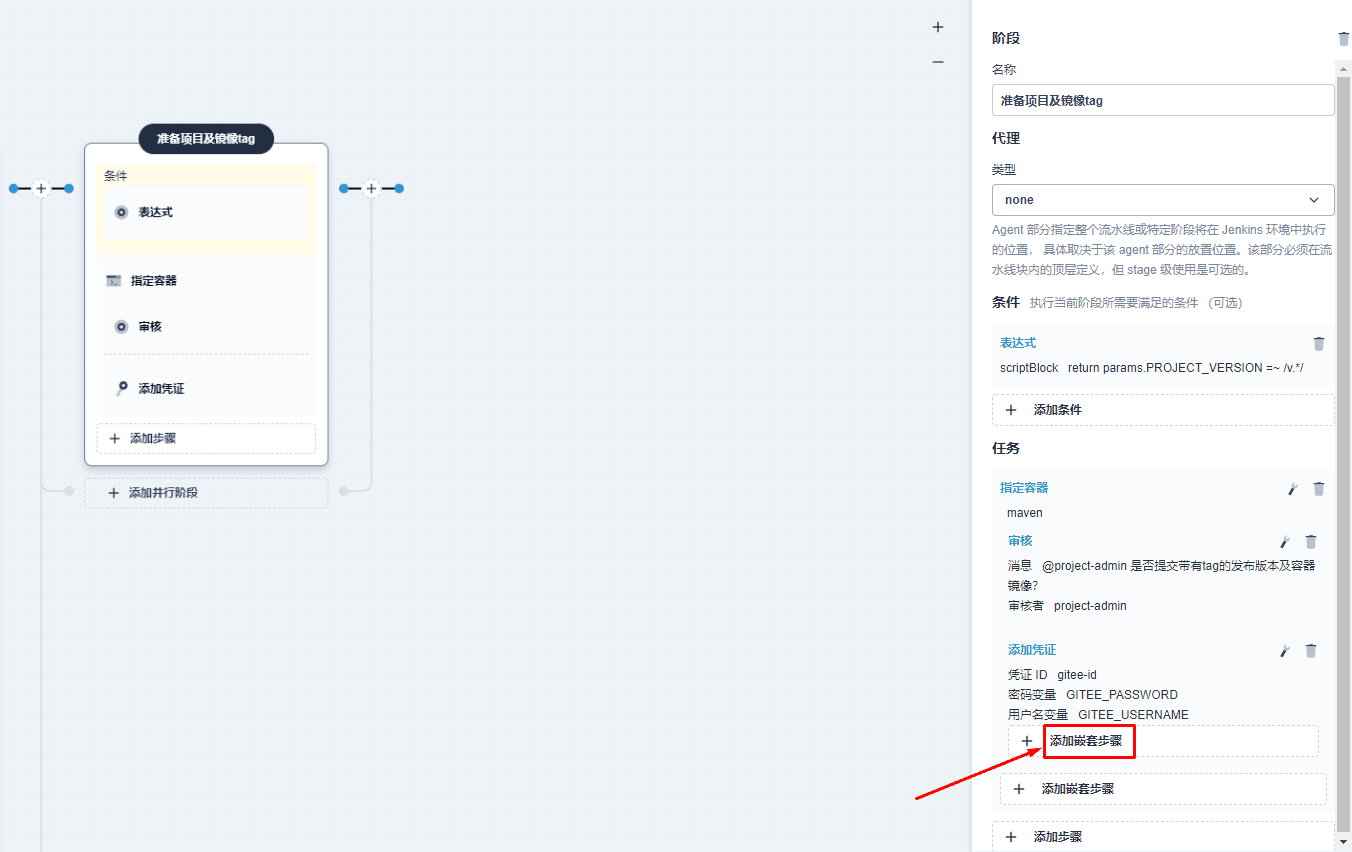

添加GITEE设置

image-20221129181136758

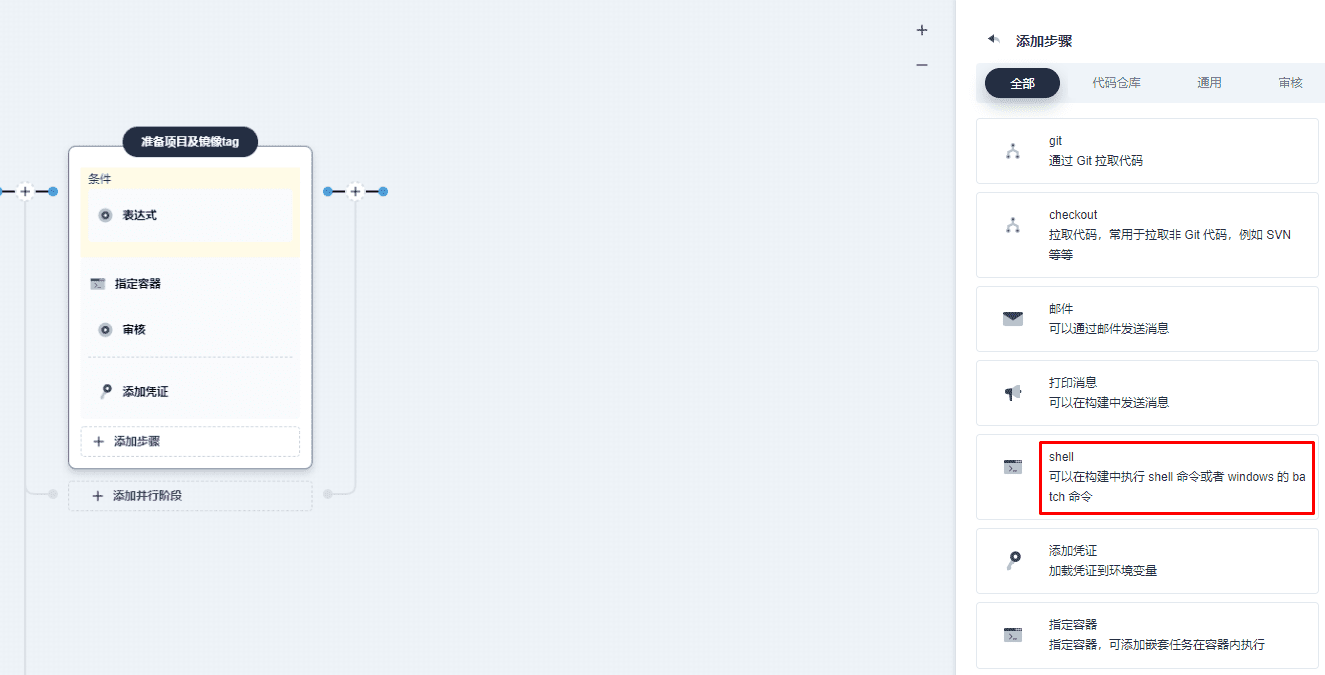

image-20221129181206599

git config --global user.email "nextgo@126.com"

image-20221129181303959

image-20221129181333114

image-20221129181438397

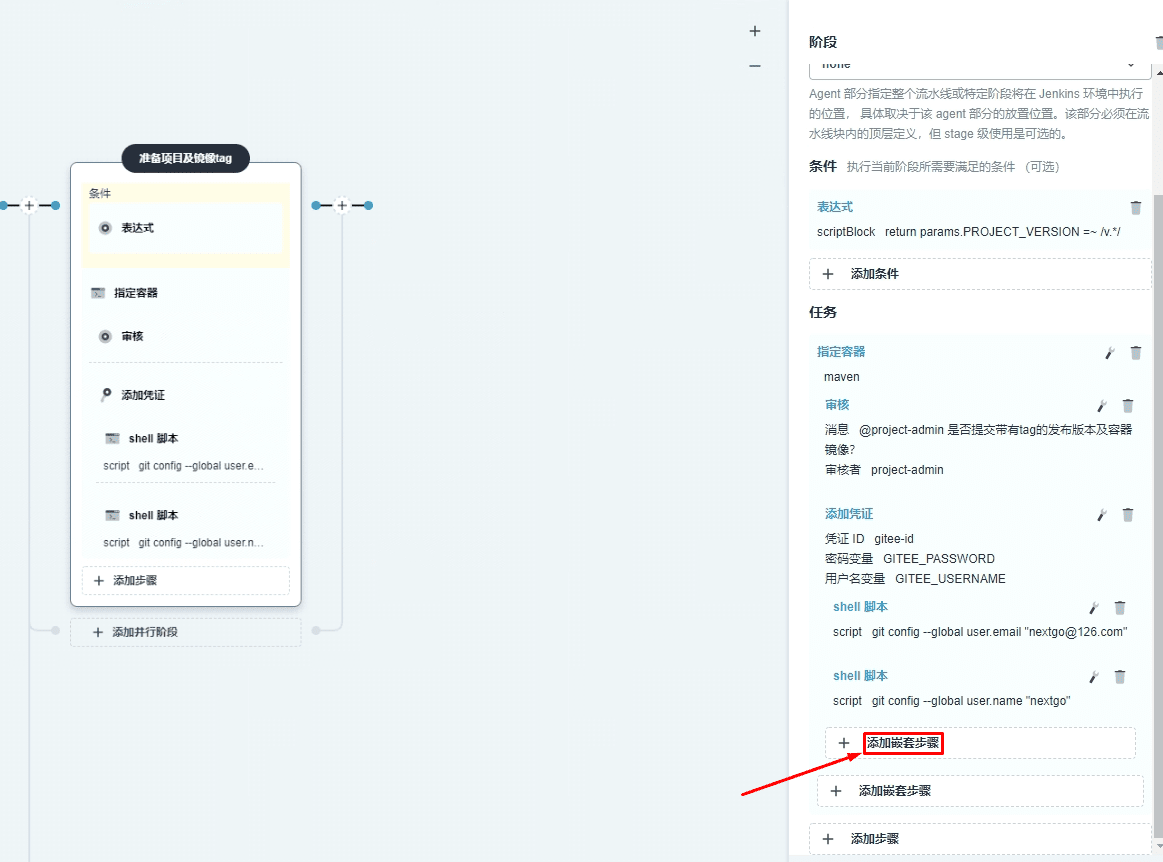

git config --global user.name "nextgo"

image-20221129181505865

image-20221129181642993

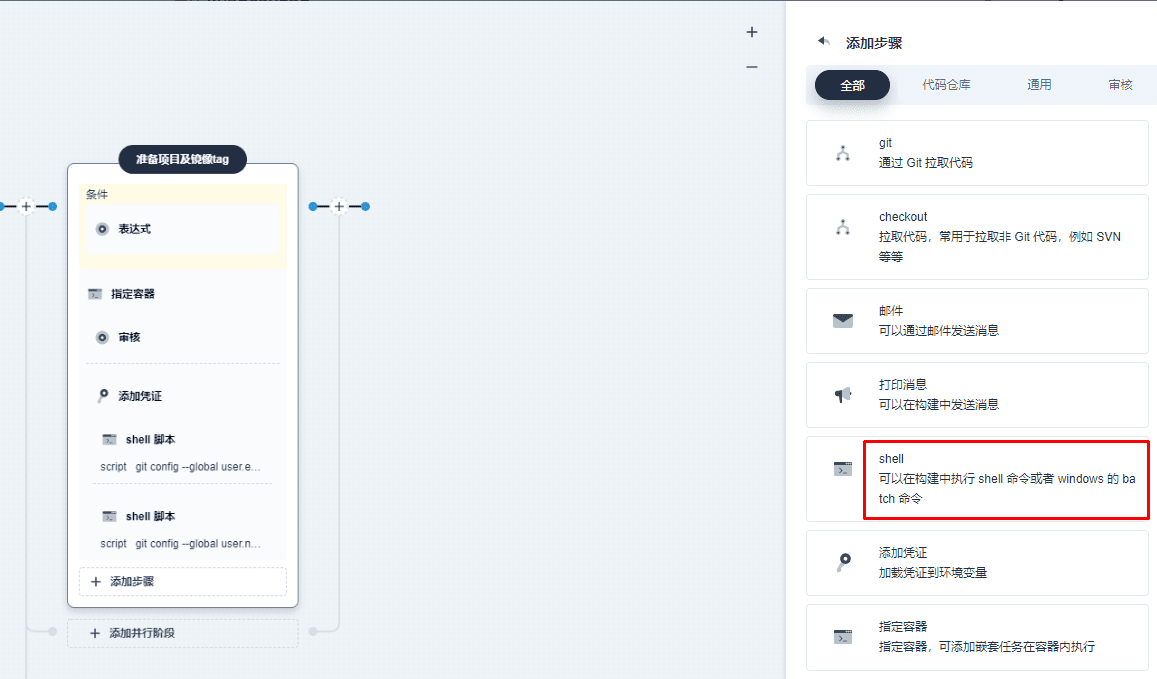

image-20221129181703192

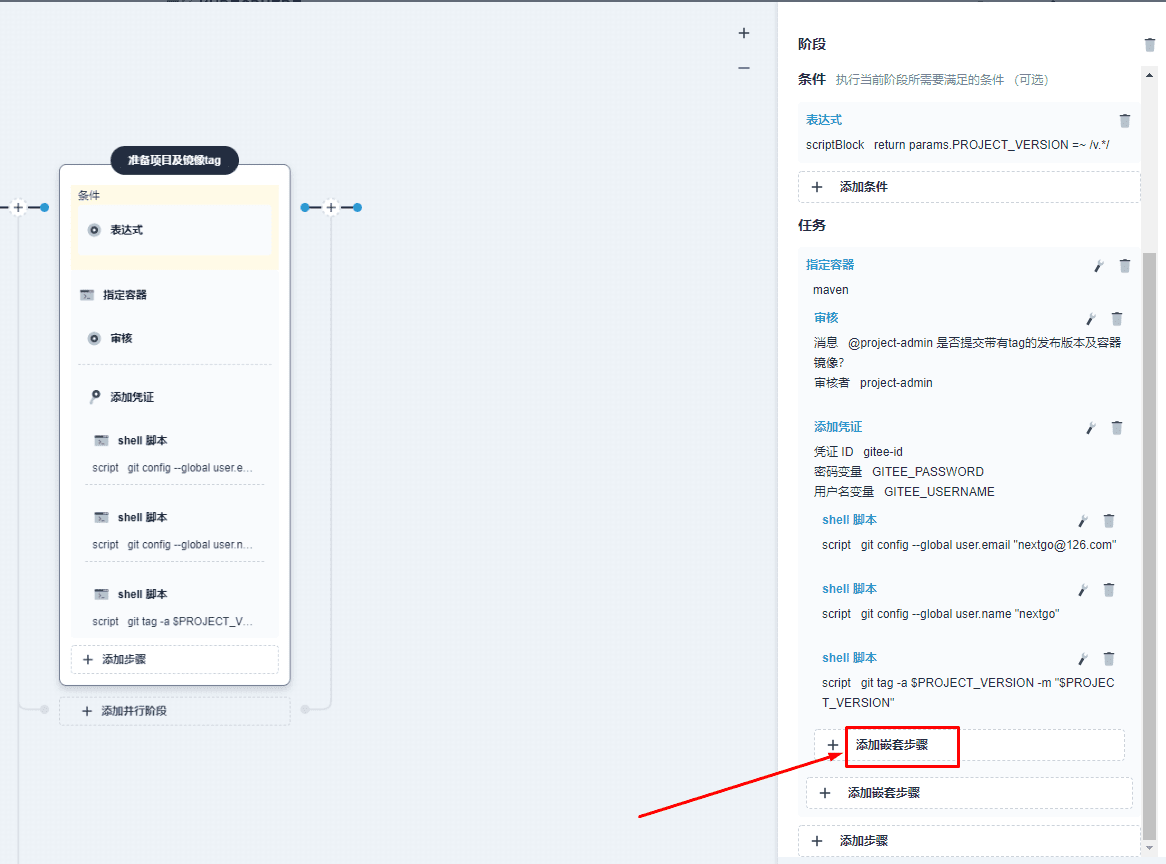

git tag -a $PROJECT_VERSION -m "$PROJECT_VERSION"

image-20221129181753291

image-20221129181840532

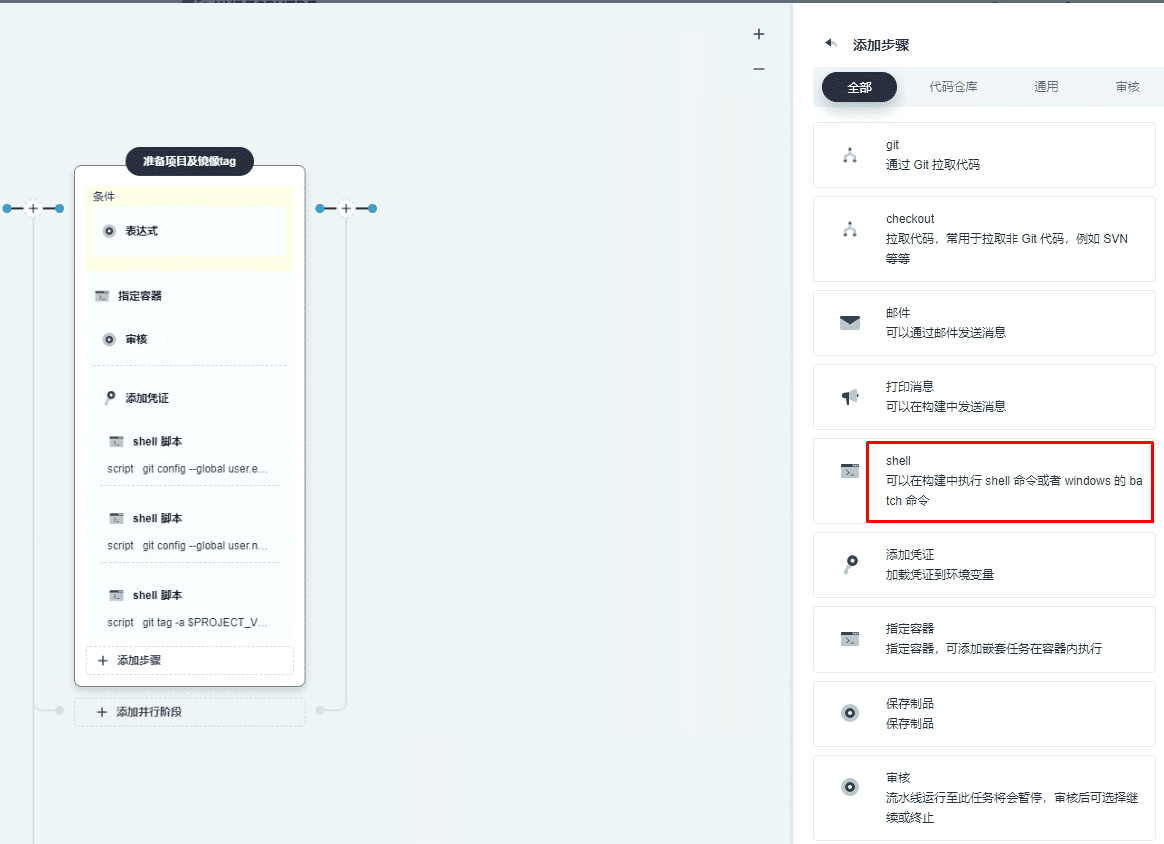

image-20221129181859921

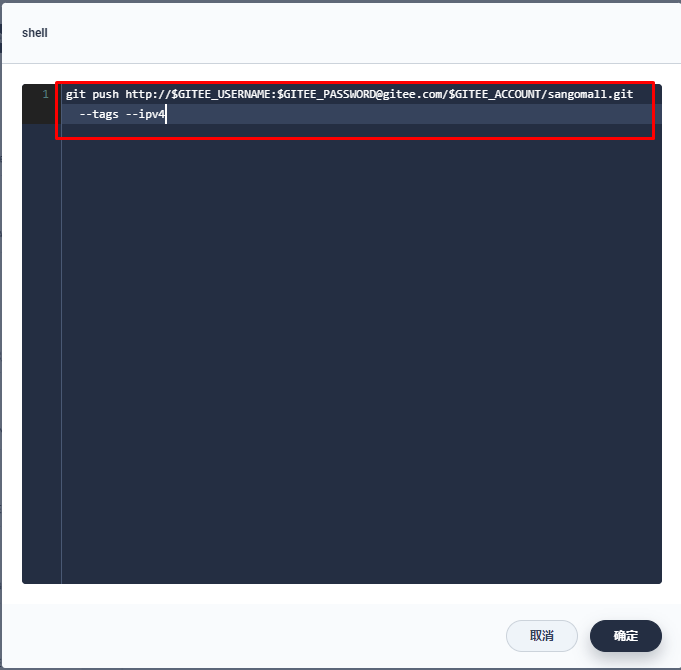

git push http://$GITEE_USERNAME:$GITEE_PASSWORD@gitee.com/$GITEE_ACCOUNT/sangomall.git --tags --ipv4

image-20221129182108358

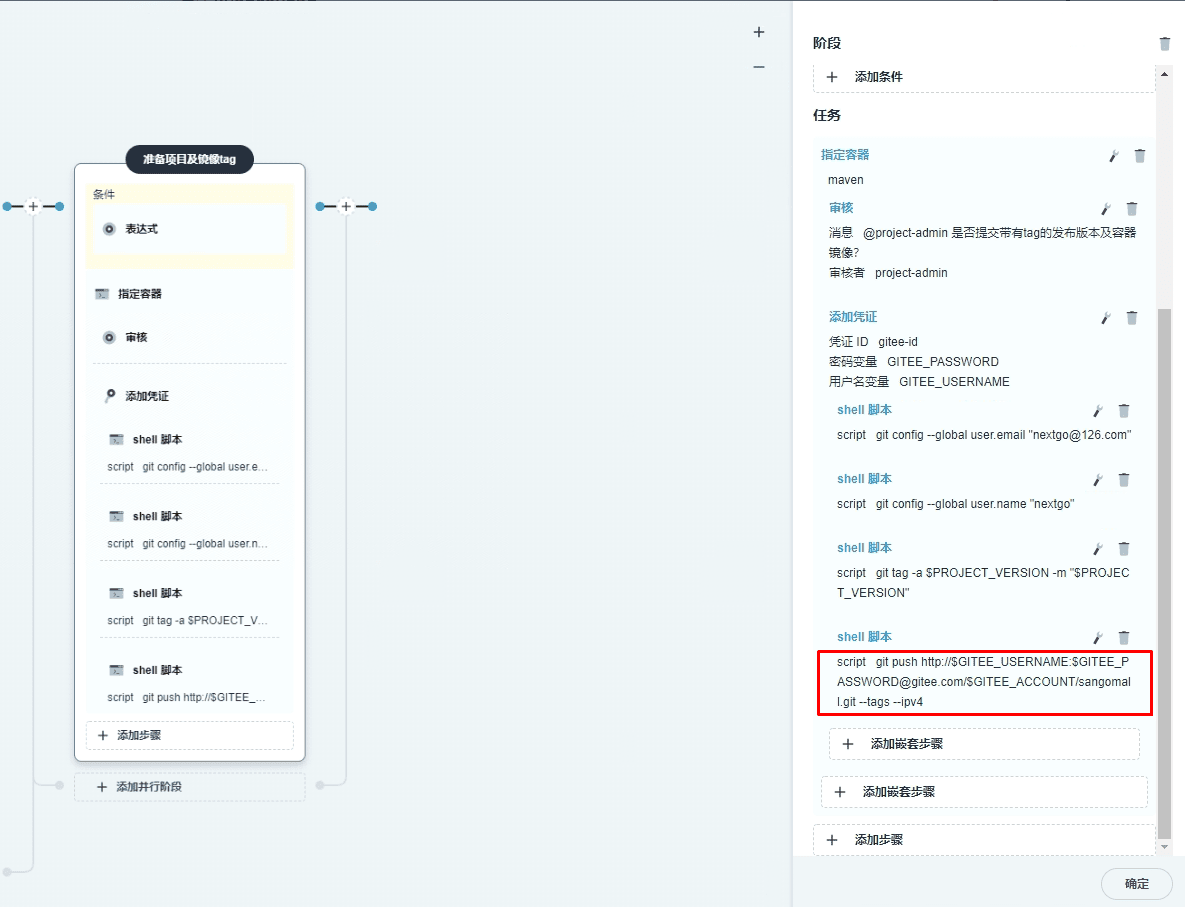

image-20221129182133200

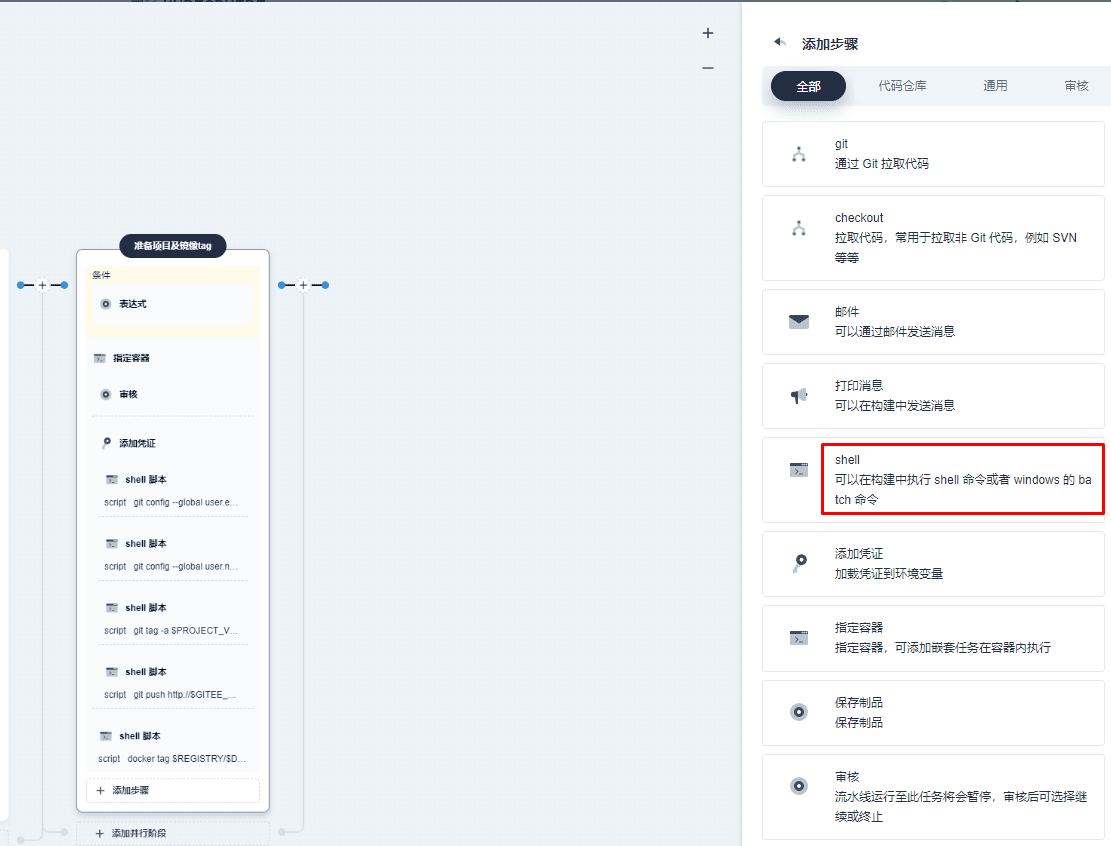

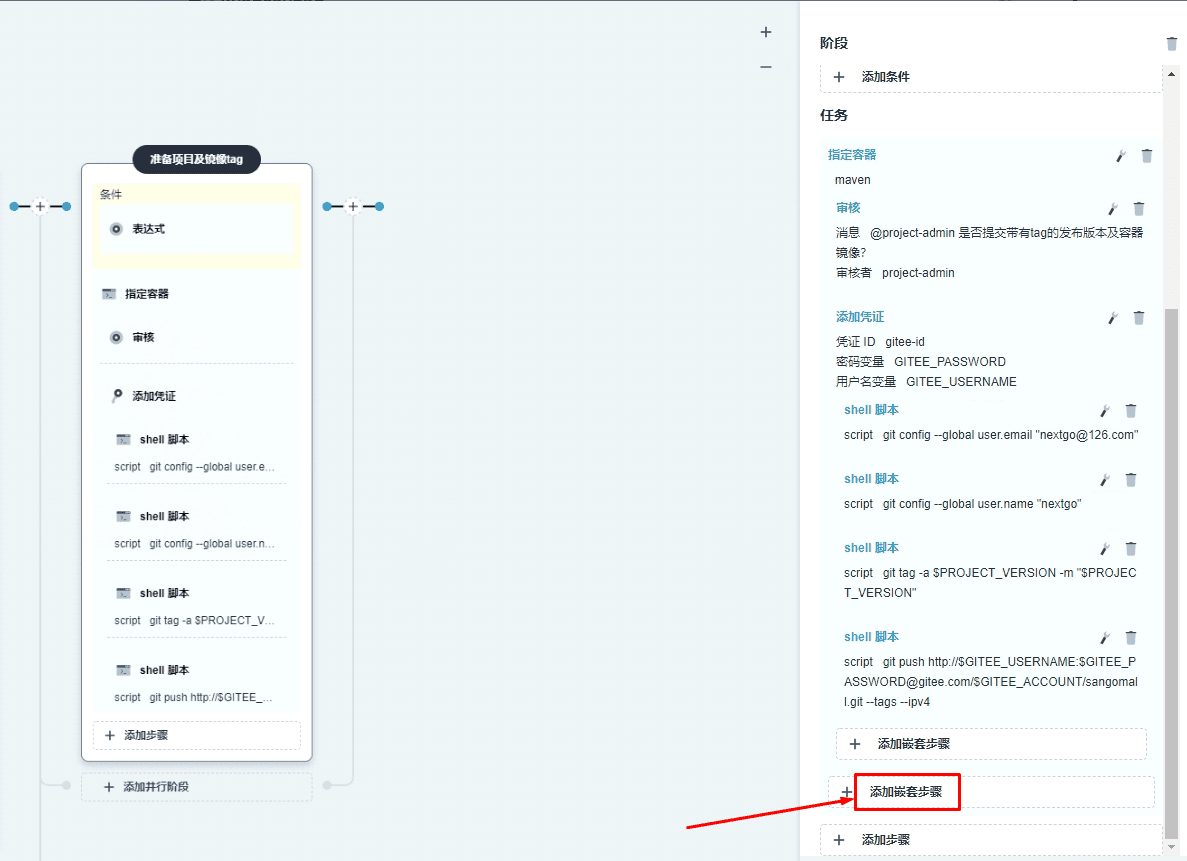

添加dockerhub的配置

image-20221129182249026

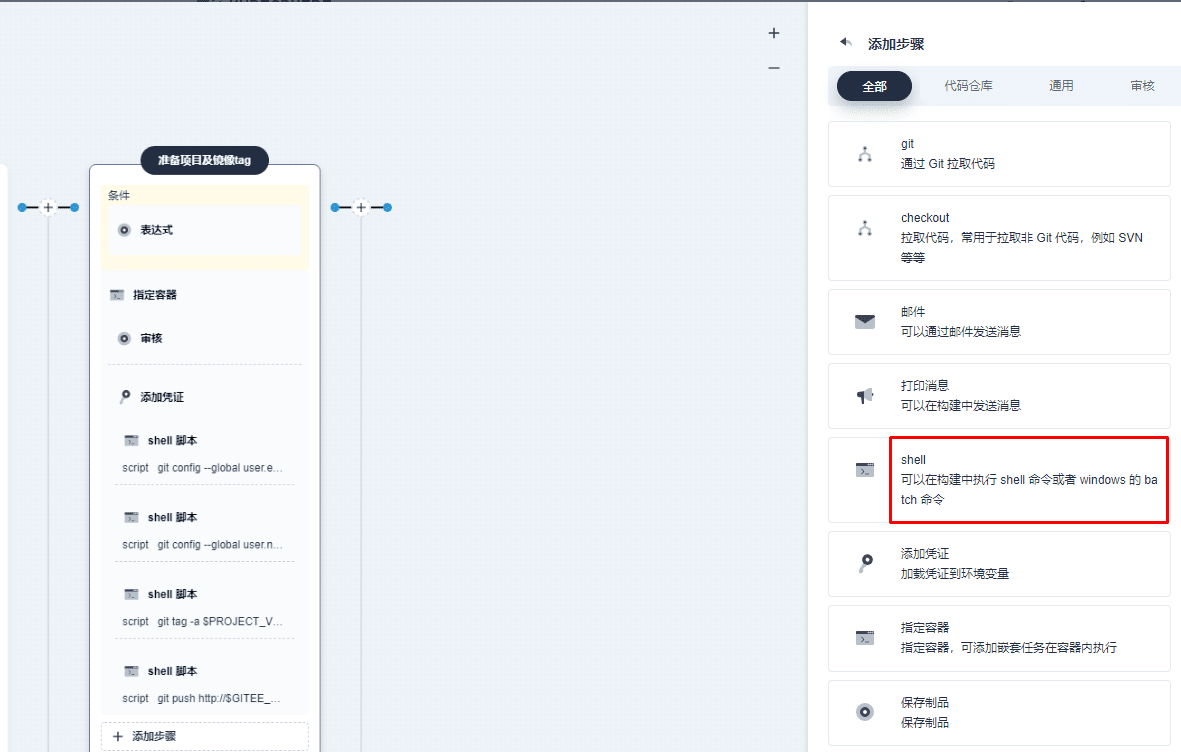

image-20221129182313301

docker tag  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:$PROJECT_VERSION

image-20221129182614147

image-20221129182644566

image-20221129182707961

image-20221129182731585

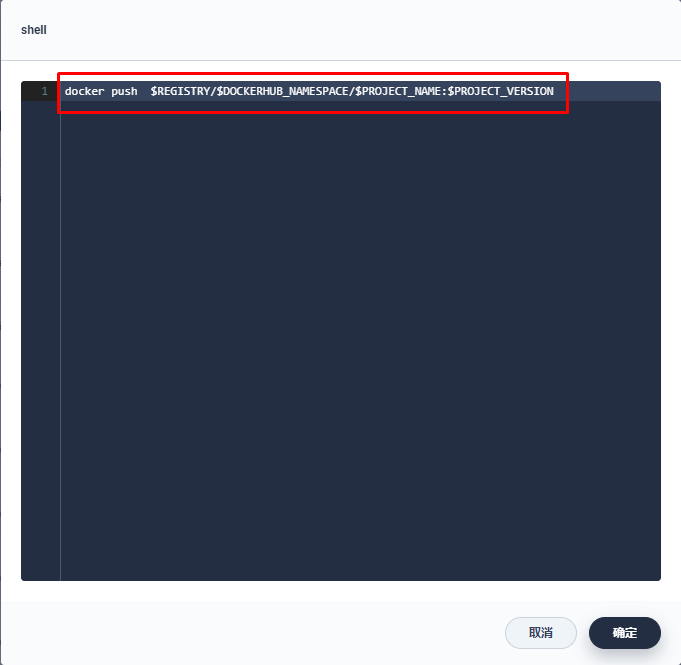

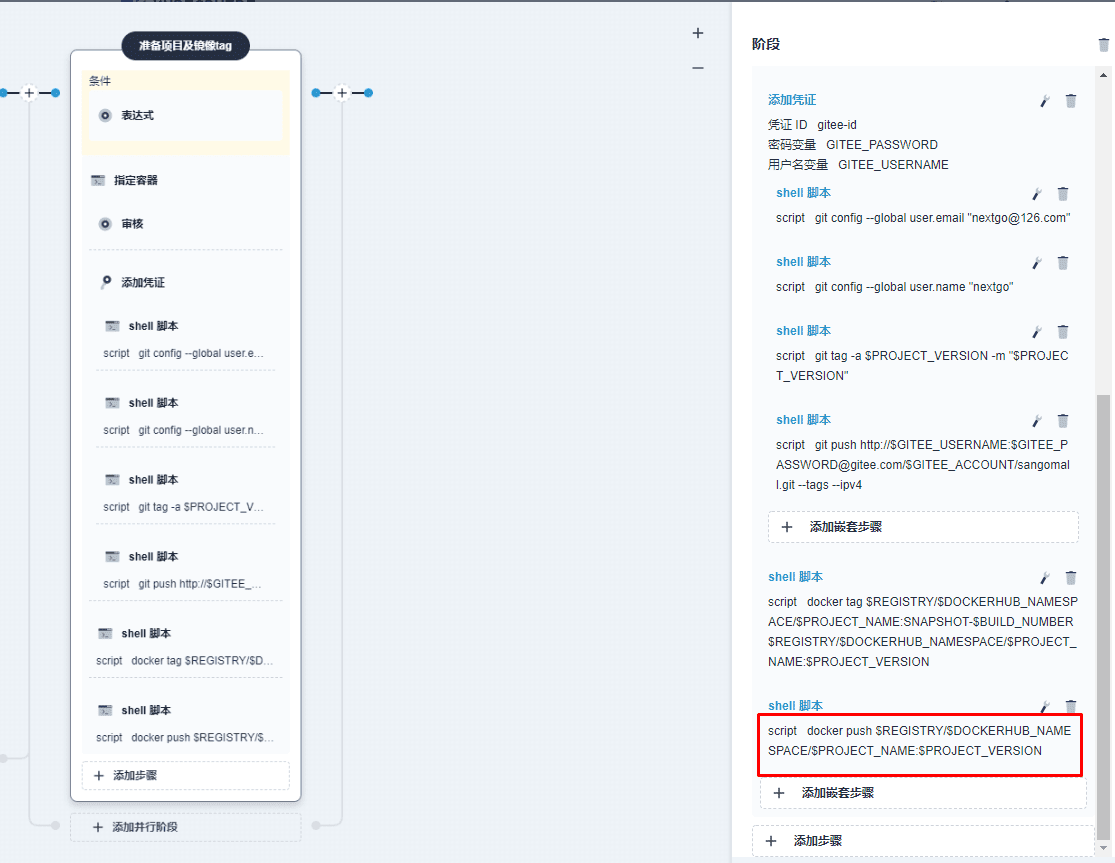

docker push  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:$PROJECT_VERSION

image-20221129182847747

image-20221129182916653

pipeline {
  agent {
    node {
      label 'maven'
    }

  }
  stages {
    stage('获取项目代码') {
      agent none
      steps {
        git(url: 'https://gitee.com/nextgomsb/sangomall.git', credentialsId: 'gitee-id', branch: 'master', changelog: true, poll: false)
        sh '''echo $PROJECT_NAME
echo $PROJECT_VERSION'''
      }
    }

    stage('单元测试') {
      agent none
      steps {
        container('maven') {
          sh 'mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
        }

      }
    }

    stage('项目代码分析') {
      agent none
      steps {
        container('maven') {
          withCredentials([string(credentialsId : 'sonar-qube' ,variable : 'SONAR_TOKEN' ,)]) {
            withSonarQubeEnv('sonar') {
              sh 'echo 当前目录 `pwd`'
              sh 'mvn clean install -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
              sh 'mvn sonar:sonar -gs `pwd`/mvn_settings.xml  -Dsonar.login=$SONAR_TOKEN'
            }

          }

          timeout(unit: 'HOURS', activity: true, time: 1) {
            waitForQualityGate 'true'
          }

        }

      }
    }

    stage('构建并推送容器镜像') {
      agent none
      steps {
        container('maven') {
          sh 'mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
          sh 'cd $PROJECT_NAME && docker build -f Dockerfile -t $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER .'
          withCredentials([usernamePassword(credentialsId : 'dockerhub-id' ,passwordVariable : 'DOCKER_PASSWORD' ,usernameVariable : 'DOCKER_USERNAME' ,)]) {
            sh 'echo "$DOCKER_PASSWORD" | docker login $REGISTRY -u "$DOCKER_USERNAME" --password-stdin'
            sh 'echo $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER'
            sh 'docker push $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER'
            sh 'docker tag  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:latest'
            sh 'docker push  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:latest'
          }

        }

      }
    }

    stage('准备项目及镜像tag') {
      agent none
      when {
        expression {
          return params.PROJECT_VERSION =~ /v.*/
        }

      }
      steps {
        container('maven') {
          input(message: '''@project-admin
是否提交带有tag的发布版本及容器镜像？''', submitter: 'project-admin')
          withCredentials([usernamePassword(credentialsId : 'gitee-id' ,passwordVariable : 'GITEE_PASSWORD' ,usernameVariable : 'GITEE_USERNAME' ,)]) {
            sh 'git config --global user.email "nextgo@126.com" '
            sh 'git config --global user.name "nextgo"'
            sh 'git tag -a $PROJECT_VERSION -m "$PROJECT_VERSION" '
            sh 'git push http://$GITEE_USERNAME:$GITEE_PASSWORD@gitee.com/$GITEE_ACCOUNT/sangomall.git --tags --ipv4'
          }

          sh 'docker tag  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:$PROJECT_VERSION '
          sh 'docker push  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:$PROJECT_VERSION'
        }

      }
    }

  }
  environment {
    DOCKER_CREDENTIAL_ID = 'dockerhub-id'
    GITEE_CREDENTIAL_ID = 'gitee-id'
    KUBECONFIG_CREDENTIAL_ID = 'sangomall-kubeconfig'
    REGISTRY = 'docker.io'
    DOCKERHUB_NAMESPACE = 'nextgomsb'
    GITEE_ACCOUNT = 'nextgomsb'
    SONAR_CREDENTIAL_ID = 'sonar-qube'
  }
  parameters {
    string(name: 'PROJECT_VERSION', defaultValue: 'v1.0', description: '')
    string(name: 'PROJECT_NAME', defaultValue: '', description: '')
  }
}

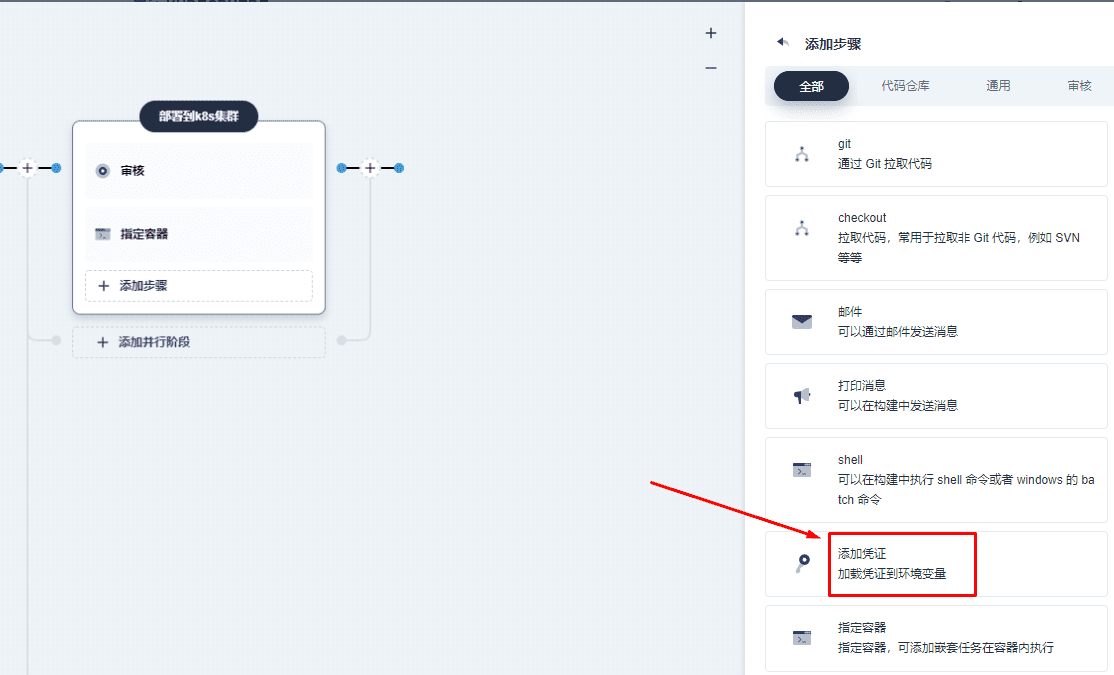

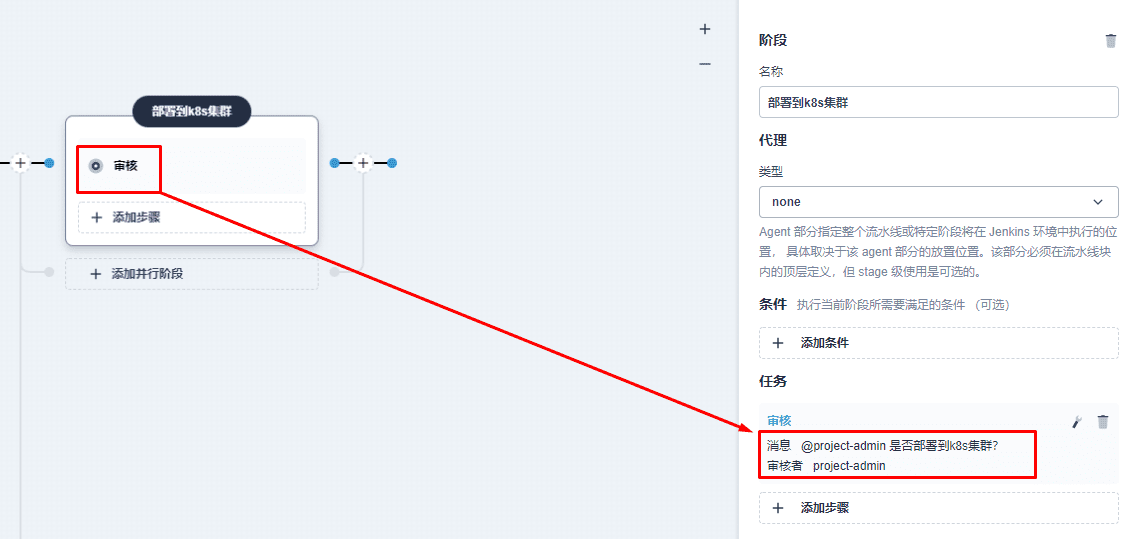

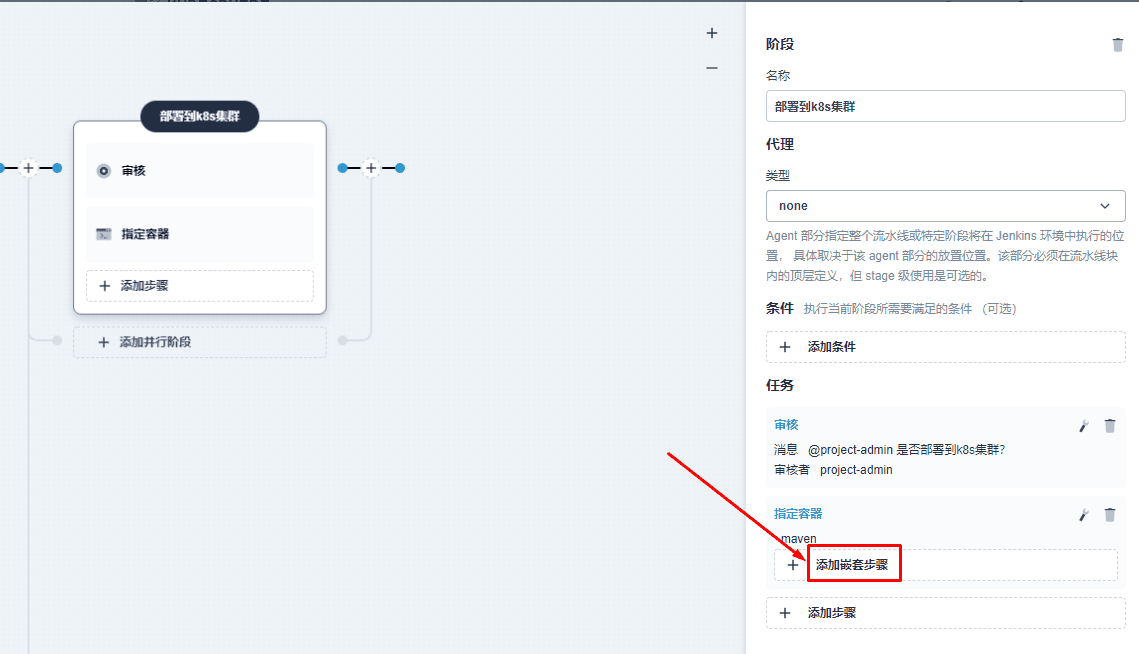

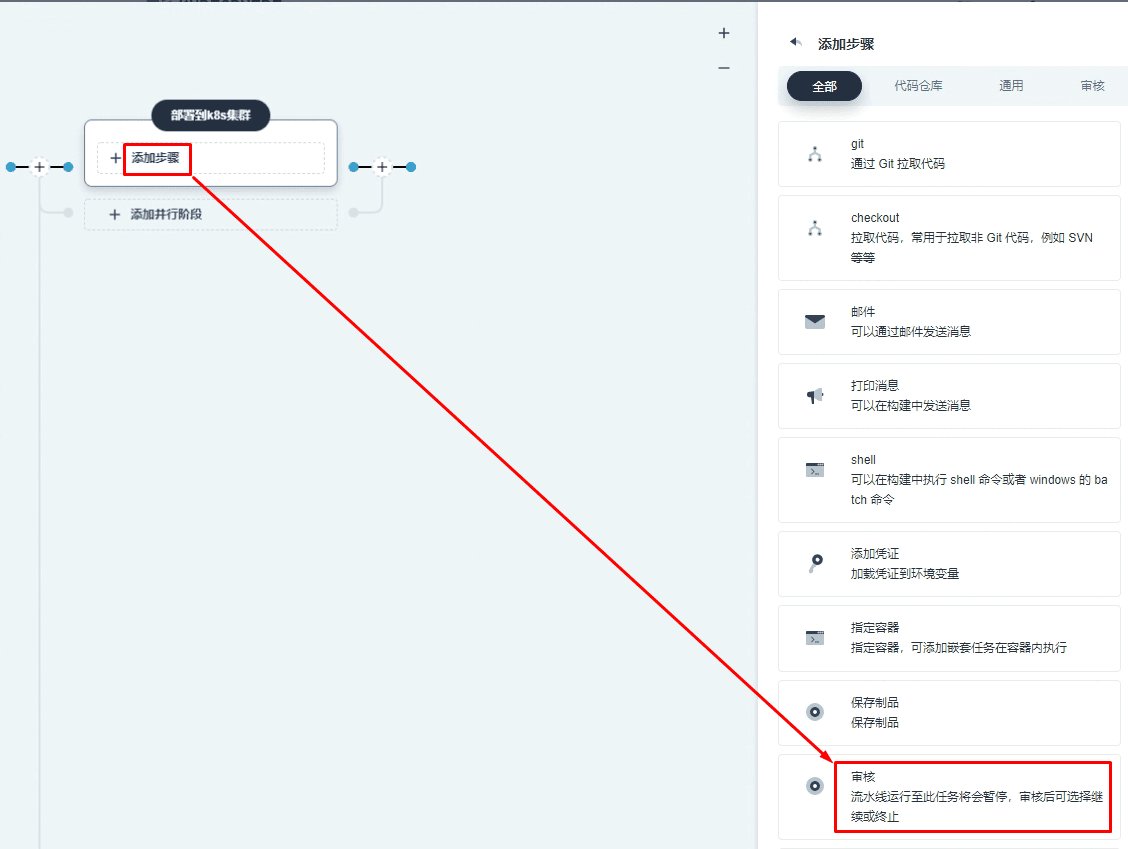

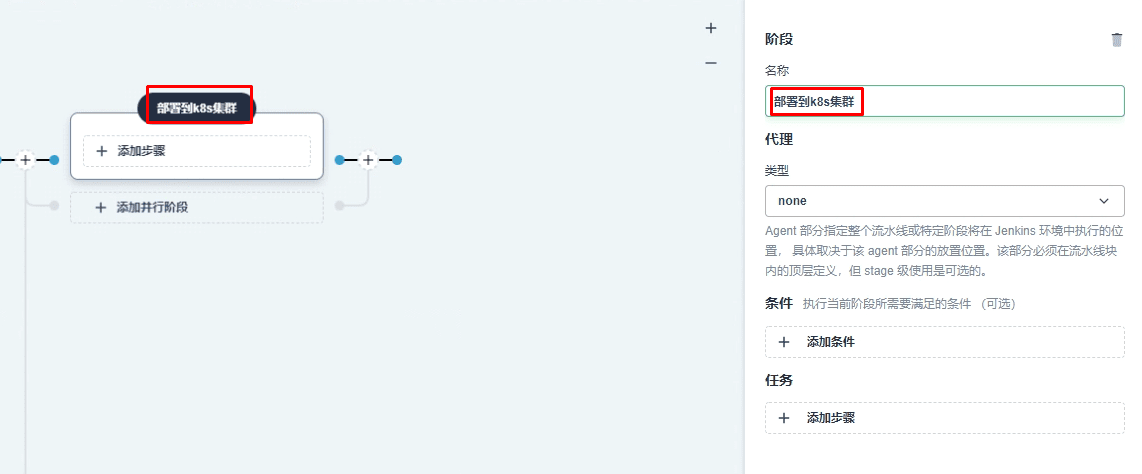

八、通过KubeSphere部署之项目部署流水线编写

image-20221129165006087

image-20221129165106182

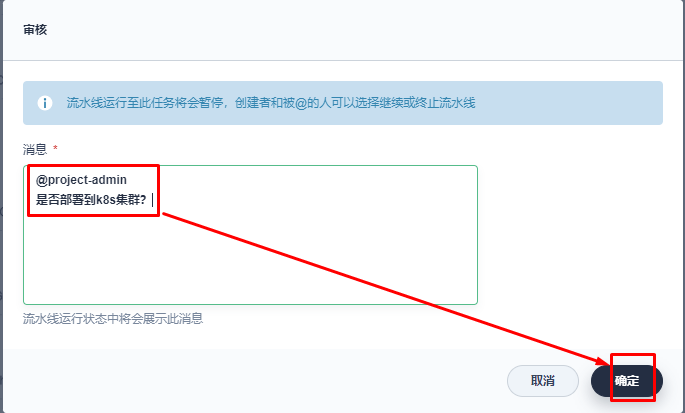

image-20221129165251512

image-20221129165321478

image-20221129165414348

image-20221129165439344

image-20221129165534970

image-20221129165617529

image-20221129165721914

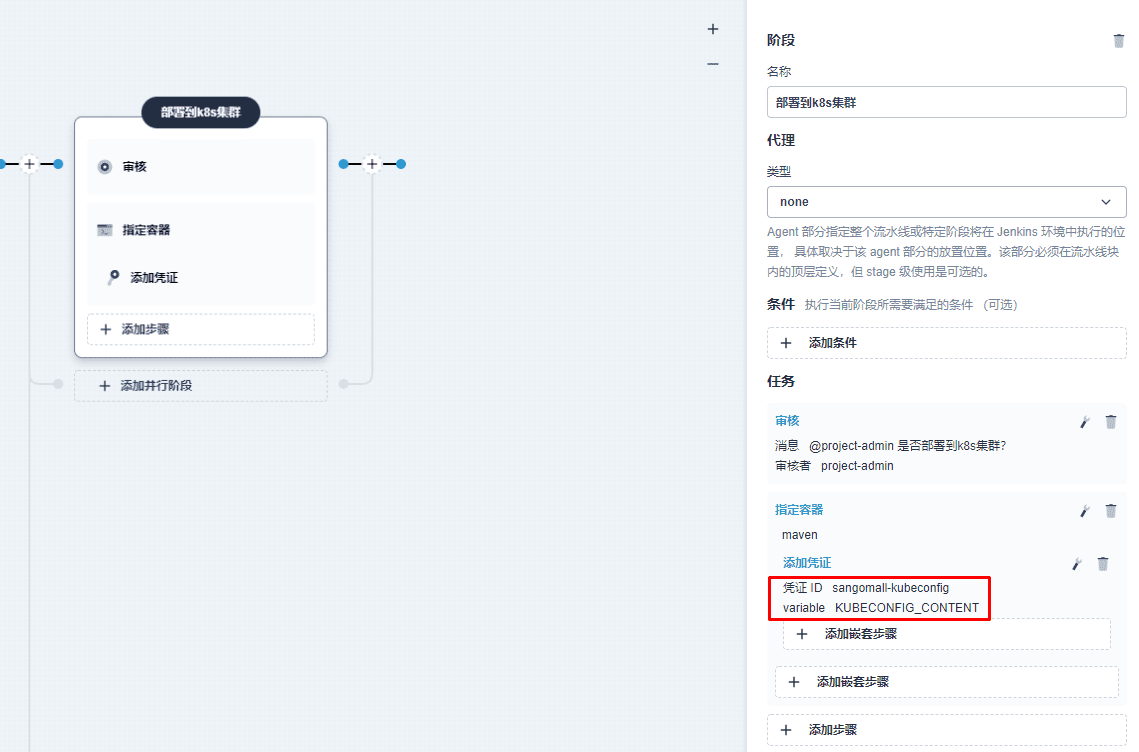

image-20221129165751897

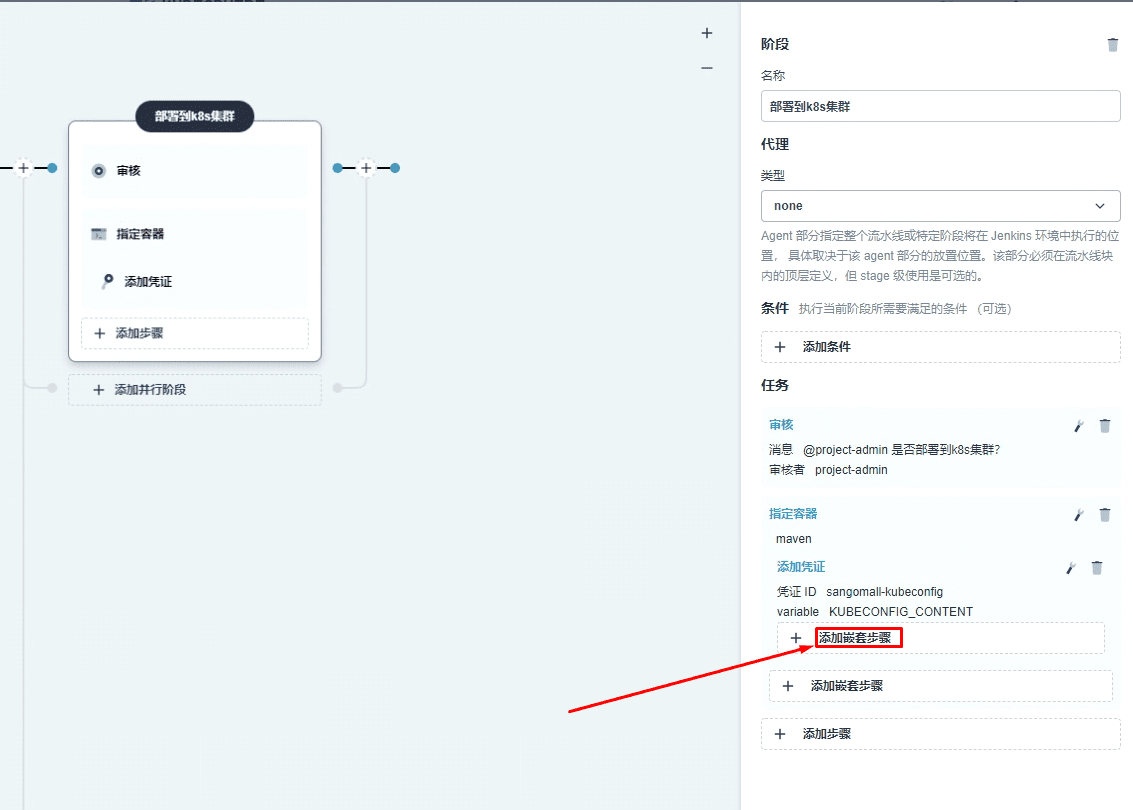

image-20221129170249932

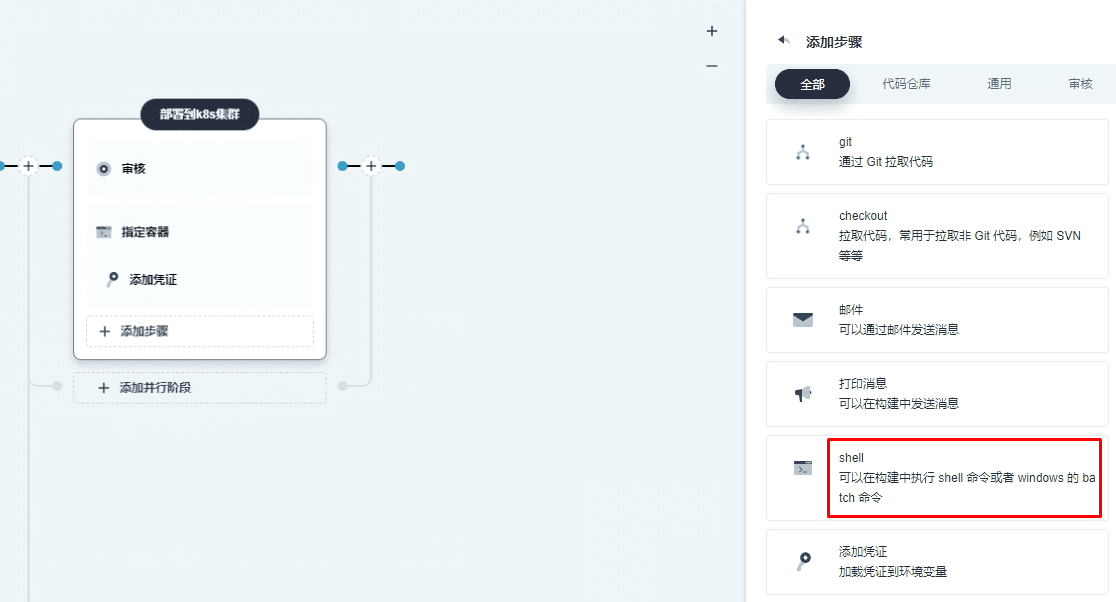

image-20221129170321155

mkdir ~/.kube
echo "$KUBECONFIG_CONTENT" > ~/.kube/config
envsubst < $PROJECT_NAME/deploy/deploy.yaml | kubectl apply -f -

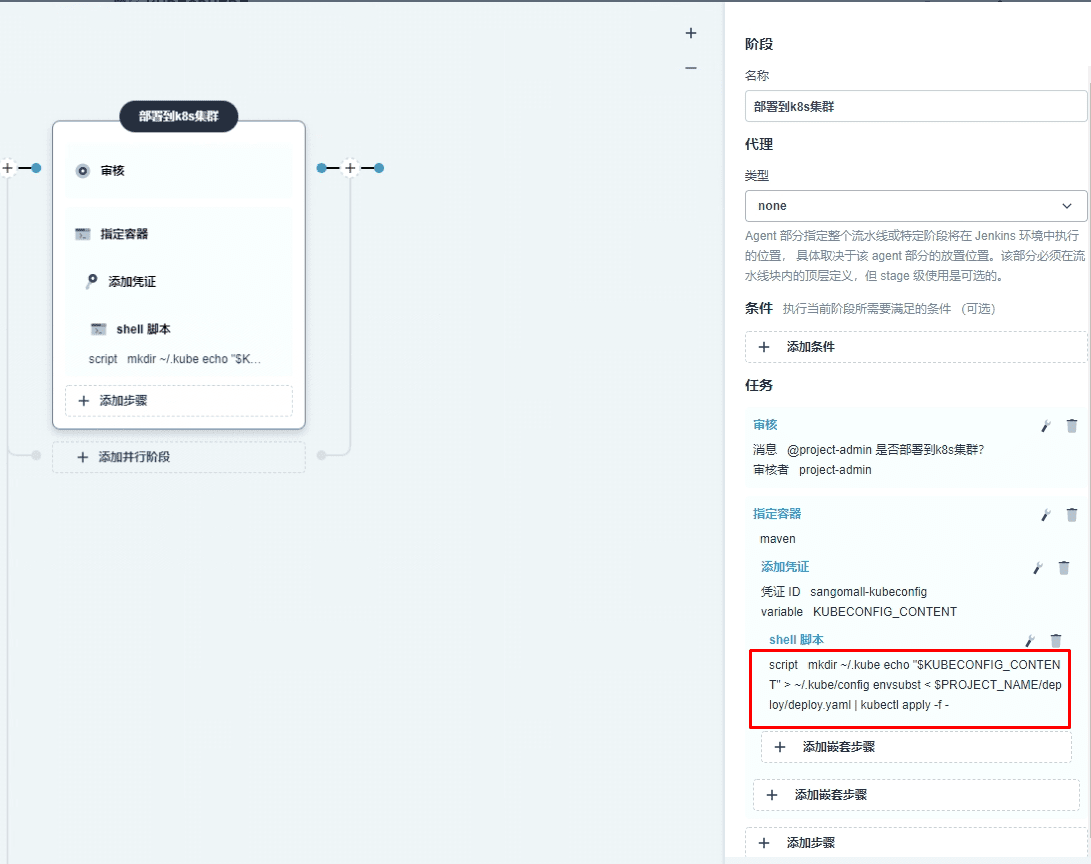

image-20221129170950963

九、创建项目jenkins文件

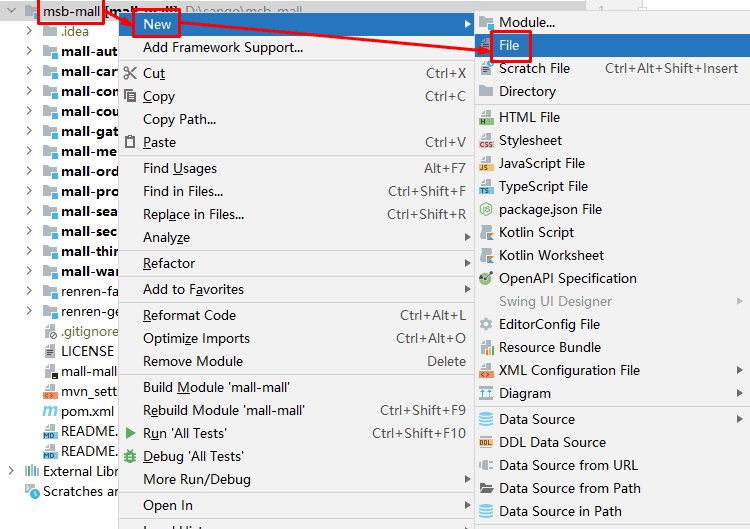

image-20221129183911732

image-20221129183939922

pipeline {
  agent {
    node {
      label 'maven'
    }

  }
   parameters {
    string(name: 'PROJECT_VERSION', defaultValue: 'v1.0', description: '')
    string(name: 'PROJECT_NAME', defaultValue: '', description: '')
  }

   environment {
    DOCKER_CREDENTIAL_ID = 'dockerhub-id'
    GITEE_CREDENTIAL_ID = 'gitee-id'
    KUBECONFIG_CREDENTIAL_ID = 'sangomall-kubeconfig'
    REGISTRY = 'docker.io'
    DOCKERHUB_NAMESPACE = 'nextgomsb'
    GITEE_ACCOUNT = 'nextgomsb'
    SONAR_CREDENTIAL_ID = 'sonar-qube'
  }


  stages {
    stage('拉取项目代码') {
      agent none
      steps {
        git(url: 'https://gitee.com/nextgomsb/sangomall.git', credentialsId: 'gitee-id', changelog: true, poll: false)
      }
    }

    stage('代码质量检查及分析') {
      agent none
      steps {
        container('maven') {
          withCredentials([string(credentialsId : 'sonar-qube' ,variable : 'SONAR_TOKEN' ,)]) {
            withSonarQubeEnv('sonar') {
              sh 'echo 当前目录 `pwd`'
              sh 'mvn clean install -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
              sh 'mvn sonar:sonar -gs `pwd`/mvn_settings.xml -Dsonar.login=$SONAR_TOKEN'
            }

          }

          timeout(unit: 'HOURS', activity: true, time: 1) {
            waitForQualityGate 'true'
          }

        }

      }
    }

    stage('单元测试') {
      agent none
      steps {
        container('maven') {
          sh 'mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
        }

      }
    }

    stage('构建项目容器镜像及推送') {
      agent none
      steps {
        container('maven') {
          sh 'mvn clean package -Dmaven.test.skip=true -gs `pwd`/mvn_settings.xml'
          sh 'cd $PROJECT_NAME && docker build -f Dockerfile -t $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER .'
          withCredentials([usernamePassword(credentialsId : 'dockerhub-id' ,passwordVariable : 'DOCKER_PASSWORD' ,usernameVariable : 'DOCKER_USERNAME' ,)]) {
            sh 'echo "$DOCKER_PASSWORD" | docker login $REGISTRY -u "$DOCKER_USERNAME" --password-stdin'
            sh 'docker push $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER'
            sh 'docker tag  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:latest'
            sh 'docker push  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:latest'
          }

        }

      }
    }

    stage('创建项目代码及容器镜像的发布版') {
      agent none
      when {
        expression {
          return params.PROJECT_VERSION =~ /v.*/
        }

      }
      steps {
        container('maven') {
          input(message: '''@project-admin
是否允许推送本次项目代码及容器镜像的发布版？''', submitter: 'project-admin')
          withCredentials([usernamePassword(credentialsId : 'gitee-id' ,passwordVariable : 'GITEE_PASSWORD' ,usernameVariable : 'GITEE_USERNAME' ,)]) {
            sh 'git config --global user.email "nextgo@126.com" '
            sh 'git config --global user.name "nextgo" '
            sh 'git tag -a $PROJECT_VERSION -m "$PROJECT_VERSION" '
            sh 'git push http://$GITEE_USERNAME:$GITEE_PASSWORD@gitee.com/$GITEE_ACCOUNT/sangomall.git --tags --ipv4'
          }

          sh 'docker tag  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:SNAPSHOT-$BUILD_NUMBER $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:$PROJECT_VERSION '
          sh 'docker push  $REGISTRY/$DOCKERHUB_NAMESPACE/$PROJECT_NAME:$PROJECT_VERSION'
        }

      }
    }

    stage('部署微服务项目到K8S集群') {
      agent none
      steps {
        input(message: '''@project-admin
是否允许发布微服务项目到K8S集群？''', submitter: 'project-admin')
        container('maven') {
          withCredentials([kubeconfigContent(credentialsId : 'sangomall-kubeconfig' ,variable : 'KUBECONFIG_CONTENT' ,)]) {
            sh '''mkdir ~/.kube
echo "$KUBECONFIG_CONTENT" > ~/.kube/config
envsubst < $PROJECT_NAME/deploy/deploy.yaml | kubectl apply -f -'''
          }

        }

      }
    }

  }

}

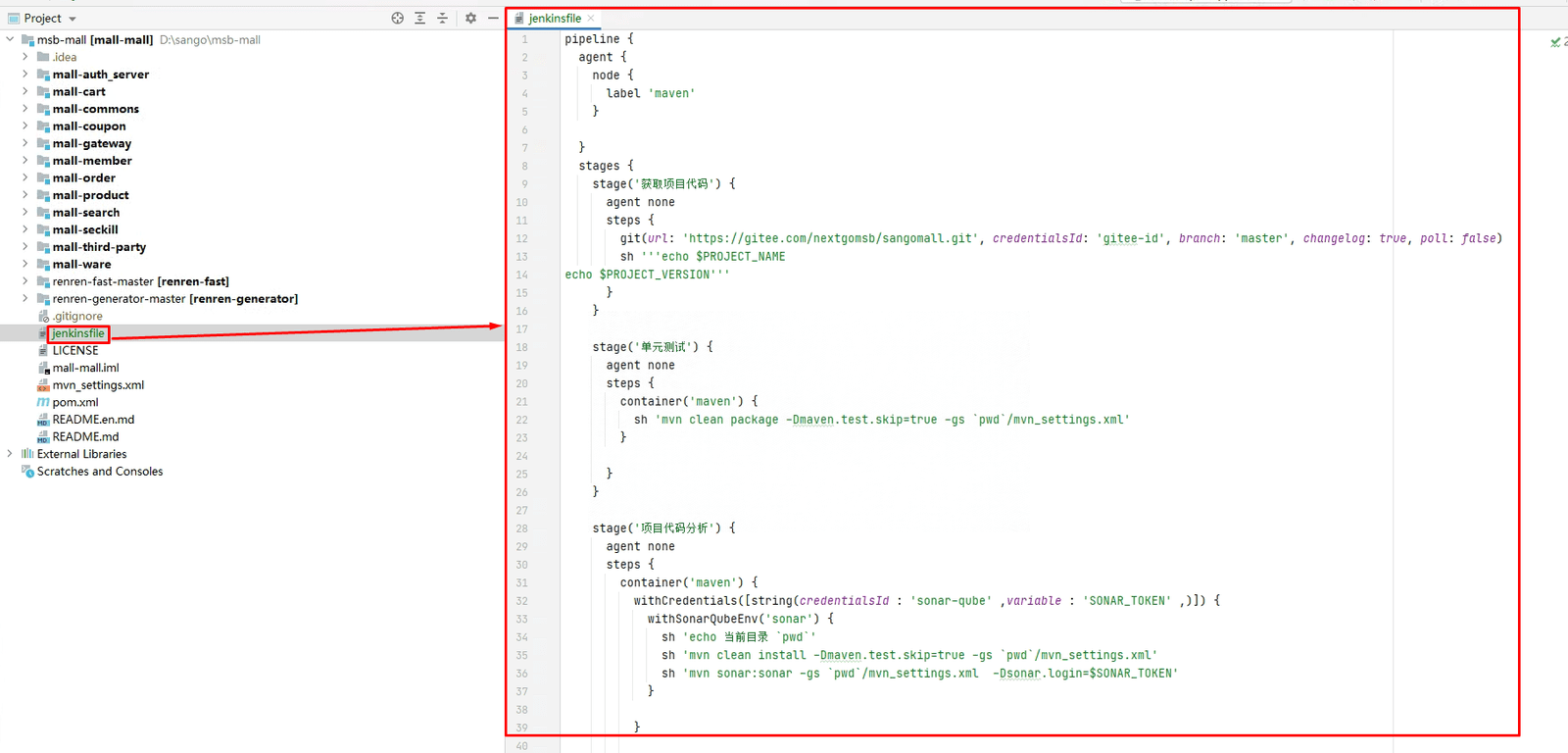

image-20221129184034930

十、提交项目中使用所有文件

image-20221130111251762

image-20221130111328918

Corey 知识库
Copyright © 2026 Corey
