kubeadm极速部署Kubernetes 1.29版本集群

Corey2026/8/13大约 9 分钟

VIP 专题 · 第 2 篇
来源课程笔记整理优化；插图已迁入博客静态目录。

基于AlmaLinux使用kubeadm极速部署Kubernetes 1.29.X版本集群

一、集群节点准备

1.1 主机操作系统说明

序号	操作系统及版本	备注
1	AlmaLinux 9.3

1.2 主机硬件配置说明

需求	CPU	内存	硬盘	角色	主机名
值	8C	8G	1024GB	master	k8s-master01
值	8C	8G	1024GB	worker(node)	k8s-worker01
值	8C	8G	1024GB	worker(node)	k8s-worker02

1.3 主机配置

1.3.1 主机名配置

由于本次使用3台主机完成kubernetes集群部署，其中1台为master节点,名称为k8s-master01;其中2台为worker节点，名称分别为：k8s-worker01及k8s-worker02

master节点
# hostnamectl set-hostname k8s-master01

worker01节点
# hostnamectl set-hostname k8s-worker01

worker02节点
# hostnamectl set-hostname k8s-worker02

1.3.2 主机IP地址配置

k8s-master01 192.168.10.160/24
k8s-master01 192.168.10.161/24
k8s-master01 192.168.10.162/24

[root@XXX ~]# vim /etc/NetworkManager/system-connections/ens33.nmconnection
[root@XXX ~]# cat /etc/NetworkManager/system-connections/ens33.nmconnection
[connection]
id=ens33
uuid=03863407-2055-3663-9dd5-28a8d6f209b3
type=ethernet
autoconnect-priority=-999
interface-name=ens33
timestamp=1698147848

[ethernet]

[ipv4]
address1=192.168.10.16x/24,192.168.10.2
dns=119.29.29.29;8.8.8.8
method=manual

[ipv6]
addr-gen-mode=eui64
method=auto

[proxy]

[root@XXX ~]# nmcli c reload

[root@XXX ~]# nmcli c up ens33

[root@XXX ~]# ip a s ens33
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:6a:c9:72 brd ff:ff:ff:ff:ff:ff
    altname enp2s1
    inet 192.168.10.190/24 brd 192.168.10.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe6a:c972/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

[root@XXX ~]# cat /etc/resolv.conf
# Generated by NetworkManager
nameserver 119.29.29.29
nameserver 8.8.8.8

1.3.3 主机名与IP地址解析

所有集群主机均需要进行配置。

# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.10.160 k8s-master01
192.168.10.161 k8s-worker01
192.168.10.162 k8s-worker02

1.3.4 防火墙配置

所有主机均需要操作。

关闭现有防火墙firewalld
# systemctl disable firewalld
# systemctl stop firewalld
# firewall-cmd --state
not running

1.3.5 SELINUX配置

所有主机均需要操作。修改SELinux配置需要重启操作系统。

# sed -ri 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config

# sestatus

1.3.6 时间同步配置

所有主机均需要操作。

[root@XXX ~]# timedatectl

[root@XXX ~]# dnf install chrony curl wget

[root@XXX ~]# systemctl status chronyd

1.3.7 配置内核路由转发及网桥过滤

所有主机均需要操作。

添加网桥过滤及内核转发配置文件
# cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF

加载br_netfilter模块
# modprobe br_netfilter

查看是否加载
# lsmod | grep br_netfilter
br_netfilter           22256  0
bridge                151336  1 br_netfilter

# sysctl --system

1.3.8 安装ipset及ipvsadm

所有主机均需要操作。

安装ipset及ipvsadm
# dnf -y install ipset ipvsadm

配置ipvsadm模块加载方式
添加需要加载的模块
# cat > /lib/modules/ipvs.modules <<EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack
EOF

授权、运行、检查是否加载
# chmod 755 /lib/modules/ipvs.modules && bash /lib/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack

1.3.9 关闭SWAP分区

修改完成后需要重启操作系统，如不重启，可临时关闭，命令为swapoff -a

永远关闭swap分区，需要重启操作系统
# cat /etc/fstab
......

# /dev/mapper/rl-swap     none                    swap    defaults        0 0

在上一行中行首添加#

二、容器运行时 Containerd安装及配置

2.1 Containerd部署文件获取

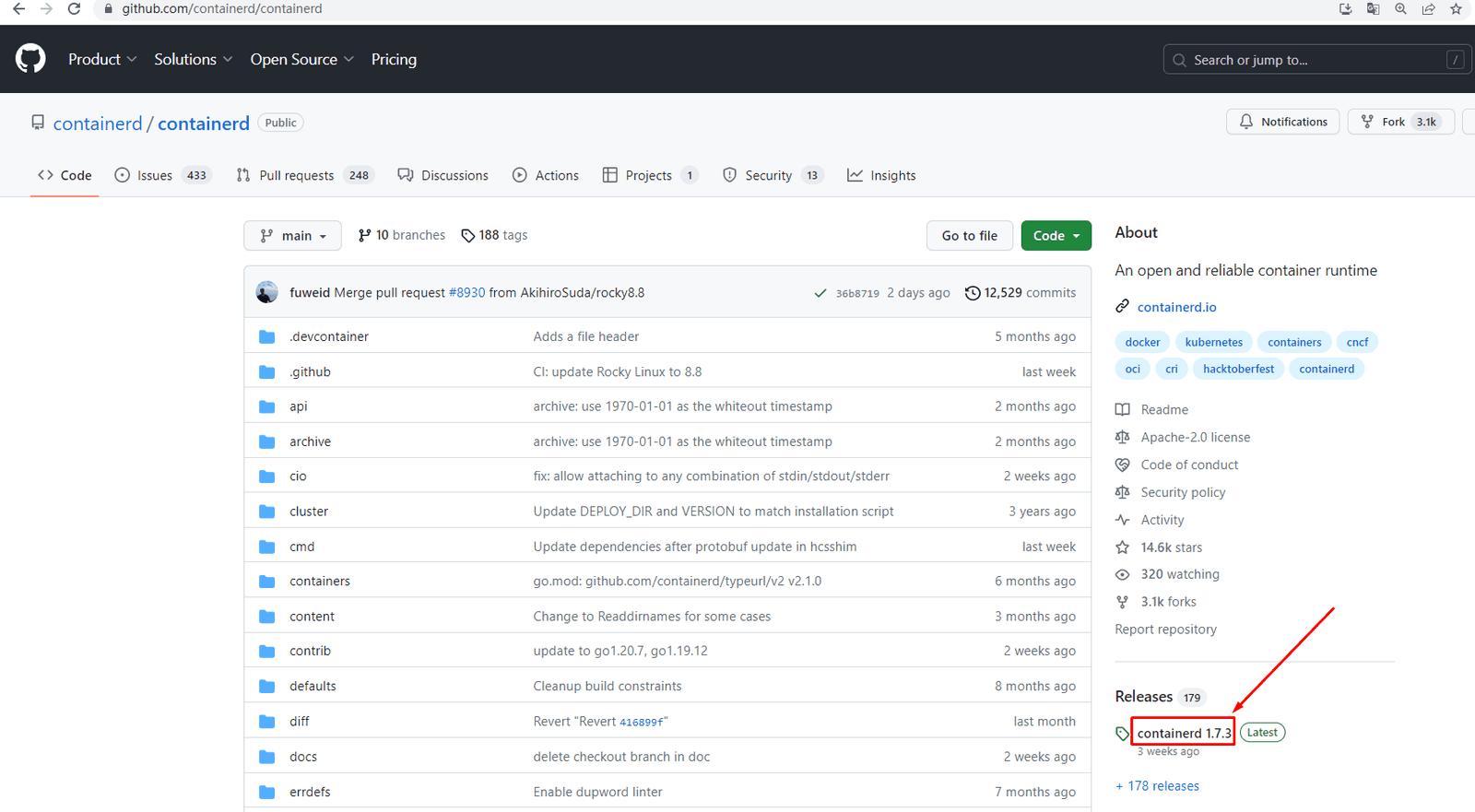

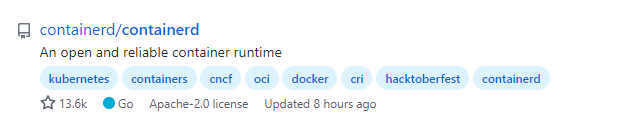

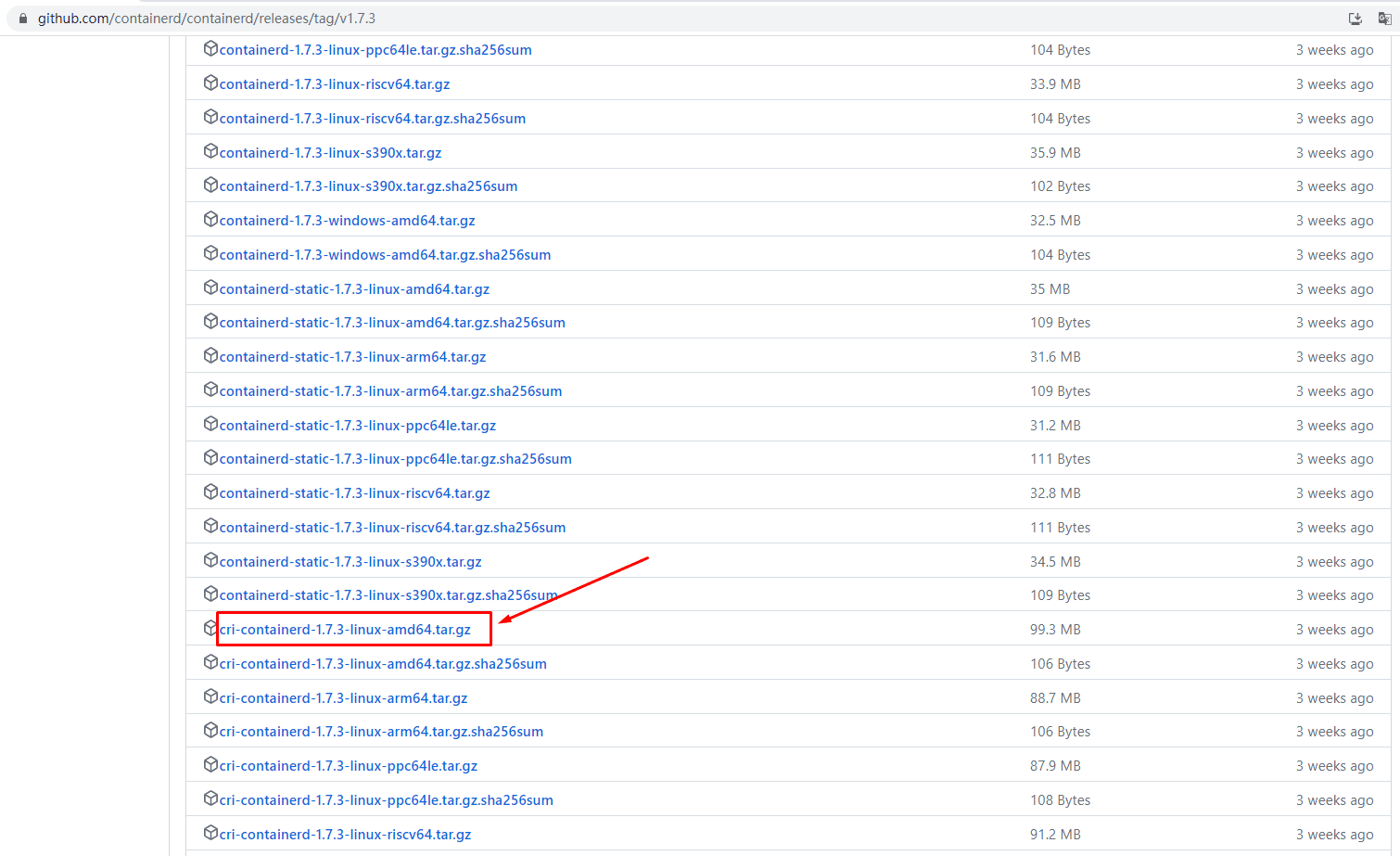

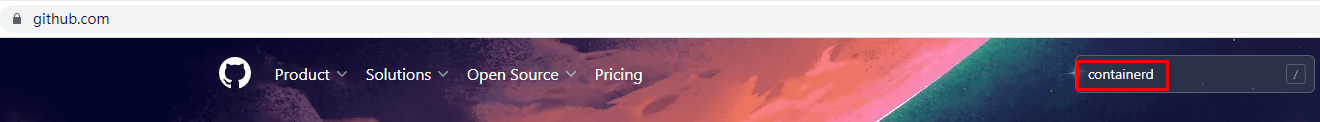

下载指定版本containerd
# wget https://github.com/containerd/containerd/releases/download/v1.7.5/cri-containerd-1.7.5-linux-amd64.tar.gz

解压安装
# tar xf cri-containerd-1.7.5-linux-amd64.tar.gz  -C /

2.2 Containerd配置文件生成并修改

创建配置文件目录
# mkdir /etc/containerd

生成配置文件
# containerd config default > /etc/containerd/config.toml

修改第65行
# vim /etc/containerd/config.toml

sandbox_image = "registry.k8s.io/pause:3.9" 由3.8修改为3.9

如果使用阿里云容器镜像仓库，也可以修改为：
sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.9" 由3.8修改为3.9

修改第137行
# vim /etc/containerd/config.toml

SystemdCgroup = true 由false修改为true

2.3 Containerd启动及开机自启动

设置开机自启动并现在启动
# systemctl enable --now containerd

验证其版本
# containerd --version

三、kubernetes 1.29.X 集群部署

3.1 集群软件及版本说明

	kubeadm	kubelet	kubectl
版本	1.27.X	1.27.X	1.27.X
安装位置	集群所有主机	集群所有主机	集群所有主机
作用	初始化集群、管理集群等	用于接收api-server指令，对pod生命周期进行管理	集群应用命令行管理工具

3.2 kubernetes YUM源准备

使用kubernetes社区软件源

# cat > /etc/yum.repos.d/k8s.repo <<EOF
[kubernetes]
name=Kubernetes
baseurl=https://pkgs.k8s.io/core:/stable:/v1.29/rpm/
enabled=1
gpgcheck=1
gpgkey=https://pkgs.k8s.io/core:/stable:/v1.29/rpm/repodata/repomd.xml.key
#exclude=kubelet kubeadm kubectl cri-tools kubernetes-cni
EOF

使用阿里云软件源

# cat <<EOF | tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.29/rpm/
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.29/rpm/repodata/repomd.xml.key
EOF

3.3 集群软件安装

所有节点均可安装

默认安装
# dnf -y install  kubeadm  kubelet kubectl

查看指定版本
# dnf list kubeadm.x86_64 --showduplicates | sort -r
# dnf list kubelet.x86_64 --showduplicates | sort -r
# dnf list kubectl.x86_64 --showduplicates | sort -r

安装指定版本
# dnf -y install kubeadm-1.29.1-150500.1.1  kubelet-1.29.1-150500.1.1 kubectl-1.29.1-150500.1.1

3.4 配置kubelet

为了实现docker使用的cgroupdriver与kubelet使用的cgroup的一致性，建议修改如下文件内容。

# vim /etc/sysconfig/kubelet
KUBELET_EXTRA_ARGS="--cgroup-driver=systemd"

设置kubelet为开机自启动即可，由于没有生成配置文件，集群初始化后自动启动
# systemctl enable kubelet

3.5 集群镜像准备

使用kubernetes社区容器镜像仓库，可使用VPN实现下载。

# kubeadm config images list --kubernetes-version=v1.29.1

使用阿里云容器镜像仓库

# kubeadm config images list --kubernetes-version=v1.29.1 --image-repository registry.aliyuncs.com/google_containers

# cat image_download.sh
#!/bin/bash
images_list='
镜像列表'

for i in $images_list
do
        docker pull $i
done

docker save -o k8s-1-29-1.tar $images_list

3.6 集群初始化

使用kubernetes社区容器镜像仓库

[root@k8s-master01 ~]# kubeadm init --kubernetes-version=v1.29.1 --pod-network-cidr=10.244.0.0/16 --apiserver-advertise-address=192.168.10.160  --cri-socket unix:///var/run/cri-dockerd.sock

使用阿里云容器镜像仓库

[root@k8s-master01 ~]# kubeadm init --kubernetes-version=v1.29.1 --pod-network-cidr=10.244.0.0/16 --apiserver-advertise-address=192.168.10.160  --cri-socket unix:///var/run/cri-dockerd.sock --image-repository registry.aliyuncs.com/google_containers

初始化过程输出
[init] Using Kubernetes version: v1.29.1
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [k8s-master01 kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 192.168.10.160]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [k8s-master01 localhost] and IPs [192.168.10.160 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [k8s-master01 localhost] and IPs [192.168.10.160 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "super-admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 4.001643 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node k8s-master01 as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers]
[mark-control-plane] Marking the node k8s-master01 as control-plane by adding the taints [node-role.kubernetes.io/control-plane:NoSchedule]
[bootstrap-token] Using token: nnyedz.y3ajtpy468lmol2g
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.10.160:6443 --token nnyedz.y3ajtpy468lmol2g \
        --discovery-token-ca-cert-hash sha256:da611f922567238facd9c9557bd2e6b40d066b35567ca9696849f005dd15e646

3.7 集群应用客户端管理集群文件准备

[root@k8s-master01 ~]# mkdir -p $HOME/.kube
[root@k8s-master01 ~]# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@k8s-master01 ~]# chown $(id -u):$(id -g) $HOME/.kube/config
[root@k8s-master01 ~]# ls /root/.kube/
config

3.8 集群网络插件部署 calico

使用calico部署集群网络
安装参考网址：https://projectcalico.docs.tigera.io/about/about-calico

（配图缺失：image-20230220180313085）

（配图缺失：image-20230220180556878）

应用operator资源清单文件
[root@k8s-master01 ~]# kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v3.27.0/manifests/tigera-operator.yaml

通过自定义资源方式安装
[root@k8s-master01 ~]# wget https://raw.githubusercontent.com/projectcalico/calico/v3.27.0/manifests/custom-resources.yaml

修改文件第13行，修改为使用kubeadm init ----pod-network-cidr对应的IP地址段
[root@k8s-master01 ~]# vim custom-resources.yaml
......
 11     ipPools:
 12     - blockSize: 26
 13       cidr: 10.244.0.0/16
 14       encapsulation: VXLANCrossSubnet
......

应用资源清单文件
[root@k8s-master01 ~]# kubectl create -f custom-resources.yaml

监视calico-sysem命名空间中pod运行情况
[root@k8s-master01 ~]# watch kubectl get pods -n calico-system

Wait until each pod has the STATUS of Running.

已经全部运行
[root@k8s-master01 ~]# kubectl get pods -n calico-system
NAME                                      READY   STATUS    RESTARTS   AGE
calico-kube-controllers-666bb9949-dzp68   1/1     Running   0          11m
calico-node-jhcf4                         1/1     Running   4          11m
calico-typha-68b96d8d9c-7qfq7             1/1     Running   2          11m

3.9 集群工作节点添加

因容器镜像下载较慢，可能会导致报错，主要错误为没有准备好cni（集群网络插件），如有网络，请耐心等待即可。

[root@k8s-worker01 ~]# kubeadm join 192.168.10.160:6443 --token 8x4o2u.hslo8xzwwlrncr8s \                              --discovery-token-ca-cert-hash sha256:7323a8b0658fc33d89e627f078f6eb16ac94394f9a91b3335dd3ce73a3f313a0 --cri-socket unix:///var/run/cri-dockerd.sock

[root@k8s-worker02 ~]# kubeadm join 192.168.10.160:6443 --token 8x4o2u.hslo8xzwwlrncr8s \
        --discovery-token-ca-cert-hash sha256:7323a8b0658fc33d89e627f078f6eb16ac94394f9a91b3335dd3ce73a3f313a0 --cri-socket unix:///var/run/cri-dockerd.sock

四、验证集群可用性

查看所有的节点
[root@k8s-master01 ~]# kubectl get nodes
NAME           STATUS   ROLES           AGE   VERSION
k8s-master01   Ready    control-plane   12h   v1.29.1
k8s-worker01   Ready    <none>          12h   v1.29.1
k8s-worker02   Ready    <none>          12h   v1.29.1

查看集群健康情况
[root@k8s-master01 ~]# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE                         ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-0               Healthy   {"health":"true","reason":""}

查看kubernetes集群pod运行情况
[root@k8s-master01 ~]# kubectl get pods -n kube-system
NAME                                   READY   STATUS    RESTARTS   AGE
coredns-6d4b75cb6d-js5pl               1/1     Running   0          12h
coredns-6d4b75cb6d-zm8pc               1/1     Running   0          12h
etcd-k8s-master01                      1/1     Running   0          12h
kube-apiserver-k8s-master01            1/1     Running   0          12h
kube-controller-manager-k8s-master01   1/1     Running   0          12h
kube-proxy-7nhr7                       1/1     Running   0          12h
kube-proxy-fv4kr                       1/1     Running   0          12h
kube-proxy-vv5vg                       1/1     Running   0          12h
kube-scheduler-k8s-master01            1/1     Running   0          12h

再次查看calico-system命名空间中pod运行情况。
[root@k8s-master01 ~]# kubectl get pods -n calico-system
NAME                                       READY   STATUS    RESTARTS   AGE
calico-kube-controllers-5b544d9b48-xgfnk   1/1     Running   0          12h
calico-node-7clf4                          1/1     Running   0          12h
calico-node-cjwns                          1/1     Running   0          12h
calico-node-hhr4n                          1/1     Running   0          12h
calico-typha-6cb6976b97-5lnpk              1/1     Running   0          12h
calico-typha-6cb6976b97-9w9s8              1/1     Running   0          12h
