基于K8S构建云原生数据基础设施平台 KubeBlocks
一、基于Kubekey快速部署K8S集群
如果需要使用playgroup功能，容器运行时必须要使用Docker。
1.1 主机准备
| 主机名 | IP地址 | 备注 |
|---|---|---|
| k8s-master01 | 192.168.10.140/24 | master |
| k8s-worker01 | 192.168.10.141/24 | worker |
| k8s-worker02 | 192.168.10.142/24 | worker |
# vim /etc/hosts
# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.10.140 k8s-master01
192.168.10.141 k8s-worker01
192.168.10.142 k8s-worker021.2 软件准备
kubernetes版本大于等于1.18
| 软件名称 | 是否安装 |
|---|---|
| socat | 必须安装 |
| conntrack | 必须安装 |
| ebtables | 可选，但推荐安装 |
| ipset | 可选，但推荐安装 |
| ipvsadm | 可选，但推荐安装 |
# yum -y install socat conntrack ebtables ipset ipvsadm1.3 使用Kubekey部署多节点K8S集群

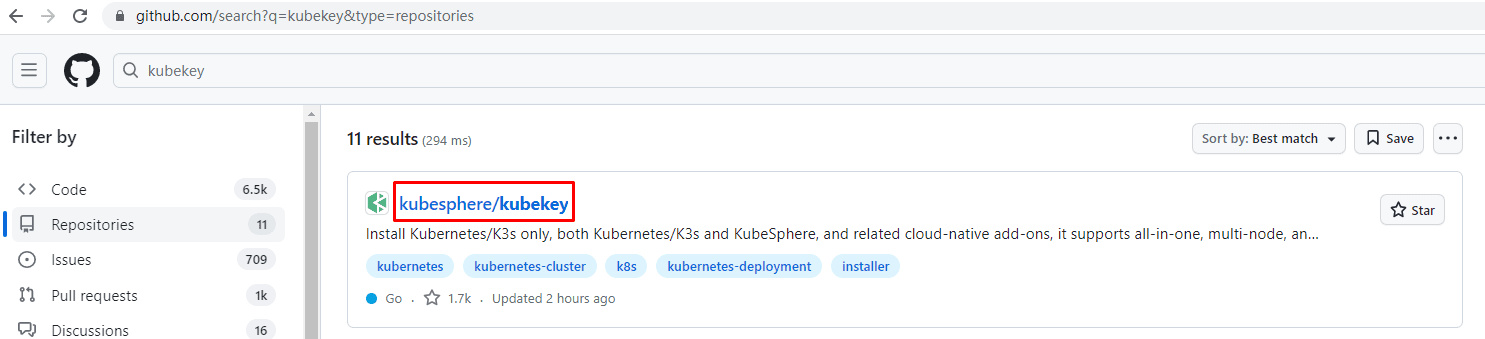

1.3.1 Kubekey工具下载
[root@k8s-master01 ~]# curl -sfL https://get-kk.kubesphere.io | sh -[root@k8s-master01 ~]# ls
kk kubekey-v3.0.7-linux-amd64.tar.gz[root@k8s-master01 ~]# mv kk /usr/local/bin/1.3.2 多节点K8S集群部署
参考网址：https://www.kubesphere.io/zh/docs/v3.3/installing-on-linux/introduction/multioverview/
1.3.2.1 创建kk部署K8S集群配置文件
[root@k8s-master01 ~]# kk create config -f k8s.yaml
输出内容如下：
Generate KubeKey config file successfully[root@k8s-master01 ~]# ls
k8s.yaml[root@k8s-master01 ~]# vim k8s.yaml
[root@k8s-master01 ~]# cat k8s.yaml
apiVersion: kubekey.kubesphere.io/v1alpha2
kind: Cluster
metadata:
name: member1
spec:
hosts:
- {name: k8s-master01, address: 192.168.10.140, internalAddress: 192.168.10.140, user: root, password: "centos"}
- {name: k8s-worker01, address: 192.168.10.141, internalAddress: 192.168.10.141, user: root, password: "centos"}
- {name: k8s-worker02, address: 192.168.10.142, internalAddress: 192.168.10.142, user: root, password: "centos"}
roleGroups:
etcd:
- k8s-master01
control-plane:
- k8s-master01
worker:
- k8s-worker01
- k8s-worker02
controlPlaneEndpoint:
## Internal loadbalancer for apiservers
# internalLoadbalancer: haproxy
domain: lb.kubemsb.com
address: ""
port: 6443
kubernetes:
version: v1.23.10
clusterName: cluster.local
autoRenewCerts: true
containerManager: docker
etcd:
type: kubekey
network:
plugin: calico
kubePodsCIDR: 10.244.0.0/16
kubeServiceCIDR: 10.96.0.0/16
## multus support. https://github.com/k8snetworkplumbingwg/multus-cni
multusCNI:
enabled: false
registry:
privateRegistry: ""
namespaceOverride: ""
registryMirrors: []
insecureRegistries: []
addons: []关于认证方式，也可参考如下：
默认为root用户
hosts:
- {name: master, address: 192.168.10.140, internalAddress: 192.168.10.140, password: centos}
使用ssh密钥实现免密登录
hosts:
- {name: master, address: 192.168.10.140, internalAddress: 192.168.10.140, privateKeyPath: "~/.ssh/id_rsa"}
1.3.2.2 执行kk创建k8s集群
[root@k8s-master01 ~]# kk create cluster -f k8s.yaml执行安装结束后：
18:28:03 CST Pipeline[CreateClusterPipeline] execute successfully
Installation is complete.
Please check the result using the command:
kubectl get pod -A二、为K8S集群提供后端持久存储 NFS
2.1 准备硬盘
查看准备的磁盘
[root@nfsserver ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
sda 8:0 0 100G 0 disk
├─sda1 8:1 0 1G 0 part /boot
└─sda2 8:2 0 99G 0 part
├─centos-root 253:0 0 50G 0 lvm /
├─centos-swap 253:1 0 2G 0 lvm [SWAP]
└─centos-home 253:2 0 47G 0 lvm /home
sdb 8:16 0 100G 0 disk2.2 安装NFS软件
安装NFS软件，即是客户端也是服务器端
# yum -y install nfs-utils2.3 NFS配置
创建挂载点
# mkdir /netshare格式化硬盘
# mkfs.xfs /dev/sdb编辑文件系统配置文件
# vim /etc/fstab
在文件最后添加此行内容
/dev/sdb /netshare xfs defaults 0 0手动挂载全部分区
# mount -a在本地查看文件系统挂载情况
# df -h
文件系统 容量 已用 可用 已用% 挂载点
/dev/sdb 100G 33M 100G 1% /netshare添加共享目录到配置文件
# vim /etc/exports
# cat /etc/exports
/netshare *(rw,sync,no_root_squash)启动服务及设置开机自启动
# systemctl enable nfs-server
# systemctl start nfs-server2.4 验证
本地验证目录是否共享
# showmount -e
Export list for nfsserver:
/netshare *在k8s master节点验证目录是否共享
# showmount -e 192.168.10.144
Export list for 192.168.10.144:
/netshare *在k8s worker01节点验证目录是否共享
# showmount -e 192.168.10.144
Export list for 192.168.10.144:
/netshare *2.5 部署存储动态供给
2.5.1 获取资源清单文件
在k8s master节点获取NFS后端存储动态供给配置资源清单文件
# for file in class.yaml deployment.yaml rbac.yaml ; do wget https://raw.githubusercontent.com/kubernetes-incubator/external-storage/master/nfs-client/deploy/$file ; done查看是否下载
# ls
class.yaml deployment.yaml rbac.yaml2.5.2 应用资源清单文件
应用rbac资源清单文件
# kubectl apply -f rbac.yaml修改存储类名称
# vim class.yaml
# cat class.yaml
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: nfs-client
provisioner: fuseim.pri/ifs # or choose another name, must match deployment's env PROVISIONER_NAME'
parameters:
archiveOnDelete: "false"应用class（存储类）资源清单文件
# kubectl apply -f class.yaml
storageclass.storage.k8s.io/nfs-client created应用deployment资源清单文件之前修改其配置，主要配置NFS服务器及其共享的目录
# vim deployment.yaml
注意修改处内容
# vim deployment.yaml
# cat deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nfs-client-provisioner
labels:
app: nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: default
spec:
replicas: 1
strategy:
type: Recreate
selector:
matchLabels:
app: nfs-client-provisioner
template:
metadata:
labels:
app: nfs-client-provisioner
spec:
serviceAccountName: nfs-client-provisioner
containers:
- name: nfs-client-provisioner
image: registry.cn-beijing.aliyuncs.com/pylixm/nfs-subdir-external-provisioner:v4.0.0
volumeMounts:
- name: nfs-client-root
mountPath: /persistentvolumes
env:
- name: PROVISIONER_NAME
value: fuseim.pri/ifs
- name: NFS_SERVER
value: 192.168.10.143
- name: NFS_PATH
value: /netshare
volumes:
- name: nfs-client-root
nfs:
server: 192.168.10.143
path: /netshare应用资源清单文件
# kubectl apply -f deployment.yaml查看pod运行情况
# kubectl get pods
出现以下表示成功运行
NAME READY STATUS RESTARTS AGE
nfs-client-provisioner-8bcf6c987-7cb8p 1/1 Running 0 74s设置默认存储类
# kubectl patch storageclass nfs-client -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'# kubectl get sc
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
nfs-client (default) fuseim.pri/ifs Delete Immediate false 18m2.5.3 测试用例验证动态供给是否可用
使用测试用例测试NFS后端存储是否可用
测试用例：
# vim nginx.yaml
# cat nginx.yaml
---
apiVersion: v1
kind: Service
metadata:
name: nginx
labels:
app: nginx
spec:
ports:
- port: 80
name: web
clusterIP: None
selector:
app: nginx
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: web
spec:
selector:
matchLabels:
app: nginx
serviceName: "nginx"
replicas: 2
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:latest
ports:
- containerPort: 80
name: web
volumeMounts:
- name: www
mountPath: /usr/share/nginx/html
volumeClaimTemplates:
- metadata:
name: www
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: "nfs-client"
resources:
requests:
storage: 1Gi# kubectl apply -f nginx.yaml
service/nginx created
statefulset.apps/web created# kubectl get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
www-web-0 Bound pvc-57bee742-326b-4d41-b241-7f2b5dd22596 1Gi RWO nfs-client 3m19s三、KubeBlocks使用

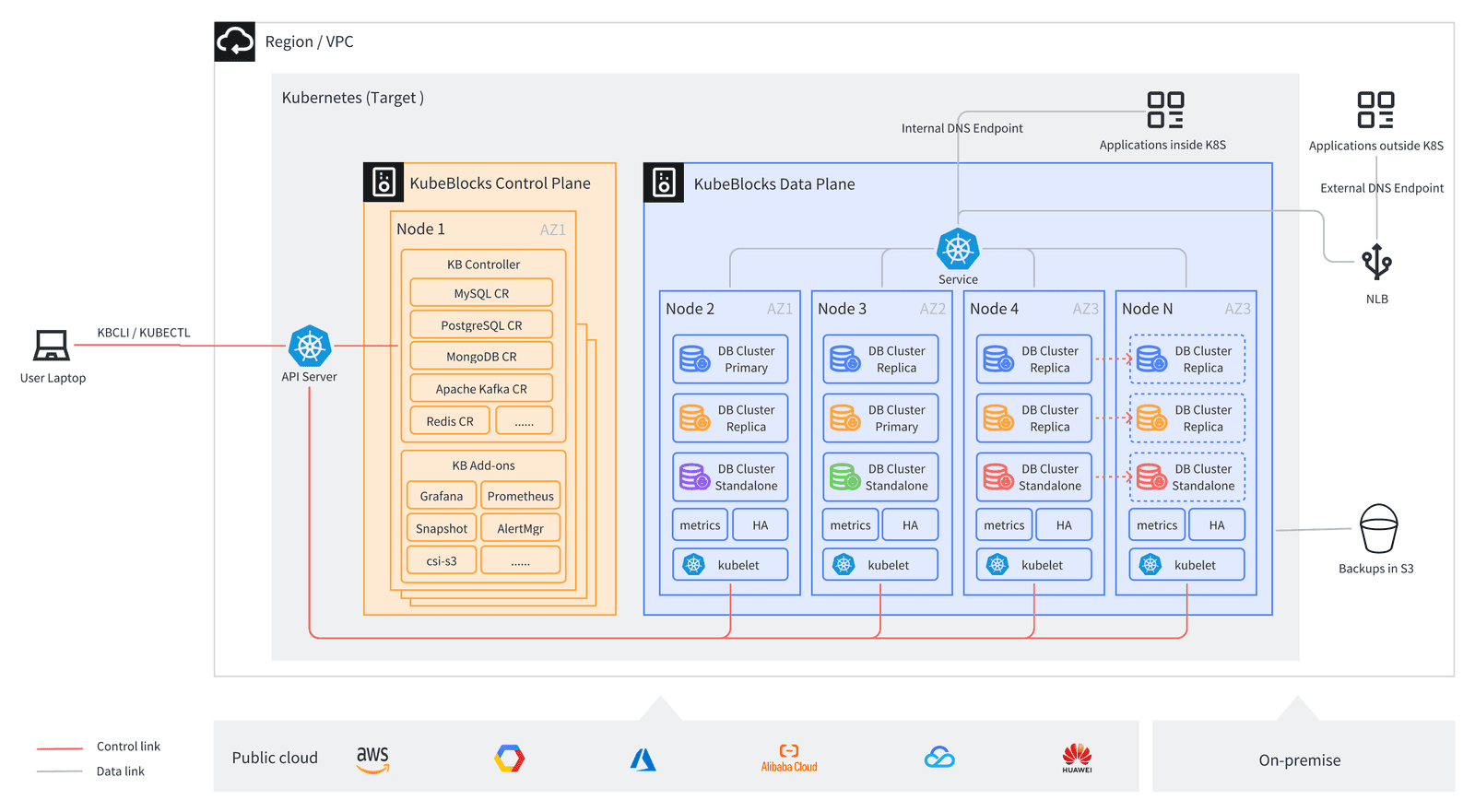

3.1 KubeBlocks介绍
KubeBlocks 这个名字来源于 Kubernetes 和 LEGO 积木，这表明在 Kubernetes 上构建数据库和分析型工作负载既高效又愉快，就像玩乐高玩具一样。KubeBlocks 将顶级云服务提供商的大规模生产经验与增强的可用性和稳定性改进相结合，帮助用户轻松构建容器化、声明式的关系型、NoSQL、流计算和向量型数据库服务。
为什么需要 KubeBlocks？
Kubernetes 已经成为容器编排的事实标准。它利用 ReplicaSet 提供的可扩展性和可用性以及部署提供的推出和回滚功能来管理数量不断增加的无状态工作负载。然而，管理有状态工作负载给 Kubernetes 带来了巨大的挑战。尽管 StatefulSet 提供了稳定的持久存储和唯一的网络标识符，但这些功能对于复杂的有状态工作负载来说远远不够。
为了应对这些挑战，并解决复杂性问题，KubeBlocks 引入了新的 workload——RSM（Replicated State Machines），具有以下能力：
- 基于角色的更新顺序可减少因升级版本、缩放和重新启动而导致的停机时间。
- 维护数据复制的状态，并自动修复复制错误或延迟。
它带来什么收益？
- KubeBlocks 具备构建数据库专业能力，实现了数据库服务容器化的技术壁垒，达到“开箱即用”数据库服务能力。
- KubeBlocks 使数据库服务在Kubernetes中具备自动化运维的专业能力，不仅简化了数据库的云化改造，也使数据库应用交付更加快速和可靠。
3.2 KubeBlocks CLI工具安装
在k8s-master01节点上执行
# curl -fsSL https://kubeblocks.io/installer/install_cli.sh | bashYour system is linux_amd64
Installing kbcli ...
Getting the latest kbcli ...
Downloading ...
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 29.4M 100 29.4M 0 0 3549k 0 0:00:08 0:00:08 --:--:-- 7579k
kbcli installed successfully.
Kubernetes: v1.23.10
kbcli: 0.6.4
Make sure your docker service is running and begin your journey with kbcli:
kbcli playground init
For more information on how to get started, please visit:
https://kubeblocks.io3.3 playground初始化
[root@k8s-master01 ~]# kbcli playground initCreate k3d cluster: kb-playground OK
Merge kubeconfig to /root/.kube/config OK
Switch current context to k3d-kb-playground OK
Write kubeconfig to /root/.kbcli/playground/kubeconfig OK
KubeBlocks will be installed to namespace "kb-system"
Kubernetes version 1.23.8+k3s1
kbcli version 0.6.4
Add and update repo kubeblocks OK
Install KubeBlocks 0.6.4 OK
Wait for addons to be enabled
alertmanager-webhook-adaptor OK
apecloud-mysql OK
apecloud-otel-collector OK
csi-hostpath-driver OK
grafana OK
kafka OK
mongodb OK
postgresql OK
prometheus OK
pulsar OK
redis OK
snapshot-controller OK
Create cluster mycluster (ClusterDefinition: apecloud-mysql) OK
KubeBlocks playground init SUCCESSFULLY!
Kubernetes cluster "kb-playground" has been created.
Cluster "mycluster" has been created.
Elapsed time: 5m46s
1. Basic commands for cluster:
kbcli cluster list # list database cluster and check its status
kbcli cluster describe mycluster # get cluster information
2. Connect to database
kbcli cluster connect mycluster

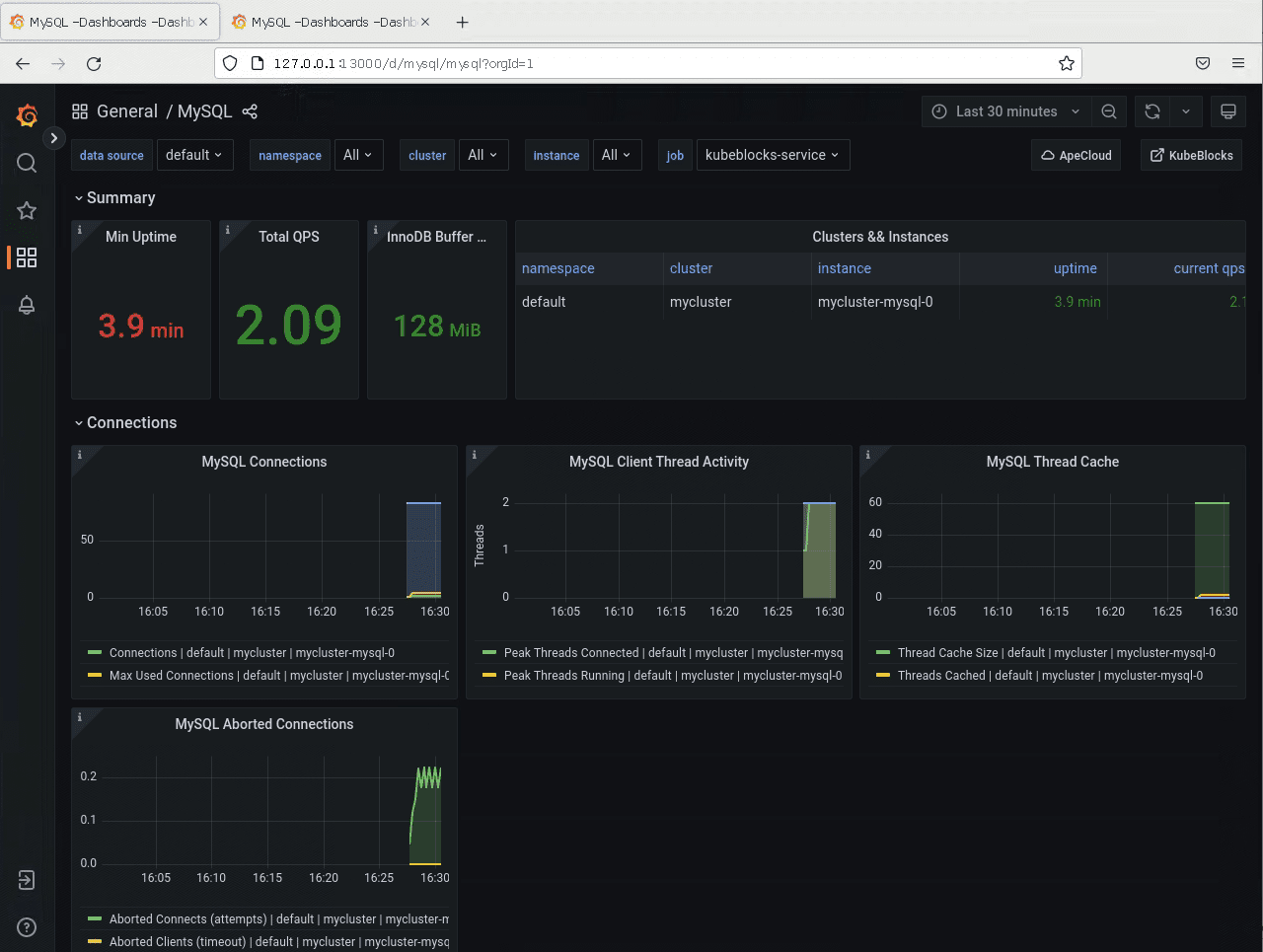

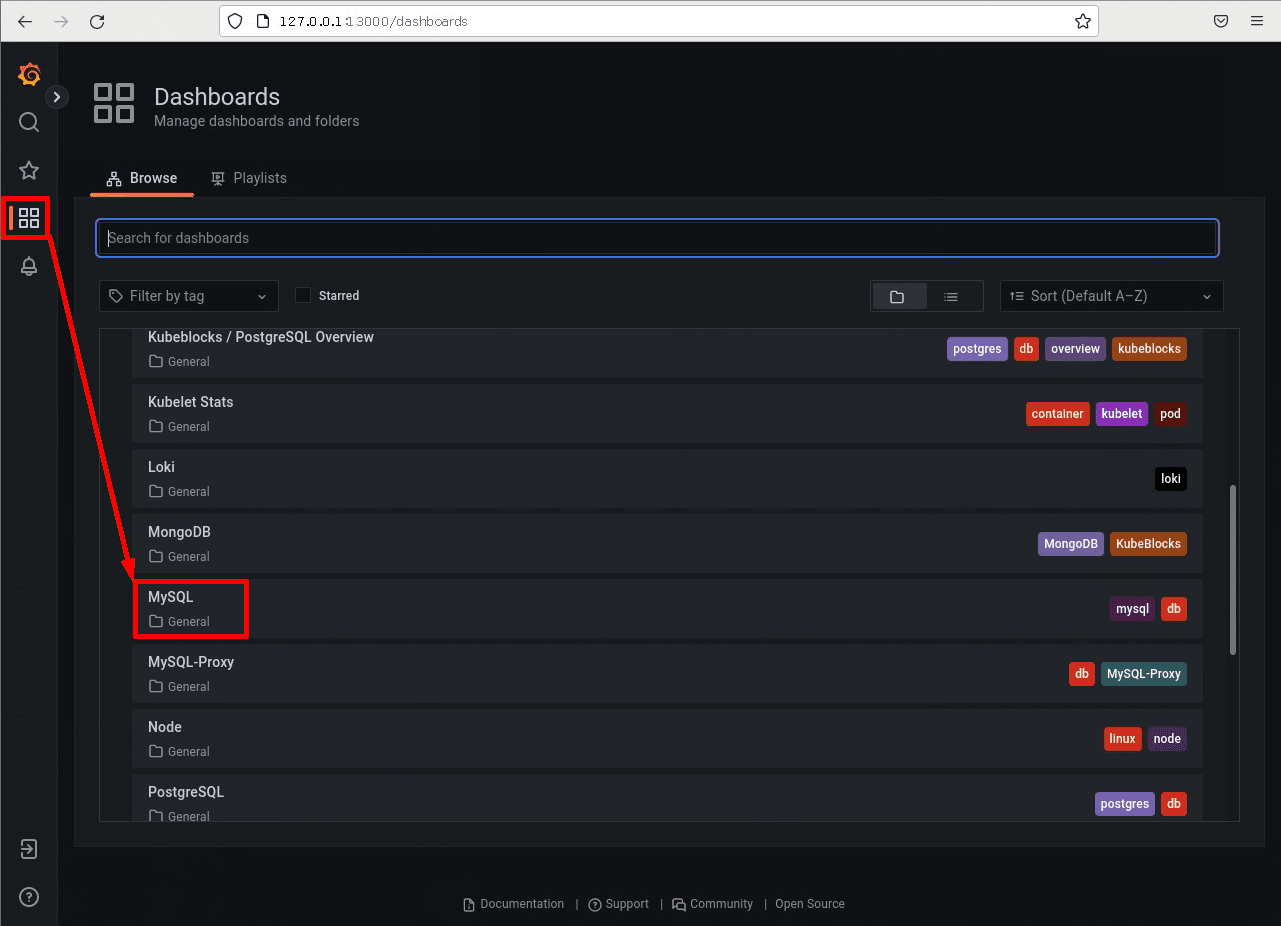

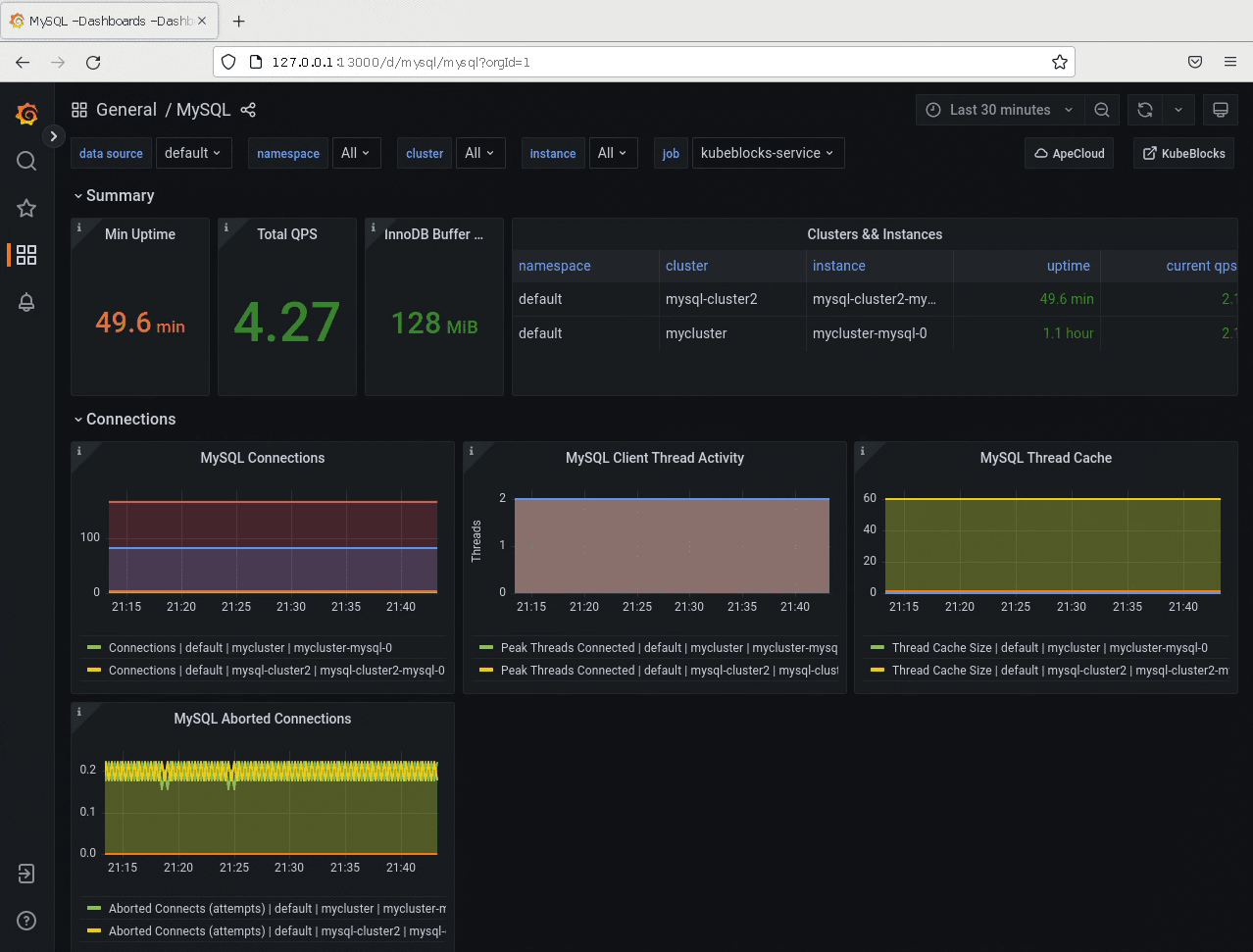

3. View the Grafana:
kbcli dashboard open kubeblocks-grafana
4. Destroy Playground:
kbcli playground destroy
--------------------------------------------------------------------
To get more help: kbcli help
Use "kbcli [command] --help" for more information about a command.[root@k8s-master01 ~]# kbcli dashboard open kubeblocks-grafana
Forwarding from 127.0.0.1:13000 -> 3000
Forward successfully! Opening browser ...
删除playground演示环境
# kbcli playground destroy3.4 通过kbcli安装KubeBlocks
通过kbcli在kubernetes中安装KubeBlocks
# kbcli kubeblocks install# kbcli kubeblocks status
KubeBlocks is deployed in namespace: kb-system,version: 0.6.4
KubeBlocks Workloads:
NAMESPACE KIND NAME READY PODS CPU(CORES) MEMORY(BYTES) CREATED-AT
kb-system Deployment kb-addon-snapshot-controller 1/1 N/A N/A Oct 26,2023 14:42 UTC+0800
kb-system Deployment kubeblocks 1/1 N/A N/A Oct 26,2023 14:41 UTC+0800
kb-system Deployment kubeblocks-dataprotection 1/1 N/A N/A Oct 26,2023 14:41 UTC+0800
KubeBlocks Addons:
NAME STATUS TYPE PROVIDER
alertmanager-webhook-adaptor Disabled Helm apecloud
apecloud-mysql Enabled Helm apecloud
apecloud-otel-collector Disabled Helm apecloud
aws-load-balancer-controller Disabled Helm N/A
csi-hostpath-driver Disabled Helm community
csi-s3 Disabled Helm community
external-dns Disabled Helm N/A
fault-chaos-mesh Disabled Helm community
grafana Disabled Helm community
kafka Enabled Helm community
kubebench Disabled Helm community
kubeblocks-csi-driver Disabled Helm N/A
loki Disabled Helm community
migration Disabled Helm community
milvus Disabled Helm community
mongodb Enabled Helm community
nebula Disabled Helm community
nyancat Disabled Helm apecloud
opensearch Disabled Helm community
postgresql Enabled Helm community
prometheus Disabled Helm community
pulsar Enabled Helm community
pyroscope-server Disabled Helm community
qdrant Disabled Helm community
redis Enabled Helm community
snapshot-controller Enabled Helm community
tdengine Disabled Helm community
victoria-metrics-agent Disabled Helm community
weaviate Disabled Helm community# kbcli kubeblocks uninstall3.5 通过KubeBlocks部署数据平台
3.5.1 MySQL
3.5.1.1 查看addon是否开启
查看可用于创建集群的所有数据库类型和版本。
# kbcli clusterdefinition list
NAME MAIN-COMPONENT-NAME STATUS AGE
apecloud-mysql mysql Available 3h49m
kafka kafka-server Available 3h49m
mongodb mongodb Available 3h49m
mongodb-sharding mongos Available 3h49m
postgresql postgresql Available 3h49m
pulsar pulsar-broker Available 3h49m
redis redis Available 3h49m确保 ApeCloud MySQL 插件已启用
# kbcli addon list
NAME TYPE PROVIDER STATUS AUTO-INSTALL AUTO-INSTALLABLE-SELECTOR EXTRAS
.......
apecloud-mysql Helm apecloud Enabled true
kafka Helm community Enabled true
mongodb Helm community Enabled true
postgresql Helm community Enabled true
pulsar Helm community Enabled true
redis Helm community Enabled true
snapshot-controller Helm community Enabled true {key=KubeGitVersion,op=DoesNotContain,values=[tke aliyun]}3.5.1.2 MySQL安装
KubeBlocks 支持创建两种类型的 MySQL 集群：Standalone 和 RaftGroup Cluster。Standalone仅支持一份副本，可用于对可用性要求较低的场景。对于可用性要求较高的场景，建议创建RaftGroup集群，即创建一个三副本集群。并且为了保证高可用性，所有副本默认分布在不同的节点上。
创建一个独立的,本次部署名称为:mysql-cluster1,如果需要被监控需要使用--monitoring-interval=15
# kbcli cluster create mysql <clustername>创建 RaftGroup 集群
# kbcli cluster create mysql --mode raftGroup <clustername>3.5.1.3 MySQL安装后查看
# kbcli cluster list
NAME NAMESPACE CLUSTER-DEFINITION VERSION TERMINATION-POLICY STATUS CREATED-TIME
mysql-cluster1 default apecloud-mysql ac-mysql-8.0.30 Delete Running Oct 26,2023 15:05 UTC+0800# kubectl get pods
NAME READY STATUS RESTARTS AGE
mysql-cluster1-mysql-0 5/5 Running 0 3h34m# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 6d21h
mysql-cluster1-mysql ClusterIP 10.110.111.68 <none> 3306/TCP 3h35m
mysql-cluster1-mysql-headless ClusterIP None <none> 3306/TCP,13306/TCP,9104/TCP,15100/TCP,16100/TCP,40000/TCP,3501/TCP,50001/TCP 3h35m3.5.1.4 连接MySQL
使用kbcli
# kbcli cluster connect mysql-cluster1 --namespace default
example:
# kbcli cluster connect <clustername> --namespace <name>输出：
Connect to instance mysql-cluster1-mysql-0
Defaulted container "mysql" out of: mysql, metrics, vttablet, kb-checkrole, config-manager
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 3514
Server version: 8.0.30 WeSQL Server - GPL, Release 5, Revision 5b589f1
Copyright (c) 2000, 2022, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql>使用kubectl
# kubectl get secrets -n default mysql-cluster1-conn-credential -o jsonpath='{.data.\username}' | base64 -d# kubectl get secrets -n default mysql-cluster1-conn-credential -o jsonpath='{.data.\password}' | base64 -d# kubectl get pods
NAME READY STATUS RESTARTS AGE
mysql-cluster1-mysql-0 5/5 Running 0 13m# kubectl exec -it -n default mysql-cluster1-mysql-0 -- /bin/bash
Defaulted container "mysql" out of: mysql, metrics, vttablet, kb-checkrole, config-manager
[root@mysql-cluster1-mysql-0 /]# mysql -uroot -p4w2d7vlj
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 221
Server version: 8.0.30 WeSQL Server - GPL, Release 5, Revision 5b589f1
Copyright (c) 2000, 2022, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> exit
3.5.2 Redis
# kbcli addon list# kbcli cluster create redis <clustername> --monitoring-interval=0
or
# kbcli cluster create redis --mode replication <clustername> --monitoring-interval=0# kbcli cluster connect <clustername> --namespace <name>
3.6 通过KubeBlocks部署数据监控平台
kubeblocks安装后，检查addons开启情况。
# kbcli kubeblocks install输出内容如下：
KubeBlocks will be installed to namespace "kb-system"
Kubernetes version 1.23.10
kbcli version 0.6.4
Collecting data from cluster OK
Kubernetes cluster preflight OK
Add and update repo kubeblocks OK
Install KubeBlocks 0.6.4 OK
Wait for addons to be enabled
apecloud-mysql OK
kafka OK
mongodb OK
postgresql OK
pulsar OK
redis OK
snapshot-controller OK
KubeBlocks 0.6.4 installed to namespace kb-system SUCCESSFULLY!
-> Basic commands for cluster:
kbcli cluster create -h # help information about creating a database cluster
kbcli cluster list # list all database clusters
kbcli cluster describe <cluster name> # get cluster information
-> Uninstall KubeBlocks:
kbcli kubeblocks uninstall列出所有的addon
# kbcli addon list
NAME TYPE PROVIDER STATUS AUTO-INSTALL AUTO-INSTALLABLE-SELECTOR EXTRAS
alertmanager-webhook-adaptor Helm apecloud Disabled false
apecloud-otel-collector Helm apecloud Disabled false
aws-load-balancer-controller Helm Disabled false {key=KubeGitVersion,op=Contains,values=[eks]}
csi-hostpath-driver Helm community Disabled false {key=KubeGitVersion,op=DoesNotContain,values=[eks aliyun gke tke aks]}
csi-s3 Helm community Disabled false daemonset
external-dns Helm Disabled false
fault-chaos-mesh Helm community Disabled false chaosDaemon,dashboard,dnsServer
grafana Helm community Disabled false
kubebench Helm community Disabled false
kubeblocks-csi-driver Helm Disabled false {key=KubeGitVersion,op=Contains,values=[eks]} node
loki Helm community Disabled false
migration Helm community Disabled false
milvus Helm community Disabled false
nebula Helm community Disabled false
nyancat Helm apecloud Disabled false
opensearch Helm community Disabled false
prometheus Helm community Disabled false alertmanager
pyroscope-server Helm community Disabled false
qdrant Helm community Disabled false
tdengine Helm community Disabled false
victoria-metrics-agent Helm community Disabled false
weaviate Helm community Disabled false
apecloud-mysql Helm apecloud Enabled true
kafka Helm community Enabled true
mongodb Helm community Enabled true
postgresql Helm community Enabled true
pulsar Helm community Enabled true
redis Helm community Enabled true
snapshot-controller Helm community Enabled true {key=KubeGitVersion,op=DoesNotContain,values=[tke aliyun]}开启用于监控相关的addon
[root@k8s-master01 ~]# kbcli addon enable grafana
addon.extensions.kubeblocks.io/grafana enabled
[root@k8s-master01 ~]# kbcli addon enable prometheus
addon.extensions.kubeblocks.io/prometheus enabled
[root@k8s-master01 ~]# kbcli addon enable alertmanager-webhook-adaptor
addon.extensions.kubeblocks.io/alertmanager-webhook-adaptor enabled
[root@k8s-master01 ~]# kbcli addon enable apecloud-otel-collector
addon.extensions.kubeblocks.io/apecloud-otel-collector enabled查看所有开启的addon状态
# kbcli kubeblocks status
KubeBlocks is deployed in namespace: kb-system,version: 0.6.4
KubeBlocks Workloads:
NAMESPACE KIND NAME READY PODS CPU(CORES) MEMORY(BYTES) CREATED-AT
kb-system Deployment kb-addon-alertmanager-webhook-adaptor 1/1 N/A N/A Oct 30,2023 15:51 UTC+0800
kb-system Deployment kb-addon-grafana 1/1 N/A N/A Oct 30,2023 15:50 UTC+0800
kb-system Deployment kb-addon-snapshot-controller 1/1 N/A N/A Oct 30,2023 15:41 UTC+0800
kb-system Deployment kubeblocks 1/1 N/A N/A Oct 30,2023 15:40 UTC+0800
kb-system Deployment kubeblocks-dataprotection 1/1 N/A N/A Oct 30,2023 15:40 UTC+0800
kb-system StatefulSet kb-addon-prometheus-alertmanager 1/1 N/A N/A Oct 30,2023 15:50 UTC+0800
kb-system StatefulSet kb-addon-prometheus-server 1/1 N/A N/A Oct 30,2023 15:50 UTC+0800
kb-system DaemonSet kb-addon-apecloud-otel-collector 2/2 N/A N/A Oct 30,2023 15:51 UTC+0800
KubeBlocks Addons:
NAME STATUS TYPE PROVIDER
alertmanager-webhook-adaptor Enabled Helm apecloud
apecloud-mysql Enabled Helm apecloud
apecloud-otel-collector Enabled Helm apecloud
aws-load-balancer-controller Disabled Helm N/A
csi-hostpath-driver Disabled Helm community
csi-s3 Disabled Helm community
external-dns Disabled Helm N/A
fault-chaos-mesh Disabled Helm community
grafana Enabled Helm community
kafka Enabled Helm community
kubebench Disabled Helm community
kubeblocks-csi-driver Disabled Helm N/A
loki Disabled Helm community
migration Disabled Helm community
milvus Disabled Helm community
mongodb Enabled Helm community
nebula Disabled Helm community
nyancat Disabled Helm apecloud
opensearch Disabled Helm community
postgresql Enabled Helm community
prometheus Enabled Helm community
pulsar Enabled Helm community
pyroscope-server Disabled Helm community
qdrant Disabled Helm community
redis Enabled Helm community
snapshot-controller Enabled Helm community
tdengine Disabled Helm community
victoria-metrics-agent Disabled Helm community
weaviate Disabled Helm community创建mysql集群
# kbcli cluster create mysql mycluster --monitoring-interval=15查看mysql集群
# kbcli cluster list
NAME NAMESPACE CLUSTER-DEFINITION VERSION TERMINATION-POLICY STATUS CREATED-TIME
mycluster default apecloud-mysql ac-mysql-8.0.30 Delete Creating Oct 30,2023 16:24 UTC+0800开启grafana dashboard

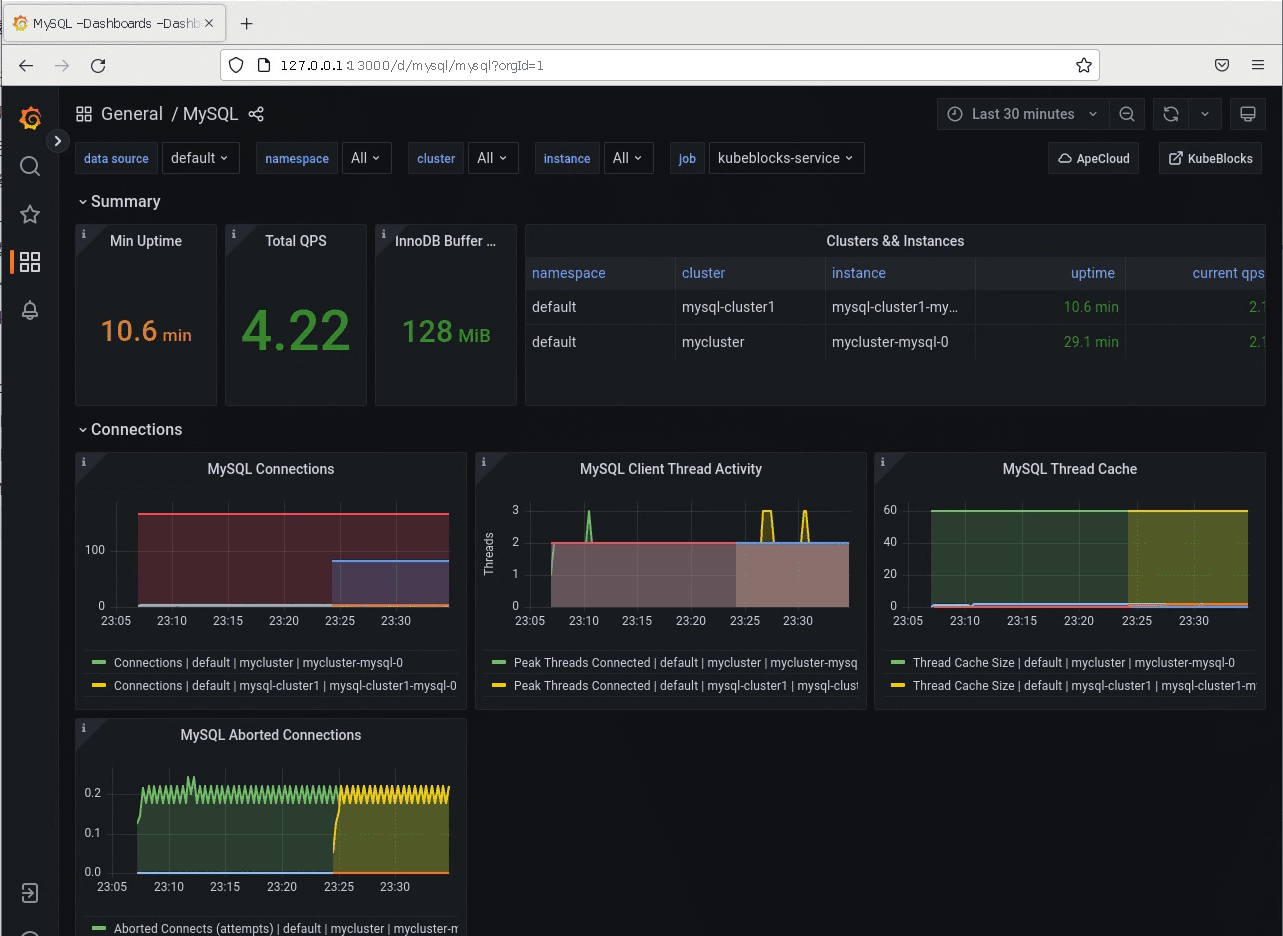

# kbcli dashboard open kubeblocks-grafana
开启prometheus dashboard

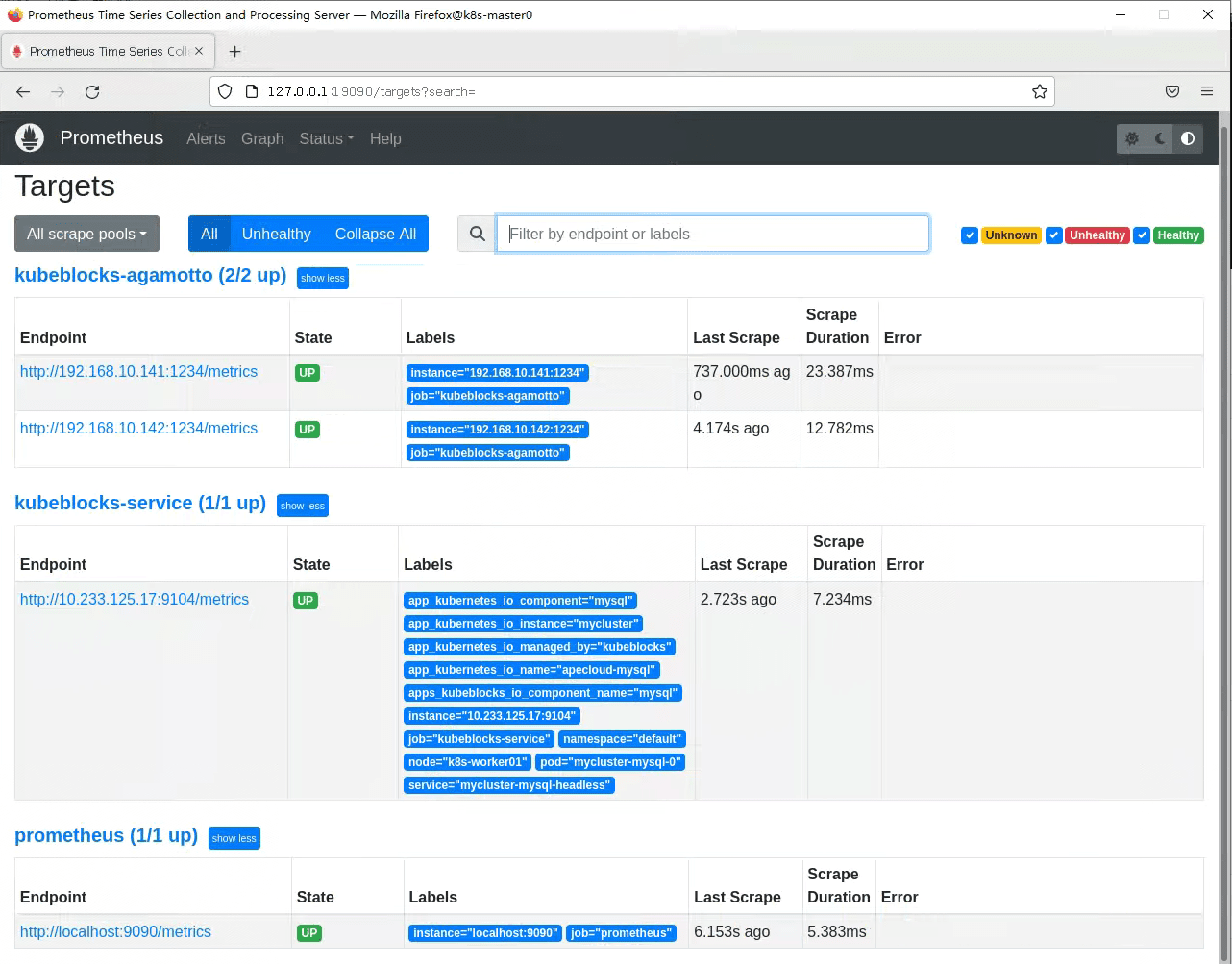

# kbcli dashboard open kubeblocks-prometheus-server
设置告警通知方式
# kbcli alert config-smtpserver \
--smtp-from nextgo@126.com \
--smtp-smarthost smtp.126.com:25 \
--smtp-auth-username nextgo@126.com \
--smtp-auth-password RXGFEHFQCLXAMFTP \
--smtp-auth-identity nextgo@126.com检查告警通知
# kbcli alert list-smtpserver
IDENTITY PASSWORD USERNAME FROM SMARTHOST
nextgo@126.com RXGFEHFQCLXAMFTP nextgo@126.com nextgo@126.com smtp.126.com:25添加电子邮件接收器
# kbcli alert add-receiver --email='nextgo@126.com'
Receiver receiver-8l7lw added successfully.查看电子邮件接收器
# kbcli alert list-receivers
NAME WEBHOOK EMAIL SLACK CLUSTER SEVERITY
default-receiver
receiver-8l7lw nextgo@126.comKubeBlocks 电子邮件警报现在支持接收来自指定集群且具有一定严重性的电子邮件。您可以使用
--cluster和--severity标志来设置此功能。
--cluster: 表示只接收指定集群的邮件。
# kbcli alert add-receiver --email='nextgo@126.com,flashgo@126.com' --cluster=mycluster
--severity：表示仅接收来自指定集群的邮件，警报级别为warning。
# kbcli alert add-receiver --email='nextgo@126.com,flashgo@126.com' --cluster=mycluster --severity=warning开启Alertmanager dashboard

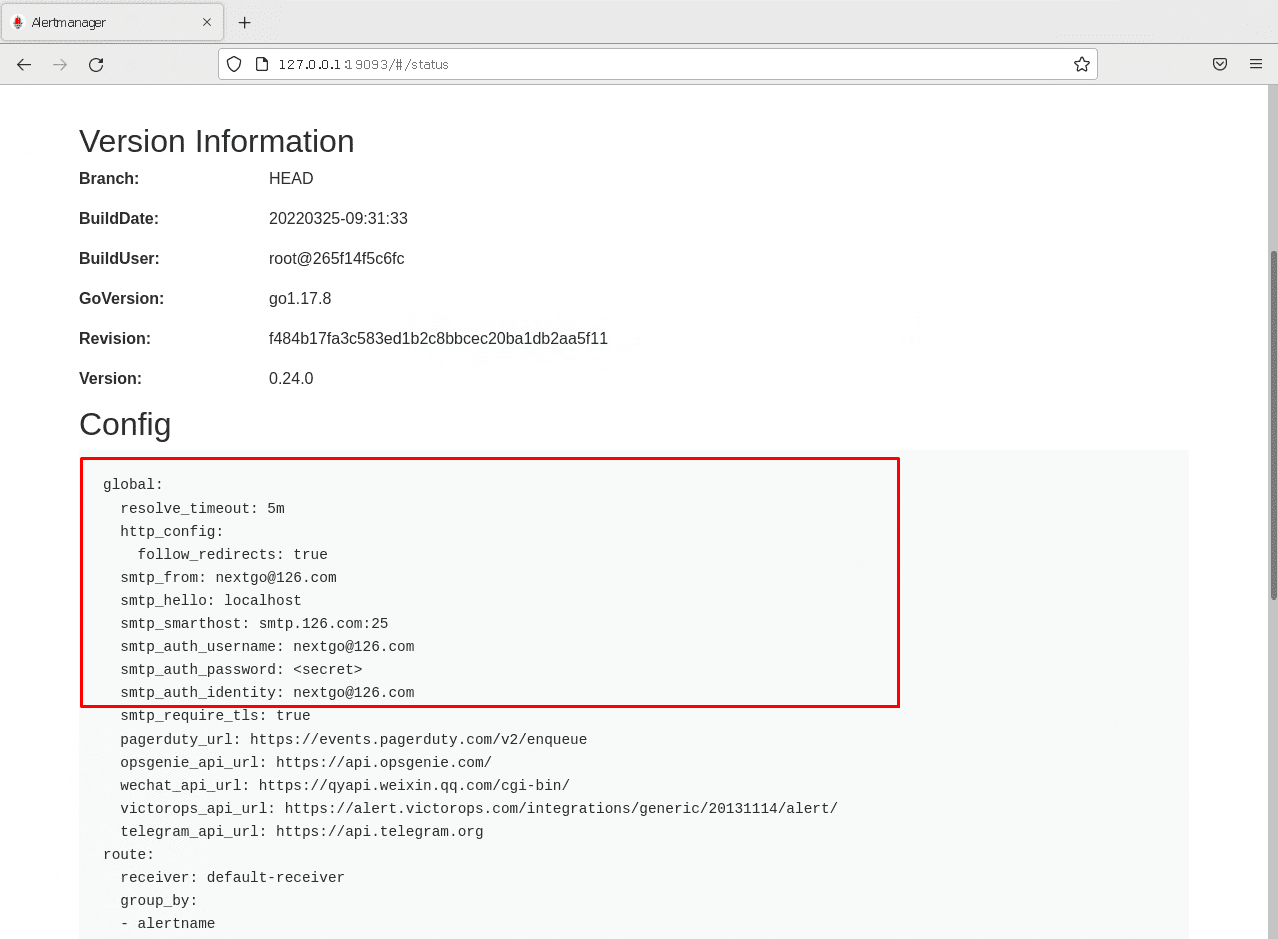

# kbcli dashboard open kubeblocks-prometheus-alertmanager
查看集群
# kbcli cluster list
NAME NAMESPACE CLUSTER-DEFINITION VERSION TERMINATION-POLICY STATUS CREATED-TIME
mycluster default apecloud-mysql ac-mysql-8.0.30 Delete Running Oct 30,2023 16:24 UTC+0800查看集群运行的pod
# kubectl get pods
NAME READY STATUS RESTARTS AGE
mycluster-mysql-0 5/5 Running 0 136m删除集群运行的pod
# kubectl delete pods mycluster-mysql-0

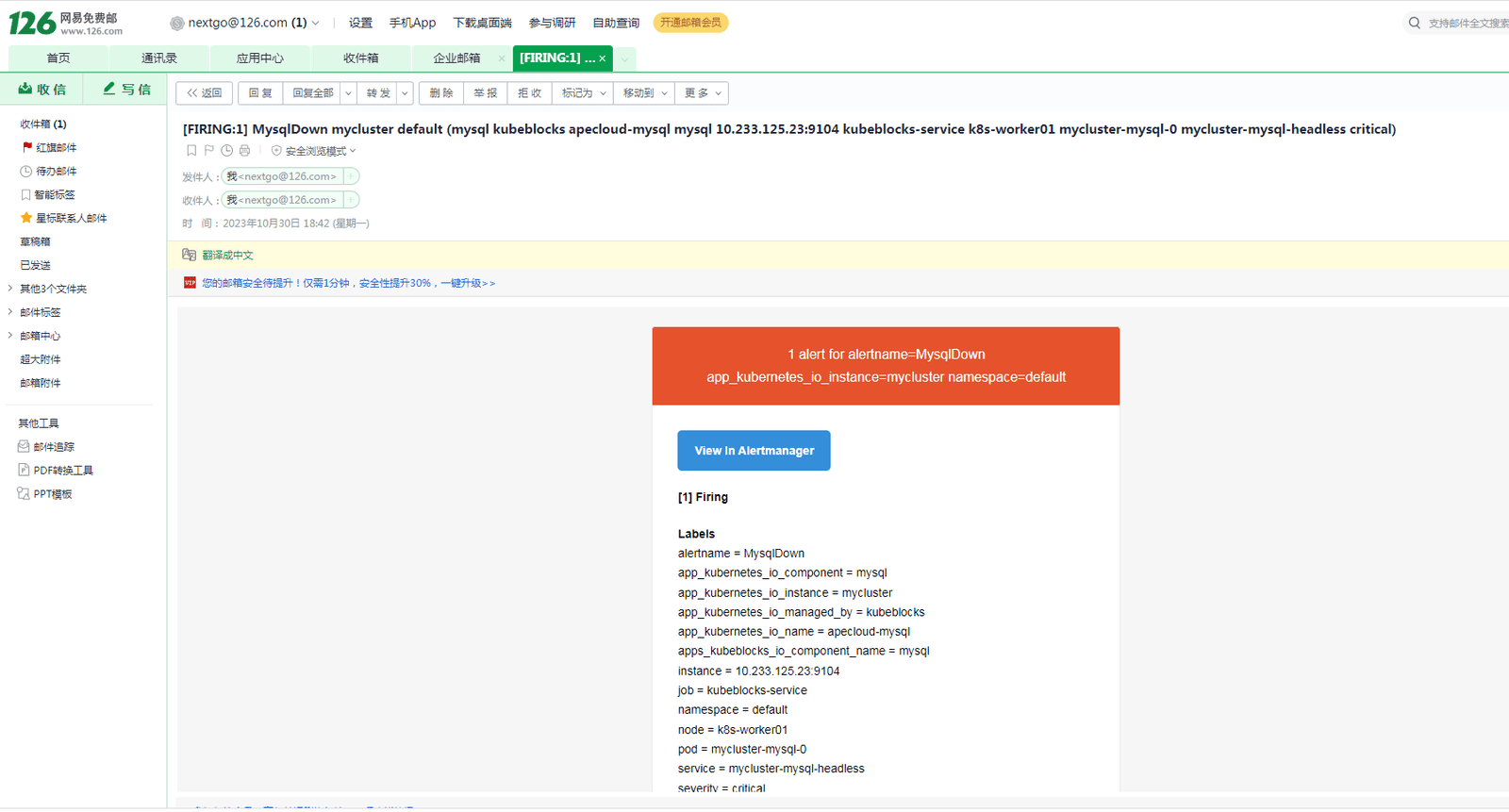

pod "mycluster-mysql-0" deleted登录邮箱查看告警通知
